173977-9
| Manufacturer | |
| Description | Conn IDC Connector RCP 9 POS 2mm IDT ST Cable Mount Bag/Box 2mm AMP CT CONN RCPT 9POS 28-26AWG 2MM Receptacle assembly, MT,2mm,IDC,9 way,CT Headers & Wire Housings 9P 2MM IDT Conn IDC Connector RCP 9 POS 2mm IDT ST Cable Mount Bag/Box Product Highlights:ConnectorConnector Type = Blindmate, MT (Mass Termination)Mating Type = ReceptacleNumber of Positions = 9Number of Rows = 1Search Keywords:Common Termination, wire-to-wire, hybrid power, discrete wire, flat shielded cable, Input/Output, NIC, Network Interface Cards, PC Cards, drawer, hybrid power, signal, pcb connectors, WIRE-BOARD CONN, RECEPTACLE, 9POS, 2MM CTCONNMTRECASSY9P Female cable connector Pitch2 mm Poles 9 CT, 173977-9, TE Connectivity TE Connectivity AMP CT 系列 2mm 节距 9 路 直 母 电缆安装 PCB 壳体 CT CONN MT REC ASSY 9P |
| Category |
Business
| Tradename | Common Termination | Product Category | Headers & Wire Housings |
| Standard Package | Bulk | Factory Pack Quantity | 1000 |
Compliance
| RoHS | Lead free / RoHS Compliant | Standards | IEC950 |
| Tariff No | 85366930 | Leadfree Defin | Not relevant for lead free process |
| Approval Agency | UL | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Range deg/s | :TE - AMP CT Series | Voltage Rating | 250V(Power),30V(Signal) |
| Current Rating (Max) | 10A(Power),2A(Signal) | ||
Mechanical
| Color | Natural | Depth | 5.1mm |
| Pitch | 2 mm | Width | 4.6mm |
| Length | 20mm | Weight | 0 |
| Packaging | Bulk | Wire Type | Discrete or Ribbon Cable |
| Wire Gauge | 26-28 AWG | Termination | IDT |
| Contact Type | Female Socket | Housing Color | White |
| Mounting Type | Free Hanging (In-Line) | Angle of Throw | Straight |
| Connector Type | IDC Mass Termination | Contact Finish | Pre-Tin |
| Mounting Style | Wire | Number of Rows | 1 |
| Connector Usage | Receptacle | Contact Material | Phosphor Bronze |
| Housing Material | PBT - GF | Length - Overall | 2.00 [0.079] |
| Panel Mount Type | Without | Primary Material | HighCurrent |
| Cable Termination | IDC | Pin Hole Diameter | 0.079" |
| Termination Style | IDC | 1st Contact Gender | Socket (Female) |
| Number of Contacts | 9 | Contact Termination | :IDC / IDT |
| Insulation Diameter | 0.85 â 1.05 [0.034 â 0.041] | Number of Positions | 9 |
| Wire Gauge or Range - mm2 | 0.08-0.15² [28-26] | ||
Product Info
| Type | IDC Connector | Gender | RCP |
| Series | MT | Features | Closed End |
| Manufacturer | MTSeries | Product Type | Connector |
| Connection Type | Wire | For Use With/Related Products | Wire-to-Board Connector |
Documents & Media
Similar Parts
58075-1
te connectivity / amp
Assembly Tools, High Density Connector Terminating Head Hand Tools PNEUMATIC HANDLE W/O HEAD TOOL HANDLE PNEUMATIC W/O HEAD
58372-1
te connectivity / amp
Connector Accessories Terminating Head Hand Tools 2MM HEAD W/O TOOL TOOL HEAD ASSEM 2MM TERMINATER Tools, Crimp HEAD (IDC) 2MM C.T. W/O TL Tool head for IDC termination l, 58372-1, TE Connectivity TE Connectivity 2mm CT 系列
292134-9
te connectivity / amp
Conn Shrouded Header HDR 9 POS 2mm Solder ST Thru-Hole Bag 2mm AMP CT CONN HDR 9POS VERT 2MM WHT T/H Headers & Wire Housings BOX HDR V 9P AU W/KINK CT BOX HDR ASSY V 9P AU W/KINK CT BOX HDR ASSY V 9P AU W/KINK Search Keywords:Common Termination, wire-to-wire, hybrid power, discrete wire, flat shielded cable, Input/Output, NIC, Network Interface Cards, PC Cards, drawer, hybrid power, signal, pcb connectors,
656154-1
te connectivity / amp
MTIS.HANDTOOL Hand Tools MTIS HANDTOOL TOOL HAND PISTOL GRIP MTIS

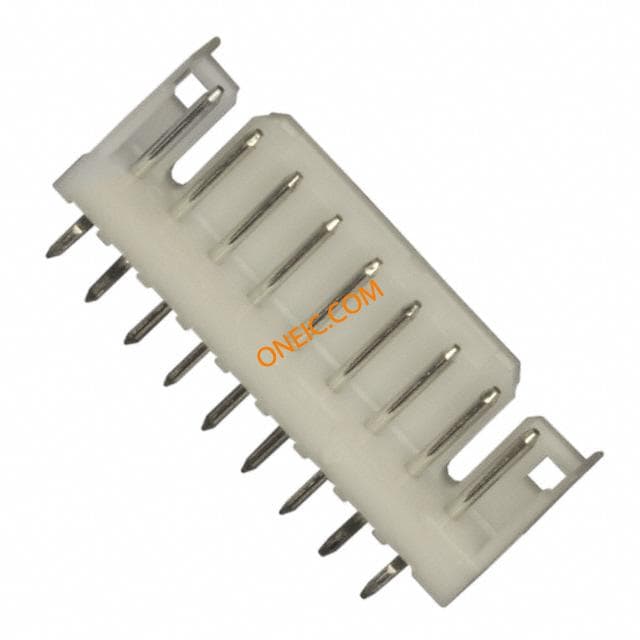

292161-9
