1734829-7
| Manufacturer | |
| Description | Conn Shrouded Header HDR 7 POS 1.25mm Solder RA Thru-Hole Tube Headers & Wire Housings 7 POS HDR R/A 1.25mm CONN HEADER 7POS R/A 1.25MM T/H 1.25 WTB HDR DIP, 7 POS 1.25 WTB HDR DIP, 7 POS Search Keywords:high performance, square peg, pcb connectors, wire to board, power, crimp, discrete wire connectors, wire to board, signal |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Pack | 58 | Product Category | Headers & Wire Housings |
| Standard Package | Rail / Tube | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Material Flammability Rating | UL 94V-0 |
Electrical
| Voltage - Supply | 125 | Current Rating (Max) | .8 |
Mechanical
| Color | Natural | Pitch | 1.25 mm |
| Width | 4.7 mm [ .185 in ] | Height | 3.2 mm [ .126 in ] |
| Length | 10.5 mm [ .413 in ] | Packaging | Tube |
| Tail Type | 直式 | Body Color | 自然 |
| Cable Type | 分离式导线 | Wire Gauge | 32 – 26 |
| Termination | Solder | Contact Type | Male Pin |
| Mounting Type | Through Hole, Right Angle | Connector Type | Header, Shrouded |
| Contact Finish | Tin Over Nickel | Contact Timing | Without |
| Mounting Style | 不带 | Number of Rows | 1 |
| Plating - Body | Tin | Insert Material | 磷青铜 |
| Contact Material | Phosphor Bronze | Housing Material | 热塑塑料 |
| Material - Frame | Phosphor Bronze | Package Quantity | 58 |
| Panel Mount Type | 通孔 | Termination Style | Through Hole |
| 1st Contact Gender | Pin (Male) | Number of Contacts | 7 |
| Termination Finish | 不带 | Number of Positions | 7 |

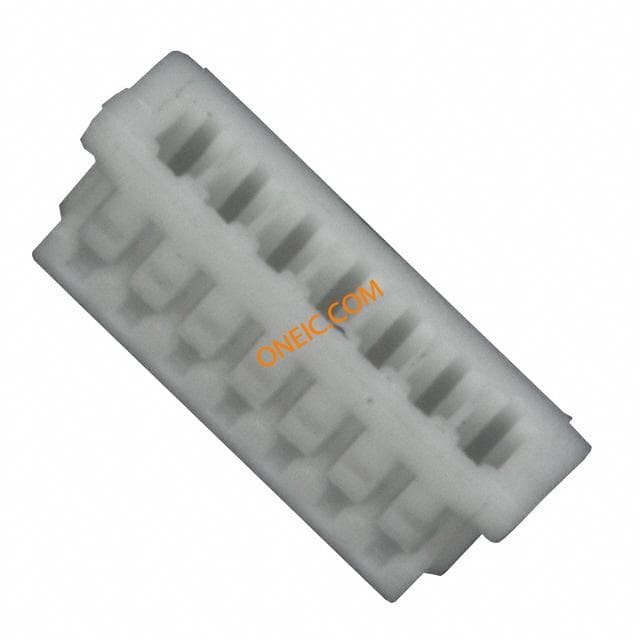

| Compatible Shell Size | 440146-x | Contact Length - Post | 2.3 mm [ .091 in ] |
| Contact Finish - Mating | 锡 | Contact Layout, Typical | 同轴 |
| Surface Mount Land Size | Without | Termination Post Length | .091 in, 2.3 mm |
| Contact Finish Thickness | 100µin (2.54µm) | Contact Material - Plating | Tin: Matte |
| Static Discharge Shielding | 不带 | ||
Product Info
| Type | Shrouded Header | Gender | HDR |
| Series | HPI | Sealable | 否 |
| Product Type | Headers | Selectively Loaded | No |
| Number of Positions Loaded | All | ||
Environmental
| Operating Temperature | -25 – 85 °C [ -13 – 185 °F ] | ||
