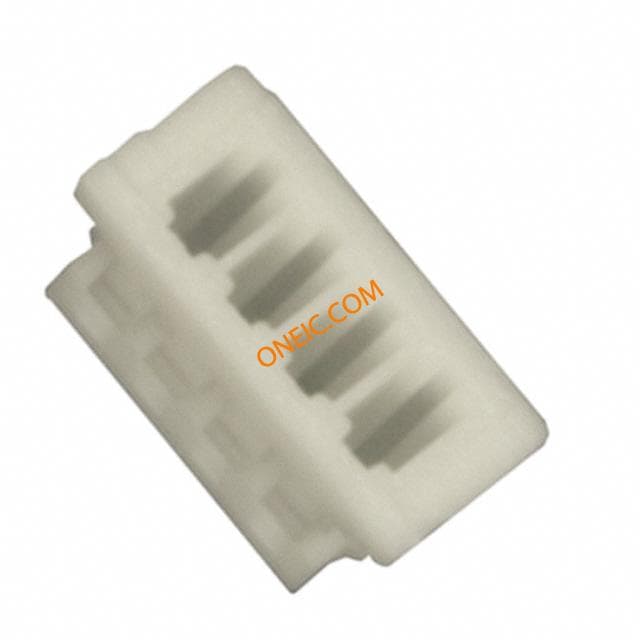

1734598-4
| Manufacturer | |
| Description | Conn High Performance Interconnect HDR 4 POS 1.25mm Solder ST Thru-Hole Tube High Performance Interconnects (HPI) CONN HEADER 4POS 1.25MM VERT T/H Headers & Wire Housings 4 POS HDR VERT 1.25mm 1.25 WTB HDR DIP, 4 POS 1.25 WTB HDR DIP, 4 POS Search Keywords:high performance, square peg, pcb connectors, wire to board, power, crimp, discrete wire connectors, wire to board, signal |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Pack | 90 | Product Category | Headers & Wire Housings |
| Standard Package | Rail / Tube | Factory Pack Quantity | 1 |
Compliance
| RoHS | Lead free / RoHS Compliant | Leadfree Defin | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| RoHSELV Compliance | RoHS compliant, ELV compliant | Material Flammability Rating | UL 94V-0 |
Electrical
| Voltage - Supply | 100 | Current Rating (Max) | .8 |
Mechanical
| Color | Natural | Pitch | 1.25 mm |
| Width | 3.2 mm [ .126 in ] | Height | 4.7 mm [ .185 in ] |
| Length | 6.75 mm [ .266 in ] | Packaging | Tube |
| Tail Type | 直式 | Body Color | 自然 |
| Cable Type | 分离式导线 | Wire Gauge | 28 |
| Termination | Solder | Contact Type | Male Pin |
| Core Material | 磷青铜 | Housing Color | Natural |
| Mounting Type | Vertical | Cable Material | 镍打底镀锡 |
| Connector Type | Header, Shrouded | Contact Finish | Tin Over Nickel |
| Contact Timing | Without | Mounting Style | Through-Hole |
| Number of Rows | 1 | Insert Material | 磷青铜 |
| Contact Material | Copper Alloy | Housing Material | High Temperature Thermoplastic |
| Length - Overall | 1.25 [0.049] | Material - Frame | Phosphor Bronze |
| Mounting Feature | 不带 | Package Quantity | 90 Pieces/Tube |
| Panel Mount Type | 通孔 | Termination Style | Through Hole |
| 1st Contact Gender | Pin (Male) | Number of Contacts | 4 |
| Termination Finish | 不带 | Number of Positions | 4 |
| Bushing, Grommet Type | 不带 | Compatible Shell Size | 440146-x |
| Contact Length - Post | 1.7 mm [ .067 in ] | Mounting Hole Diameter | 带有 |
| Contact Finish - Mating | 锡 | Contact Layout, Typical | 同轴 |
| Termination Post Length | 1.70 [0.067] | Contact Finish Thickness | 120µin (3.05µm) |
| Static Discharge Shielding | 不带 | ||
Product Info
| Type | High Performance Interconnect | Gender | HDR |
| Series | HPI | Sealable | 否 |
| Product Type | Header | Selectively Loaded | 否 |
| Number of Positions Loaded | All | ||
Environmental
| Operating Temperature | -25 – 85 °C [ -13 – 185 °F ] | ||
