1734101-5
| Manufacturer | |
| Description | Conn SCSI RCP 50 POS 2.54mm Solder ST Thru-Hole 50 Terminal 1 Port 1.27 [.050] Series I, HD, FH and J Connectors CONN RCPT 50POS VERT .050 T/H Board to Board & Mezzanine Connectors 050 RCPT 50pos 30 Au 1.27 [.050] Series I, HD, FH and J Connectors Product Highlights:ConnectorReceptacleNumber of Positions = 501.27 mm CenterlineStandard Profile Champ050 series,50pos,Au over PdNi |
| Category |
Business
| Standard Pack | 54 | Product Category | Board to Board & Mezzanine Connectors |
| Standard Package | Rail / Tube | Factory Pack Quantity | 1296 |
Compliance
| RoHS | Lead free / RoHS Compliant | Leadfree Defin | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| RoHSELV Compliance | RoHS compliant, ELV compliant | Material Flammability Rating | UL 94V-0 |
Electrical
| Switch Function | With | Resistance - Input | 1000 |
| Voltage - Clamping | 750 | Voltage - Rated AC | 250 |
| Current Rating (Max) | 1 | ||
Mechanical
| Color | Black | Pitch | 2.54 mm |
| Height | 10 mm [ .393 in ] | Plating | 哑光 |
| Packaging | Tube | Body Color | 黑色 |
| Termination | Solder | Polarization | Keying Post |
| Actuator Type | 带有 | Mounting Type | Through Hole |
| Connector Type | Series I | Contact Finish | Tin |
| Material - Tip | Brass | Mounting Style | Thru Hole |
| Number of Rows | 2 | Plating - Body | Tin-Copper over Nickel |
| Connector Style | Outer Shroud Contacts | Insert Material | 磷青铜 |
| Profile (W x H) | Standard | Contact Material | Phosphor Bronze |
| Housing Material | PPA | Length - Overall | 1.27 [0.050] |
| Mounting Feature | 板锁 | Package Quantity | 54 |
| Panel Mount Type | 通孔 | Termination Style | Through Hole |
| Number of Contacts | 50 | Number of Positions | 50 |
| Bushing, Grommet Type | 不带 | Compatible Shell Size | 插头组件 |
| Contact Length - Post | 2.54 mm [ .099822 in ] | Contact Layout, Typical | 网络 |
| Termination Post Length | 2.54 [0.100] | Contact Finish Thickness | Flash |
Product Info
| Type | SCSI | Gender | RCP |
| Series | Series I | Features | Board Guide, Board Lock |
| Stackable | 否 | Manufacturer | AMP |
| Product Type | Connector | Assembly Configuration | 无 |
| For Use With/Related Products | Board To Board Applications | ||
Environmental
| Temperature Rating | Standard | Operating Temperature | -55 – 85 °C [ -67 – 185 °F ] |
| Thermal Resistance of Package | .8 – 1.6 mm [ .031 – .063 in ] | ||
Documents & Media
Similar Parts
1734100-5
te connectivity / amp
Conn SCSI PL 50 POS 2.54mm Solder ST Thru-Hole 50 Terminal 1 Port 1.27 [.050] Series I, HD, FH and J Connectors CONN PLUG 50POS VERT .050 T/H Board to Board & Mezzanine Connectors 050 SER I 50P PLUG ASSY Conn SCSI PL 50 POS 2.54mm Solder ST Thru-Hole 50 Terminal 1 Port Product Highlights:ConnectorApplies To Printed Circuit BoardHousing Gender = Plug50 Positions1.27 mm Centerline Champ050 series,50pos,Au over PdNi
5-5175473-6
te connectivity / amp

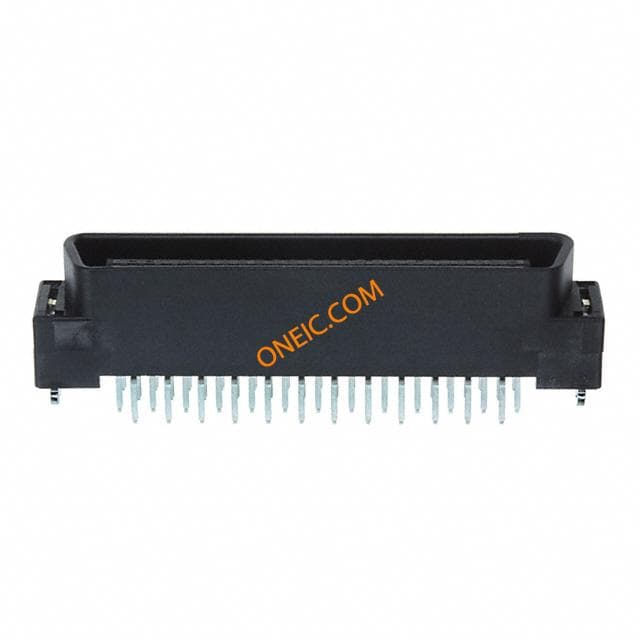

Conn SCSI PL 50 POS 2.54mm Solder ST Thru-Hole 50 Terminal 1 Port 1.27 [.050] Series I, HD, FH and J Connectors .050CL,CHAMP,VERT PLUG,50 POSN AMP CHAMP .050 Plug Vertical 50P I/O Connectors VERT PLUG 50P Series I w/locks Conn SCSI PL 50 POS 2.54mm Solder ST Thru-Hole 50 Terminal 1 Port Product Highlights:ConnectorPlugNumber of Positions = 501.27 mm CenterlineStandard Profile INTERFACE CONNECTOR, PLUG, 50POS, THRU HOLE VERT .050CL,CHAMP,VERTPLUG,50POSN
