172168-1
| Manufacturer | |
| Description | Conn Housing PL 6 POS 4.2mm Crimp ST Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN PLUG 6POS MINI UNIV-MATE 6 way cable plug Min Mate-N-Lok Pin & Socket Connectors 6CKT MATE-N-LOK HSG Conn Housing PL 6 POS 4.2mm Crimp ST Loose Piece Product Highlights:HousingMini-Universal MATE-N-LOKNumber of Circuits = 64.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP CONNECTOR HOUSING, PLUG, 6 WAY, NYLON Connector,SoftShell;6;600VAC;Plug;Double-Row;Nylon;Plug;Natural Plug; wire-wire; female; 4.14mm; PIN:6; UL94V-2; Pin layout:2x3 Pin housing 4.14 mm Poles 2 x 3 Double row / Free hanging/cable mount / straight / accepts male or female contacts MATE-N-LOK Mini Universal, 172168-1, TE Connectivity TE Connectivity Mini-Universal Mate-N-Lok 系列 2 行 4.2mm 节距 6 路 直 公 压接连接器外壳 6 CIR UNIV M-N-L PLUG |
| Category |
Business
| Product Category | Pin & Socket Connectors | Standard Package | Bulk |
| Factory Pack Quantity | 500 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85369010 | Leadfree Defin | Not relevant for lead free process |
| Approval Agency | :CSA, UL | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Voltage Rating | 600 V | Voltage - Supply | 600 |
| Voltage - Working | :600V | Contact Resistance | 10mΩ |
| Current Rating (Max) | 9.5 A | Voltage - Input (Min) | 600VAC |
| Voltage - Supply (Min) | 600VAC | Connector - Voltage Input | Mini-Universal MATE-N-LOK |
Mechanical
| Color | Natural | Depth | 23.7mm |
| Pitch | 4.2 mm | Length | 14mm |
| Weight | 0.001 | Lock Type | Positive Lock |
| Packaging | Loose Piece | Row Spacing | 0.163" (4.14mm) |
| Contact Type | Male or Female | Pitch - Post | 4.14mm |
| Housing Color | Natural | Mounting Type | Straight |
| Connector Type | Plug | Fastening Type | Latch Lock |
| Mounting Style | Free Hanging | Number of Rows | 2 |
| Locking Feature | :Latch | Material - Body | :Nylon 6.6 (Polyamide 6.6) |
| Housing Material | Nylon | Length - Overall | 14 mm |
| Package Quantity | One Piece Housing | Size / Dimension | see |
| Connector - Cable | plug | Termination Style | Crimp |
| 1st Contact Gender | Pin (Male) | Number of Contacts | 6 |
| Contact Termination | Crimp | Number of Positions | 6 |
| Center Contact Material | 4.14 x 4.14 [.163 x .163] | Contact Layout, Typical | Double-Row |
| Contact Finish Thickness | 0.99 [0.039] | Wire Gauge or Range - AWG | 30-16 |
| Material - Housing & Prism | polyamide | 1st Connector Mounting Feature | 2x3 |
Product Info
| Spg | 250 | Note | Contacts Not Provided |
| Type | Housing | Gender | PL |
| Series | MATE-N-LOK | Product Type | Housing |
| Adapter Series | Mini Universal MATE-N-LOK | Number of Units | 1 |
| Module/Board Type | No | Number of Circuits | 6 |
| For Use With/Related Products | Wire-to-Board Connector | ||
Environmental
| Operating Temperature | -20C to 105C | ||
Documents & Media
Similar Parts

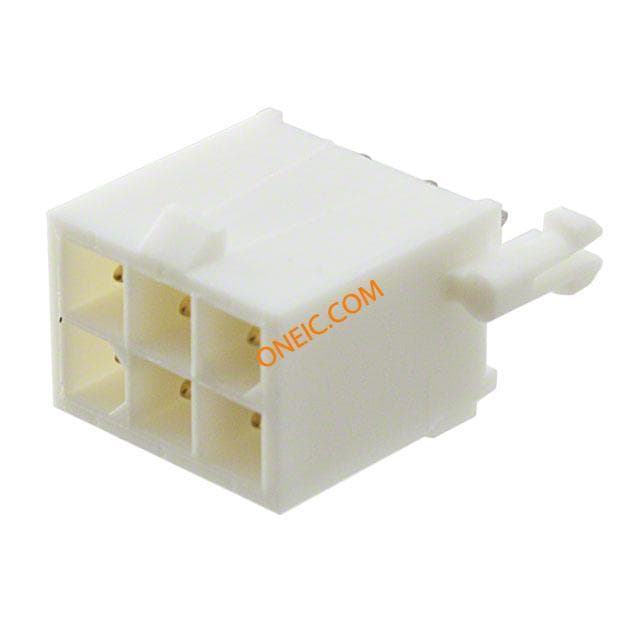

770178-2
