172063-3
| Manufacturer | |
| Description | Conn Housing PL 8 POS Crimp ST Lower Power Drawer - AMP DRAWER CONN 8P MALE Power to the Board DRAWER CONN 8P MALE Drawer Connectors Drawer Connectors Product Highlights:HousingPlugDrawer Style = StandardNumber of Positions = 8Not PreloadedSearch Keywords:NIC, Network Interface Cards, PC Cards, card edge, 1.0 mm Micro-Drawer, MPD, |
| Category |
Business
| Standard Pack | 180 | Standard Package | Bulk |
| Factory Pack Quantity | 180 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Leadfree Defin | Not relevant for lead free process |
| RoHSELV Compliance | RoHS compliant / ELV compliant | Material Flammability Rating | UL 94V-0 |
Electrical
| Voltage - Supply | 250 | Connector Impedance | 压接 |
| Current Rating (Max) | 15 | Current - Output High, Low | No |
Mechanical
| Color | Blue | Pitch | 5 mm [ .197 in ] |
| Width | 32.5 | Height | 26.3 mm [ 1.035 in ] |
| Length | 51.2 mm [ 2.02 in ] | Packaging | Bulk |
| Wire Gauge | 14 – 24 | Housing Color | Blue |
| Mounting Type | Straight | Connector Type | Housing |
| Flange Feature | 否 | Mounting Style | 不带 |
| Number of Rows | 2 | Connector Style | Drawer |
| Connector Usage | Plug | Insert Material | 磷青铜 |
| Panel Thickness | 1.6 | Housing Material | PBT - GF |
| Panel Mount Type | 带有 | Termination Style | 插针 |
| Number of Contacts | 8 | Number of Positions | 8 |
| Contact Length - Post | 电源 | Mounting Hole Diameter | 4.30 |
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | PL | Features | Guide Pin |
| Preloaded | No | Manufacturer | AMP |
| Product Type | Connector | Drawer Quantity | Standard |
| Number of Columns | 4 | Other Specifications | 6.6 |
Environmental
| Operating Temperature | -20 – 120 | ||
Documents & Media
Similar Parts

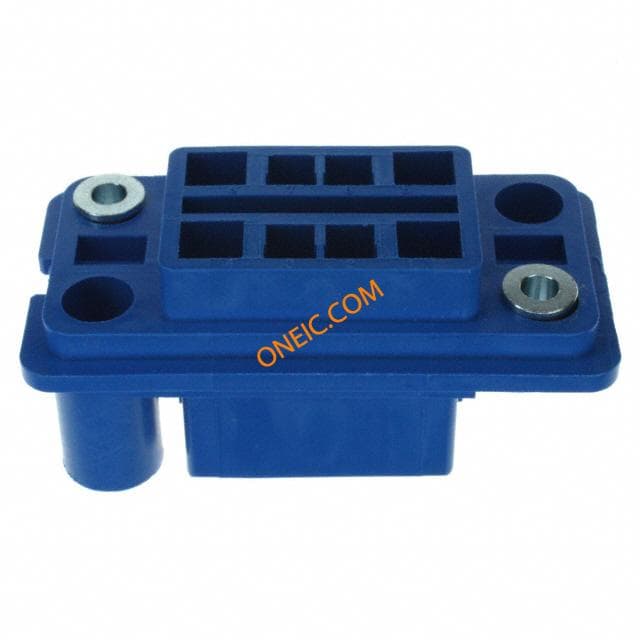

172070-1
