170366-1
| Manufacturer | |
| Description | Contact SKT Crimp ST Cable Mount Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN SOCKET 18-22AWG TIN M-UMNL Mate-N-Lok socket contact,22-18awg Power to the Board SKT 22-18 AWG BULK Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactMini-Universal MATE-N-LOKSocketLoose PieceWire Range = 0.30-0.90² [22-18] mm [AWG], (2) 0.30-0.40² [(2) 22] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP CONTACT, SOCKET, 22AWG TO 18AWG, CRIMP MINIUNIVERSALM-N-LSOCKET,22-18AWG Contact; female; 0.3÷0.89mm2; 22÷18AWG; tinned; for cable; 5A Crimp socket 9.5 A Female 22...18 AWG, 170366-1, TE Connectivity TE Connectivity Mini-Universal Mate-N-Lok 系列 母 压接接线端子, 压接, 镀锡触点 MINI UNIVERSAL M-N-L SOCKET LP |
| Category |
Business
| Other Names | 1703661 | Product Category | Power to the Board |
| Standard Package | Bulk | Factory Pack Quantity | 1000 |
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
| Approval Agency | :CSA, UL, VDE | ||
Electrical
| Voltage Rating | 600 V | Contact Resistance | 10mΩ |
| Current Rating (Max) | 9.5 A | Voltage - Supply (Min) | 600VAC |
| Connector - Voltage Input | Mini-UniversalMATE-N-LOK | ||
Mechanical
| Depth | 3.6 mm | Pitch | Not Required mm |
| Height | 4.4 mm | Weight | 0.014 |
| Plating | Tin | Material | Brass |
| Packaging | Bulk | Wire Gauge | 18-22 AWG |
| Termination | Crimp | Contact Size | :18 |
| Contact Type | Signal | Pitch - Post | 4.14mm |
| Housing Color | Not Required | Mounting Type | Straight |
| Pin or Socket | Socket | Connector Type | Connector Headers and PCB Receptacles |
| Contact Finish | Pre-Tin | Mounting Style | Cable |
| Contact Material | Brass | Housing Material | Not Required |
| Length - Overall | 17.5 mm | Package Quantity | 300 |
| Primary Material | Contact | Size / Dimension | see |
| Connector - Cable | contact | Termination Style | Quick Connect |
| 1st Contact Gender | Socket (Female) | Color - Connectors | :Clear |
| Number of Contacts | Not Required | Contact Termination | Crimp |
| Insulation Diameter | 1.50-2.40or3.40Max.in. | Wire Gauge or Range - AWG | 22-18 |
| Wire Gauge or Range - mm2 | :0.89mm² | Contact Material - Plating | tinned |
| Diameter - Outside, Non-Expanded | :2.4mm | ||
Product Info
| Spg | 300 | Type | Stamped |
| Gender | SKT | Series | :Mini Universal Mate-N-Lok Sealed |
| Manufacturer | Mini-UniversalMATE-N-LOK | Product Type | Contacts |
| Adapter Series | Mini Universal MATE-N-LOK | Number of Units | 1 |
| For Use With/Related Products | :Mini-Universal MATE-N-LOK Connectors | ||
Environmental
| Operating Temperature | +105°C | ||
Documents & Media
Similar Parts
189727-1
te connectivity / amp
EXTRACTION TOOL Hand Tools EXTRACTION TOOL MiniUniversal MATE-N-LOK Extraction tool EXTRACTION TOOL FOR MINI-UNIVERSAL MATE-N-LOK CONTACTS Extraction Tool For Mini Universal Mate-N-Lock Contacts TOOL,CONTACTEXTRACTION Tool: for demounting of terminals; terminals Ejector tool for M-UMNL, 189727-1, TE Connectivity
1-172162-2
te connectivity / amp
Conn Housing RCP 12 POS 4.2mm ST Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN RCPT HOUSING 12POS .163" Pin & Socket Connectors RCPT HSG 12P .163 Conn Housing RCP 12 POS 4.2mm ST Loose Piece Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP 12 POS TR MINI UNIV
172330-1
te connectivity / amp
Conn Housing RCP 4 POS 4.2mm Crimp ST Individual .163" Centerline, 600 V, 9.5 A max. CONN RECEPT/CAP 4POS MATE-N-LOK Plug housing 4 way Mate-n-Lok Pin & Socket Connectors MINI CAP HSG 4P NAT Conn Housing RCP 4 POS 4.2mm Crimp ST Individual Product Highlights:HousingMini-Universal MATE-N-LOKNumber of Circuits = 44.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP SOCKET HOUSING, 4WAY Mini-UniversalMate-N-Lok;4PositionCap;UL94V-2;Natural Plug/socket; wire-wire; male/female; w/o terminals; 4.14mm; PIN:4 Socket housing Pitch4.14 mm Poles 2 x 2 Double row / straight / for panel mount / accepts male or female contacts MATE-N-LOK Mini Universal, 172330-1, TE Connectivity TE Connectivity Mini-Universal Mate-N-Lok 系列 2 行 4.2mm 节距 4 路 直 母 压接连接器外壳 MINI UNIVERSAL MATE-N-LOK CAP HOUSING 4P
91522-1
te connectivity / amp
General Hand Tool Used In The Aircraft And Military Industries Crimpers CERTICRIMP 2 SAHT MI MINI UNIV M-N-L TOOL CRIMP 18-22WAG MINI UMNL Mate-N-Lok crimp tool,22-18awg TOOLS, HYDRAULIC CRIMP Crimper;SAHTRatchet;22-18AWG;MiniCPC,UniversalMATE-N-LOK;CERTI-CRIMPII Crimping tool, 91522-1, TE Connectivity TE Connectivity CERTI-CRIMP II 系列 Mini-Universal MATE-N-LOK Contacts 压接工具 , 适用于22 → 18 AWG 线规格 CERTICRIMP 2,SAHT MINI UMNL
1-172339-9
te connectivity / amp
Conn Housing PL 6 POS 4.2mm Crimp ST Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN PLUG 6POS MINI-UMNL BLACK Pin & Socket Connectors PLUG 6P MINI BLK
1-172329-5
te connectivity / amp
Conn Housing RCP 3 POS 4.2mm Crimp ST Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN CAP 3POS MINI-U-MNL GREEN
1445807-3
te connectivity / amp
Conn Housing RCP 9 POS ST Miniature CPC (Circular Plastic Connector) CONN PLUG HOUSING 11-9POS CPC 9 Pole Female Straight Industrial & Automation Circular Connector Standard Circular Connector PLUG 11-9 Conn Housing RCP 9 POS ST Product Highlights:HousingPlugShell Size = 11Number of Positions = 9Insulation Diameter = 1.50 - 2.39 mmSearch Keywords:IP 67, wire to wire, wire to board, wire to panel, input/output, box to box, circular industrial, sealed, discrete wire, crimp, Mini CPC, Miniature CPC, circular plastic connector, miniature circular plastic connector CIRCULAR CONNECTOR, PLUG, 9 WAY, CABLE Connector;MiniCPC;Sealed;PlugAssy;9Pos.;ShellSz.11;IP67;StdKey Cable connector, Mini CPC 9-pin Poles=9, 1445807-3, TE Connectivity TE Connectivity 9路 直向 连接器 插座 PLUG,11-9,LG INS,STD KEY
1-172330-5
te connectivity / amp
Conn Housing RCP 8 POS 4.2mm Crimp ST Cable Mount Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN CAP 4POS MINI-U-MNL GREEN
1-172340-5
te connectivity / amp
Conn Housing PL 9 POS 4.2mm Crimp ST Cable Mount Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN PLUG 9POS MINI-UMNL GREEN
455830-1
te connectivity / amp
Straight Action Hand Tool Hand Tools INSERTION TOOL TOOL INSERTIONF UNI-MATE-II TOOL; CONTACT INSERTION INSERTION TOOL FOR MATE-N-LOCK CONTACTS TOOL,CONTACTINSERTION Insertion tool, 455830-1, TE Connectivity INSERTION TOOL
172331-1
te connectivity / amp
Conn Housing RCP 6 POS 4.2mm Crimp ST Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN RCPT/CAP 6POS MINI-U M-N-L Female Compact Power Connector Socket,9.5A 600V ac Pin & Socket Connectors CAP HOUSING 6P Conn Housing RCP 6 POS 4.2mm Crimp ST Loose Piece Product Highlights:HousingMini-Universal MATE-N-LOKNumber of Circuits = 64.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP SOCKET HOUSING, 6WAY PLUG AND SOCKET CONNECTOR HOUSING Connector,SoftShell;6;600VAC;Receptacle(Cap);Double-Row;Nylon;Natural Socket housing Pitch4.14 mm Poles 2 x 3 Double row / straight / for panel mount / accepts male or female contacts MATE-N-LOK Mini Universal, 172331-1, TE Connectivity TE Connectivity 线对线连接器 插座 母, 9.5A 600 V 交流 MINI UNIVERSAL MATE-N-LOK CAP HOUSING 6P
1445819-3
te connectivity / amp
Conn Housing RCP 6 POS ST Standard Circular Connector PLUG SIZE 11 6 POS STD KEY Miniature CPC (Circular Plastic Connector) CONN PLUG HOUSING 11-6POS CPC Conn Housing RCP 6 POS ST Search Keywords:IP 67, wire to wire, wire to board, wire to panel, input/output, box to box, circular industrial, sealed, discrete wire, crimp, Mini CPC, Miniature CPC, circular plastic connector, miniature circular plastic connector CPC MINI PLUG, SZ 11, 6 POS, FREE HANGING PLUG,11-6,LG INS,STD KEY
1-172333-6
te connectivity / amp
Conn Housing RCP 12 POS 4.2mm ST Panel Mount Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN CAP 12PS MINI-U-MNL BLUE
734202-1
te connectivity / amp

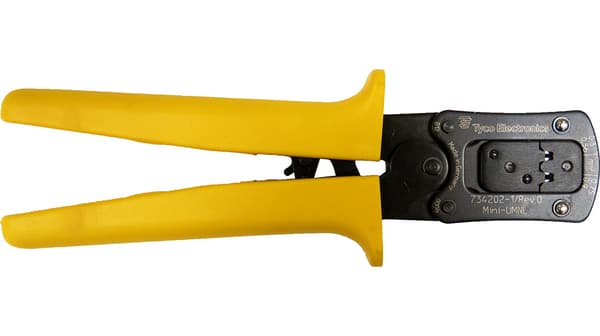

CERTI-LOK MINI-UMNL Hand Tools CERTI-LOK MINI-UMNL TOOL HAND CERTI-LOK MINI-UMNL Mini-Universal Mate-N-Lok Crimping tool, 734202-1, TE Connectivity
