170364-1
| Manufacturer | |
| Description | Contact PIN Crimp ST Cable Mount Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN PIN 18-22AWG PRE-TIN M-UMNL Mate-N-Lok pin contact,22-18awg Power to the Board PIN 22-18 AWG BULK Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactMini-Universal MATE-N-LOKPinLoose PieceWire Range = 0.30-0.90² [22-18] mm [AWG], (2) 0.30-0.40² [(2) 22] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP CRIMP PIN, 22-18AWG MINIUNIVERSALM-N-LPIN;22AWG;Brass/Pre-Tin Contact; male; 0.3÷0.89mm2; 22÷18AWG; Mini Universal MATE-N-LOK MATE-N-LOK 22-18 AWG Wire to Cable Crimp Pin Contact Crimp pin 9.5 A Male 22...18 AWG, 170364-1, TE Connectivity TE Connectivity Mini-Universal Mate-N-Lok 系列 公 压接接线端子, 压接, 镀锡触点 MINI UNIVERSAL M-N-L PIN LP |
| Category |
Business
| Product Category | Power to the Board | Standard Package | Bulk |
| Factory Pack Quantity | 1000 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
| Approval Agency | :CSA, UL, VDE | ||
Electrical
| Voltage Rating | 600 V | Current Rating (Max) | 9.5 A |
| Voltage - Supply (Min) | 600VAC | Connector - Voltage Input | Mini-UniversalMATE-N-LOK |
Mechanical
| Depth | 3.6 mm | Pitch | Not Required mm |
| Height | 4.4 mm | Weight | 0.011 |
| Plating | Tin | Material | Brass |
| Packaging | Bulk | Wire Gauge | 18-22 AWG |
| Termination | Crimp | Contact Size | :18 |
| Contact Type | Power | Pitch - Post | 4.14mm |
| Mounting Type | Straight | Pin or Socket | Pin |
| Angle of Throw | Straight | Connector Type | Connector Power |
| Contact Finish | Pre-Tin | Mounting Style | Cable |
| Contact Material | Brass | Housing Material | Not Required |
| Length - Overall | 22-18AWG | Package Quantity | 300 |
| Primary Material | Contact | Size / Dimension | see |
| Connector - Cable | contact | Termination Style | Quick Connect |
| 1st Contact Gender | Pin (Male) | Color - Connectors | :Tin |
| Number of Contacts | 1 POS | Contact Termination | Crimp |
| Insulation Diameter | 0.059-0.094,0.133" | Wire Gauge or Range - AWG | 22-18 |
| Wire Gauge or Range - mm2 | :0.8mm² | Contact Material - Plating | tinned |
| Diameter - Outside, Non-Expanded | :2.4mm | ||
Product Info
| Spg | 300 | Type | Stamped |
| Gender | PIN | Series | :Mini Universal Mate-N-Lok Sealed |
| CAD Drawing | 3D CAD Model | Manufacturer | Mini-UniversalMATE-N-LOK |
| Product Type | Contacts | Adapter Series | Mini Universal MATE-N-LOK |
| Number of Ports | 1 Port | Number of Units | 1 |
| For Use With/Related Products | :Mini-Universal MATE-N-LOK Connectors | ||
Environmental
| Operating Temperature | :105°C | ||
Documents & Media
Similar Parts
189727-1
te connectivity / amp
EXTRACTION TOOL Hand Tools EXTRACTION TOOL MiniUniversal MATE-N-LOK Extraction tool EXTRACTION TOOL FOR MINI-UNIVERSAL MATE-N-LOK CONTACTS Extraction Tool For Mini Universal Mate-N-Lock Contacts TOOL,CONTACTEXTRACTION Tool: for demounting of terminals; terminals Ejector tool for M-UMNL, 189727-1, TE Connectivity
1-172162-2
te connectivity / amp
Conn Housing RCP 12 POS 4.2mm ST Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN RCPT HOUSING 12POS .163" Pin & Socket Connectors RCPT HSG 12P .163 Conn Housing RCP 12 POS 4.2mm ST Loose Piece Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP 12 POS TR MINI UNIV
91522-1
te connectivity / amp
General Hand Tool Used In The Aircraft And Military Industries Crimpers CERTICRIMP 2 SAHT MI MINI UNIV M-N-L TOOL CRIMP 18-22WAG MINI UMNL Mate-N-Lok crimp tool,22-18awg TOOLS, HYDRAULIC CRIMP Crimper;SAHTRatchet;22-18AWG;MiniCPC,UniversalMATE-N-LOK;CERTI-CRIMPII Crimping tool, 91522-1, TE Connectivity TE Connectivity CERTI-CRIMP II 系列 Mini-Universal MATE-N-LOK Contacts 压接工具 , 适用于22 → 18 AWG 线规格 CERTICRIMP 2,SAHT MINI UMNL
1445824-2
te connectivity / amp
REC,11-5,FLNG MT,LG INS,ALT KE Standard Circular Connectors REC,11-5,FLNG MT,LG INS,ALT KE CONN RCPT 5POS MINI CPC Standard Circular Connector REC,11-5,FLNG MT,LG INS,ALT KE
1445539-3
te connectivity / amp
Conn Housing RCP 1 POS ST Miniature CPC (Circular Plastic Connector) CONN RECEPT 8-1POS PANEL MOUNT Standard Circular Connector RCPT SIZE 8 1 POS FLNG MT STD KEY Conn Housing RCP 1 POS ST Search Keywords:IP 67, wire to wire, wire to board, wire to panel, input/output, box to box, circular industrial, sealed, discrete wire, crimp, Mini CPC, Miniature CPC, circular plastic connector, miniature circular plastic connector REC,8-1,FLNG MT,LG INS,STD KEY
1-172329-5
te connectivity / amp
Conn Housing RCP 3 POS 4.2mm Crimp ST Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN CAP 3POS MINI-U-MNL GREEN
1445828-3
te connectivity / amp
Conn Housing RCP 6 POS ST Standard Circular Connector RCPT SIZE 11 6 POS FRE HNG STD KEY Miniature CPC (Circular Plastic Connector) CONN RECEPT 11-6POS FREE-HANGING REC,11-6,FRE HNG,LG INS,STD KE REC,11-6,FRE HNG,LG INS,STD KE Search Keywords:IP 67, wire to wire, wire to board, wire to panel, input/output, box to box, circular industrial, sealed, discrete wire, crimp, Mini CPC, Miniature CPC, circular plastic connector, miniature circular plastic connector
1-172330-5
te connectivity / amp
Conn Housing RCP 8 POS 4.2mm Crimp ST Cable Mount Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN CAP 4POS MINI-U-MNL GREEN
1-172340-5
te connectivity / amp
Conn Housing PL 9 POS 4.2mm Crimp ST Cable Mount Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN PLUG 9POS MINI-UMNL GREEN
455830-1
te connectivity / amp
Straight Action Hand Tool Hand Tools INSERTION TOOL TOOL INSERTIONF UNI-MATE-II TOOL; CONTACT INSERTION INSERTION TOOL FOR MATE-N-LOCK CONTACTS TOOL,CONTACTINSERTION Insertion tool, 455830-1, TE Connectivity INSERTION TOOL
172331-1
te connectivity / amp
Conn Housing RCP 6 POS 4.2mm Crimp ST Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN RCPT/CAP 6POS MINI-U M-N-L Female Compact Power Connector Socket,9.5A 600V ac Pin & Socket Connectors CAP HOUSING 6P Conn Housing RCP 6 POS 4.2mm Crimp ST Loose Piece Product Highlights:HousingMini-Universal MATE-N-LOKNumber of Circuits = 64.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP SOCKET HOUSING, 6WAY PLUG AND SOCKET CONNECTOR HOUSING Connector,SoftShell;6;600VAC;Receptacle(Cap);Double-Row;Nylon;Natural Socket housing Pitch4.14 mm Poles 2 x 3 Double row / straight / for panel mount / accepts male or female contacts MATE-N-LOK Mini Universal, 172331-1, TE Connectivity TE Connectivity 线对线连接器 插座 母, 9.5A 600 V 交流 MINI UNIVERSAL MATE-N-LOK CAP HOUSING 6P
1-172333-6
te connectivity / amp
Conn Housing RCP 12 POS 4.2mm ST Panel Mount Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN CAP 12PS MINI-U-MNL BLUE
734202-1
te connectivity / amp
CERTI-LOK MINI-UMNL Hand Tools CERTI-LOK MINI-UMNL TOOL HAND CERTI-LOK MINI-UMNL Mini-Universal Mate-N-Lok Crimping tool, 734202-1, TE Connectivity
90759-1
te connectivity / amp
Hand Tool Assembly And Die Assembly Crimpers PROCRIMP W/DIE TOOL MINI UNIV M-N-L PROCRIMPER III W/DIE 18, 20-22 Service crimp tool,22-18 awg CRIMP TOOL, MINI MATE N LOCK, 22-18 AWG Crimper;Ratchet;22-18AWG;MiniUniversalMate-N-Lok;90759-2Die;PRO-CRIMPERIII Pro-Crimper II With Die Assembly 21-18 AWG Hand Tool Assembly TE Connectivity Pro-Crimper III 系列 Mini-Universal MATE-N-LOK Contacts 压接工具 , 适用于22 → 18 AWG 线规格 PROCRIMP TL W/DIE MIN UNIV MNL
1-172160-6
te connectivity / amp
Conn Housing RCP 6 POS 4.2mm ST Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN CAP 6POS MINI-U-MNL BLUE
1445537-3
te connectivity / amp
Conn Housing RCP 3 POS ST Standard Circular Connector RCPT SIZE 8 3 POS FLNG MT STD KEY Miniature CPC (Circular Plastic Connector) CONN RECEPT 8-3POS PANEL MOUNT Conn Housing RCP 3 POS ST Product Highlights:HousingReceptacleShell Size = 8Number of Positions = 3Mount Style = PanelSearch Keywords:IP 67, wire to wire, wire to board, wire to panel, input/output, box to box, circular industrial, sealed, discrete wire, crimp, Mini CPC, Miniature CPC, circular plastic connector, miniature circular plastic connector CPC MINI RCPT, SZ 8, 3 POS, PANEL REC,8-3,FLNG MT,LG INS,STD KEY
1-172338-2
te connectivity / amp
Conn Housing PL 4 POS 4.14mm Crimp ST Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN PLUG 4POS MINI-UMNL RED Pin & Socket Connectors CAP 9 POS MINI BLK
2063388-1
te connectivity / amp

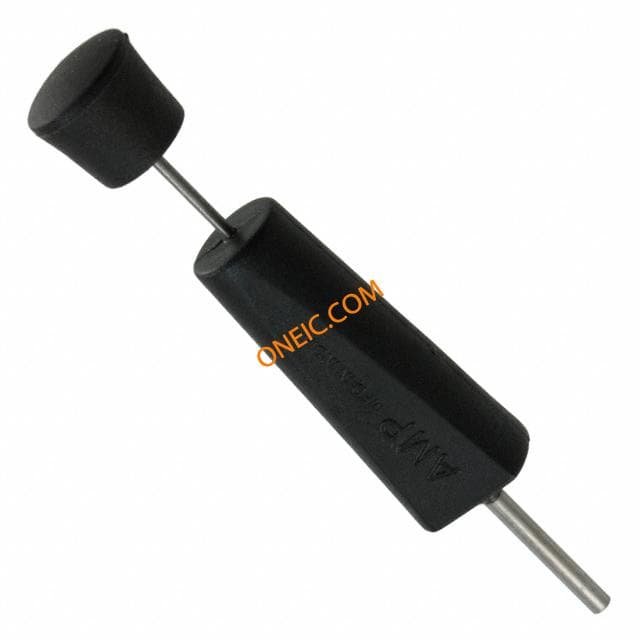

TOOL, EXTRACTION Hand Tools Extraction Tool EXTRACTION TOOL EXTRACTION TOOL FOR MR CONTACTS TOOL EXTRACTION 26-18 AWG EXTRACTION TOOL, 6WAY EXTRACTIONTOOLFORMRCONTACTS,UNIVMATE-N-LOK,ORCOMMERCIAL0.062PINCONTACT Extraction tool, 2063388-1, TE Connectivity TE Connectivity MATE-N-LOK 系列 压接拔取工具
