1658670-2
| Manufacturer | |
| Description | Contact PIN Crimp ST Cable Mount Loose Piece D-Sub Contacts PIN CNT SIZE 22 Standard Cable Connectors CONN D-SUB PIN 22-28AWG GOLD Gold pin crimp contact,22-28awg 5A Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactProduct Series = HDP-22 (Crimp Snap)PinWire Termination Type = CrimpWire Insulation Diameter = 1.02 mmSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub CONTACT, CRIMP, PIN, 28-22AWG CONTACT,HD22PIN,30AU;28-22AWG;InsulationSupport Crimp Contact, 1658670-2, TE Connectivity TE Connectivity AMPLIMITE HDP-22系列 尺寸22触点 公 压接 信号 D-sub 连接器触点, 镀金镀镍 触点, 28 → 22 AWG PIN CONTACT,22-28 AWG, 22 DF, AMPLIMITE |
| Category |
Business
| Product Category | D-Sub Contacts | Standard Package | Bulk |
| Factory Pack Quantity | 1000 | ||
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85369010 | Rad Hardened | No |
| Leadfree Defin | Not relevant for lead free process | RoHSELV Compliance | RoHS compliant, ELV compliant |
Electrical
| Contact Resistance | :15mohm | Current Rating (Max) | :5A |
Mechanical
| Depth | 1.9 mm | Pitch | Not Required mm |
| Weight | 0.005 | Plating | Gold |
| Material | Brass | Packaging | Bulk |
| Wire Gauge | 28-22 | Shield Type | No |
| Termination | Crimp | Contact Size | 22DF |
| Contact Type | Signal | Pin Diameter | 0.76 [0.030] |
| Mounting Type | Straight | Pin or Socket | Pin |
| Connector Type | Connector D-Subminiature | Contact Finish | Gold Over Nickel|Gold Over Palladium Nickel Over Nickel |
| Mounting Style | Cable | Contact Material | Brass |
| Housing Material | Not Required | Length - Overall | 14.85 mm |
| Package Quantity | Loose Piece | Primary Material | Contact |
| Insulation Height | Yes | Termination Style | Crimp |
| 1st Contact Gender | Pin (Male) | Number of Contacts | Not Required |
| Contact Tail Length | 22 | Contact Termination | Crimp Snap-In |
| Insulation Diameter | 0.76 â 1.02 [0.030 â 0.040] | Plating - Thickness | 30µin (0.76µm) |
| Wire Gauge or Range - AWG | 0.08 - 0.40 [28-22] | Contact Material - Plating | Gold |
| Diameter - Outside, Non-Expanded | :0.63mm | ||
Product Info
| Note | For Hand Tool | Type | Stamped |
| Grade | Standard | Gender | PIN |
| Series | HDP-22 | CAD Drawing | 3D CAD Model |
| Manufacturer | AMPLIMITEHDP-22Series | Product Type | Contact |
| Number of Ports | 1 Port | For Use With/Related Products | :AMPLIMITE HDP-22 Connectors |
Environmental
| Operating Temperature | :105°C | ||
Documents & Media
Similar Parts
748471-1
te connectivity / amp
Conn D-Subminiature PL 62 POS 2.76mm Crimp ST Panel Mount 62Terminal 1Port Bulk D-Sub Standard Connectors 62 PIN HARDWARE CONN D-SUB HOUSING KIT PLUG 62P Conn Housing PL 62 POS 2.41mm Crimp ST Cable Mount Bulk Conn Housing PL 62 POS 2.41mm Crimp ST Cable Mount Bulk Product Highlights:Connector KitProduct Series = HDP-22 (Crimp Snap)Number of Positions = 62ShieldedPlugSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub
91285-1
te connectivity / amp
Straight Action Hand Tool, Insertion/Extraction Tool D-Sub Tools & Hardware INSERT/EXTRACT TOOL W/6 TIPS & WRENCH INSERTION/EXTRACTION TOOL HDP-22 AMPLIMITE HD20, HD22 insert,extract tool INSERTION/EXTRACTION TOOL INSERTION/EXTRACTIONTOOLFORSZ.20CRIMP&SOLDERCUPCONTACTS Insertion/Extraction Tool Kit Contains 6 Tips With Plug And Hex Wrench Ejector tool, 91285-1, TE Connectivity TE Connectivity AMPLIMITE 系列 拔插件工具 插芯 , 尺寸20, 22 INSERT/EXTRACT TOOL ASSEMBLY
1658675-1
te connectivity / amp
Conn Housing PIN 15 POS Crimp ST Bulk D-Sub High Density Connectors E15P CRIMP KIT Standard Cable Connectors CONN D-SUB PLUG 15POS W/O CONT AMPLIMITE HDP-20 d-sub plug kit, 15 pin Conn Housing PL 15 POS Crimp ST Bulk Conn Housing PL 15 POS Crimp ST Bulk Product Highlights:Connector KitProduct Series = HDP-22 (Crimp Snap)Number of Positions = 15ShieldedPlugSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub D SUB SHELL, PLUG, SIZE 1, STEEL Conn;D-Sub;CablePlug;15Pos;STR;HDP-22Series;CrimpSnap;22AWG;ShieldingHDWRKit HDP22 Series 15 Position Shielding Hardware Plug Metal Kit D-Sub TE Connectivity AMPLIMITE HDP-20 15触点 HDP-22,OVRMLD,PLUG KIT,SIZE 1,
1658678-1
te connectivity / amp
Conn Housing PL 15 POS Crimp ST Cable Mount Bulk D-Sub High Density Connectors DSUB E15P CRIMP KIT Standard Cable Connectors CONN D-SUB PLUG 15POS W/O CONT AMPLIMITE HDP-22 d-sub plug kit, 15 pin D-Sub Standard Connectors DSUB E15P CRIMP KIT Conn Housing PL 15 POS Crimp ST Cable Mount Bulk Product Highlights:Connector KitProduct Series = HDP-22 (Crimp Snap)Number of Positions = 15ShieldedPlugSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub CONNECTOR, D-SUB, HIGH DENSITY Conn;D-Sub;CablePlug;15Pos;STR;HDP-22Series;CrimpSnap;22AWG;ShieldingEncl.Kit TE Connectivity AMPLIMITE HDP-22 15触点, 套件包含插孔螺钉和插件 KIT,HDP-22,ENCLSUR,PLUG,SIZE 1
1658676-1
te connectivity / amp
Conn Housing PL 26 POS 2.28mm Crimp ST Bulk D-Sub High Density Connectors DSUB A26P CRIMP KIT Standard Cable Connectors CONN D-SUB PLUG 26POS W/O CONT AMPLIMITE HDP-22 cable Plug+Shield 26P D-Sub Standard Connectors DSUB A26P CRIMP KIT Conn Housing PL 26 POS 2.28mm Crimp ST Cable Mount Bulk Conn Housing PL 26 POS 2.28mm Crimp ST Cable Mount Bulk Product Highlights:Connector KitProduct Series = HDP-22 (Crimp Snap)Number of Positions = 26ShieldedPlugSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub D SUB SHELL, PLUG, SIZE 2, STEEL Conn;D-Sub;CablePlug;26Pos;STR;HDP-22Series;CrimpSnap;22AWG;ShieldingHDWRKit HDP-22,OVRMLD,PLUG KIT,SIZE 2,
90800-2
te connectivity / amp
Connector Accessories Crimp Die Set Punches & Dies DIE ASSEMBLY DIE SET HI-DEN D-SUB CRIMP CONT SDE Die Set, AMPLIMITE 22 DF DIE, SDE HDP-22 AMP;DIESETONLY;DSUB22DFPINANDSOCKET;28-20AWG Crimping dies, 90800-2, TE Connectivity DIE ASSEMBLY
1658691-1
te connectivity / amp
Conn Housing PL 15 POS Crimp ST Panel Mount D-Sub High Density Connectors DSUB E15P CRIMP Standard Cable Connectors CONN PLUG HOUSING 15POS CRIMP Conn D-Subminiature M 15 POS Solder ST Thru-Hole 15 Terminal 1 Port Conn Housing PL 15 POS Crimp ST Panel Mount Product Highlights:Product Series = HDP-22 (Crimp Snap)15 PositionsWithout EnclosureHousing Gender = PlugWithout ContactsSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub HDP-22,PLUG,SIZE 1,15 POSN,CLI
90800-1
te connectivity / amp
Hand Tool Assembly And Die Assembly Crimpers PROCRIMPER TL/DIE TOOL CRIMP HI-DEN D-SUB W/DIE HDP22/HD22 ratchet action crimping tool CRIMP TOOL, HDP22 Crimper;Ratchet;28-22AWG;AMPLIMITEHDContacts;90800-2Die;PRO-CRIMPERIII Crimping tool, 90800-1, TE Connectivity TE Connectivity Pro-Crimper III 系列 AMPLIMITE HD-22 Contacts 压接工具 , 适用于28 → 22 AWG 线规格 PROCRIMPER TOOL & DIE
1658671-1
te connectivity / amp
Conn Housing PL 26 POS Crimp ST D-Sub High Density Connectors PLUG 26P GRND INDNTS Standard Cable Connectors CONN D-SUB HOUSING PLUG 26POS AMPLIMITE HDP-22 d-sub cable plug,26 pin Conn Housing PL 26 POS Crimp ST Product Highlights:ConnectorProduct Series = HDP-22 (Crimp Snap)Number of Positions = 26PlugWithout ContactsSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub PLUG, D, HIGH DENSITY, 26WAY Conn;D-Sub;CablePlug;26Pos;STR;HDP-22Series;CrimpSnap;22AWG;MetalShell TE Connectivity AMPLIMITE HDP-22系列 26路 直 压接式 D-sub 连接器, 插头 HDP-22,PLUG,SIZE 2, 26 POSN
5748477-1
te connectivity / amp
Conn Housing PL 78 POS Crimp ST Bulk D-Sub High Density Connectors DSUB D78P CRIMP KIT Standard Cable Connectors CONN D-SUB PLUG 78POS W/O CONT AMPLIMITE HDP-22 d-sub plug kit, 78 pin Conn Housing PL 78 POS Crimp ST Bulk Product Highlights:Connector KitProduct Series = HDP-22 (Crimp Snap)Number of Positions = 78ShieldedPlugSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub CONNECTOR, PLUG, HDP-22, 78WAY Conn;D-Sub;CablePlug;78Pos;STR;HDP-22Series;CrimpSnap;22AWG;ShieldingEncl.Kit TE Connectivity AMPLIMITE HDP-22 78触点, 套件包含插孔螺钉和插件 KIT,PLUG,78P,HDP-22,SHLD ENCLS
5748472-1
te connectivity / amp
Conn D-Subminiature PIN 78 POS Crimp ST Cable Mount 78Terminal 1Port Bulk D-Sub High Density Connectors KIT PLUG 78P HDP-22 SHLD HDWRE Standard Cable Connectors CONN D-SUB PLUG 78POS W/O CONT D SUB SHELL, PLUG, SIZE 5, STEEL HDP22 Series 78 Position Crimp Contact Shielded Hardware Plug Metal Kit D-Sub KIT,PLUG,78P,HDP-22,SHLD HDWRE
748473-1
TE Connectivity / AMP
D-Sub Standard Connectors 15P SHLD PLUG CONN D-SUB HOUSING KIT PLUG 15P
748365-1
TE Connectivity / AMP
D-Sub High Density Connectors PLUG 26P GRND INDNTS CONN D-SUB HOUSING PLUG 26POS Conn Housing PL 26 POS Crimp ST Conn Housing PL 26 POS Crimp ST Product Highlights:ConnectorProduct Series = HDP-22 (Crimp Snap)Number of Positions = 26PlugWithout Contacts
748469-1
TE Connectivity / AMP
D-Sub Standard Connectors 26 POS PLUG CONN D-SUB HOUSING KIT PLUG 26P
748367-1
TE Connectivity / AMP
D-Sub High Density Connectors PLUG 62P GRND INDNTS CONN D-SUB HOUSING PLUG 62POS
1658673-1
te connectivity / amp
Conn Housing PL 62 POS Crimp ST D-Sub High Density Connectors PLUG 62P GRND INDNTS Standard Cable Connectors CONN D-SUB HOUSING PLUG 62POS AMPLIMITE HDP-22 d-sub cable plug,62 pin Conn Housing PL 62 POS Crimp ST Product Highlights:ConnectorProduct Series = HDP-22 (Crimp Snap)Number of Positions = 62PlugWithout ContactsSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub PLUG, D, HIGH DENSITY, 62WAY Conn;D-Sub;CablePlug;62Pos;STR;HDP-22Series;CrimpSnap;22AWG;MetalShell TE Connectivity AMPLIMITE HDP-22系列 62路 直 压接式 D-sub 连接器, 插头 HDP-22,PLUG,SIZE 4,62 POSN
593210-2
te connectivity / amp
AMPLI,PLUG,ASSY,2D,2,W/CONT D-Sub Standard Connectors PLG ASSY 2D 2 W/CONT CONN D-SUB PLUG 31POS CRIMP Conn Housing PL Crimp ST Panel Mount
91520-1
te connectivity / amp
General Hand Tool Used In The Aircraft And Military Industries Crimpers CERTICRIMP 2 SAHT HD22 TOOL CERTA CRIMP II AMPLIMITE Crimper,SAHTRatchet,28-26AWG,D-Sub,AMP Crimper;SAHTRatchet;28-26AWG;D-Sub;AMPLIMITEHD-22Contacts;CERTI-CRIMPII Crimping tool, 91520-1, TE Connectivity CERTICRIMP 2,SAHT HD 22
593210-1
te connectivity / amp
AMPLI,PLUG,ASSY,2D,1,W/CONTS D-Sub Standard Connectors PLG ASSY 2D 1W/CONTS CONN D-SUB PLUG 19POS CRIMP

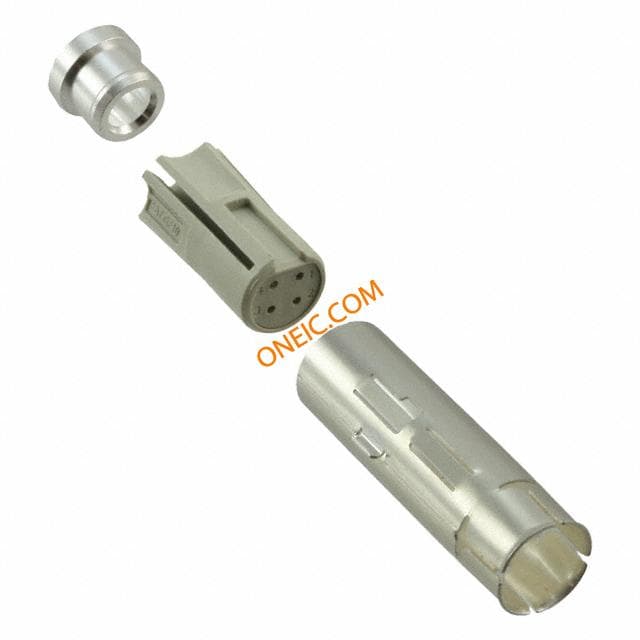

1103426-1
