1658621-7
| Manufacturer | |
| Description | Conn IDC Connector F 30 POS 2.54mm IDT RA Cable Mount Ribbon Cable Connectors (AMP-LATCH) CONN IDC SKT 30POS W/POL 15 GOLD AMP-Latch receptacle,0.08-0.15mm²,30way Conn IDC Connector F 30 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = NOVONumber of Positions = 30ReceptacleMating Polarization Method = Center & MilitaryWith Mating PolarizationSearch Keywords:input/output, paddleboard, paddle board 30NOVOMIL/CTR15DP,LEADFREE TE Connectivity AMP-LATCH Novo 系列 2行 30路 2.54mm节距 直角 母 IDC 连接器 , 电缆安装 30 NOVO MIL/CTR 15DP,LEAD FREE |
| Category |
Business
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | UL Rating | 获得认可 |
| Leadfree Defin | Not relevant for lead free process | UL File Number | E28476 |
| CSA File Number | LR 7189 | Standard Number | CSA, UL |
| RoHSELV Compliance | RoHS compliant, ELV compliant | Material Flammability Rating | UL 94V-0 |
Electrical
| Voltage Rating | 250 | Voltage - Supply | 250 |
| Resistance - Input | 5000 | Connector Impedance | 刺破式压接 (IDC) |
| Current Rating (Max) | 1A | Voltage - Supply (Min) | 250VAC |
| Connector - Voltage Input | 音叉 | ||
Mechanical
| Color | Black | Depth | 7.49 mm |
| Pitch | 2.54 mm | Width | 7.49 mm [ .2949 in ] |
| Height | 15.97 mm | Length | 42.67 mm [ 1.6799 in ] |
| Base Type | 不带 | Packaging | Tube |
| Wire Type | Ribbon Cable | Body Color | 黑色 |
| Cable Exit | Without | Cable Type | 带状电缆 |
| Wire Gauge | 26-28 AWG | Orientation | 直角 |
| Row Spacing | 0.100" (2.54mm) | Termination | IDT |
| Contact Type | Female Socket | Polarization | Center & Military |
| 2nd Connector | Without | Housing Color | Black |
| Mounting Type | No | Cable End Type | Without |
| Connector Type | NOVO | Contact Finish | Gold Over Nickel |
| Flange Feature | 否 | Mounting Style | Cable |
| Number of Rows | 2 | Actuation Force | 不带 |
| Insert Material | 磷青铜 | Contact Material | Phosphor Bronze |
| Housing Material | Thermoplastic | Length - Overall | 42.67 mm |
| Mounting Feature | Without | Package Quantity | 50 |
| Panel Mount Type | 通孔 - 焊接 | Primary Material | InterconnectSystem |
| Size / Dimension | .08 – .15 mm², 158 – 296 CMA, 28 – 26 美国线规 | Termination Rows | IDC |
| Cable Termination | IDC | Pin Hole Diameter | 0.1" |
| Termination Style | 插座 | 1st Connector Type | 插针接头 |
| Mating Orientation | With | Number of Contacts | 30 |
| Insulation Material | .787 – .94 mm [ .031 – .037 in ] | Number of Positions | 30 |
| Contact Length - Post | 信号（数据） | Mounting Hole Diameter | 带有 |
| Center Contact Material | 2.54 x 2.54 [.100 x .100] | Contact Finish - Mating | 锡 |
| Contact Finish Thickness | 15µin (0.38µm) | ||
Product Info
| Type | IDC Connector | Gender | F |
| Series | AMP-LATCH Novo | Features | Feed Through, Polarizing Key |
| Polarity | 带有 | Manufacturer | AMP-Latch |
| Product Type | 连接器 | Connection Type | Ribbon Cable |
| With Modem Control | Yes | DigiKey Programmable | 不带 |
Environmental
| Operating Temperature | +105°C | ||
Similar Parts

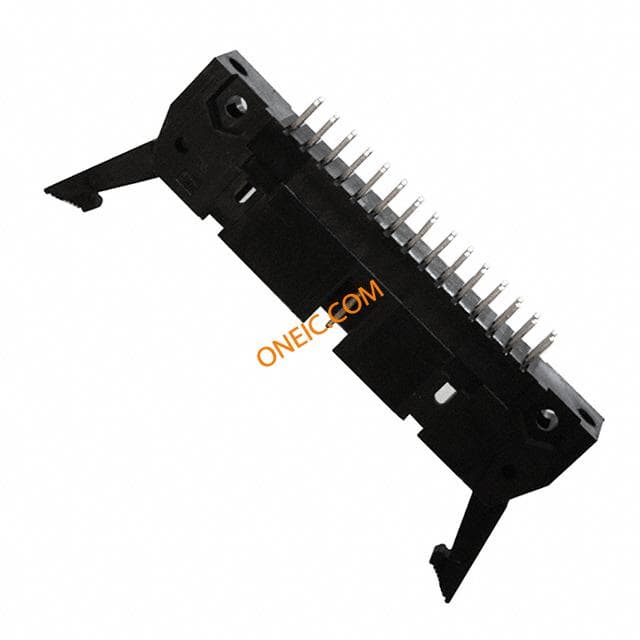

5102321-7
te connectivity / amp
Conn Ejector Header HDR 30 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 30POS .100 GOLD Headers & Wire Housings 100X100 HDR 2X015P VRT EJE Conn Ejector Header HDR 30 POS 2.54mm Solder ST Thru-Hole Search Keywords:ribbon cable connector system, input/output, LATCH Universal Header, A/L UNIV HDR 30P VERT LG LAT

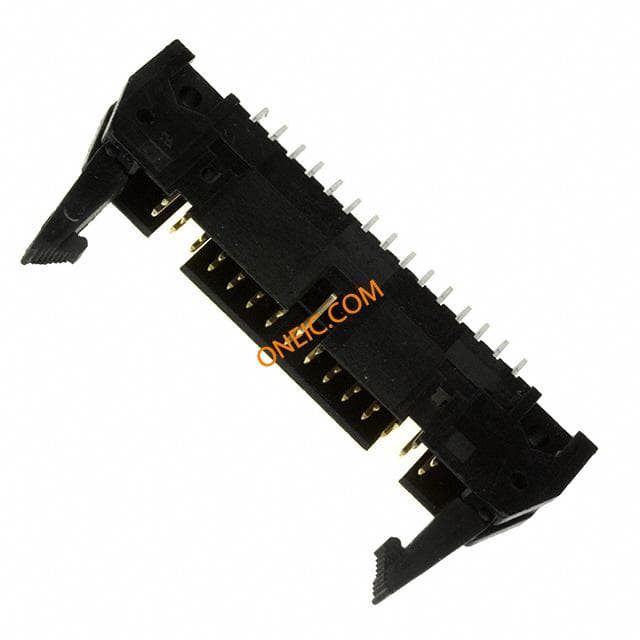

5499923-7
te connectivity / amp
Conn Ejector Header HDR 30 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 30POS .100 GOLD AMPLATCH HEADER-PIN,4 SIDED,VERTICAL Headers & Wire Housings A/L UNIV HDR 30P VERT LG LAT Conn Ejector Header HDR 30 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 302.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 30POS, 2.54MM AMPLATCHHEADER-PIN,4SIDED,VERTICAL,30P A/L UNIV HDR 30P VERT LG LAT
5102159-7
te connectivity / amp
Conn Ejector Header HDR 30 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER RT/A 30POS .100 GOLD Headers & Wire Housings UNIV HDR 30P R/A Conn Ejector Header HDR 30 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 302.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, TE Connectivity AMP-LATCH 系列 2.54mm节距 30路 (2排) 直角 PCB 针座, 焊接端接, 1A , 通孔 A/L UNIV HDR 30P RA

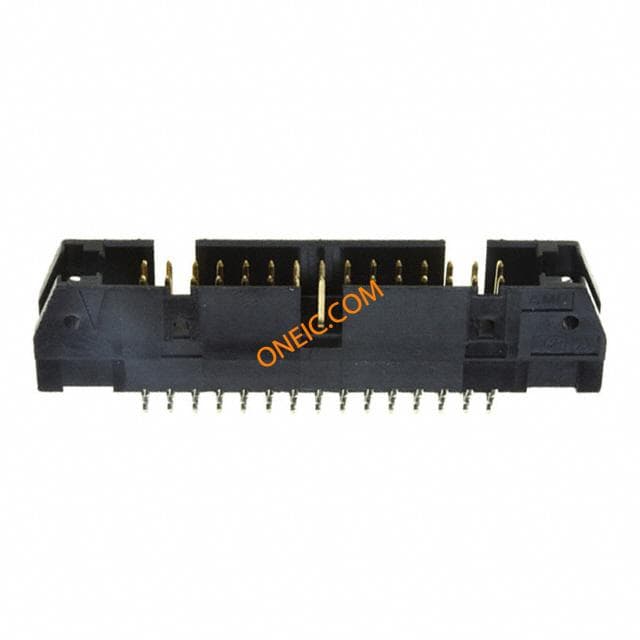

1-1658694-0
te connectivity / amp
Conn Ejector Header HDR 30 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 30POS .100 GOLD Headers & Wire Housings 30P UNIV HDR ACT PIN 1-1658694-0 Conn Ejector Header HDR 30 POS 2.54mm Solder ST Thru-Hole Search Keywords:ribbon cable connector system, input/output, LATCH Universal Header, A/L UNIV HDR 30P ACT PIN
5102162-7
te connectivity / amp
Conn Ejector Header HDR 30 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER RT/A 30POS .100 GOLD Conn Ejector Header HDR 30 POS 2.54mm Solder RA Thru-Hole Search Keywords:ribbon cable connector system, input/output, LATCH Universal Header, A/L UNIV HDR 30P RA
5499206-7
te connectivity / amp
Conn Ejector Header HDR 30 POS 2.54mm Solder ST Thru-Hole Headers & Wire Housings 100X100 HDR 2X015P VRT EJE Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 30POS .100 GOLD Conn Ejector Header HDR 30 POS 2.54mm Solder ST Thru-Hole Product Highlights:PreloadedConnector Style = Header - PinHeader Type = Universal Ejection Pin HeadersAMP-LATCH Product LineStandard ProfileSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 30POS, 2.54MM TE Connectivity AMP-LATCH 系列 2.54mm节距 30路 (2排) 直 PCB 针座, 焊接端接, 1A , 通孔 A/L UNIV HDR 30P VERT LG LAT
2-5102321-7
TE Connectivity / AMP
Headers & Wire Housings UNIV HDR 30P VT BLU LARGE LATCH Pin and Pinless Headers (AMP-LATCH) CONN HEADER 30POS VERT GOLD A/L UNIV HDR 30P VERT LG LAT BLUE
111446-7
TE Connectivity / AMP
Headers & Wire Housings 030 UNIV I/O 30DP NO EARS CONN IDC PIN 30POS 30AU NO LATCH

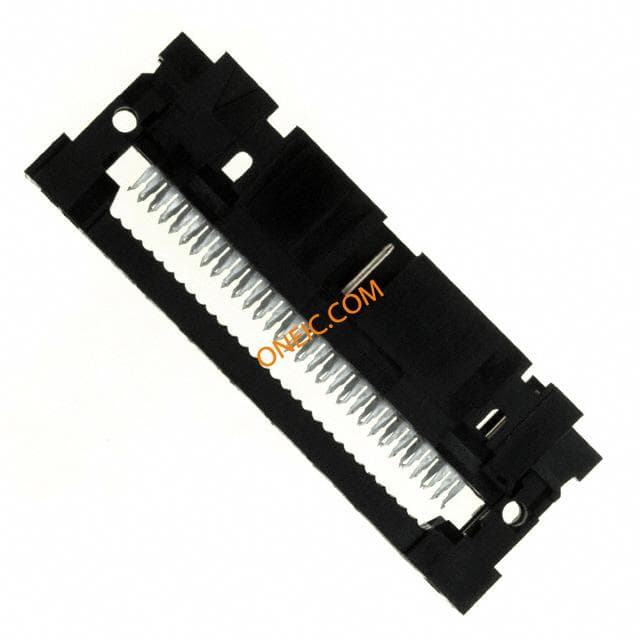

2-111446-1
te connectivity / amp
Conn IDC Connector PL 30 POS 2.54mm IDT RA Cable Mount Bulk Ribbon Cable Connectors (AMP-LATCH) CONN IDC PIN 30POS 30AU NO LATCH Conn IDC Connector PL 30 POS 2.54mm IDT RA Cable Mount Bulk Product Highlights:PreloadedType of Connector = Universal I/OHousing Gender = Plug30 PositionsPlugSearch Keywords:input/output, paddleboard, paddle board 030 UNIV I/O 30DP NO EARS

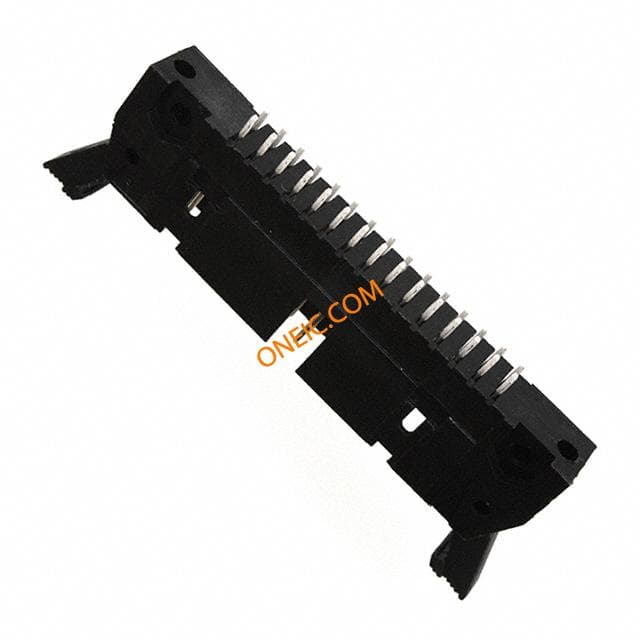

5499910-7
te connectivity / amp
Conn Ejector Header HDR 30 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 30POS .100 GOLD Headers & Wire Housings 30P UNIV HDR VERT SHT LAT Conn Ejector Header HDR 30 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Header - PinHeader Type = Universal Ejection Pin HeadersAMP-LATCH Product LineStandard Profile30 PositionsSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 30POS, 2.54MM TE Connectivity AMP-LATCH 系列 2.54mm节距 30路 (2排) 直 PCB 针座, 焊接端接, 1A , 通孔 A/L UNIV HDR 30P VERT SHT LAT

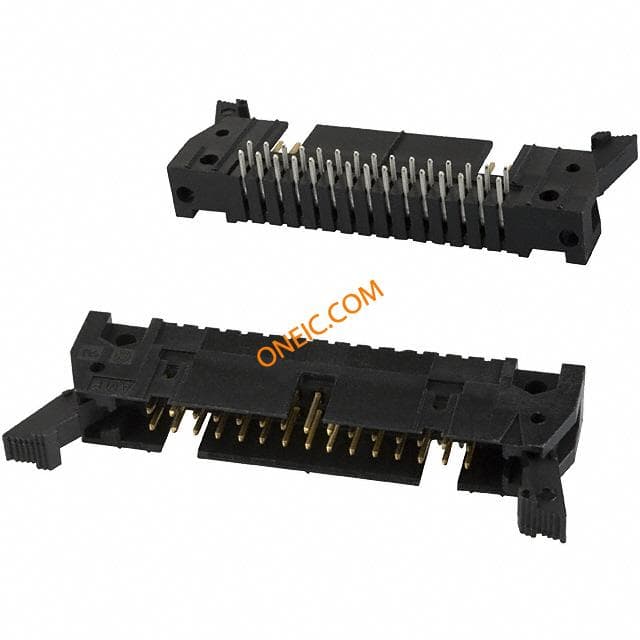

5499913-7
te connectivity / amp
Conn Ejector Header HDR 30 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER RT/A 30POS .100 GOLD Headers & Wire Housings A/L UNIV HDR 30P RA SHT LAT Pin and Pinless Headers (AMP-LATCH) Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 302.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, A/L UNIV HDR 30P RA SHT LAT
5102153-7
te connectivity / amp
Conn Ejector Header HDR 30 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 30POS .100 GOLD Headers & Wire Housings 100X100 HDR 2X015P VRT Conn Ejector Header HDR 30 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 302.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, CONNECTOR, HEADER, LATCH, 2.54MM, 30WAY A/L UNIV HDR 30P VERT
5102154-7
te connectivity / amp
Conn Ejector Header HDR 30 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 30POS .100 GOLD Headers & Wire Housings 100X100 HDR 2X015P VRT Conn Ejector Header HDR 30 POS 2.54mm Solder ST Thru-Hole Search Keywords:ribbon cable connector system, input/output, LATCH Universal Header, A/L UNIV HDR 30P VERT

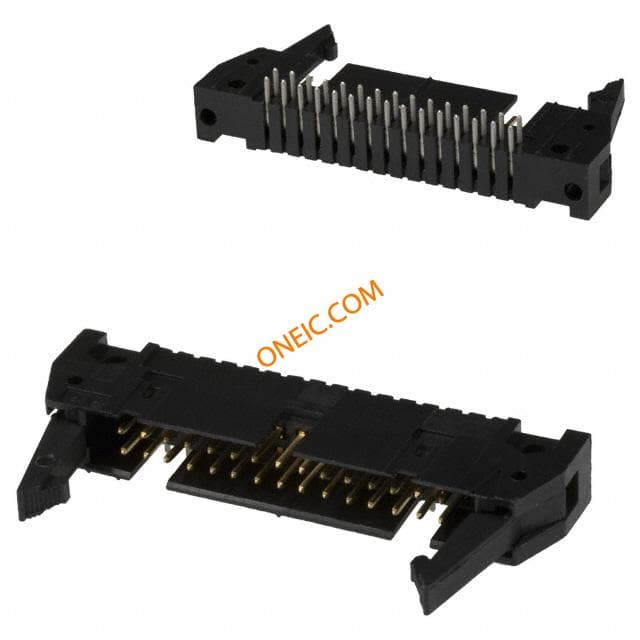

5499141-7
