1658620-2
| Manufacturer | |
| Description | Conn IDC Connector F 14 POS 2.54mm IDT RA Cable Mount Ribbon Cable Connectors (AMP-LATCH) CONN IDC SOCKET 14POS 15 GOLD Receptacle 14 way IDC Amp-Latch Headers & Wire Housings MLTRY PLRZD RECPT 14 NOVO Conn IDC Connector F 14 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = NOVONumber of Positions = 14ReceptacleMating Polarization Method = MilitaryWith Mating PolarizationSearch Keywords:input/output, paddleboard, paddle board CONNECTOR,RECEPTACLE,NOVA,AMP-LATCH,14POSITION,WITHMATINGPOLARIZATION TE Connectivity AMP-LATCH Novo 系列 2行 14路 2.54mm节距 母 IDC 连接器 , 电缆安装 14 NOVO MIL 15DP, LEAD FREE |
| Category |
Business
| Tradename | AMP-LATCH | Product Category | Headers & Wire Housings |
| Standard Package | Trays | Factory Pack Quantity | 1080 |
Compliance
| RoHS | Lead free / RoHS Compliant | UL Rating | 获得认可 |
| Leadfree Defin | Not relevant for lead free process | UL File Number | E28476 |
| CSA File Number | LR 7189 | Standard Number | CSA, UL |
| RoHSELV Compliance | RoHS compliant, ELV compliant | Material Flammability Rating | UL 94V-0 |
Electrical
| Voltage Rating | 250 V ac | Voltage - Supply | 250 |
| Contact Resistance | 15 mohm | Resistance - Input | 5000 |
| Connector Impedance | 刺破式压接 (IDC) | Current Rating (Max) | 1A |
| Voltage - Supply (Min) | 250VAC | Connector - Voltage Input | 音叉 |
Mechanical
| Color | Black | Depth | 6.09 mm |
| Pitch | 2.54 mm | Width | 6.1 mm [ .2402 in ] |
| Height | 15.97 mm | Length | 22.35 mm [ .8799 in ] |
| Base Type | 不带 | Packaging | Tube |
| Wire Type | Ribbon Cable | Body Color | 黑色 |
| Cable Exit | Without | Cable Type | 带状电缆 |
| Wire Gauge | 26-28 AWG | Orientation | 直 |
| Row Spacing | 0.100" (2.54mm) | Termination | IDT |
| Contact Type | Female Socket | Polarization | Military |
| 2nd Connector | Without | Housing Color | Black |
| Mounting Type | No | Cable End Type | Without |
| Connector Type | NOVO | Contact Finish | Gold Over Palladium Nickel Over Nickel|Gold Over Nickel |
| Flange Feature | 否 | Mounting Style | Cable |
| Number of Rows | 2 | Actuation Force | 不带 |
| Insert Material | 磷青铜 | Contact Material | Phosphor Bronze |
| Housing Material | Thermoplastic | Length - Overall | 22.35 mm |
| Mounting Feature | Without | Package Quantity | 60 |
| Panel Mount Type | 通孔 - 焊接 | Size / Dimension | .08 – .15 mm², 158 – 296 CMA, 28 – 26 美国线规 |
| Termination Rows | IDC | Cable Termination | IDC |
| Termination Style | IDC | 1st Connector Type | 插针接头 |
| 1st Contact Gender | Socket (Female) | Mating Orientation | With |
| Number of Contacts | 14 | Insulation Material | .787 – .94 mm [ .031 – .037 in ] |
| Number of Positions | 14 | Contact Length - Post | 信号（数据） |
| Mounting Hole Diameter | 带有 | Center Contact Material | 2.54 x 2.54 [.100 x .100] |
| Contact Finish - Mating | 锡 | Contact Finish Thickness | 15µin (0.38µm) |
Product Info
| Note | Receptacle can be used in applications requiring non-polarization, as well as m | Type | IDC Connector |
| Gender | F | Series | AMP LATCH Novo |
| Features | Feed Through | Polarity | 带有 |
| Product Type | Receptacles / Sockets - Housings | Connection Type | Ribbon Cable |
| With Modem Control | Yes | DigiKey Programmable | 不带 |
| Application Specifics | Wire-to-Board | ||
Environmental
| Operating Temperature | -65C to 105C | ||
Documents & Media
Similar Parts
2-1761603-5
te connectivity / amp
Conn Shrouded Header HDR 14 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO STR 14POS 30AU TE Connectivity 2-1761603 Series 2.54mm Pitch 14 Way 2 Row Straight PCB Header, Solder Termination Headers & Wire Housings PIN HEADER 14 POS VERT LOW PROFILE Conn Shrouded Header HDR 14 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Pin HeaderLow ProfileNumber of Positions = 142.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER, STRAIGHT, 14WAY HEADER,PIN,IDC,AMP-LATCH,14POS,LOWPROFILE,PCB,VERTICAL,BLUE Socket; IDC; male; PIN:14; straight; THT; gold plated; 2.54mm TE Connectivity AMP-LATCH 系列 2.54mm节距 14路 (2排) 直 PCB 针座, 焊接端接 , 通孔 IDC LOW PRO HDR 14P VERT BLUE
5103308-2
te connectivity / amp
Conn Shrouded Header HDR 14 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO STR 14POS GOLD TE Connectivity AMP LATCH Series 2.54mm Pitch 14 Way 2 Row Straight PCB Header, Solder Termination, 1A Headers & Wire Housings HDR VERT DOUBLE 14P low profile Conn Shrouded Header HDR 14 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Pin HeadersLow ProfileNumber of Positions = 142.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER, 2.54MM, 14WAY Header;Pin;Vertical;CopperAlloy;Thermoplastic;14;0.100x0.100in.;1A TE Connectivity AMP-LATCH 系列 2.54mm节距 14路 (2排) 直 PCB 针座, 焊接端接, 1A , 通孔 A/L LOW PRO HDR 14P VERT BLACK
5103310-2
te connectivity / amp
Conn Shrouded Header HDR 14 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO R/A 14POS GOLD TE Connectivity AMP LATCH Series 2.54mm Pitch 14 Way 2 Row Right Angle PCB Header, Solder Termination, 1A Headers & Wire Housings 100X100 HDR 2X007P R/A LOW PROFILE Conn Shrouded Header HDR 14 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Pin HeadersLow ProfileNumber of Positions = 142.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 14POS, 2.54MM Header,LowProfile;Shrouded;SquareRight;CopperAlloyPlated;14;Gold A/L LOW PRO HDR 14P RA BLACK
5102154-2
te connectivity / amp
Conn Ejector Header HDR 14 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 14POS .100 GOLD Headers & Wire Housings 14 POS HDR 30AU W/OUT LATCHES Conn Ejector Header HDR 14 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 142.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 14POS, 2.54MM Pin header DIN 41651 14P, 5102154-2, TE Connectivity TE Connectivity AMP-LATCH 系列 2.54mm节距 14路 (2排) 直 PCB 针座, 焊接端接 , 通孔 A/L UNIV HDR 14P VERT
1-111446-5
te connectivity / amp
Conn IDC Connector PL 14 POS 2.54mm IDT RA Cable Mount Bulk Ribbon Cable Connectors (AMP-LATCH) CONN IDC PIN 14POS 30AU NO LATCH Headers & Wire Housings 14 UNIV I/O NO EARS Conn IDC Connector PL 14 POS 2.54mm IDT RA Cable Mount Bulk Product Highlights:Connector Type = Universal I/O14 PositionsPlugWithout Mating PolarizationTerminate To Ribbon CableSearch Keywords:input/output, paddleboard, paddle board CONNECTOR,PLUG,AMP-LATCH,UNIVERSALI/O,14POSITION,TERMINATETORIBBONCABL 14 UNIV I/O, NO EARS,LEAD FREE
5499913-2
te connectivity / amp
Conn Ejector Header HDR 14 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER RT/A 14POS .100 GOLD Headers & Wire Housings 14 POS HDR 15AU R/A W/SHORT LATCHES Conn Ejector Header HDR 14 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 142.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, A-LUNIVHDRAYW/LTH,A/LUNIVHDR14PRASHTLAT TE Connectivity AMP-LATCH 系列 2.54mm节距 14路 (2排) 直角 PCB 针座, 焊接端接, 1A , 通孔 A/L UNIV HDR 14P RA SHT LAT
1761607-5
te connectivity / amp
Conn Ejector Header HDR 14 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO R/A .100 14POS TE Connectivity 1761607 Series 2.54mm Pitch 14 Way 2 Row Right Angle PCB Header, Solder Termination, 1A Headers & Wire Housings 100X100 HDR 2X007P R/A LOW PROFILE Conn Ejector Header HDR 14 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Pin HeaderLow ProfileNumber of Positions = 142.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER,PIN,IDC,AMP-LATCH,14POS,LOWPROFILE,PCB,RIGHTANGLE,BLACK TE Connectivity AMP-LATCH 系列 2.54mm节距 14路 (2排) 直角 PCB 针座, 焊接端接, 1A , 通孔 IDC LOW PRO HDR 14P RA LG LAT BLK
2-1761605-5
te connectivity / amp
Conn Shrouded Header HDR 14 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO R/A 14POS 30AU TE Connectivity AMP LATCH Series 2.54mm Pitch 14 Way 2 Row Right Angle PCB Header, Solder Termination, 1A Headers & Wire Housings PIN HEADER 14 POS R/A LOW PROFILE Conn Shrouded Header HDR 14 POS 2.54mm Solder RA Thru-Hole Product Highlights:PreloadedHousing Gender = Header - PinHeader Type = Pin HeaderAMP-LATCH Product LineLow ProfileSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER, R/A, 14WAY 14wayIDClowprofiler/amountheader TE Connectivity AMP-LATCH 系列 2.54mm节距 14路 (2排) 直角 PCB 针座, 焊接端接, 1A , 通孔 IDC LOW PRO HDR 14P RA BLUE
5104340-2
te connectivity / amp
Conn Shrouded Header HDR 14 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER 14POS R/A .100 GOLD Headers & Wire Housings HDR 14P R/A LO PRO Pin and Pinless Headers (AMP-LATCH) Product Highlights:Connector Type = Pin HeaderLow ProfileNumber of Positions = 142.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, A/L LOW PRO HDR 14P RA HT
5104338-2
te connectivity / amp
Conn Shrouded Header HDR 14 POS 2.54mm Solder ST Thru-Hole Headers & Wire Housings 100X100 HDR 2X007P VRT LPRO CONN HEADER LOPRO STR 14POS GOLD Conn Shrouded Header HDR 14 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Header - PinHeader Type = Pin HeaderAMP-LATCH Product LineLow Profile14 PositionsSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, A/L LOW PRO HDR 14P VERT HT
2-5102322-2
te connectivity / amp

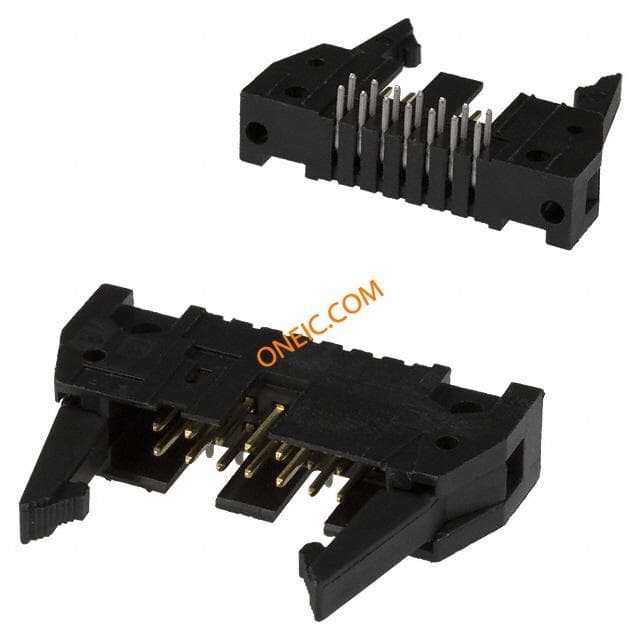

Conn Ejector Header HDR 14 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER 14POS R/A GOLD A/L UNIV HDR 14P RA LG LAT BLUE
5499786-2
te connectivity / amp
Conn Ejector Header HDR 14 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER RT/A 14POS .100 GOLD TE Connectivity 5499786 Series 2.54mm Pitch 14 Way 2 Row Right Angle PCB Header, Solder Termination, 1A Headers & Wire Housings 14 POS HDR 15AU R/A W/LONG LATCHES Conn Ejector Header HDR 14 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 142.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, 14waymaler/amountsidelatchheader,1A TE Connectivity AMP-LATCH 系列 2.54mm节距 14路 (2排) 直角 PCB 针座, 焊接端接, 1A , 通孔 A/L UNIV HDR 14P RA LG LAT
5102321-2
te connectivity / amp

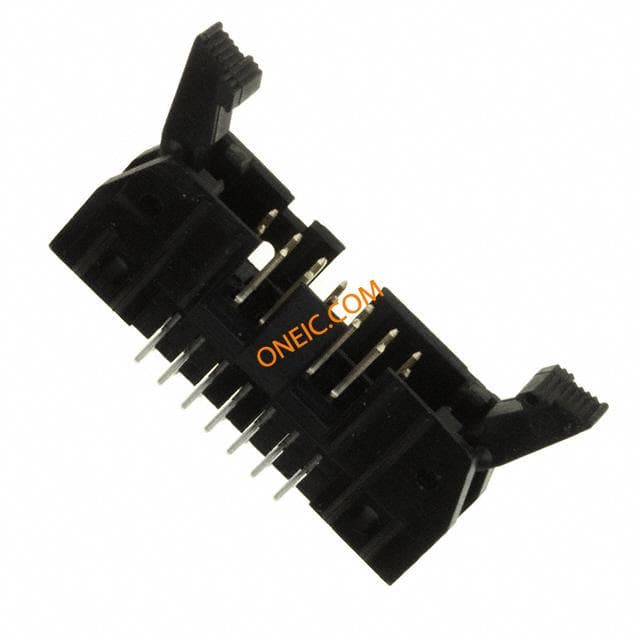

Conn Ejector Header HDR 14 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 14POS .100 GOLD TE Connectivity AMP LATCH Series 2.54mm Pitch 14 Way 2 Row Straight PCB Header, Solder Termination, 1A Headers & Wire Housings 100X100 HDR 2X007P VERT EJE Conn Ejector Header HDR 14 POS 2.54mm Solder ST Thru-Hole Search Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 14POS, 2.54MM HEADER,UNIVERSALEJECTIONPIN,AMP-LATCH,14POS,2.54X2.54,PCB,VERTICAL A/L UNIV HDR 14P VERT LG LAT
1761606-5
te connectivity / amp
Conn Shrouded Header HDR 14 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO STR .100 14POS Header Vertical IDC Pin 14 way Amp-Latch Headers & Wire Housings 100X100 HDR 2X007P VRT LPRO Conn Shrouded Header HDR 14 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Pin HeadersLow ProfileNumber of Positions = 142.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 14POS, 2.54MM HEADER,PIN,IDC,AMP-LATCH,14POS,LOWPROFILE,PCB,VERTICAL,BLACK TE Connectivity AMP-LATCH 系列 2.54mm节距 14路 (2排) 直 PCB 针座, 焊接端接 , 通孔 IDC LOW PRO HDR 14P VERT LG LA
1658694-7
te connectivity / amp
Conn Ejector Header HDR 14 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 14POS .100 GOLD Conn Ejector Header HDR 14 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 142.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 14POS, 2.54MM TE Connectivity AMP-LATCH 系列 2.54mm节距 14路 (2排) 直 PCB 针座, 按压安装端接, 1A , 通孔 A/L UNIV HDR 14P ACT PIN

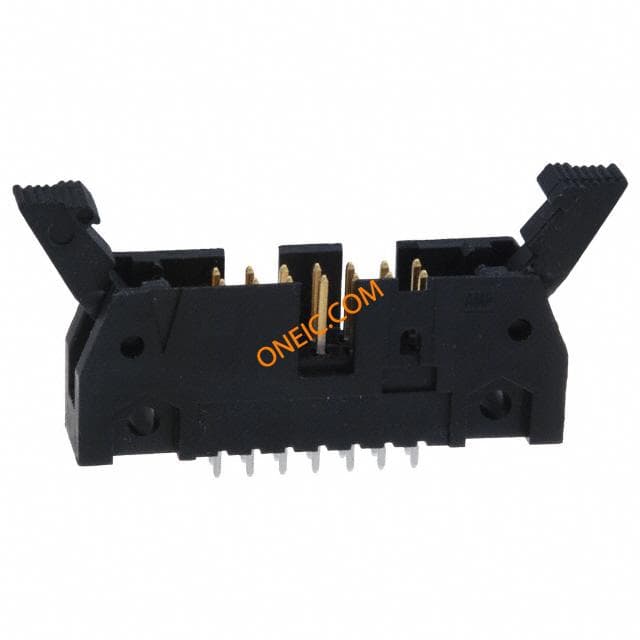

5499910-2
