1658614-4
| Manufacturer | |
| Description | Conn D-Subminiature SKT 9 POS 2.76mm IDT RA Cable Mount 9 Terminal 1 Port D-Sub Standard Connectors LPP RECEPTACLE 9P Standard Cable Connectors CONN D-SUB RECEPT 9POS 30 GOLD AMPLIMITE HDF-20 d-sub IDC socket,9 way Conn D-Subminiature SKT 9 POS 2.76mm IDT RA Cable Mount 9 Terminal 1 Port Product Highlights:ConnectorProduct Series = HDF-20 (Ribbon Cable)Number of Positions = 9ReceptacleWith ContactsSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub SOCKET, IDC, D, PLASTIC, 9WAY Conn;D-Ribbon;CableSocket;9Pos;STR;HDF-20Series;IDC;28-26AWG;FrontMetalShell D-sub socket 9P, 1658614-4, TE Connectivity TE Connectivity AMPLIMITE HDF-20 系列 2.76mm 节距 9 路 IDC D-Sub 带状电缆连接器, 插座, 热塑性外壳 09 POS HDF RCPT, AP, LEAD FREE |
| Category |
Business
| Product Category | D-Sub Standard Connectors | Standard Package | Rail / Tube |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | RoHS Compliant | Tariff No | 85369010 |
| Rad Hardened | No | Leadfree Defin | Not relevant for lead free process |
| Approval Agency | :CSA, UL | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Range deg/s | :TE CONNECTIVITY - Amplimite HDF-20 Series | Voltage Rating | 250 V ac |
| Contact Resistance | :25mohm | Current Rating (Max) | 1.25A |
| Voltage - Supply (Min) | 250VAC | Contact Rating (Current) | :1.25A |
Mechanical
| Color | Black | Depth | 18.61mm |
| Pitch | 2.76 mm | Width | 12.59mm |
| Height | 12.59 mm | Length | 30.88mm |
| Weight | 0.01 | Material | :Black Thermoplastic |
| Packaging | Tube | Cable Type | Ribbon Cable |
| Shell Size | 1 | Termination | IDT |
| Contact Size | 20 | Contact Type | Signal |
| 2nd Connector | With | Cable Opening | 747275-4 |
| Mounting Type | Cable Mount | Connector Type | Insulation Displacement Crimp (IDC) |
| Contact Finish | Gold | Flange Feature | Housing/Shell (Unthreaded) |
| Mounting Style | Wire | Number of Rows | 2 |
| Shell Material | Thermoplastic | Connector Style | D-Sub |
| Locking Feature | Mounting Holes | Material - Body | :Plastic |
| Profile (W x H) | Low | Contact Material | Phosphor Bronze |
| Housing Material | Thermoplastic | Length - Overall | 30.88 mm |
| Size / Dimension | 30.88 x 12.59 x 18.61mm | Grounding Indents | Without |
| Termination Style | Crimp | Number of Contacts | 9 |
| Contact Termination | :IDC / IDT | Insulation Diameter | 0.81 â 0.97 [0.032 â 0.038] |
| Number of Positions | 9 | Shell Size - Insert | All Plastic |
| Contact Finish Thickness | 30µin (0.76µm) | Exterior Housing Material | Thermoplastic |
| Wire Gauge or Range - mm2 | 0.08 - 0.15 [28-26] | 1st Connector Mounting Type | :Cable |
| Shell Size, Connector Layout | 1 (DE, E) | ||
Product Info
| Note | All plug assemblies are supplied with housing and cover preassembled | Type | D-Subminiature |
| Grade | Standard | Gender | SKT |
| Series | HDF-20 | Features | Feed Through |
| CAD Drawing | 3D CAD Model | Pair Number | 747275-4 |
| Product Type | Connector | Number of Ports | 1 Port |
Environmental
| Operating Temperature | -55°C ~ 105°C | ||
Documents & Media
Similar Parts
5208006-2
te connectivity / amp
Conn D-Subminiature PIN 9 POS 2.74mm Solder ST Thru-Hole 9 Terminal 1 Port D-Sub Standard Connectors DSUB E09P V/MNT Standard Board Mount Connectors CONN D-SUB PLUG STR 9POS PCB AU AMPLIMITE HD-20 d-sub PCB plug, 9 pin Conn D-Subminiature PIN 9 POS 2.74mm Solder ST Thru-Hole 9 Terminal 1 Port Product Highlights:Number of Positions = 9PlugPCB Mount Angle = VerticalProduct Series = HD 20Without Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub Conn;D-Sub;PCBPlug;9Pos;STR;HD-20Series;28-24AWG;AllPlasticShell TE Connectivity Amplimite HD-20 系列 2.74mm 节距 9 路 直向 通孔安装 PCB D-sub 连接器 插头 HD-20 PLUG 9P VERT
5208006-1
te connectivity / amp
Conn D-Subminiature PIN 9 POS 2.74mm Solder ST Thru-Hole 9 Terminal 1 Port D-Sub Standard Connectors HD-20 PLUG 9P VERT Standard Board Mount Connectors CONN D-SUB PLUG STR 9POS PCB AU Conn D-Subminiature PIN 9 POS 2.74mm Solder ST Thru-Hole 9 Terminal 1 Port Product Highlights:Number of Positions = 9PlugPCB Mount Angle = VerticalProduct Series = HD 20Without Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub D SUB CONNECTOR, STANDARD, 9POS, PLUG TE Connectivity Amplimite HD-20 系列 2.74mm 节距 9 路 直向 通孔安装 PCB D-sub 连接器 插头 HD-20 PLUG 9P VERT
745001-3
te connectivity / amp
Conn D-Subminiature PIN 9 POS 2.74mm Solder RA Thru-Hole 9 Terminal 1 Port D-Sub Standard Connectors HDJ-20 9P PLUG 595 Standard Board Mount Connectors CONN D-SUB PLUG R/A 9POS PCB AU Conn D-Subminiature PIN 9 POS 2.74mm Solder RA Thru-Hole 9 Terminal 1 Port Product Highlights:Number of Positions = 9PlugPCB Mount Angle = Right AngleProduct Series = HDJ-20Without Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub 09 PLUG RA/AP STD
5747467-1
te connectivity / amp
Conn D-Subminiature PIN 9 POS 2.74mm Solder RA Thru-Hole 9 Terminal 1 Port D-Sub Standard Connectors DSUB E09P RA590 Standard Board Mount Connectors CONN D-SUB PLUG R/A 9POS PCB AU Conn D-Subminiature PIN 9 POS 2.74mm Solder RA Thru-Hole 9 Terminal 1 Port Search Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub D SUB CONNECTOR, STANDARD, 9POS, PLUG Conn;D-Sub;PCBPlug;9Pos;RTAng;HD-20Series;20AWG;AllPlasticShell HD-20 PLUG 9P RA 590
1-745203-1
te connectivity / amp
Conn D-Subminiature PIN 9 POS 2.74mm IDT ST Cable Mount 9 Terminal 1 Port D-Sub Standard Connectors PLUG ASSY 9P HDE AP Standard Cable Connectors CONN D-SUB PLUG 9POS IDC Conn D-Subminiature PIN 9 POS 2.74mm IDT ST Cable Mount 9 Terminal 1 Port Product Highlights:ConnectorProduct Series = HDE-20 (IDC)9 PositionsWithout EnclosureHousing Gender = PlugSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub TE Connectivity AMPLIMITE HDE-20 系列 9 路 IDC D-sub 连接器, 插头, 热塑性外壳 PLUG ASSY,9P,HDE,AP
208006-1
te connectivity / amp
Conn D-Subminiature PIN 9 POS 2.74mm Solder ST Thru-Hole 9 Terminal 1 Port D-Sub Standard Connectors HD-20 9P PLUG 1071 Standard Board Mount Connectors CONN D-SUB PLUG STR 9POS PCB AU 09 PLUG SP/AP STD
747467-1
te connectivity / amp
Conn D-Subminiature PIN 9 POS 2.74mm Solder RA Thru-Hole 9 Terminal 1 Port D-Sub Standard Connectors PLUG R/A 9 POS PLASTIC SHELL CONN D-SUB PLUG R/A 9POS PCB AU Conn D-Subminiature PIN 9 POS 2.74mm Solder RA Thru-Hole 9 Terminal 1 Port Product Highlights:Number of Positions = 9PlugPCB Mount Angle = Right AngleProduct Series = HD 20Without Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub 09 APFL PLUG RA 590
1658612-4
te connectivity / amp
Conn D-Subminiature SKT 9 POS 2.77mm IDT RA Cable Mount 9 Terminal 1 Port D-Sub Standard Connectors LPM RECEPTACLE 9P Standard Cable Connectors CONN D-SUB RECEPT 9POS 30 GOLD AMPLIMITE HDF-20 d-sub IDC socket, 9 way Conn D-Subminiature SKT 9 POS 2.77mm IDT RA Cable Mount 9 Terminal 1 Port Product Highlights:ConnectorProduct Series = HDF-20 (Ribbon Cable)Number of Positions = 9ReceptacleWith ContactsSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub SOCKET, IDC, D, METAL, 9WAY Conn;D-Ribbon;CableSocket;9Pos;STR;HDF-20Series;IDC;28-26AWG;FrontMetalShell D-Sub Socket 9P, 1658612-4, TE Connectivity TE Connectivity AMPLIMITE HDF-20 系列 2.77mm 节距 9 路 IDC D-Sub 带状电缆连接器, 插座, 钢外壳 09 POS HDF RCPT, MS, LEAD FREE
5745828-1
TE Connectivity
D-Sub Standard Connectors HD-20 PLUG 9P RA 478 Standard Board Mount Connectors CONN PLUG D-SUB RT/ANG 9POS GOLD Conn D-Subminiature PIN 9 POS 2.74mm Solder RA Thru-Hole 9 Terminal 1 Port Conn D-Subminiature PIN 9 POS 2.74mm Solder RA Thru-Hole 9 Terminal 1 Port Search Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub
745828-2
TE Connectivity / AMP
D-Sub Standard Connectors 09 APFL PLUG RA 478 280 Standard Board Mount Connectors CONN PLUG D-SUB RT/ANG 9POS GOLD
747467-2
te connectivity / amp
Conn D-Subminiature PIN 9 POS 2.74mm Solder RA Thru-Hole 9 Terminal 1 Port D-Sub Standard Connectors RA PLUG 9P 560 Standard Board Mount Connectors CONN D-SUB PLUG R/A 9POS PCB AU Standard Board Mount Connectors Product Highlights:Number of Positions = 9PlugPCB Mount Angle = Right AngleProduct Series = HD 20Without Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub 09 APFL PLUG RA 590
1658615-4
te connectivity / amp
Conn D-Subminiature PIN 9 POS 2.77mm IDT RA Cable Mount 9 Terminal 1 Port D-Sub Standard Connectors LPP PLUG 9P Standard Cable Connectors CONN D-SUB PLUG 9POS GOLD AMPLIMITE HDF-20 d-sub IDC plug,9 pin Conn D-Subminiature PIN 9 POS 2.77mm IDT RA Cable Mount 9 Terminal 1 Port Product Highlights:ConnectorProduct Series = HDF-20 (Ribbon Cable)Number of Positions = 9PlugWith ContactsSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub PLUG, IDC, D, PLASTIC, 9WAY Conn;D-Ribbon;CablePlug;9Pos;STR;HDF-20Series;IDC;28-26AWG;PlasticShell D-sub plug 9P, 1658615-4, TE Connectivity TE Connectivity AMPLIMITE HDF-20 系列 2.77mm 节距 9 路 IDC D-Sub 带状电缆连接器, 插头, 热塑性外壳 09 POS HDF PLUG, AP, LEAD FREE
5745001-3
te connectivity / amp
Conn D-Subminiature PIN 9 POS 2.74mm Solder RA Thru-Hole 9 Terminal 1 Port D-Sub Standard Connectors HDJ PLUG 9P RA 590 PLUG R/A 9P PCB AU Standard Board Mount Connectors CONN D-SUB PLUG R/A 9POS PCB AU Conn D-Subminiature PIN 9 POS 2.74mm Solder RA Thru-Hole 9 Terminal 1 Port Product Highlights:9 PositionsPlugPCB Mount Angle = Right AngleProduct Series = HDJ-20Without Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub TE Connectivity Amplimite HDJ-20 系列 2.743mm 节距 9 路 直角 通孔安装 PCB D-sub 连接器 插头 HDJ PLUG 9P RA 590
745203-9
te connectivity / amp
Conn D-Subminiature PIN 9 POS 2.74mm IDT ST Cable Mount 9 Terminal 1 Port D-Sub Standard Connectors DSUB E09P IDC 26-22AWG Standard Cable Connectors CONN D-SUB PLUG 9P 22-26AWAG AU AMPLIMITE HDE-20 d-sub IDC plug,9 pin Conn D-Subminiature PIN 9 POS 2.74mm IDT ST Cable Mount 9 Terminal 1 Port Product Highlights:ConnectorProduct Series = HDE-20 (IDC)Number of Positions = 9PlugWith ContactsSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub D SUB CONNECTOR, STANDARD, 9POS, PLUG Conn;D-Sub;CablePlug;9Pos;STR;HDE-20Series;IDC;26-22AWG;AllPlasticShell TE Connectivity AMPLIMITE HDE-20 系列 2.74mm 节距 9 路 IDC D-sub 连接器, 插头, 热塑性外壳 09 HDE AP PLUG, LEAD FREE
208006-2
te connectivity / amp
Conn D-Subminiature PIN 9 POS 2.74mm Solder ST Thru-Hole 9 Terminal 1 Port D-Sub Standard Connectors HD-20 9P PLUG 1071 Standard Board Mount Connectors CONN D-SUB PLUG STR 9POS PCB AU Conn D-Subminiature PIN 9 POS 2.74mm Solder ST Thru-Hole 9 Terminal 1 Port Product Highlights:Number of Positions = 9PlugPCB Mount Angle = VerticalProduct Series = HD 20Without Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub Conn;D-Sub;PCBPlug;9Pos;STR;HD-20Series;20AWG;AllPlasticShell 09 PLUG SP/AP STD
745001-2
te connectivity / amp
Conn D-Subminiature PIN 9 POS 2.74mm Solder RA Thru-Hole 9 Terminal 1 Port Tube D-Sub Standard Connectors HDJ-20 9P PLUG 1190 Standard Board Mount Connectors 09 PLUG RA/AP STD Standard Board Mount Connectors Product Highlights:Number of Positions = 9PlugPCB Mount Angle = Right AngleProduct Series = HDJ-20Without Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub

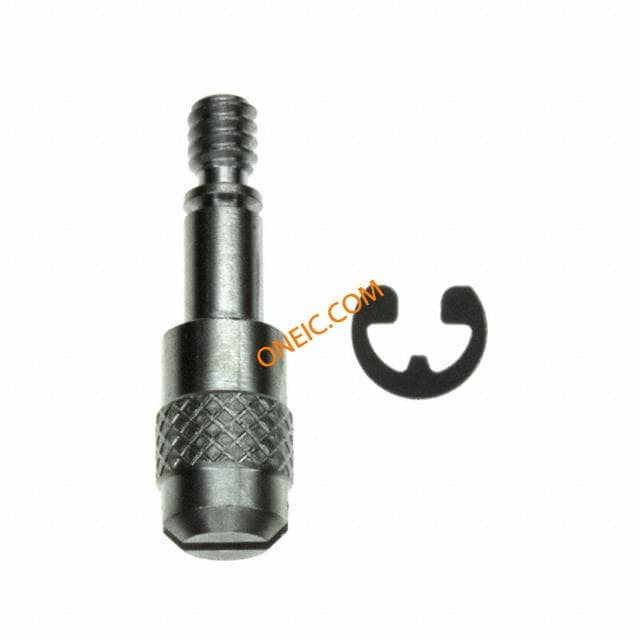

1437012-5
TE Connectivity
CONN IDC JACKSCREW ASSY 609-002 Connector,,jack screw ass,0.112-40 UNC Connector Accessories Jack Socket Assembly Kit Stainless Steel LOCKING ACCESSORY Knurled screw, 1437012-5, TE Connectivity TE Connectivity .112-40 UNC-2A 六角 插孔螺钉
171-9
TE Connectivity

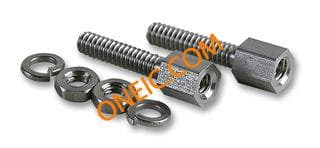

609003
