1658614-2
| Manufacturer | |
| Description | Conn D-Subminiature SKT 25 POS 2.76mm IDT RA Cable Mount 25 Terminal 1 Port D-Sub Standard Connectors LPP RECEPTACLE 25P Standard Cable Connectors CONN D-SUB RECEPT 25POS 30 GOLD AMPLIMITE HDF-20 d-sub IDC socket,25 way Conn D-Subminiature SKT 25 POS 2.76mm IDT RA Cable Mount 25 Terminal 1 Port Product Highlights:ConnectorProduct Series = HDF-20 (Ribbon Cable)Number of Positions = 25ReceptacleWith ContactsSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub SOCKET, IDC, D, PLASTIC, 25WAY Conn;D-Ribbon;CableSocket;25Pos;STR;HDF-20Series;IDC;28-26AWG;FrontMetalShell D-sub socket 25P, 1658614-2, TE Connectivity TE Connectivity AMPLIMITE HDF-20 系列 2.76mm 节距 25 路 IDC D-Sub 带状电缆连接器, 插座, 热塑性外壳 25 POS HDF RCPT, AP, LEAD FREE |
| Category |
Business
| Product Category | D-Sub Standard Connectors | Standard Package | Rail / Tube |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | RoHS Compliant | Tariff No | 85369010 |
| Rad Hardened | No | Leadfree Defin | Not relevant for lead free process |
| Approval Agency | :CSA, UL | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Range deg/s | :TE CONNECTIVITY - Amplimite HDF-20 Series | Voltage Rating | 250 V ac |
| Contact Resistance | :25mohm | Current Rating (Max) | 1.25A |
| Voltage - Supply (Min) | 250VAC | Contact Rating (Current) | :1.25A |
Mechanical
| Color | Black | Depth | 12.59mm |
| Pitch | 2.76 mm | Width | 18.61mm |
| Height | 18.61 mm | Length | 53.08mm |
| Weight | 0.01 | Material | :Black Thermoplastic |
| Packaging | Tube | Cable Type | Ribbon Cable |
| Shell Size | 3 | Termination | IDT |
| Contact Size | 20 | Contact Type | Signal |
| 2nd Connector | With | Cable Opening | 747275-2 |
| Mounting Type | Cable Mount | Connector Type | Insulation Displacement Crimp (IDC) |
| Contact Finish | Gold | Flange Feature | Housing/Shell (Unthreaded) |
| Mounting Style | Wire | Number of Rows | 2 |
| Shell Material | Thermoplastic | Connector Style | D-Sub |
| Locking Feature | Mounting Holes | Material - Body | :Plastic |
| Profile (W x H) | Low | Contact Material | Phosphor Bronze |
| Housing Material | Thermoplastic | Length - Overall | 53.08 mm |
| Size / Dimension | 53.08 x 18.61 x 12.59mm | Grounding Indents | Without |
| Termination Style | IDC | Number of Contacts | 25 |
| Contact Termination | :IDC / IDT | Insulation Diameter | 0.81 â 0.97 [0.032 â 0.038] |
| Number of Positions | 25 | Shell Size - Insert | All Plastic |
| Contact Finish Thickness | 30µin (0.76µm) | Exterior Housing Material | Thermoplastic |
| Wire Gauge or Range - mm2 | 0.08 - 0.15 [28-26] | 1st Connector Mounting Type | :Cable |
| Shell Size, Connector Layout | 3 (DB, B) | ||
Product Info
| Note | All plug assemblies are supplied with housing and cover preassembled | Type | D-Subminiature |
| Grade | Standard | Gender | SKT |
| Series | HDF-20 | Features | Feed Through |
| CAD Drawing | 3D CAD Model | Pair Number | 747275-2 |
| Product Type | Connector | Number of Ports | 1 Port |
Environmental
| Operating Temperature | -55°C ~ 105°C | ||
Documents & Media
Similar Parts
747275-2
te connectivity / amp
025 LP HDF STRAIN RELIEF Connector Accessories Strain Relief 25 POS Thermoplastic Black D-Sub Tools & Hardware CABLE STRESS RLF 25P Standard Cable Connectors CONN D-SUB STRAIN RELIEF 25POS AMPLIMITE HDF-20 strain relief, 25 way Connector Accessories Strain Relief 25 POS Thermoplastic Black Product Highlights:AccessoryAccessory Type = Strain ReliefProduct Series = HDF-20 (Ribbon Cable)Number of Positions = 25Wire/Cable Type = Ribbon CableSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub STRAIN RELIEF, 25WAY D-SubStrainRelief;Thermoplastic;Ribbon;3;Black;25;AMP/HDF-20 Strain relief 25P, 747275-2, TE Connectivity TE Connectivity 应力消除夹, 使用于HDF20 系列
748826-1
te connectivity / amp
Conn D-Subminiature PIN 25 POS 2.76mm Solder RA Thru-Hole 25 Terminal 1 Port D-Sub Standard Connectors 25P PLUG R/A PLASTIC 140 Standard Board Mount Connectors CONN D-SUB PLUG R/A 25POS T/H 25 APIII PLUG 590
1658615-2
te connectivity / amp
Conn D-Subminiature PIN 25 POS 2.77mm IDT RA Cable Mount 25 Terminal 1 Port D-Sub Standard Connectors LPP PLUG 25P Standard Cable Connectors CONN D-SUB PLUG 25POS GOLD AMPLIMITE HDF-20 d-sub IDC plug,25 pin Conn D-Subminiature PIN 25 POS 2.77mm IDT RA Cable Mount 25 Terminal 1 Port Product Highlights:ConnectorProduct Series = HDF-20 (Ribbon Cable)Number of Positions = 25PlugWith ContactsSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub PLUG, IDC, D, PLASTIC, 25WAY Conn;D-Ribbon;CablePlug;25Pos;STR;HDF-20Series;IDC;28-26AWG;PlasticShell D-sub plug 25P, 1658615-2, TE Connectivity TE Connectivity AMPLIMITE HDF-20 系列 2.77mm 节距 25 路 IDC D-Sub 带状电缆连接器, 插头, 热塑性外壳 25 POS HDF PLUG, AP, LEAD FREE
747026-1
te connectivity / amp
Conn D-Subminiature PIN 25 POS 2.77mm Solder ST Thru-Hole 25 Terminal 1 Port Standard Board Mount Connectors 25 APFL PLUG T-BEND 545
745211-7
te connectivity / amp
Conn D-Subminiature PL 25 POS 2.76mm IDT ST Cable Mount 25 Terminal 1 Port D-Sub Standard Connectors DSUB B25P IDC 26-22 AWG Standard Cable Connectors CONN D-SUB PLUG 25P 22-26AWG AU Conn D-Subminiature PL 25 POS 2.76mm IDT ST Cable Mount 25 Terminal 1 Port Product Highlights:ConnectorProduct Series = HDE-20 (IDC)Number of Positions = 25PlugWith ContactsSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub D SUB CONNECTOR, STANDARD, 25POS, PLUG Conn;D-Sub;CablePlug;25Pos;STR;HDE-20Series;IDC;26-22AWG;AllPlasticShell 25 HDE AP PLUG, LEAD FREE
5208008-2
te connectivity / amp
Conn D-Subminiature PIN 25 POS 2.77mm Solder ST Thru-Hole 25 Terminal 1 Port D-Sub Standard Connectors DSUB B25P V/MNT Standard Board Mount Connectors CONN D-SUB PLUG STR 25POS PCB AU Conn D-Subminiature PL 25 POS Solder ST Thru-Hole 25Terminal 1Port Conn D-Subminiature PIN 25 POS 2.77mm Solder ST Thru-Hole 25 Terminal 1 Port Product Highlights:Number of Positions = 25PlugPCB Mount Angle = VerticalProduct Series = HD 20Without Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub HD-20 PLUG 25P VERT
5748826-1
te connectivity / amp
Conn D-Subminiature PIN 25 POS 2.76mm Solder RA Thru-Hole 25 Terminal 1 Port D-Sub Standard Connectors DSUB B25P RA590 Standard Board Mount Connectors CONN D-SUB PLUG R/A 25POS T/H Conn D-Subminiature PIN 25 POS 2.76mm Solder RA Thru-Hole 25 Terminal 1 Port Product Highlights:Number of Positions = 25PlugPCB Mount Angle = Right AngleProduct Series = HD 20Without Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub AMP III PLUG 25P RA 590
748826-2
te connectivity / amp
Conn D-Subminiature PIN 25 POS 2.76mm Solder RA Thru-Hole 25 Terminal 1 Port D-Sub Standard Connectors PLUG PLASTIC SHL 25P Standard Board Mount Connectors CONN D-SUB PLUG R/A 25POS T/H Conn D-Subminiature PIN 25 POS 2.76mm Solder RA Thru-Hole 25 Terminal 1 Port Product Highlights:Number of Positions = 25PlugPCB Mount Angle = Right AngleProduct Series = HD 20Without Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub Conn;D-Sub;PCBPlug;25Pos;RTAng;HD-20Series;20AWG;AllPlasticShell 25 APIII PLUG 590
5748826-2
te connectivity / amp
Conn D-Subminiature PIN 25 POS 2.76mm Solder RA Thru-Hole 25 Terminal 1 Port D-Sub Standard Connectors PLUG PLASTIC SHL 25P Standard Board Mount Connectors CONN D-SUB PLUG R/A 25POS T/H Conn D-Subminiature PIN 25 POS 2.76mm Solder RA Thru-Hole 25 Terminal 1 Port Product Highlights:Number of Positions = 25PlugPCB Mount Angle = Right AngleProduct Series = HD 20Without Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub Conn;D-Sub;PCBPlug;25Pos;RTAng;HD-20Series;20AWG;AllPlasticShell AMP III PLUG 25P RA 590
208008-1
te connectivity / amp
Conn D-Subminiature PIN 25 POS 2.77mm Solder ST Thru-Hole 25 Terminal 1 Port D-Sub Standard Connectors HD-20 25P PLUG 630 Standard Board Mount Connectors CONN D-SUB PLUG STR 25POS PCB AU TE Connectivity HD 20 系列 2.77mm 节距 25 路 直向 通孔安装 PCB D-sub 连接器 插头 25 PLUG SP/AP STD
208008-2
te connectivity / amp
Conn D-Subminiature PIN 25 POS 2.77mm Solder ST Thru-Hole 25 Terminal 1 Port D-Sub Standard Connectors HD-20 25P PLUG 630 Standard Board Mount Connectors CONN D-SUB PLUG STR 25POS PCB AU 25 PLUG SP/AP STD
734155-1
te connectivity / amp

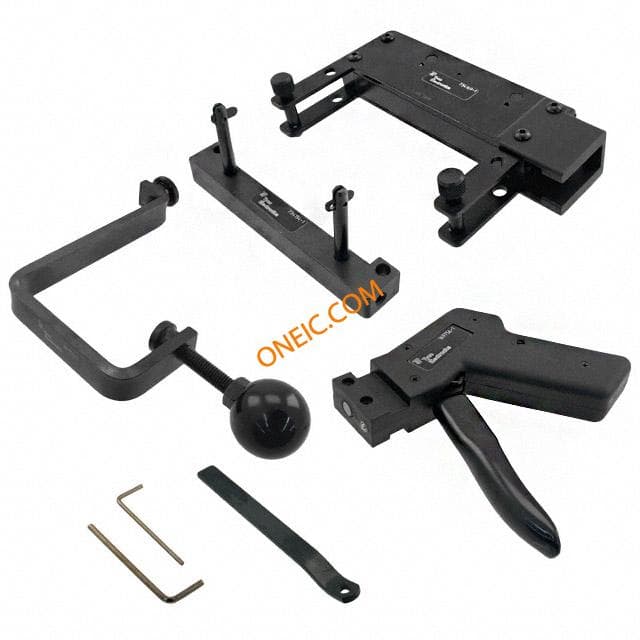

Connector Accessories Basic Tooling Kit Hand Tools BASIC TOOLING KIT TOOLING KIT ASSY Termination tool for IDC connector Basic Tooling Kit CRIMP TOOL, PISTOL GRIP TerminationtoolforIDCconnector Pressing tool without adapter, 734155-1, TE Connectivity TE Connectivity AMP-LATCH 系列 端接工具端接工具
