1658527-2
| Manufacturer | |
| Description | Headers & Wire Housings 6 POS RECPT 30AU Ribbon Cable Connectors (AMP-LATCH) CONN RCPT 6POS .100 W/STR RELIEF TE Connectivity AMP-LATCH 622 系列 2行 6路 2.54mm节距 母 IDC 连接器 , 电缆安装 622-0630LF FEM SOCKT,LEAD FREE |
| Category |
Business
| Other Names | 16585272 | Product Category | Headers & Wire Housings |
| Standard Package | 50 | Factory Pack Quantity | 50 |
Compliance
| RoHS | RoHS Compliant | Leadfree Defin | Not relevant for lead free process |
| RoHSELV Compliance | RoHS compliant, ELV compliant | Material Flammability Rating | UL 94V-0 |
Electrical
| Voltage Rating | 500 V | Current Rating (Max) | 1A |
Mechanical
| Color | Blue | Pitch | 2.54 mm |
| Height | 0.475 | Length | 0.477 |
| Packaging | Bulk | Wire Type | Ribbon Cable - PVC |
| Body Color | 蓝色 | Cable Exit | Without |
| Cable Type | 带状电缆 | Wire Gauge | 26 - 28 AWG |
| Orientation | 直 | Row Spacing | 2.54 mm |
| Contact Type | Female Socket | Pitch - Post | 2.54 x 2.54 [.100 x .100] |
| Polarization | Center & Military | 2nd Connector | Without |
| Housing Color | Blue | Mounting Type | Vertical |
| Cable End Type | Without | Connector Type | 622 Series |
| Contact Finish | Gold | Mounting Style | Free Hanging |
| Number of Rows | 2 | Contact Material | Beryllium Copper |
| Housing Material | Thermoplastic | Mounting Feature | Without |
| Termination Rows | IDC | Cable Termination | IDC |
| Termination Style | IDC | 1st Contact Gender | Socket (Female) |
| Mating Orientation | With | Number of Contacts | 6 |
| Number of Positions | 6 | Contact Finish Thickness | 30µin (0.76µm) |
Product Info
| Type | Ribbon Cable | Gender | Receptacle |
| Series | 622 | Features | Feed Through, Polarizing Key |
| Product Type | Receptacles / Sockets - Housings | Accessory Type | Handtool - 1437000-6; Die - 1437000-9 |
| Connection Type | Ribbon Cable | ||
Environmental
| Operating Temperature | +125°C | ||
Documents & Media
Similar Parts
2-1761603-1
te connectivity / amp
Conn Shrouded Header HDR 6 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER IDC 6POS VERT BLUE TE Connectivity 2-1761603 Series 2.54mm Pitch 6 Way 2 Row Straight PCB Header, Solder Termination Headers & Wire Housings IDC HDR 6P VERT BLUE LOW PRO Conn Shrouded Header HDR 6 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Pin HeaderLow ProfileNumber of Positions = 62.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER, IDC, 2.54MM 6WAY HEADER,PIN,IDC,AMP-LATCH,6POS,LOWPROFILE,PCB,VERTICAL,BLUE TE Connectivity AMP-LATCH 系列 2.54mm节距 6路 (2排) 直 PCB 针座, 焊接端接 , 通孔 IDC LOW PRO HDR 6P VERT BLUE
2-1761606-1
te connectivity / amp
Conn Shrouded Header HDR 6 POS 2.54mm Solder ST Thru-Hole Headers & Wire Housings IDC LOW PRO HDR 6P VERT LG LAT BLUE Pin and Pinless Headers (AMP-LATCH) CONN HEADER PIN 6POS VERT GOLD TE Connectivity 2-1761606 Series 2.54mm Pitch 6 Way 2 Row Straight PCB Header, Solder Termination, 1A Conn Shrouded Header HDR 6 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Pin HeaderLow ProfileNumber of Positions = 62.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, SHROUDEDHDR,MALE,6WAY TE Connectivity AMP-LATCH 系列 2.54mm节距 6路 (2排) 直 PCB 针座, 焊接端接, 1A , 通孔 IDC LOW PRO HDR 6P VERT LG LAT
2-1761679-1
te connectivity / amp
Conn Ejector Header HDR 6 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER IDC 6POS VERT BLUE Headers & Wire Housings IDC LOW PRO HDR 6P VERT BLUE Conn Ejector Header HDR 6 POS 2.54mm Solder ST Thru-Hole Search Keywords:ribbon cable connector system, input/output, LATCH Universal Header, IDC LOW PRO HDR 6P VERT BLUE

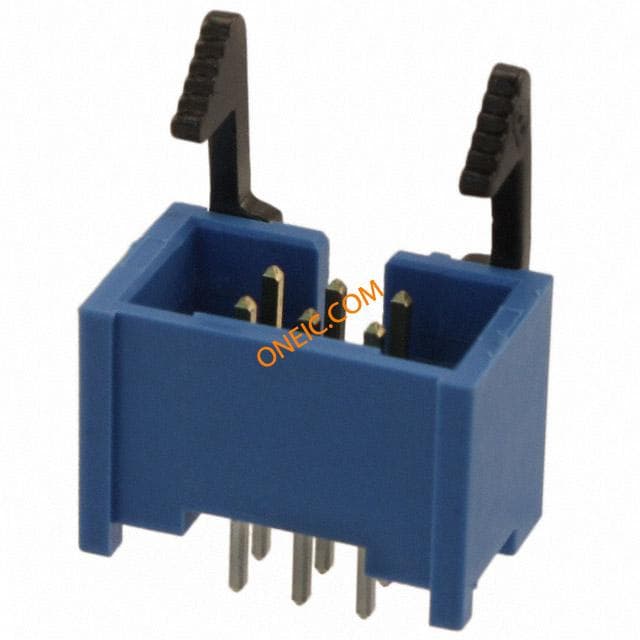

2-1761608-1
