1658526-9
| Manufacturer | |
| Description | Conn IDC Connector F 14 POS 2.54mm IDT RA Cable Mount Ribbon Cable Connectors (AMP-LATCH) CONN RCPT 14POS VERT GOLD W/SR Headers & Wire Housings IDC RECPT 14 POS W/ STRAIN RELIEF Conn IDC Connector F 14 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = AMP-LATCHNumber of Positions = 14ReceptacleMating Polarization Method = Center & MilitaryWith Mating Polarization SOCKET, IDC, 14WAY CONNECTOR,RECEPTACLE,AMP-LATCH609,14POSITION,MATINGPOLARIZATION 609-1441LF FEM SOCKT,LEAD FREE |
| Category |
Business
| Tradename | AMP-LATCH | Other Names | 16585269 |
| Product Category | Headers & Wire Housings | Standard Package | Bulk |
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
| Leadfree Defin | Not relevant for lead free process | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Range deg/s | :TE - 609 Series | Voltage - Breakdown | :500V |
| Current Rating (Max) | 1/Contact A | Insulation Resistance | :1Gohm |
| Contact Rating (Current) | :1A | ||
Mechanical
| Color | Blue | Depth | 7.05 mm |
| Pitch | 2.54 mm | Height | 12.37 mm |
| Weight | 0.004 | Material | :Glass Feinforced Thermoplastic |
| Packaging | Bulk | Wire Type | Ribbon Cable |
| Cable Exit | With | Wire Gauge | 28-30 AWG |
| Row Spacing | 0.100" (2.54mm) | Termination | IDT |
| Contact Type | Female Socket | Pitch - Post | :2.54mm |
| Polarization | Center & Military | 2nd Connector | Without |
| Housing Color | Blue | Mounting Type | No |
| Cable End Type | Without | Connector Type | AMP-LATCH |
| Contact Finish | Gold Over Nickel | Mounting Style | Cable |
| Number of Rows | 2 | Contact Material | Beryllium Copper |
| Housing Material | Thermoplastic Glass Reinforced | Length - Overall | 22.25 mm |
| Mounting Feature | Without | Primary Material | InterconnectSystem |
| Cable Termination | IDC | Termination Style | Through Hole |
| 1st Contact Gender | Socket (Female) | Mating Orientation | With |
| Number of Contacts | 14 | Contact Termination | :IDC / IDT |
| Number of Positions | 14 | Center Contact Material | 2.54 x 2.54 [.100 x .100] |
| Contact Finish Thickness | 30µin (0.76µm) | 1st Connector Mounting Type | :Cable |
Product Info
| Type | IDC Connector | Gender | F |
| Series | AMP-LATCH | Features | Polarizing Key, Strain Relief |
| Polarity | :Bump/Clip | Manufacturer | AMP-LATCH |
| Product Type | Receptacles / Sockets - PCB | Connection Type | Ribbon Cable |
| With Modem Control | Yes | ||
Environmental
| Mating Cycles | :200 | Operating Temperature | -55C to 125C |
Similar Parts
2-1761603-5
te connectivity / amp
Conn Shrouded Header HDR 14 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO STR 14POS 30AU TE Connectivity 2-1761603 Series 2.54mm Pitch 14 Way 2 Row Straight PCB Header, Solder Termination Headers & Wire Housings PIN HEADER 14 POS VERT LOW PROFILE Conn Shrouded Header HDR 14 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Pin HeaderLow ProfileNumber of Positions = 142.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER, STRAIGHT, 14WAY HEADER,PIN,IDC,AMP-LATCH,14POS,LOWPROFILE,PCB,VERTICAL,BLUE Socket; IDC; male; PIN:14; straight; THT; gold plated; 2.54mm TE Connectivity AMP-LATCH 系列 2.54mm节距 14路 (2排) 直 PCB 针座, 焊接端接 , 通孔 IDC LOW PRO HDR 14P VERT BLUE
5103308-2
te connectivity / amp
Conn Shrouded Header HDR 14 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO STR 14POS GOLD TE Connectivity AMP LATCH Series 2.54mm Pitch 14 Way 2 Row Straight PCB Header, Solder Termination, 1A Headers & Wire Housings HDR VERT DOUBLE 14P low profile Conn Shrouded Header HDR 14 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Pin HeadersLow ProfileNumber of Positions = 142.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER, 2.54MM, 14WAY Header;Pin;Vertical;CopperAlloy;Thermoplastic;14;0.100x0.100in.;1A TE Connectivity AMP-LATCH 系列 2.54mm节距 14路 (2排) 直 PCB 针座, 焊接端接, 1A , 通孔 A/L LOW PRO HDR 14P VERT BLACK
5103310-2
te connectivity / amp
Conn Shrouded Header HDR 14 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO R/A 14POS GOLD TE Connectivity AMP LATCH Series 2.54mm Pitch 14 Way 2 Row Right Angle PCB Header, Solder Termination, 1A Headers & Wire Housings 100X100 HDR 2X007P R/A LOW PROFILE Conn Shrouded Header HDR 14 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Pin HeadersLow ProfileNumber of Positions = 142.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 14POS, 2.54MM Header,LowProfile;Shrouded;SquareRight;CopperAlloyPlated;14;Gold A/L LOW PRO HDR 14P RA BLACK
5102154-2
te connectivity / amp
Conn Ejector Header HDR 14 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 14POS .100 GOLD Headers & Wire Housings 14 POS HDR 30AU W/OUT LATCHES Conn Ejector Header HDR 14 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 142.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 14POS, 2.54MM Pin header DIN 41651 14P, 5102154-2, TE Connectivity TE Connectivity AMP-LATCH 系列 2.54mm节距 14路 (2排) 直 PCB 针座, 焊接端接 , 通孔 A/L UNIV HDR 14P VERT
1-111446-5
te connectivity / amp
Conn IDC Connector PL 14 POS 2.54mm IDT RA Cable Mount Bulk Ribbon Cable Connectors (AMP-LATCH) CONN IDC PIN 14POS 30AU NO LATCH Headers & Wire Housings 14 UNIV I/O NO EARS Conn IDC Connector PL 14 POS 2.54mm IDT RA Cable Mount Bulk Product Highlights:Connector Type = Universal I/O14 PositionsPlugWithout Mating PolarizationTerminate To Ribbon CableSearch Keywords:input/output, paddleboard, paddle board CONNECTOR,PLUG,AMP-LATCH,UNIVERSALI/O,14POSITION,TERMINATETORIBBONCABL 14 UNIV I/O, NO EARS,LEAD FREE
1761607-5
te connectivity / amp
Conn Ejector Header HDR 14 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO R/A .100 14POS TE Connectivity 1761607 Series 2.54mm Pitch 14 Way 2 Row Right Angle PCB Header, Solder Termination, 1A Headers & Wire Housings 100X100 HDR 2X007P R/A LOW PROFILE Conn Ejector Header HDR 14 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Pin HeaderLow ProfileNumber of Positions = 142.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER,PIN,IDC,AMP-LATCH,14POS,LOWPROFILE,PCB,RIGHTANGLE,BLACK TE Connectivity AMP-LATCH 系列 2.54mm节距 14路 (2排) 直角 PCB 针座, 焊接端接, 1A , 通孔 IDC LOW PRO HDR 14P RA LG LAT BLK
2-1761607-5
te connectivity / amp
Conn Ejector Header HDR 14 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER PIN 14POS R/A GOLD TE Connectivity AMP LATCH Series 2.54mm Pitch 14 Way 2 Row Right Angle PCB Header, Solder Termination, 1A Headers & Wire Housings LPRO HDR 14P RA LG LAT Conn Ejector Header HDR 14 POS 2.54mm Solder RA Thru-Hole Product Highlights:PreloadedHousing Gender = Header - PinHeader Type = Pin HeaderAMP-LATCH Product LineLow ProfileSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER, RIGHT ANGLE, 14WAY 14waymaler/afrontlatchheader TE Connectivity AMP-LATCH 系列 2.54mm节距 14路 (2排) 直角 PCB 针座, 焊接端接, 1A , 通孔 IDC LOW PRO HDR 14P RA LG LAT
2-1761605-5
te connectivity / amp
Conn Shrouded Header HDR 14 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO R/A 14POS 30AU TE Connectivity AMP LATCH Series 2.54mm Pitch 14 Way 2 Row Right Angle PCB Header, Solder Termination, 1A Headers & Wire Housings PIN HEADER 14 POS R/A LOW PROFILE Conn Shrouded Header HDR 14 POS 2.54mm Solder RA Thru-Hole Product Highlights:PreloadedHousing Gender = Header - PinHeader Type = Pin HeaderAMP-LATCH Product LineLow ProfileSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER, R/A, 14WAY 14wayIDClowprofiler/amountheader TE Connectivity AMP-LATCH 系列 2.54mm节距 14路 (2排) 直角 PCB 针座, 焊接端接, 1A , 通孔 IDC LOW PRO HDR 14P RA BLUE
1761681-5
te connectivity / amp
Conn Shrouded Header HDR 14 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER IDC 14POS VERT GOLD TE Connectivity 1761681 Series 2.54mm Pitch 14 Way 2 Row Straight PCB Header, Solder Termination Headers & Wire Housings IDC LOW PRO HDR 14P VERT HT BLACK Conn Shrouded Header HDR 14 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Pin HeadersLow ProfileNumber of Positions = 142.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, 2.54mm,Header,vert,shrd,DR,14W,Sn TE Connectivity AMP-LATCH 系列 2.54mm节距 14路 (2排) 直 PCB 针座, 焊接端接 , 通孔 IDC LOW PRO HDR 14P VERT HT BLACK
5104340-2
te connectivity / amp
Conn Shrouded Header HDR 14 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER 14POS R/A .100 GOLD Headers & Wire Housings HDR 14P R/A LO PRO Pin and Pinless Headers (AMP-LATCH) Product Highlights:Connector Type = Pin HeaderLow ProfileNumber of Positions = 142.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, A/L LOW PRO HDR 14P RA HT
5104338-2
te connectivity / amp
Conn Shrouded Header HDR 14 POS 2.54mm Solder ST Thru-Hole Headers & Wire Housings 100X100 HDR 2X007P VRT LPRO CONN HEADER LOPRO STR 14POS GOLD Conn Shrouded Header HDR 14 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Header - PinHeader Type = Pin HeaderAMP-LATCH Product LineLow Profile14 PositionsSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, A/L LOW PRO HDR 14P VERT HT
2-5102322-2
te connectivity / amp
Conn Ejector Header HDR 14 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER 14POS R/A GOLD A/L UNIV HDR 14P RA LG LAT BLUE
5499786-2
te connectivity / amp
Conn Ejector Header HDR 14 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER RT/A 14POS .100 GOLD TE Connectivity 5499786 Series 2.54mm Pitch 14 Way 2 Row Right Angle PCB Header, Solder Termination, 1A Headers & Wire Housings 14 POS HDR 15AU R/A W/LONG LATCHES Conn Ejector Header HDR 14 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 142.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, 14waymaler/amountsidelatchheader,1A TE Connectivity AMP-LATCH 系列 2.54mm节距 14路 (2排) 直角 PCB 针座, 焊接端接, 1A , 通孔 A/L UNIV HDR 14P RA LG LAT
5102321-2
te connectivity / amp
Conn Ejector Header HDR 14 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 14POS .100 GOLD TE Connectivity AMP LATCH Series 2.54mm Pitch 14 Way 2 Row Straight PCB Header, Solder Termination, 1A Headers & Wire Housings 100X100 HDR 2X007P VERT EJE Conn Ejector Header HDR 14 POS 2.54mm Solder ST Thru-Hole Search Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 14POS, 2.54MM HEADER,UNIVERSALEJECTIONPIN,AMP-LATCH,14POS,2.54X2.54,PCB,VERTICAL A/L UNIV HDR 14P VERT LG LAT
1761606-5
te connectivity / amp
Conn Shrouded Header HDR 14 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO STR .100 14POS Header Vertical IDC Pin 14 way Amp-Latch Headers & Wire Housings 100X100 HDR 2X007P VRT LPRO Conn Shrouded Header HDR 14 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Pin HeadersLow ProfileNumber of Positions = 142.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 14POS, 2.54MM HEADER,PIN,IDC,AMP-LATCH,14POS,LOWPROFILE,PCB,VERTICAL,BLACK TE Connectivity AMP-LATCH 系列 2.54mm节距 14路 (2排) 直 PCB 针座, 焊接端接 , 通孔 IDC LOW PRO HDR 14P VERT LG LA
1658694-7
te connectivity / amp
Conn Ejector Header HDR 14 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 14POS .100 GOLD Conn Ejector Header HDR 14 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 142.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 14POS, 2.54MM TE Connectivity AMP-LATCH 系列 2.54mm节距 14路 (2排) 直 PCB 针座, 按压安装端接, 1A , 通孔 A/L UNIV HDR 14P ACT PIN
5103311-2
te connectivity / amp
Conn Shrouded Header HDR 14 POS 2.54mm Solder RA Thru-Hole CONN HEADER LOPRO R/A 14POS GOLD Conn Shrouded Header HDR 14 POS 2.54mm Solder RA Thru-Hole Search Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE TO BOARD CONNECTOR, HEADER, 14POS, 2ROW Pin header DIN 41651 14P, 5103311-2, TE Connectivity TE Connectivity AMP-LATCH 系列 2.54mm节距 14路 (2排) 直角 PCB 针座, 焊接端接, 1A , 通孔 A/L LOW PRO HDR 14P RA BLACK
2-5499206-2
te connectivity / amp
Conn Ejector Header HDR 14 POS 2.54mm Solder ST Thru-Hole Headers & Wire Housings UNIV HDR 14P VT BLU LARGE LATCH Pin and Pinless Headers (AMP-LATCH) CONN HEADER 14POS VERT GOLD TE Connectivity AMP LATCH Series 2.54mm Pitch 14 Way 2 Row Straight PCB Header, Solder Termination, 1A Pin and Pinless Headers (AMP-LATCH) Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 142.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, 14waymalestraightsidelatchheader TE Connectivity AMP-LATCH 系列 2.54mm节距 14路 (2排) 直 PCB 针座, 焊接端接, 1A , 通孔 A/L UNIV HDR 14P VERT LG LAT BLUE

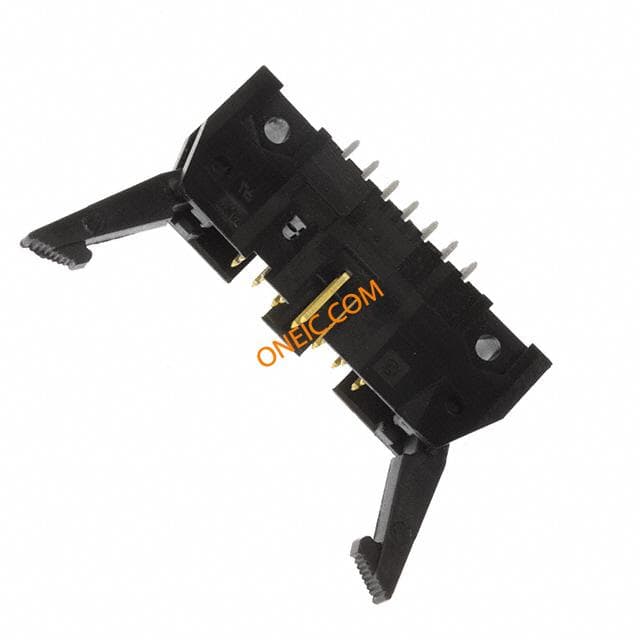

5499206-2
