1658526-8
| Manufacturer | |
| Description | Conn IDC Connector F 14 POS 2.54mm IDT RA Cable Mount Ribbon Cable Connectors (AMP-LATCH) CONN RCPT 14POS VERT GOLD Ribbon cable conn.rcpt.14way,2.54mm.blue Headers & Wire Housings IDC RECPT 14 POS Conn IDC Connector F 14 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = AMP-LATCHNumber of Positions = 14ReceptacleMating Polarization Type = Center & MilitaryWith Mating Polarization SOCKET, IDC, 14WAY RibbonCableConnector,AMP-Latch,14Positions,Female TE Connectivity AMP-LATCH 609 系列 2行 14路 2.54mm节距 直角 母 IDC 连接器 , 电缆安装 609-1430LF FEM SOCKT,LEAD FREE |
| Category |
Business
| Tradename | AMP-LATCH | Other Names | 16585268 |
| Part # Aliases | 515-0116 | Product Category | Headers & Wire Housings |
| Standard Package | Bulk | Factory Pack Quantity | 50 |
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
| Leadfree Defin | Not relevant for lead free process | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Range deg/s | :TE - 609 Series | Dielectric Strength | :1000V/m |
| Current Rating (Max) | 1A | Insulation Resistance | :1Gohm |
Mechanical
| Color | Blue | Depth | 7.05 mm |
| Pitch | 2.54 mm | Height | 12.37 mm |
| Weight | 0.04 | Packaging | Bulk |
| Wire Type | Ribbon Cable | Cable Exit | Without |
| Wire Gauge | 28-30 AWG | Row Spacing | 0.100" (2.54mm) |
| Termination | IDT | Contact Type | Female Socket |
| Pitch - Post | :2.54mm | Polarization | Center & Military |
| 2nd Connector | Without | Housing Color | Blue |
| Mounting Type | No | Cable End Type | Without |
| Connector Type | AMP-LATCH | Contact Finish | Gold Over Nickel |
| Mounting Style | Cable | Number of Rows | 2 |
| Contact Material | Beryllium Copper | Housing Material | Thermoplastic Glass Reinforced |
| Length - Overall | 22.25 mm | Mounting Feature | Without |
| Cable Termination | IDC | Termination Style | Through Hole |
| 1st Contact Gender | Socket (Female) | Color - Connectors | :Blue |
| Mating Orientation | With | Number of Contacts | 14 |
| Contact Termination | :IDC / IDT | Number of Positions | 14 |
| Center Contact Material | 2.54 x 2.54 [.100 x .100] | Contact Finish Thickness | 30µin (0.76µm) |
| 1st Connector Mounting Type | :Cable | ||
Product Info
| Type | IDC Connector | Gender | F |
| Series | AMP-LATCH | Features | Polarizing Key |
| Product Type | Receptacles / Sockets - PCB | Connection Type | Ribbon Cable |
| With Modem Control | Yes | ||
Environmental
| Operating Temperature | +125°C | ||
Similar Parts
1-111492-6
te connectivity / amp
Conn Ejector Header M 14 POS 2.54mm IDT RA Cable Mount Bulk Ribbon Cable Connectors (AMP-LATCH) CONN PLUG 14POS UNIV I/O NO EARS Headers & Wire Housings 014 UNIV I/O 30DP NO EARS LTCH 014 UNIV I/O 30DP NO EARS LTCH 014 UNIV I/O 30DP NO EARS LTCH Search Keywords:input/output, paddleboard, paddle board

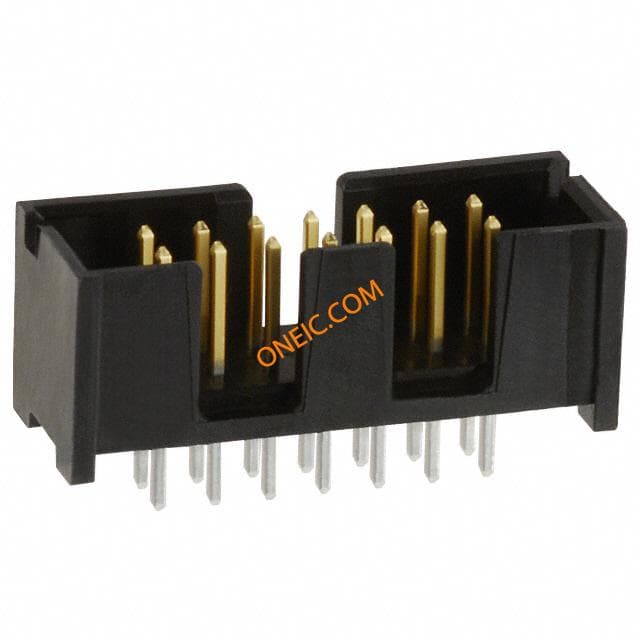

5103308-2
te connectivity / amp
Conn Shrouded Header HDR 14 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO STR 14POS GOLD TE Connectivity AMP LATCH Series 2.54mm Pitch 14 Way 2 Row Straight PCB Header, Solder Termination, 1A Headers & Wire Housings HDR VERT DOUBLE 14P low profile Conn Shrouded Header HDR 14 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Pin HeadersLow ProfileNumber of Positions = 142.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER, 2.54MM, 14WAY Header;Pin;Vertical;CopperAlloy;Thermoplastic;14;0.100x0.100in.;1A TE Connectivity AMP-LATCH 系列 2.54mm节距 14路 (2排) 直 PCB 针座, 焊接端接, 1A , 通孔 A/L LOW PRO HDR 14P VERT BLACK
5103310-2
te connectivity / amp
Conn Shrouded Header HDR 14 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO R/A 14POS GOLD TE Connectivity AMP LATCH Series 2.54mm Pitch 14 Way 2 Row Right Angle PCB Header, Solder Termination, 1A Headers & Wire Housings 100X100 HDR 2X007P R/A LOW PROFILE Conn Shrouded Header HDR 14 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Pin HeadersLow ProfileNumber of Positions = 142.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 14POS, 2.54MM Header,LowProfile;Shrouded;SquareRight;CopperAlloyPlated;14;Gold A/L LOW PRO HDR 14P RA BLACK
5102154-2
te connectivity / amp
Conn Ejector Header HDR 14 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 14POS .100 GOLD Headers & Wire Housings 14 POS HDR 30AU W/OUT LATCHES Conn Ejector Header HDR 14 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 142.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 14POS, 2.54MM Pin header DIN 41651 14P, 5102154-2, TE Connectivity TE Connectivity AMP-LATCH 系列 2.54mm节距 14路 (2排) 直 PCB 针座, 焊接端接 , 通孔 A/L UNIV HDR 14P VERT

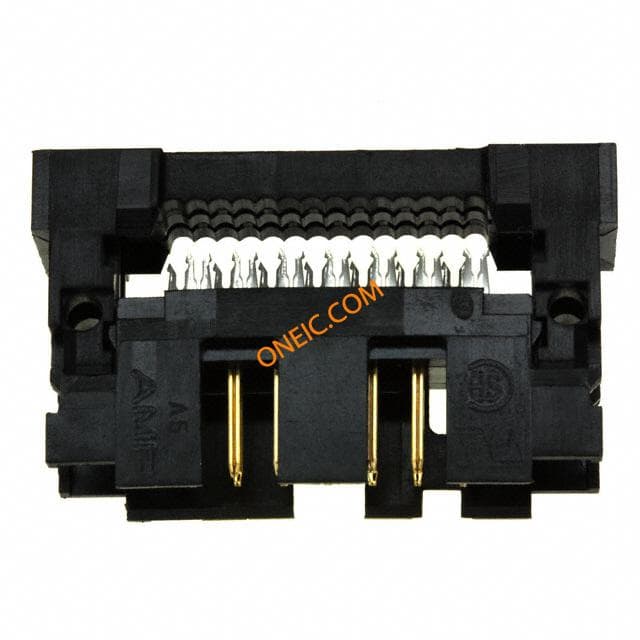

1-111446-5
te connectivity / amp
Conn IDC Connector PL 14 POS 2.54mm IDT RA Cable Mount Bulk Ribbon Cable Connectors (AMP-LATCH) CONN IDC PIN 14POS 30AU NO LATCH Headers & Wire Housings 14 UNIV I/O NO EARS Conn IDC Connector PL 14 POS 2.54mm IDT RA Cable Mount Bulk Product Highlights:Connector Type = Universal I/O14 PositionsPlugWithout Mating PolarizationTerminate To Ribbon CableSearch Keywords:input/output, paddleboard, paddle board CONNECTOR,PLUG,AMP-LATCH,UNIVERSALI/O,14POSITION,TERMINATETORIBBONCABL 14 UNIV I/O, NO EARS,LEAD FREE

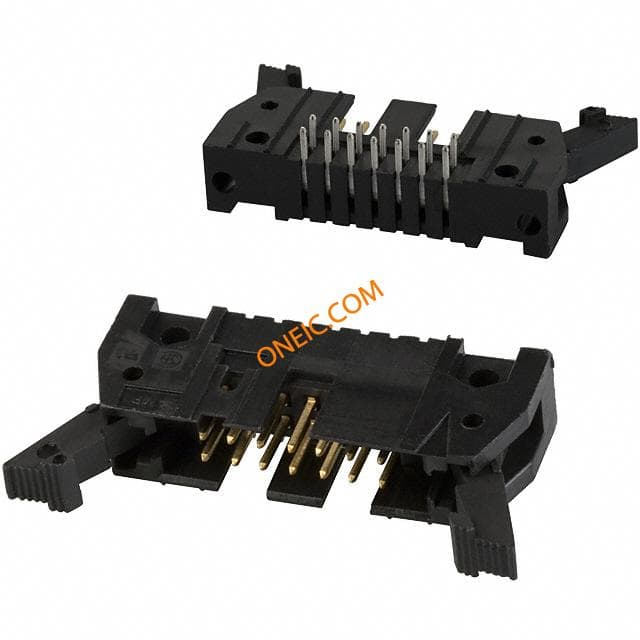

5499913-2
te connectivity / amp
Conn Ejector Header HDR 14 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER RT/A 14POS .100 GOLD Headers & Wire Housings 14 POS HDR 15AU R/A W/SHORT LATCHES Conn Ejector Header HDR 14 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 142.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, A-LUNIVHDRAYW/LTH,A/LUNIVHDR14PRASHTLAT TE Connectivity AMP-LATCH 系列 2.54mm节距 14路 (2排) 直角 PCB 针座, 焊接端接, 1A , 通孔 A/L UNIV HDR 14P RA SHT LAT

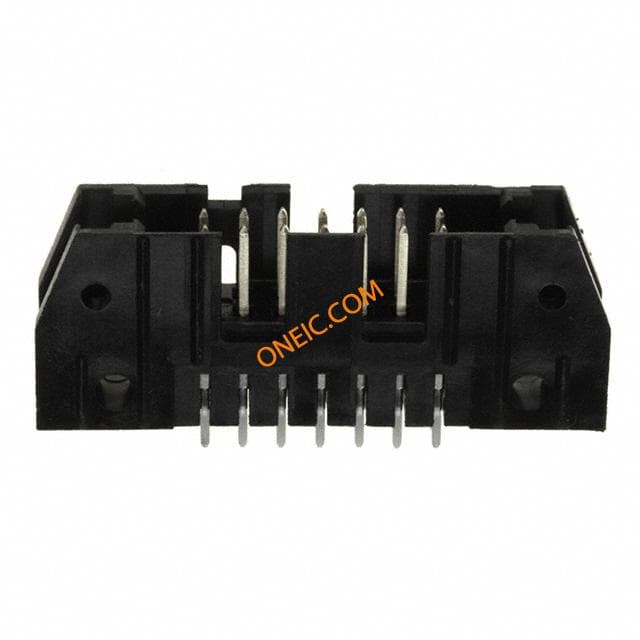

5102153-2
te connectivity / amp
Conn Ejector Header HDR 14 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 14POS .100 GOLD Header,UniversalEjectionPinHeader Headers & Wire Housings 14 POS HDR 15AU W/OUT LATCHES Conn Ejector Header HDR 14 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 142.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, Header;UniversalEjectionPinHeader;14;0.100x0.100in.;Vertical(PCB) A/L UNIV HDR 14P VERT
1761609-5
te connectivity / amp
Conn Ejector Header HDR 14 POS 2.54mm Solder RA Thru-Hole Headers & Wire Housings IDC LOW PRO HDR 14P RA SHT LAT BLK Pin and Pinless Headers (AMP-LATCH) CONN HEADER PIN 14POS R/A .100 Conn Ejector Header HDR 14 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Header - PinHeader Type = Pin HeaderAMP-LATCH Product LineLow Profile14 PositionsSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, IDCLOWPROHDR14PRASHTLATBLK IDC LOW PRO HDR 14P RA SHT LAT
1761607-5
te connectivity / amp
Conn Ejector Header HDR 14 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO R/A .100 14POS TE Connectivity 1761607 Series 2.54mm Pitch 14 Way 2 Row Right Angle PCB Header, Solder Termination, 1A Headers & Wire Housings 100X100 HDR 2X007P R/A LOW PROFILE Conn Ejector Header HDR 14 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Pin HeaderLow ProfileNumber of Positions = 142.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER,PIN,IDC,AMP-LATCH,14POS,LOWPROFILE,PCB,RIGHTANGLE,BLACK TE Connectivity AMP-LATCH 系列 2.54mm节距 14路 (2排) 直角 PCB 针座, 焊接端接, 1A , 通孔 IDC LOW PRO HDR 14P RA LG LAT BLK
2-1761607-5
te connectivity / amp
Conn Ejector Header HDR 14 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER PIN 14POS R/A GOLD TE Connectivity AMP LATCH Series 2.54mm Pitch 14 Way 2 Row Right Angle PCB Header, Solder Termination, 1A Headers & Wire Housings LPRO HDR 14P RA LG LAT Conn Ejector Header HDR 14 POS 2.54mm Solder RA Thru-Hole Product Highlights:PreloadedHousing Gender = Header - PinHeader Type = Pin HeaderAMP-LATCH Product LineLow ProfileSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER, RIGHT ANGLE, 14WAY 14waymaler/afrontlatchheader TE Connectivity AMP-LATCH 系列 2.54mm节距 14路 (2排) 直角 PCB 针座, 焊接端接, 1A , 通孔 IDC LOW PRO HDR 14P RA LG LAT
2-1761605-5
te connectivity / amp
Conn Shrouded Header HDR 14 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO R/A 14POS 30AU TE Connectivity AMP LATCH Series 2.54mm Pitch 14 Way 2 Row Right Angle PCB Header, Solder Termination, 1A Headers & Wire Housings PIN HEADER 14 POS R/A LOW PROFILE Conn Shrouded Header HDR 14 POS 2.54mm Solder RA Thru-Hole Product Highlights:PreloadedHousing Gender = Header - PinHeader Type = Pin HeaderAMP-LATCH Product LineLow ProfileSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER, R/A, 14WAY 14wayIDClowprofiler/amountheader TE Connectivity AMP-LATCH 系列 2.54mm节距 14路 (2排) 直角 PCB 针座, 焊接端接, 1A , 通孔 IDC LOW PRO HDR 14P RA BLUE
5104338-2
te connectivity / amp
Conn Shrouded Header HDR 14 POS 2.54mm Solder ST Thru-Hole Headers & Wire Housings 100X100 HDR 2X007P VRT LPRO CONN HEADER LOPRO STR 14POS GOLD Conn Shrouded Header HDR 14 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Header - PinHeader Type = Pin HeaderAMP-LATCH Product LineLow Profile14 PositionsSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, A/L LOW PRO HDR 14P VERT HT
2-5102322-2
te connectivity / amp
Conn Ejector Header HDR 14 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER 14POS R/A GOLD A/L UNIV HDR 14P RA LG LAT BLUE

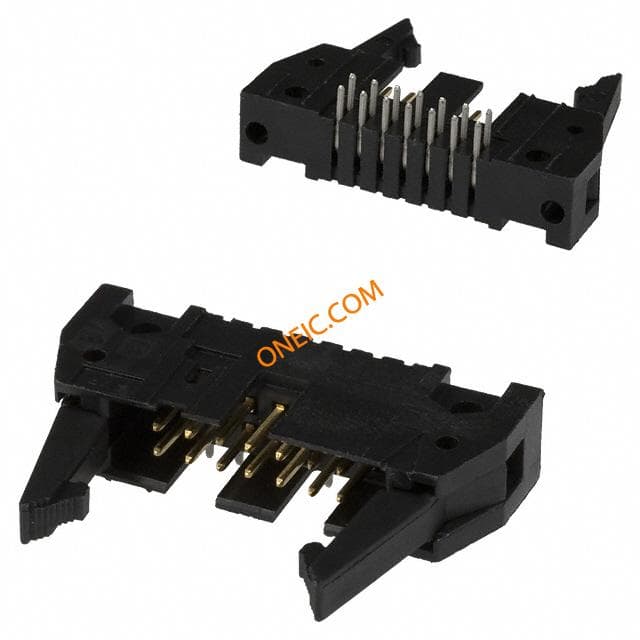

5499786-2
te connectivity / amp
Conn Ejector Header HDR 14 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER RT/A 14POS .100 GOLD TE Connectivity 5499786 Series 2.54mm Pitch 14 Way 2 Row Right Angle PCB Header, Solder Termination, 1A Headers & Wire Housings 14 POS HDR 15AU R/A W/LONG LATCHES Conn Ejector Header HDR 14 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 142.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, 14waymaler/amountsidelatchheader,1A TE Connectivity AMP-LATCH 系列 2.54mm节距 14路 (2排) 直角 PCB 针座, 焊接端接, 1A , 通孔 A/L UNIV HDR 14P RA LG LAT

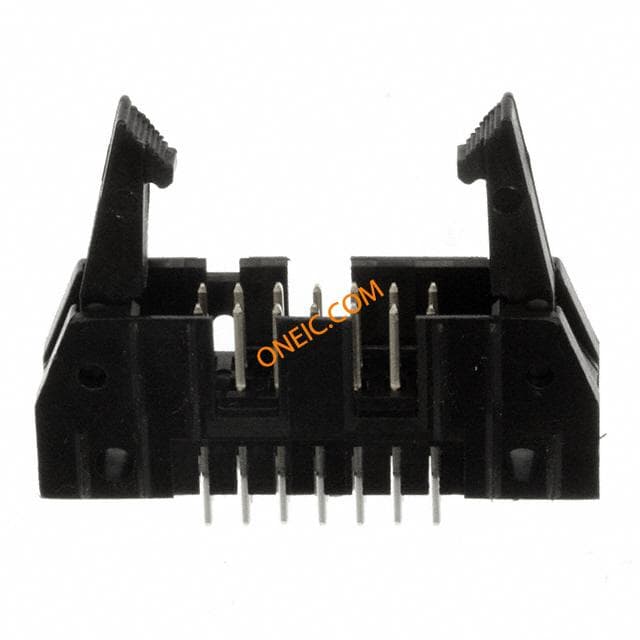

5102321-2
te connectivity / amp
Conn Ejector Header HDR 14 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 14POS .100 GOLD TE Connectivity AMP LATCH Series 2.54mm Pitch 14 Way 2 Row Straight PCB Header, Solder Termination, 1A Headers & Wire Housings 100X100 HDR 2X007P VERT EJE Conn Ejector Header HDR 14 POS 2.54mm Solder ST Thru-Hole Search Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 14POS, 2.54MM HEADER,UNIVERSALEJECTIONPIN,AMP-LATCH,14POS,2.54X2.54,PCB,VERTICAL A/L UNIV HDR 14P VERT LG LAT
1658694-7
te connectivity / amp
Conn Ejector Header HDR 14 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 14POS .100 GOLD Conn Ejector Header HDR 14 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 142.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 14POS, 2.54MM TE Connectivity AMP-LATCH 系列 2.54mm节距 14路 (2排) 直 PCB 针座, 按压安装端接, 1A , 通孔 A/L UNIV HDR 14P ACT PIN

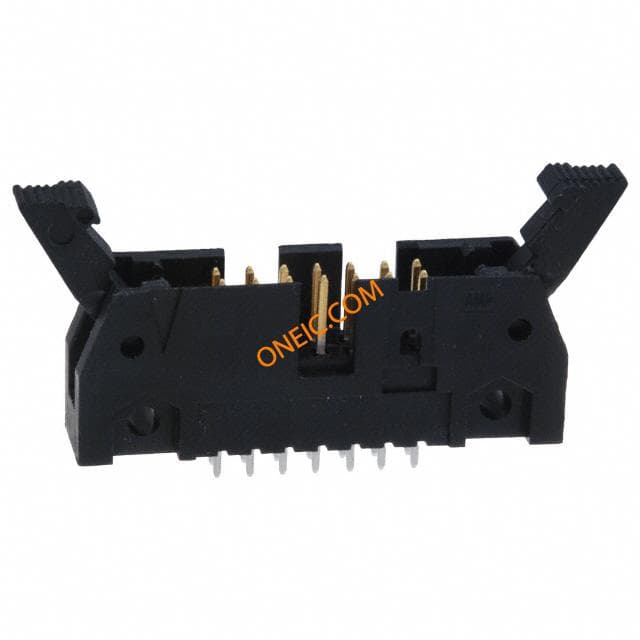

5499910-2
