点击放大查看
160831-4
| Manufacturer | |
| Description | Quick Disconnect Terminal 13-17AWG RCP Tin Strip Automotive Connectors POSITIVE LOCK RECPT Positive Lock Connectors CONN RCPT POS LOCK 17-13.5AWG Positive lock,receptacle,17-13awg,6.35mm Quick Disconnect Terminal 13-17AWG RCP Tin Strip Product Highlights:ReceptacleTab Fit = 6.35 x 0.81 mmLine = Mark IReceptacle Style = StraightWire Range = 1.00-2.50² [17-13.5] mm [AWG]Search Keywords:UL-310, terminals and splices, Quick Connect/Disconnect Tabs and Receptacles, Lighting Interconnection Products, DIN 46244, Series 110, CONTACT, CRIMP, RECAPTACLE, 17-13AWG POSLOCK,FEM,6.35X0.81 TE Connectivity Positive Lock .250 Mk I 系列 压接插座 , 6.35 x 0.8mm, 镀锡触芯 PL REC 1.0-2.5 MM2 .0160 X 2.060 TPPHBZ |
| Category |
Business
| Product | Quick Connect Terminals | Other Names | A99664CT |
| Product Category | Automotive Connectors | Standard Package | 1,500 |
| Factory Pack Quantity | 1500 | ||
Compliance
| RoHS | RoHS Compliant | Tariff No | 85369010 |
| Leadfree Defin | Not relevant for lead free process | RoHSELV Compliance | RoHS compliant, ELV compliant |
Mechanical
| Finish | Tin | Length | 22.3 mm |
| Weight | 0.005 | Material | Phosphor Bronze |
| Key Color | None | Packaging | Reel |
| Tab Width | 6.35 x 0.81 [.250 x .032] | Thickness | 0.41 [0.016] |
| Insulation | Not Insulated | Wire Gauge | 13.5-17 AWG |
| Termination | Crimp | Mounting Type | Straight |
| Tab Thickness | 0.032" (0.81mm) | Terminal Type | Standard |
| Connector Type | Quick Disconnect Terminal | Contact Finish | Tin |
| Mounting Style | Wire | Connector Style | Straight |
| Contact Material | Phosphor Bronze | Length - Overall | Mark I |
| Package Quantity | Strip | Termination Style | Crimp |
| 1st Contact Gender | :Socket | Contact Termination | :Crimp |
| Insulation Diameter | 3.00-4.29 [.118-.169] | Wire Gauge or Range - AWG | 17-13 |
| Wire Gauge or Range - mm2 | 1.00-2.50² [17-13.5] | ||
Product Info
| Note | FLK-Wire: Normal Wire | Gender | Female |
| Series | .250 | Coded, Keyed | No |
| Product Type | Receptacle | For Use With/Related Products | :Positive Lock Connectors |
Documents & Media
Similar Parts
926646-1
te connectivity / amp
Conn Housing RCP 8 POS 9.1mm Crimp ST Positive Lock Connectors CONN RCPT HSG 8POS .250 BLACK Conn Housing RCP 8 POS 9.1mm Crimp ST Product Highlights:HousingHousing Type = Housing - TabTab Fit = 6.35 mmLine = Mark IReceptacle Style = StraightSearch Keywords:UL-310, terminals and splices, Quick Connect/Disconnect Tabs and Receptacles, Lighting Interconnection Products, DIN 46244, Series 110,
100100-1
te connectivity / amp
Conn Housing RCP 2 POS 6.3mm Crimp ST Positive Lock Connectors CONN RCPT 2POS W/POSITIVE LOCK Headers & Wire Housings 02P RECPT HSG Positive Lock Connectors Product Highlights:ConnectorNot PreloadedHousing Gender = PlugAccepts Contact Gender = ReceptacleTab Fit = 6.35 mmSearch Keywords:UL-310, terminals and splices, Quick Connect/Disconnect Tabs and Receptacles, Lighting Interconnection Products, DIN 46244, Series 110,
926646-3
te connectivity / amp
Conn Housing RCP 8 POS 9.1mm Crimp ST CONN RCPT HSG 8POS .250 NATURAL Headers & Wire Housings 8P POS-LOCK GEH 6,3
154719-2
te connectivity / amp
Conn Housing RCP 1 POS Crimp ST Positive Lock Connectors CONN RCPT HSG 1POS .250 RED Positive lock plug housing,1 way,6.35mm Automotive Connectors BOOT/INSULATOR F. POSLOK TERM Conn Housing RCP 1 POS Crimp ST Product Highlights:Receptacle HousingTab Fit = 6.35 mmLine = Mark IReceptacle Style = StraightNumber of Positions = 1Search Keywords:UL-310, terminals and splices, Quick Connect/Disconnect Tabs and Receptacles, Lighting Interconnection Products, DIN 46244, Series 110, HOUSING, RED, 1WAY Positivelockplughousing,1way,6.35mm PL 250 REC HSG 1P NYLON RED
154719-4
te connectivity / amp
Conn Housing RCP 1 POS Crimp ST Positive Lock Connectors CONN RCPT HSG 1POS .250 YELLOW Housing 1way Rec 6.35mm Yellow Posi-Lock Conn Housing RCP 1 POS Crimp ST Product Highlights:Receptacle HousingTab Fit = 6.35 mmLine = Mark IReceptacle Style = StraightNumber of Positions = 1Search Keywords:UL-310, terminals and splices, Quick Connect/Disconnect Tabs and Receptacles, Lighting Interconnection Products, DIN 46244, Series 110, HOUSING1WAYREC6.35MM TE Connectivity Positive Lock 系列 1 触点 尼龙 压接端子外壳 PL 250 REC HSG 1P NYLON YELLOW

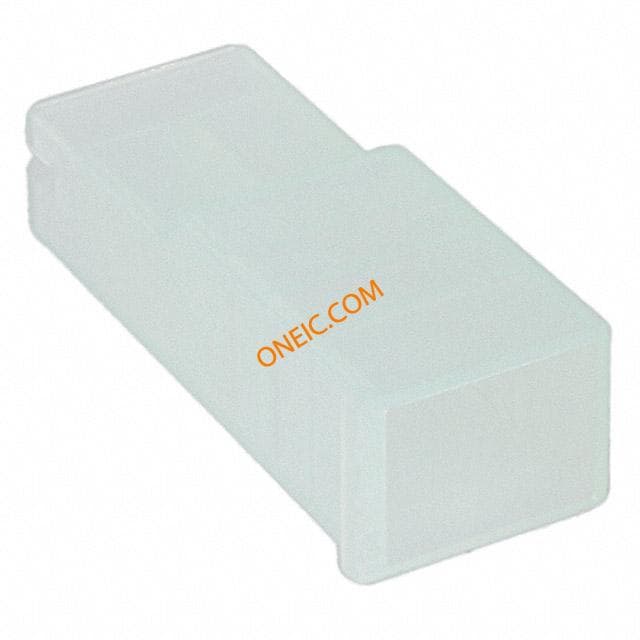

1-154719-0
te connectivity / amp
Conn Housing RCP 1 POS Crimp ST Positive Lock Connectors CONN RCPT HSG 1POS .250 NATURAL Headers & Wire Housings POSILOK RECEPTACLE Conn Housing RCP 1 POS Crimp ST Product Highlights:Receptacle HousingTab Fit = 6.35 mmLine = Mark IReceptacle Style = StraightNumber of Positions = 1Search Keywords:UL-310, terminals and splices, Quick Connect/Disconnect Tabs and Receptacles, Lighting Interconnection Products, DIN 46244, Series 110, HOUSING, RECEPTACLE PL 250 REC HSG 1P NYLON NAT
215528-1
te connectivity / amp
Conn Housing RCP 2 POS ST Positive Lock Connectors CONN RCPT HSG 2POS .250 BLACK Headers & Wire Housings 2P.POS.LOCK HSG.250 Positive Lock Connectors Product Highlights:Receptacle HousingTab Fit = 6.35 mmLine = Mark IReceptacle Style = StraightNumber of Positions = 2Search Keywords:UL-310, terminals and splices, Quick Connect/Disconnect Tabs and Receptacles, Lighting Interconnection Products, DIN 46244, Series 110,
927389-2
te connectivity / amp
Conn Housing PL 3 POS Crimp ST Cable Mount Positive Lock Connectors CONN RCPT HSG 3POS .250 WHITE Headers & Wire Housings 3 POS. POSITIVE LOC Conn Housing PL 3 POS Crimp ST Cable Mount Product Highlights:Receptacle HousingTab Fit = 6.35 mmLine = Mark IReceptacle Style = StraightNumber of Positions = 3Search Keywords:UL-310, terminals and splices, Quick Connect/Disconnect Tabs and Receptacles, Lighting Interconnection Products, DIN 46244, Series 110,
215956-1
te connectivity / amp
Conn Housing RCP 4 POS ST Positive Lock Connectors CONN RCPT HSG 4POS .250 BLACK
360010-2
te connectivity / amp
Conn Housing RCP 3 POS Crimp ST Loose Piece FASTON Uninsulated Receptacles & Housings CONN RCPT HSG .187 3POS NATRL Headers & Wire Housings 187 FAST RCPT HSG 3 CIR M NAT Conn Housing RCP 3 POS Crimp ST Loose Piece Product Highlights:HousingNumber of Circuits = 3Tab Fit = 4.75 mmNylon MaterialHousing Color = NaturalSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, relay connectors, fast-on, AMPIP, Blade Receptacle, Blade Tab, Packard Style Tab, E-SPRING
927553-1
te connectivity / amp
Conn Housing PL 2 POS 9.7mm Crimp ST Cable Mount Positive Lock Connectors CONN RCPT HSG 2POS .250 BLACK Headers & Wire Housings 2 POS POSITIVE LOCK HSG Positive Lock Connectors Product Highlights:ConnectorNot PreloadedHousing Gender = PlugAccepts Contact Gender = ReceptacleTab Fit = 6.35 mmSearch Keywords:UL-310, terminals and splices, Quick Connect/Disconnect Tabs and Receptacles, Lighting Interconnection Products, DIN 46244, Series 110,

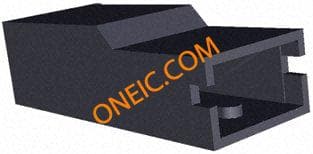

4-154719-0
