146282-2
| Manufacturer | |
| Description | Conn Unshrouded Header HDR 2 POS 2.54mm Solder ST Thru-Hole Tube .100 inch AMPMODU Headers CONN HEADER BRKWAY 2POS VERT TIN Headers & Wire Housings 02 MODII HDR SRST B/A .100CL .100 inch AMPMODU Headers Product Highlights:HeaderHeader Type = BreakawayNumber of Rows = SingleNumber of Positions = 2Mating Post Length = 5.84 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 02 MODII HDR SRST B/A .100CL |
| Category |
Business
| Tradename | AMPMODU | Standard Pack | 500 |
| Product Category | Headers & Wire Housings | Standard Package | Bulk |
| Factory Pack Quantity | 500 | ||
Compliance
| RoHS | Contains lead / RoHS non-compliant | Leadfree Defin | Reflow solder capable to 245°C, Reflow solder capable to 260°C |
| Standard Number | CSA LR7189, UL E28476 | RoHSELV Compliance | Not ELV/RoHS compliant |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Voltage - Protection Rating (VPR) | 750 V | ||
Mechanical
| Color | Black | Pitch | 2.54 mm |
| Base Type | 不带 | Lock Type | 不带 |
| Packaging | Bulk | Body Color | 黑色 |
| Lead Style | 正方形 | Stabilizer | 不带 |
| Row Spacing | 2.54 mm | Termination | Solder |
| Contact Type | Male Pin | Pitch - Post | 2.54 [.100] |
| 1st Connector | No | 2nd Connector | Without |
| Contact Shape | Square | Mounting Type | Vertical |
| Connector Type | Breakaway | Contact Finish | Tin-Lead Over Nickel |
| Mounting Style | 不带 | Number of Rows | 1 |
| Insert Material | 铜合金 | Contact Material | Phosphor Bronze |
| Housing Material | Liquid Crystal Polymer (LCP) | Mounting Feature | Without |
| Package Quantity | 500 | Panel Mount Type | Without |
| Size / Dimension | 0.64 [.025] | Termination Style | Through Hole |
| 1st Connector Type | 分离 | 1st Contact Gender | Pin (Male) |
| Diameter - Outside | .64 mm [ .025 in ] | Number of Contacts | 2 |
| Termination Finish | 不带 | Number of Positions | 2 |
| Length - Post (Mating) | 5.84 mm | Mounting Hole Diameter | 不带 |
| Contact Length - Mating | 5.84 [0.230] | Surface Mount Land Size | Yes |
| Termination Post Length | 2.29 [0.090] | Contact Finish Thickness | 100µin (2.54µm) |
| 1st Connector Mounting Feature | 否 | ||
Product Info
| Type | Unshrouded Header | Gender | HDR |
| Series | AMPMODU MOD II | Key Type | 否 |
| Manufacturer | AMP | Product Type | Header |
| Selectively Loaded | No | Number of Positions Loaded | All |
Environmental
| Seal Rating | 不带 | Temperature | Yes |
| Operating Temperature | -65 – 105 | Thermal Resistance of Package | 1.6 mm [ .063 in ] |
| Operating Temperature - Junction | 是 | ||
Documents & Media
Similar Parts
103961-1
te connectivity / amp
Conn IDC Connector RCP 2 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RCPT 2POS .100 26-30 30GOLD Headers & Wire Housings 10X2 MTE RCPT SR LATCH .100CL 10X2 MTE RCPT SR LATCH .100CL
103688-1
te connectivity / amp
Conn Housing RCP 2 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN RECEPTACLE 2POS .1" UNLOAD Housing 2 way socket 2.54mm AmpModu MTE Headers & Wire Housings HSG REC 1X02C STD Conn Housing RCP 2 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 2Housing Type = ReceptacleNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE ReceptacleAssembly;Thermoplastic;Receptacle;Single;0.100in.;MTE(IDC) TE Connectivity AMPMODU MTE 系列 2.54mm 节距 2 路 直 母 电缆安装 PCB 连接器外壳 02 MTE RCPT HSG SR PLAIN .100
103957-1
te connectivity / amp
Conn IDC Connector RCP 2 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RECPT 2POS .100 POLAR 15AU Headers & Wire Housings RECEPTACLE ASSY 2P Conn IDC Connector RCP 2 POS 2.54mm IDT ST Cable Mount Strip Product Highlights:Receptacle AssemblyWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 2Number of Rows = SingleTerminate To WireSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE MTERECPASSY,10X2MTERCPTSRLATCH.100CL 10X2 MTE RCPT SR LATCH .100CL

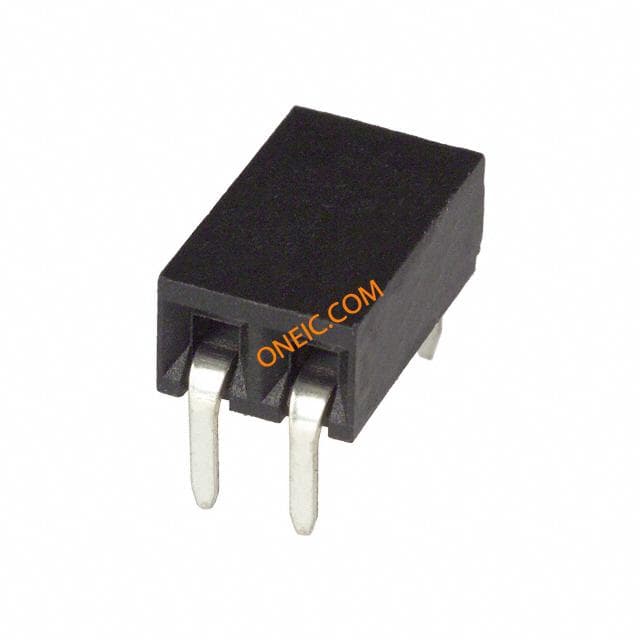

535676-1
te connectivity / amp
Conn Socket Strip SKT 2 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Receptacles CONN RECEPT 2POS .100 RT/ANG AU Headers & Wire Housings RECEPT 2POS .100 R/A AU Conn Socket Strip SKT 2 POS 2.54mm Solder RA Thru-Hole Product Highlights:ReceptacleMod IINumber of Positions = 2Number of Rows = SingleStandard ProfileSearch Keywords:AMPMODU, board to board, NIC, Network Interface Cards, PC Cards, MIL-C-55032, MIL-C-24519, pcb connectors, wire to board, signal,
3-535541-9
te connectivity / amp
Conn Socket Strip RCP 2 POS 2.54mm Solder ST Thru-Hole Gang of Tubes Board to Board & Mezzanine Connectors 02 MODIV VRT SR CE 100/115 CONN RCPT 2POS .100 VERT GOLD
87499-3
te connectivity / amp
Conn Housing RCP 2 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 2POS .100 SINGLE 2.54mm,housing,2W,Mod IV,SR,snap in Headers & Wire Housings NON-PLRZD HSG 2 SNGL .205 width Conn Housing RCP 2 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 2Housing Type = ReceptacleNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE CRIMP HOUSING, 1 ROW, 2WAY Housing,Connector;Crimp-Snap;Single;2;250VAC;3A;750V Crimp housing Pitch2.54 mm Poles 2 Contact DesignStamped Single row / straight / without polarization AMPMODU MOD IV, 87499-3, TE Connectivity TE Connectivity AMPMODU Mod IV 系列 2.54mm 节距 2 路 直 母 PCB 壳体 02 MODIV HSG SR MRKD .100CL
5-103975-1
te connectivity / amp
Conn IDC Connector RCP 2 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RECEPTACLE 2POS .100 15AU 10X2 MTE RCPT SR PLAIN .100CL
87499-4
te connectivity / amp
Conn Housing RCP 2 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 2POS .100 SINGLE Housing 2 way socket 2.54mm AmpModu IV Headers & Wire Housings MOD IV HSG 2P Conn Housing RCP 2 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 2Housing Type = ReceptacleNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE RECEPTACLE,AMPMODU,MODIV,2POSITION,.100IN,SINGLEROW TE Connectivity AMPMODU Mod IV 系列 2.54mm 节距 2 路 直 母 电缆安装 PCB 连接器外壳 02 MODIV HSG COMP SR .100CL
103969-1
te connectivity / amp
Conn IDC Connector RCP 2 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RECPT 2POS .100 22-26 15AU Headers & Wire Housings 10X2 MTE RCPT SR RIBBED .100CL .100 IDC AMPMODU Housings & Contacts .100 IDC AMPMODU Housings & Contacts Product Highlights:Receptacle AssemblyWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 2Number of Rows = SingleTerminate To WireSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 10X2 MTE RCPT SR RIBBED .100CL
5-103958-1
te connectivity / amp
Conn IDC Connector RCP 2 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RECPT 2POS .100 POLAR 30AU MTE Housing,receptacle,IDC,2way Headers & Wire Housings RECEPTACLE ASSY 2P Conn IDC Connector RCP 2 POS 2.54mm IDT ST Cable Mount Strip Product Highlights:Receptacle AssemblyWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 2Number of Rows = SingleTerminate To WireSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR RECEPTACLE, 2POS, 2.54MM MTERECPASSY,10X2MTERPTSRLATCH.100CL TE Connectivity AMPMODU MTE 系列 2路 2.54mm节距 母 IDC 连接器 , 电缆安装 10X2 MTE RPT SR LATCH .100CL
103970-1
te connectivity / amp
Conn IDC Connector RCP 2 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RCPT 2POS .100 POLAR GOLD Headers & Wire Housings 10X2 MTE RCPT SR RIBBED .100CL Conn IDC Connector RCP 2 POS 2.54mm IDT ST Cable Mount Strip Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR RECEPTACLE, 2POS, 2.54MM 10X2 MTE RCPT SR RIBBED .100CL

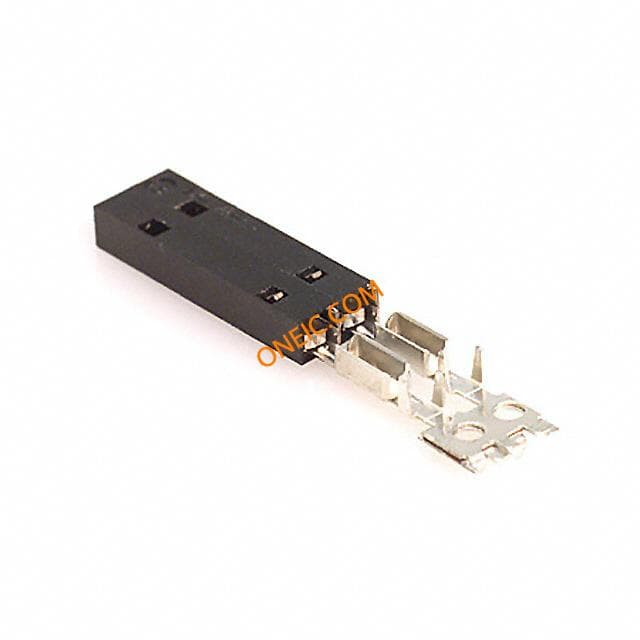

103976-1
