146145-5
| Manufacturer | |
| Description | Conn Unshrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER BRKAWY 10POS DL .100 Headers & Wire Housings 10 MODII HDR DRST B/A W/HD Conn Unshrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole Search Keywords:board to board, AMPMODU, pcb connectors, 10 MODII HDR DRST B/A W/HD |
| Category |
Business
| Tradename | AMPMODU | Standard Package | Bulk |
| Factory Pack Quantity | 320 | ||
Compliance
| RoHS | Contains lead / RoHS non-compliant | Leadfree Defin | Wave solder capable to 240°C |
| Approved Countries | CSA LR7189, UL E28476 | RoHSELV Compliance | ELV compliant, 5 of 6 Compliant |
| Protection Features | Without | Material Flammability Rating | UL 94V-0 |
Electrical
| Voltage - Rated AC | 30 | Current Rating (Max) | 3 |
| Voltage - Protection Rating (VPR) | 750 V | ||
Mechanical
| Color | Black | Pitch | 2.54 mm |
| Base Type | 带有 | Packaging | Bulk |
| Body Color | 黑色 | Row Spacing | 0.100" (2.54mm) |
| Stabilizers | Without | Termination | Solder |
| Contact Type | Male Pin | Pitch - Post | 2.54 x 2.54 [.100 x .100] |
| 1st Connector | No | 2nd Connector | Without |
| Contact Shape | Square | Mounting Type | Vertical |
| Connector Type | Breakaway | Contact Finish | Tin-Lead Over Nickel |
| Mounting Style | 标准 | Number of Rows | 2 |
| Insert Material | 磷青铜 | Contact Material | Phosphor Bronze |
| Housing Material | Thermoplastic | Mounting Feature | Without |
| Package Quantity | 320 | Panel Mount Type | Without |
| Size / Dimension | 0.64 [.025] | Termination Style | Through Hole |
| 1st Contact Gender | Pin (Male) | Diameter - Outside | .64 mm [ .025 in ] |
| Number of Contacts | 10 | Termination Finish | Matte Tin-Lead |
| Number of Positions | 10 | Length - Post (Mating) | 5.84 mm |
| Mounting Hole Diameter | 不带 | Contact Length - Mating | 5.84 [0.230] |
| Surface Mount Land Size | Yes | Termination Post Length | 3.05 [0.120] |
| Contact Finish Thickness | 5µin (0.127µm) | Static Discharge Shielding | 不带 |
| Termination Finish Thickness | 100 – 200 | ||
Product Info
| Type | Unshrouded Header | Gender | HDR |
| Series | AMPMODU MOD II | Key Type | 否 |
| Manufacturer | AMP | Product Type | Header |
| Selectively Loaded | No | Number of Positions Loaded | All |
Environmental
| Seal Rating | 不带 | Temperature | Yes |
| Operating Temperature | -65 – 105 | Thermal Resistance of Package | 1.57 mm [ .062 in ] |
Documents & Media
Similar Parts
147102-5
te connectivity / amp
Conn Socket Strip SKT 10 POS 2.54mm Solder ST SMD Gang of Tubes .100 inch AMPMODU Receptacles CONN RCPT 10POS DUAL RECPT .1 Headers & Wire Housings 10 MODIV VRT DR 100/ 1600 Conn Socket Strip SKT 10 POS 2.54mm Solder ST SMD Gang of Tubes Product Highlights:ReceptacleMod IVNumber of Positions = 10Number of Rows = DualStandard ProfileSearch Keywords:AMPMODU, board to board, NIC, Network Interface Cards, PC Cards, MIL-C-55032, MIL-C-24519, pcb connectors, wire to board, signal, 10 Position Dual Row MOD IV 2.54 mm Pitch Vertical Receptacle
534267-3
te connectivity / amp
Conn Socket Strip RCP 10 POS 2.54mm Solder ST Thru-Hole Gang of Tubes .100 inch AMPMODU Receptacles CONN RCPT 10POS .100 DAUL T/H AU Headers & Wire Housings VERT DBL 10P 2250 10 MODIV VRT DR OE 100/125 10 MODIV VRT DR OE 100/125 Search Keywords:AMPMODU, board to board, NIC, Network Interface Cards, PC Cards, MIL-C-55032, MIL-C-24519, pcb connectors, wire to board, signal,

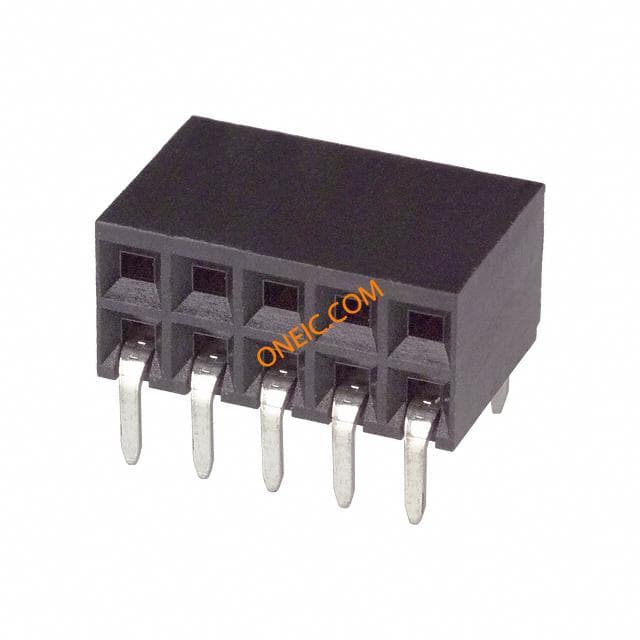

6-535512-4
