1445022-9
| Manufacturer | |
| Description | Conn Housing RCP 9 POS 3mm ST 3mm Centerline, 250V, 5 A max. CONN RECEPT 3MM 9POS MATE-N-LOK Pin & Socket Connectors RECPT SINGLE ROW 9P Conn Housing RCP 9 POS 3mm ST Product Highlights:HousingHousing Type = ReceptacleNumber of Positions = 9Number of Rows = Single3.00 mm CenterlineSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp,
low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector MICRO MNL RFECEPT HSG SINGLE R |
| Category |
Business
| Other Names | A30265 | Product Category | Pin & Socket Connectors |
| Standard Package | Bulk | Factory Pack Quantity | 1 |
Compliance
| RoHS | Not applicable / RoHS Compliant | UL Rating | 获得认可 |
| Part Status | E28476 | Leadfree Defin | Not relevant for lead free process |
| CSA File Number | LR7189 | Standard Number | CSA, UL |
| RoHSELV Compliance | RoHS compliant, ELV compliant | UL Flammability Rating | UL 94V-0 |
| Approval Agency Marking | 已认证 | Material Flammability Rating | UL 94V-0 |
Electrical
| Voltage Rating | 250 V | Voltage - Supply | 250 |
| Current Rating (Max) | 5 A | ||
Mechanical
| Color | Black | Pitch | 3 mm |
| Packaging | Bulk | Body Color | 黑色 |
| Wire Gauge | (20-24)/(26-30) AWG | Contact Type | Female Socket |
| Housing Color | Black | Mounting Type | Straight |
| Connector Type | Receptacle | Contact Finish | Without |
| Fastening Type | Latch Lock | Mounting Style | Wire |
| Number of Rows | 1 | Package / Case | Receptacle |
| Shell Material | 母端, 母端 | Contact Material | Phosphor Bronze |
| Housing Material | Nylon | Package Quantity | 1 |
| Termination Style | Crimp | 1st Contact Gender | Socket (Female) |
| Number of Contacts | 9 | Contact Termination | Crimp |
| Number of Positions | 9 | Center Contact Material | 3.00 [0.118] |
| Contact Layout, Typical | 直插式 | ||
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | RCP | Series | Mate-N-Lok |
| Product Type | Housing | ||
Environmental
| Operating Range | 不密封 | Temperature - Test | 标准件 - 非灼热丝 |
| Operating Temperature | -40 – 105 °C [ -40 – 221 °F ] | ||
Documents & Media
Similar Parts

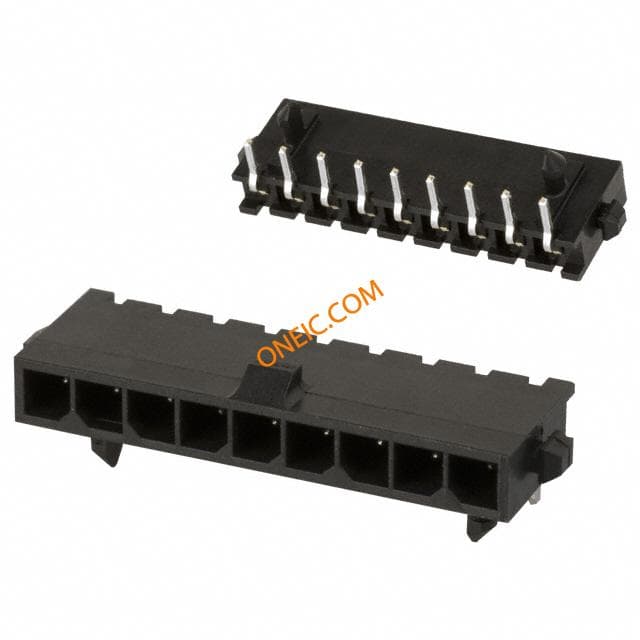

2-1445055-9
te connectivity / amp
Conn Power HDR 9 POS 3mm Solder RA Thru-Hole 9 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 3MM 9POS R/A TIN Pin & Socket Connectors HDR ASSY 9 POS R/A SINGLE ROW TIN 2-1445055-9 MICRO MNL HDR ASSY S/ROW LF

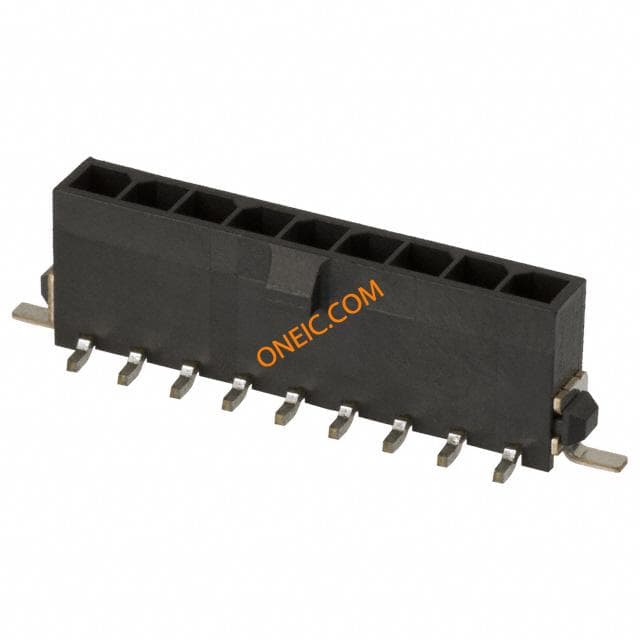

2-1445096-9
te connectivity / amp
Conn Power HDR 9 POS 3mm Solder ST SMD 9 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 3MM 9POS GOLD SMD Pin & Socket Connectors MICRO MNL HDR ASSY SINGLE ROW MICRO MNL HDR ASSY SINGLE ROW MICRO MNL HDR ASSY SINGLE ROW Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector

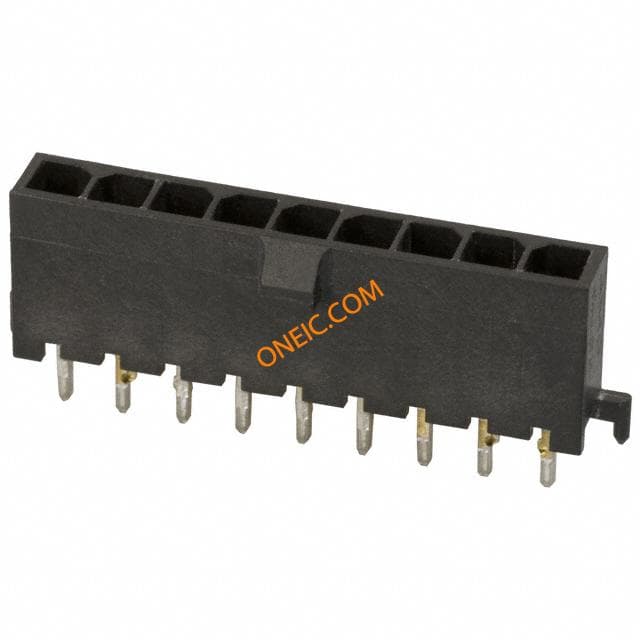

2-1445050-9
te connectivity / amp
Conn Power HDR 9 POS 3mm Solder ST Thru-Hole 9 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 3MM 9POS TIN T/H Pin & Socket Connectors HDR VERT 9 POS TIN SINGLE ROW Conn Power HDR 9 POS 3mm Solder ST Thru-Hole 9 Terminal 1 Port Product Highlights:HeaderConnector Type = Header - PinThrough Hole Contact Termination TypeNumber of Positions = 9Number of Rows = 1Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector MICRO MNL HDR ASSY S/ROW LF
2-1445091-9
te connectivity / amp
Conn Power HDR 9 POS 3mm Solder RA SMD 9 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 9POS R/A SMD 15GOLD Pin & Socket Connectors MICRO MNL HDR ASSY S/ROW AU LF Conn Power HDR 9 POS 3mm Solder RA SMD 9 Terminal 1 Port Product Highlights:ConnectorWith ContactsHousing Gender = Header - PinContact Gender = PinSurface Mount Contact Termination TypeSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector MICRO MNL HDR ASSY S/ROW AU LF

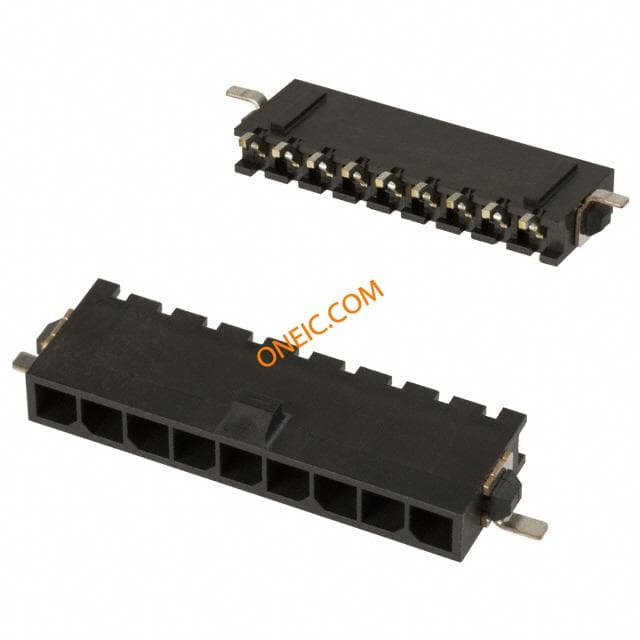

2-1445100-9
