1445022-8
| Manufacturer | |
| Description | Conn Housing RCP 8 POS 3mm ST 3mm Centerline, 250V, 5 A max. CONN RECEPT 3MM 8POS MATE-N-LOK Pin & Socket Connectors RECPT SINGLE ROW 8P Conn Housing RCP 8 POS 3mm ST Product Highlights:HousingHousing Type = ReceptacleNumber of Positions = 8Number of Rows = Single3.00 mm CenterlineSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp,
low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector Connector,SoftShell;Nylon;Receptacle;Black;8;Single;0.118in.;UL94V-0 TE Connectivity Micro MATE-N-LOK 系列 1 行 3mm 节距 8 路 直 母 电缆安装 压接连接器外壳 MICRO MNL RFECEPT HSG SINGLE R |
| Category |
Business
| Product Category | Pin & Socket Connectors | Standard Package | Bulk |
| Factory Pack Quantity | 1500 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | UL Rating | 获得认可 |
| Part Status | E28476 | Leadfree Defin | Not relevant for lead free process |
| CSA File Number | LR7189 | Standard Number | CSA, UL |
| RoHSELV Compliance | RoHS compliant, ELV compliant | UL Flammability Rating | UL 94V-0 |
| Approval Agency Marking | 已认证 | Material Flammability Rating | UL 94V-0 |
Electrical
| Voltage Rating | 250 V | Voltage - Supply | 250 |
| Current Rating (Max) | 5 A | Voltage - Supply (Min) | 250VAC |
Mechanical
| Color | Black | Depth | 14.04 mm |
| Pitch | 3 mm | Width | 8.7mm |
| Height | 8.7 mm | Length | 25mm |
| Packaging | Bulk | Body Color | 黑色 |
| Wire Gauge | (20-24)/(26-30) AWG | Orientation | 直 |
| Contact Type | Female Socket | Housing Color | Black |
| Mounting Type | Straight | Connector Type | Receptacle |
| Contact Finish | Without | Fastening Type | Latch Lock |
| Mounting Style | Wire | Number of Rows | 1 |
| Package / Case | Receptacle | Shell Material | 母端, 母端 |
| Contact Material | Phosphor Bronze | Housing Material | Nylon |
| Length - Overall | 25 mm | Package Quantity | 1500 |
| Termination Style | Crimp | 1st Contact Gender | Socket (Female) |
| Number of Contacts | 8 | Contact Termination | Crimp |
| Number of Positions | 8 | Center Contact Material | 3.00 [0.118] |
| Contact Layout, Typical | 直插式 | ||
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | RCP | Series | Mate-N-Lok |
| Product Type | Housing | For Use With/Related Products | 中心线软壳引脚及插座连接器 |
Environmental
| Operating Range | 不密封 | Temperature - Test | 标准件 - 非灼热丝 |
| Operating Temperature | -40C to 105C | ||
Documents & Media
Similar Parts
1445057-8
te connectivity / amp
Conn Power HDR 8 POS 3mm Solder RA SMD 8 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 3MM 8POS R/A TIN SMD Pin & Socket Connectors HDR ASSY 8 POS R/A SINGLE ROW TIN 3mm Centerline, 250V, 5 A max. Product Highlights:ConnectorHeaderPreloadedHeader Gender = PlugContact Gender = PinSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector
1445049-8
te connectivity / amp
Conn Housing PL 8 POS 3mm ST 3mm Centerline, 250V, 5 A max. CONN PLUG 3MM 8POS MATE-N-LOK Pin & Socket Connectors PLUG SINGLE F.H. 8P free hanging Conn Housing PL 8 POS 3mm ST Product Highlights:ConnectorHousingNot PreloadedHousing Gender = PlugContact Gender = PinSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector FREE HANG SNGL ROW HSG 8 POS
1445093-8
te connectivity / amp
Conn Power HDR 8 POS 3mm Solder ST Thru-Hole 8 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 3MM 8POS GOLD T/H Pin & Socket Connectors HDR VERT 8 POS 30 AU SINGLE ROW MICRO MNL HDR ASSY SINGLE ROW MICRO MNL HDR ASSY SINGLE ROW Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector
1445096-8
te connectivity / amp
Conn Power HDR 8 POS 3mm Solder ST SMD 8 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 3MM 8POS GOLD SMD Pin & Socket Connectors HDR VERT 8 POS 30 AU SINGLE ROW MICRO MNL HDR ASSY SINGLE ROW MICRO MNL HDR ASSY SINGLE ROW Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector
1445048-8
te connectivity / amp
Conn Housing PL 8 POS 3mm ST 3mm Centerline, 250V, 5 A max. CONN PLUG 3MM 8POS MATE-N-LOK Pin & Socket Connectors PLUG SNGL PNL MNT 8P Conn Housing PL 8 POS 3mm ST Product Highlights:ConnectorHousingNot PreloadedHousing Gender = PlugContact Gender = PinSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector PANEL MT SNGL ROW HSG 8 POS

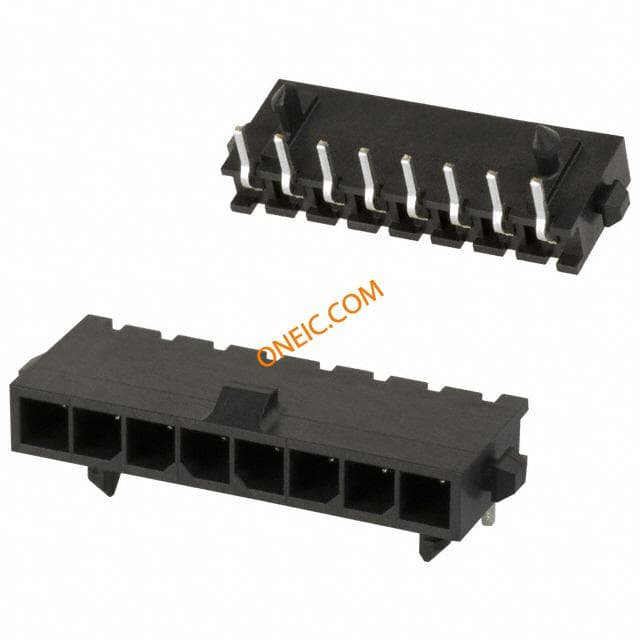

2-1445098-8
te connectivity / amp
Conn Power HDR 8 POS 3mm Solder RA Thru-Hole 8 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 3MM 8POS R/A GOLD Pin & Socket Connectors HDR ASSY 8 POS R/A SINGLE ROW 30 AU 3mm Centerline, 250V, 5 A max. Product Highlights:Header AssemblyNumber of Positions = 8Number of Rows = SingleRight Angle Mount AngleMount Style = Through-HoleSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector MICRO MNL HDR ASSY S/ROW AU LF

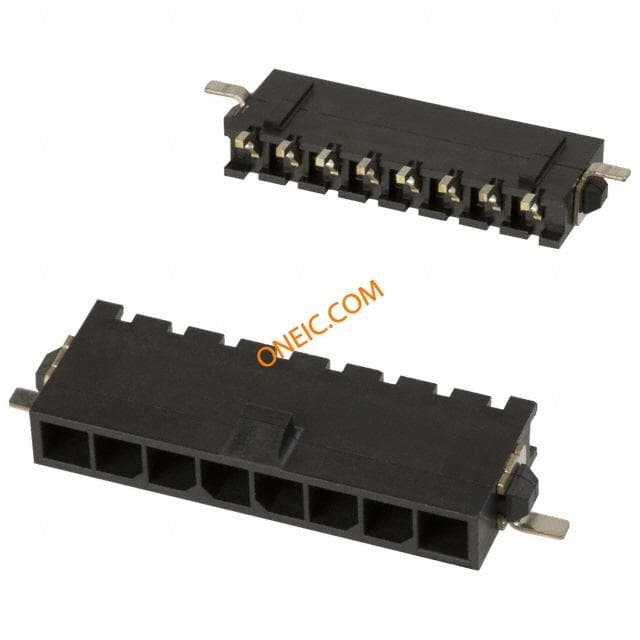

2-1445056-8
te connectivity / amp
Conn Power HDR 8 POS 3mm Solder RA SMD 8 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 8POS RT ANG SMD TIN Pin & Socket Connectors MICRO MNL HDR ASSY SINGLE ROW MICRO MNL HDR ASSY SINGLE ROW MICRO MNL HDR ASSY SINGLE ROW Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector
2-1445096-8
te connectivity / amp
Conn Power HDR 8 POS 3mm Solder ST SMD 8 Terminal 1 Port Pin & Socket Connectors HDR VERT 8 POS 30 AU SINGLE ROW 3mm Centerline, 250V, 5 A max. CONN HEADER 3MM 8POS GOLD SMD 2-1445096-8 Conn Power HDR 8 POS 3mm Solder ST SMD 8 Terminal 1 Port Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector
2-1445057-8
te connectivity / amp
Conn Power HDR 8 POS 3mm Solder RA SMD 8 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 3MM 8POS R/A TIN SMD Pin & Socket Connectors MICRO MNL HDR ASSY SINGLE ROW MICRO MNL HDR ASSY SINGLE ROW MICRO MNL HDR ASSY SINGLE ROW Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector

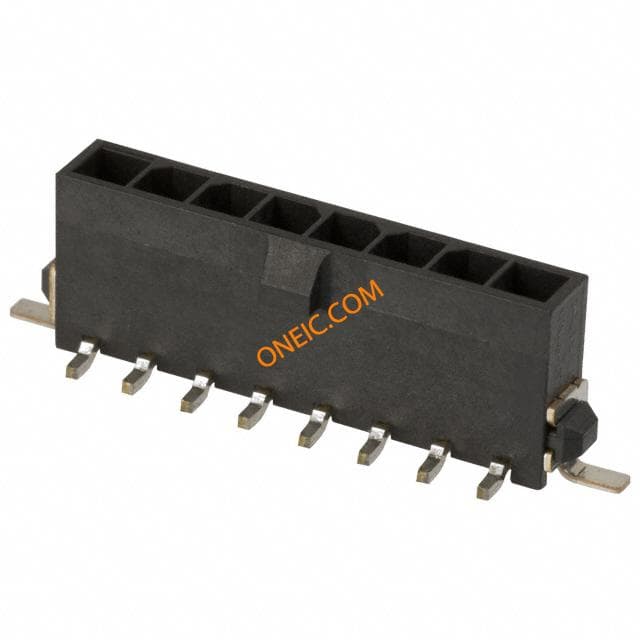

2-1445053-8
