1445022-6
| Manufacturer | |
| Description | Conn Housing RCP 6 POS 3mm ST 3mm Centerline, 250V, 5 A max. CONN RECEPT 3MM 6POS MATE-N-LOK 6 way 1 row receptacle Mate-N-Lok Pin & Socket Connectors RECPT SINGLE ROW 6P Conn Housing RCP 6 POS 3mm ST Product Highlights:HousingHousing Type = ReceptacleNumber of Positions = 6Number of Rows = Single3.00 mm CenterlineSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp,
low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector HOUSING, RECEPTACLE, 3MM, 6WAY Connector,SoftShell;Nylon;Receptacle;Black;6;Single;0.118in.;UL94V-0 Crimp housing Pitch3 mm Poles 1 x 6 MATE-N-LOK Micro, 1445022-6, TE Connectivity TE Connectivity Micro MATE-N-LOK 系列 3mm 节距 6 路 直 母 压接连接器外壳 MICRO MNL RFECEPT HSG SINGLE R |
| Category |
Business
| Product Category | Pin & Socket Connectors | Standard Package | Bulk |
| Factory Pack Quantity | 100 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
| Leadfree Defin | Not relevant for lead free process | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Voltage Rating | 250 V | Current Rating (Max) | 5 A |
| Voltage - Supply (Min) | 250VAC | ||
Mechanical
| Color | Black | Depth | 14.04 mm |
| Pitch | 3 mm | Width | 8.7mm |
| Height | 8.7 mm | Length | 19mm |
| Weight | 0.02 | Packaging | Bulk |
| Wire Gauge | (20-24)/(26-30) AWG | Contact Type | Female Socket |
| Housing Color | Black | Mounting Type | Straight |
| Connector Type | Receptacle | Fastening Type | Latch Lock |
| Mounting Style | Wire | Number of Rows | 1 |
| Package / Case | Receptacle | Locking Feature | :Latch |
| Material - Body | :Nylon (Polyamide) | Contact Material | Phosphor Bronze |
| Housing Material | Nylon | Length - Overall | 19 mm |
| Termination Style | Crimp | 1st Contact Gender | Socket (Female) |
| Number of Contacts | 6 | Contact Termination | Crimp |
| Number of Positions | 6 | Center Contact Material | 3.00 [0.118] |
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | RCP | Series | MATE-N-LOK |
| Product Type | Housing | For Use With/Related Products | Centerline Soft Shell Pin & Socket Connector |
Environmental
| Operating Temperature | -40C to 105C | ||
Documents & Media
Similar Parts

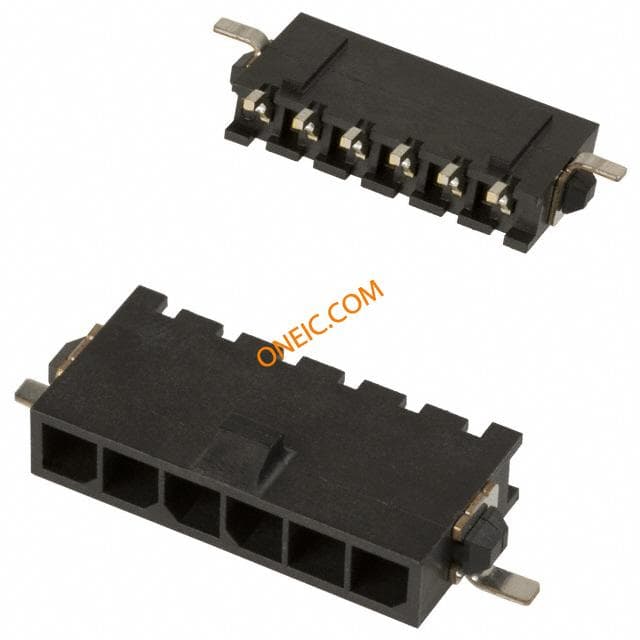

2-1445100-6
te connectivity / amp
Conn Power HDR 6 POS 3mm Solder RA SMD 6 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 6POS R/A GOLD SMD Pin & Socket Connectors HDR ASSY 6 POS R/A SINGLE ROW 30 AU MICRO MNL HDR ASSY S/ROW LF MICRO MNL HDR ASSY S/ROW LF Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector
1445093-6
te connectivity / amp
Conn Power HDR 6 POS 3mm Solder ST Thru-Hole 6 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 3MM 6POS GOLD T/H Pin & Socket Connectors HDR VERT 6 POS 30 AU SINGLE ROW 3mm Centerline, 250V, 5 A max. Product Highlights:Header AssemblyNumber of Positions = 6Number of Rows = SingleVertical Mount AngleMount Style = Through-HoleSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector

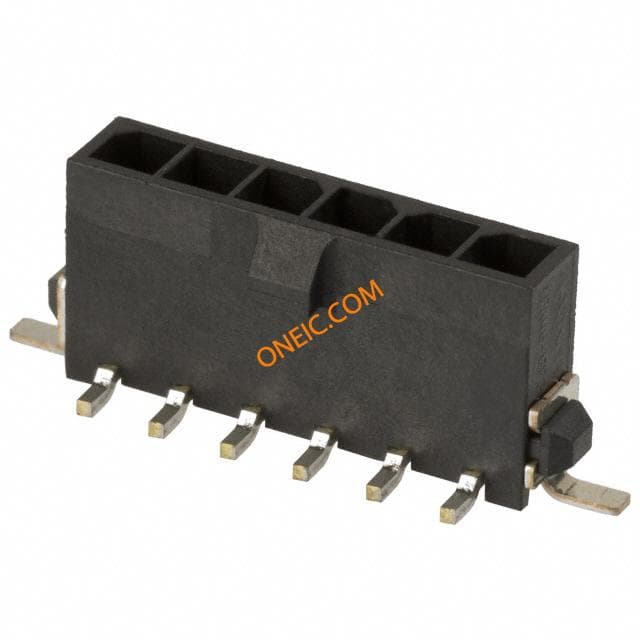

2-1445053-6
te connectivity / amp
Conn Power HDR 6 POS 3mm Solder ST SMD 6 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 3MM 6POS TIN SMD Pin & Socket Connectors HDR VERT 6 POS TIN SINGLE ROW 2-1445053-6 MICRO MNL HDR ASSY S/ROW LF MICRO MNL HDR ASSY S/ROW LF Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector
1445049-6
te connectivity / amp
Conn Housing PL 6 POS 3mm ST 3mm Centerline, 250V, 5 A max. CONN PLUG 3MM 6POS MATE-N-LOK 6 way 1 row cable plug Mate-N-Lok Pin & Socket Connectors PLUG SINGLE F.H. 6P free hanging Conn Housing PL 6 POS 3mm ST Product Highlights:HousingHousing Type = PlugNumber of Positions = 6Number of Rows = SingleMount Type = Free HangingSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector SoftShellHousing;Nylon;Black;0.118in.;FreeHanging;Plug;6;UL94V-0 Crimp housing Pitch3 mm Poles 1 x 6 MATE-N-LOK Micro, 1445049-6, TE Connectivity TE Connectivity Micro MATE-N-LOK 系列 3mm 节距 6 路 直 公 压接连接器外壳 FREE HANG SNGL ROW HSG 6 POS
2-1445088-6
te connectivity / amp
Conn Power HDR 6 POS 3mm Solder RA Thru-Hole 6 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 6POS R/A T/H 15GOLD Pin & Socket Connectors MICRO MNL HDR ASSY S/ROW AU LF MICRO MNL HDR ASSY S/ROW AU LF MICRO MNL HDR ASSY S/ROW AU LF Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector

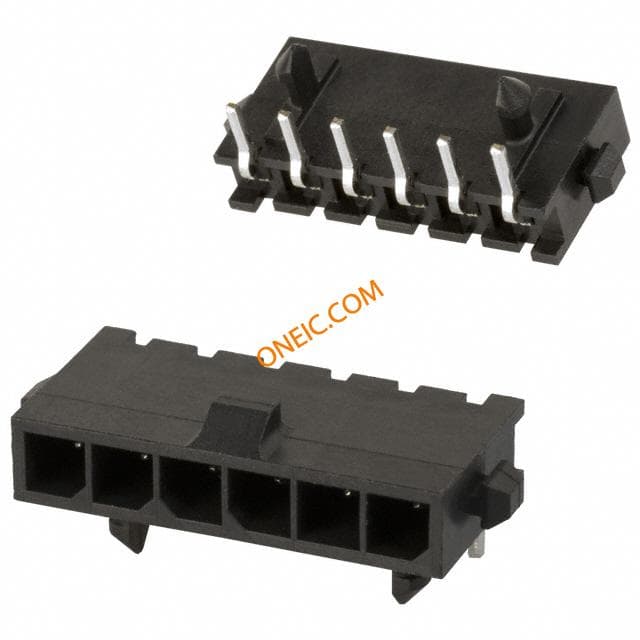

2-1445055-6
