1445022-5
| Manufacturer | |
| Description | Conn Housing RCP 5 POS 3mm ST 3mm Centerline, 250V, 5 A max. CONN RECEPT 3MM 5POS MATE-N-LOK 5 way 1 row receptacle Mate-N-Lok Pin & Socket Connectors RECPT SINGLE ROW 5P Conn Housing RCP 5 POS 3mm ST Product Highlights:HousingHousing Type = ReceptacleNumber of Positions = 5Number of Rows = Single3.00 mm CenterlineSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp,
low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector RECEPTACLE, SINGLE ROW, 5WAY Connector,SoftShell;Nylon;Receptacle;Black;5;Single;0.118in.;UL94V-0 Crimp housing Pitch3 mm Poles 1 x 5 MATE-N-LOK Micro, 1445022-5, TE Connectivity TE Connectivity Micro MATE-N-LOK 系列 3mm 节距 5 路 直 母 连接器外壳 MICRO MNL RFECEPT HSG SINGLE R |
| Category |
Business
| Other Names | A30261 | Product Category | Pin & Socket Connectors |
| Standard Package | Bulk | Factory Pack Quantity | 2000 |
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
| Leadfree Defin | Not relevant for lead free process | Approval Agency | :CSA, UL |
| RoHSELV Compliance | RoHS compliant, ELV compliant | Material Flammability Rating | UL 94V-0 |
Electrical
| Voltage Rating | 250 V | Contact Resistance | :20mohm |
| Voltage - Breakdown | :1500V | Current Rating (Max) | 5 A |
| Insulation Resistance | :1000Mohm | Voltage - Supply (Min) | 250VAC |
Mechanical
| Color | Black | Depth | 14.04 mm |
| Pitch | 3 mm | Width | 8.7mm |
| Height | 8.7 mm | Length | 16mm |
| Weight | 0.002 | Material | :Nylon |
| Packaging | Bulk | Wire Gauge | (20-24)/(26-30) AWG |
| Contact Type | Female Socket | Housing Color | Black |
| Mounting Type | Straight | Connector Type | Receptacle |
| Fastening Type | Latch Lock | Mounting Style | Wire |
| Number of Rows | 1 | Package / Case | Receptacle |
| Contact Material | Phosphor Bronze | Housing Material | Nylon |
| Length - Overall | 16 mm | Termination Style | Crimp |
| 1st Contact Gender | Socket (Female) | Color - Connectors | :Black |
| Number of Contacts | 5 | Contact Termination | Crimp |
| Number of Positions | 5 | Center Contact Material | 3.00 [0.118] |
| 1st Connector Mounting Type | :Socket | ||
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | RCP | Series | MATE-N-LOK |
| Product Type | Housing | For Use With/Related Products | Centerline Soft Shell Pin & Socket Connector |
Environmental
| Operating Temperature | -40C to 105C | ||
Documents & Media
Similar Parts

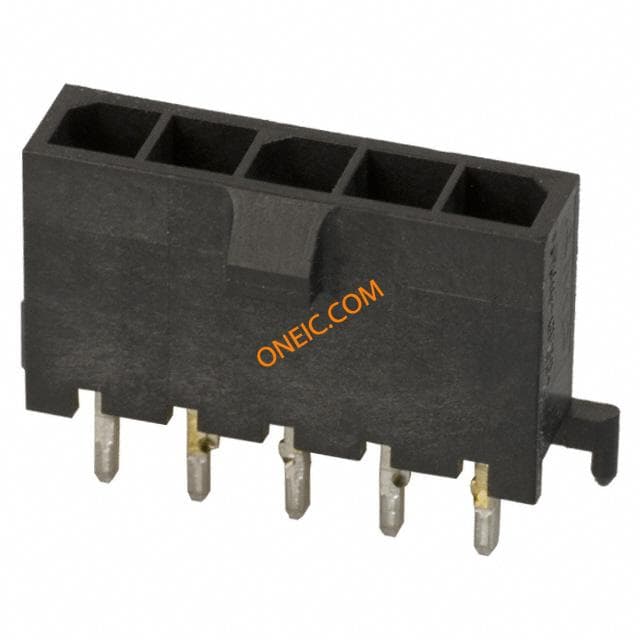

2-1445093-5
te connectivity / amp
Conn Power HDR 5 POS 3mm Solder ST Thru-Hole 5 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 3MM 5POS GOLD T/H Pin & Socket Connectors HDR VERT 5 POS 30 AU SINGLE ROW Conn Power HDR 5 POS 3mm Solder ST Thru-Hole 5 Terminal 1 Port Product Highlights:Header AssemblyNumber of Positions = 5Number of Rows = SingleVertical Mount AngleMount Style = Through-HoleSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector MICRO MNL HDR ASSY S/ROW AU LF
2-1445050-5
te connectivity / amp
Conn Power HDR 5 POS 3mm Solder ST Thru-Hole 5 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 3MM 5POS TIN T/H Pin & Socket Connectors HDR VERT 5 POS TIN SINGLE ROW Conn Power HDR 5 POS 3mm Solder ST Thru-Hole 5 Terminal 1 Port Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector MICRO MNL HDR ASSY S/ROW LF

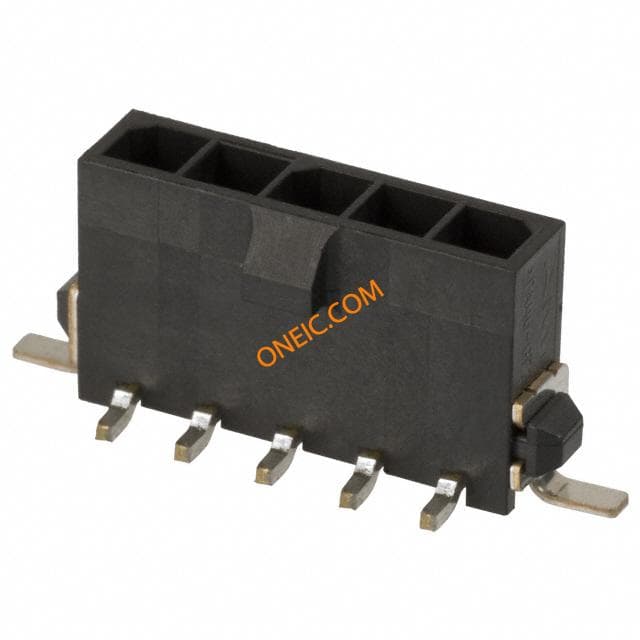

2-1445096-5
te connectivity / amp
Conn Power HDR 5 POS 3mm Solder ST SMD 5 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 3MM 5POS GOLD SMD Pin & Socket Connectors HDR VERT 5 POS 30 AU SINGLE ROW 2-1445096-5 MICRO MNL HDR ASSY SINGLE ROW MICRO MNL HDR ASSY SINGLE ROW Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector
1445050-5
te connectivity / amp
Conn Power HDR 5 POS 3mm Solder ST Thru-Hole 5 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 3MM 5POS TIN T/H Pin & Socket Connectors HDR VERT 5 POS TIN SINGLE ROW MICRO MNL HDR ASSY SINGLE ROW MICRO MNL HDR ASSY SINGLE ROW Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector

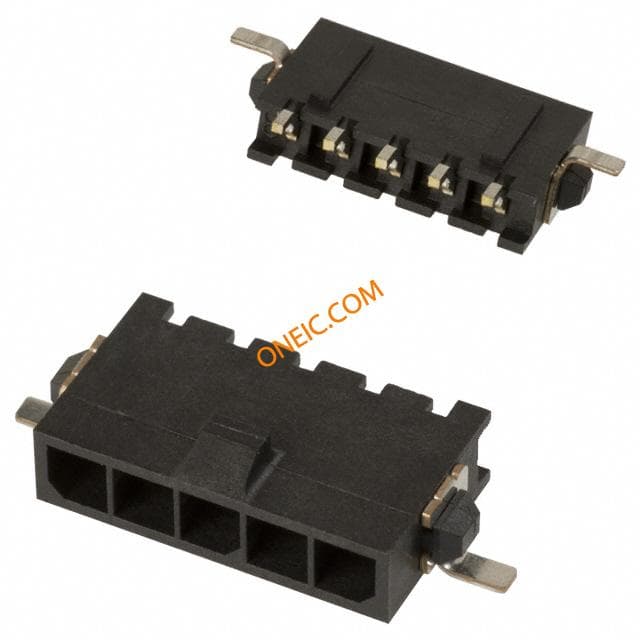

2-1445100-5
