1445022-3

点击放大查看

1445022-3

Manufacturer
TE Connectivity Ltd.
Description
Conn Housing RCP 3 POS 3mm ST 3mm Centerline, 250V, 5 A max. CONN RECEPT 3MM 3POS MATE-N-LOK 3 way 1 row receptacle Mate-N-Lok Pin & Socket Connectors RECPT SINGLE ROW 3P Conn Housing RCP 3 POS 3mm ST Product Highlights:HousingHousing Type = ReceptacleNumber of Positions = 3Number of Rows = Single3.00 mm CenterlineSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector HOUSING, RECEPTACLE, SINGLE ROW, 3WAY Connector,SoftShell;Nylon;Receptacle;Black;3;Single;0.118in.;UL94V-0 Crimp housing Pitch3 mm Poles 1 x 3 MATE-N-LOK Micro, 1445022-3, TE Connectivity TE Connectivity Micro MATE-N-LOK 系列 3mm 节距 3 路 直 母 连接器外壳 MICRO MNL RFECEPT HSG SINGLE R
Category
Connector SolutionsRectangular ConnectorsFPC/FFC Rectangular Connectors
对参数有疑问？问 AI 助手

Business

Other NamesA30259Product CategoryPin & Socket Connectors
Standard PackageBulkFactory Pack Quantity1

Compliance

RoHSLead free / RoHS CompliantTariff No85369010
Leadfree DefinNot relevant for lead free processApproval Agency:CSA, UL
RoHSELV ComplianceRoHS compliant, ELV compliantMaterial Flammability RatingUL 94V-0

Electrical

Voltage Rating250 VContact Resistance:20mohm
Voltage - Breakdown:1500VCurrent Rating (Max)5 A
Insulation Resistance:1000MohmVoltage - Supply (Min)250VAC

Mechanical

ColorBlackDepth14.04 mm
Pitch3 mmWidth8.7mm
Height8.7 mmLength10mm
Weight0.046Material:Nylon
PackagingBulkWire Gauge(20-24)/(26-30) AWG
Contact TypeFemale SocketHousing ColorBlack
Mounting TypeStraightConnector TypeReceptacle
Fastening TypeLatch LockMounting StyleWire
Number of Rows1Package / CaseReceptacle
Locking Feature:LatchMaterial - Body:Nylon (Polyamide)
Contact MaterialPhosphor BronzeHousing MaterialNylon
Length - Overall10 mmTermination StyleCrimp
1st Contact GenderSocket (Female)Color - Connectors:Black
Number of Contacts3Contact TerminationCrimp
Number of Positions3Center Contact Material3.00 [0.118]
1st Connector Mounting Type:Socket

Product Info

NoteContacts Not ProvidedTypeHousing
GenderRCPSeriesMATE-N-LOK
Product TypeHousingFor Use With/Related ProductsCenterline Soft Shell Pin & Socket Connector

Environmental

Operating Temperature-40C to 105C

Documents & Media

PDF Document
1650928.pdf
Online Document
1445022-3?RQPN=1445022-3

Similar Parts

1445048-3

1445048-3

te connectivity / amp

Conn Housing PL 3 POS 3mm ST 3mm Centerline, 250V, 5 A max. CONN PLUG 3MM 3POS MATE-N-LOK 3 way 1 row panel plug Mate-N-Lok Pin & Socket Connectors PLUG SNGL PNL MNT 3P Conn Housing PL 3 POS 3mm ST Product Highlights:HousingHousing Type = PlugHousing Accepts Contact Type = Pin3 PositionsNumber of Rows = 1Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector No. of C Connector,SoftShell;Nylon;Plug;Black;3;Single;0.118in.;UL94V-0 Crimp housing Pitch3 mm Poles 1 x 3 MATE-N-LOK Micro, 1445048-3, TE Connectivity TE Connectivity Micro MATE-N-LOK 系列 3mm 节距 3 路 直 公 压接连接器外壳 PANEL MT SNGL ROW HSG 3 POS

$1.2648
Details
1445099-3

1445099-3

te connectivity / amp

Conn Power HDR 3 POS 3mm Solder RA SMD 3 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 3POS R/A 30GOLD SMD Pin & Socket Connectors MICRO MNL HDR ASSY MICRO MNL HDR ASSY SINGLE ROW MICRO MNL HDR ASSY SINGLE ROW Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector

$3.7400
Details
1445093-3

1445093-3

te connectivity / amp

Conn Power HDR 3 POS 3mm Solder ST Thru-Hole 3 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 3MM 3POS GOLD T/H Pin & Socket Connectors HDR VERT 3 POS 30 AU SINGLE ROW MICRO MNL HDR ASSY SINGLE ROW MICRO MNL HDR ASSY SINGLE ROW Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector

$12.3760
Details
2-1445085-3

2-1445085-3

te connectivity / amp

Conn Power HDR 3 POS 3mm Solder ST Thru-Hole 3 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 3POS VERT T/H 15GOLD Pin & Socket Connectors micro mnl hdr assy s/row au lf 3mm Centerline, 250V, 5 A max. Product Highlights:ConnectorHeaderPreloadedHeader Gender = PlugContact Gender = PinSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector micro mnl hdr assy s/row au lf

$6.7320
Details
2-1445054-3

2-1445054-3

te connectivity / amp

Conn Power HDR 3 POS 3mm Solder RA Thru-Hole 3 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 3POS RT ANG T/H TIN Pin & Socket Connectors MICRO MNL HDR ASSY S/ROW LF 3mm Centerline, 250V, 5 A max. Product Highlights:ConnectorConnector Type = Header - PinThrough Hole Contact Termination Type3 PositionsNumber of Rows = 1Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector MICRO MNL HDR ASSY S/ROW LF

$2.8628
Details
2-1445097-3

2-1445097-3

te connectivity / amp

Conn Power HDR 3 POS 3mm Solder RA Thru-Hole 3 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 3POS R/A 30GOLD T/H Pin & Socket Connectors MICRO MNL HDR ASSY S/ROW AU LF Conn Power HDR 3 POS 3mm Solder RA Thru-Hole 3 Terminal 1 Port Product Highlights:ConnectorHeaderPreloadedHeader Gender = PlugContact Gender = PinSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector MICRO MNL HDR ASSY S/ROW AU LF

$6.9360
Details
2-1445087-3

2-1445087-3

te connectivity / amp

Conn Power HDR 3 POS 3mm Solder ST SMD 3 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 3POS VERT SMD 15GOLD Pin & Socket Connectors MICRO MNL HDR ASSY S/ROW AU LF Conn Power HDR 3 POS 3mm Solder ST SMD 3 Terminal 1 Port Product Highlights:Header AssemblyNumber of Positions = 3Number of Rows = SingleVertical Mount AngleMount Style = Surface MountSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector MICRO MNL HDR ASSY S/ROW AU LF

$4.5288
Details
1445085-3

1445085-3

te connectivity / amp

Conn Power HDR 3 POS 3mm Solder ST Thru-Hole 3 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 3POS STR 15GOLD T/H Pin & Socket Connectors MICRO MNL HDR ASSY SINGLE ROW 3mm Centerline, 250V, 5 A max. Product Highlights:ConnectorHeaderPreloadedHeader Gender = PlugContact Gender = PinSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector

$2.3800
Details

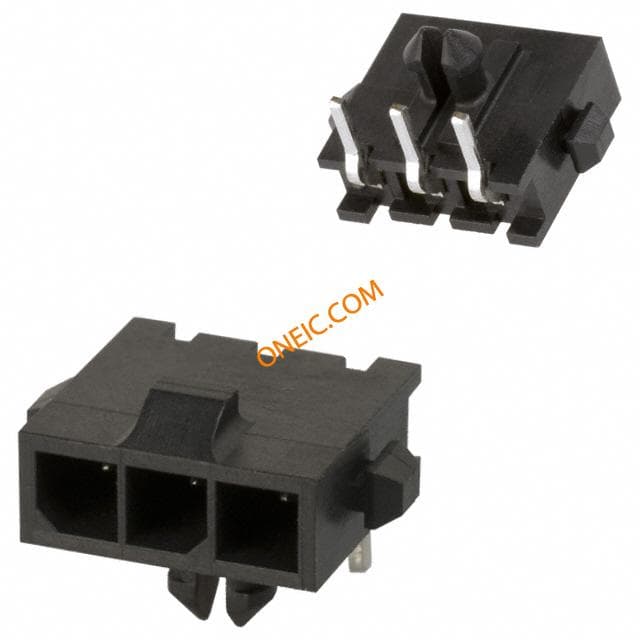

2-1445055-3

2-1445055-3

te connectivity / amp

Conn Power HDR 3 POS 3mm Solder RA Thru-Hole 3 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 3MM 3POS R/A TIN TE Connectivity MATE-N-LOK Series 3mm Pitch 3 Way Right Angle Heavy Duty Power Connector, Solder Termination, 5A Pin & Socket Connectors HDR ASSY 3 POS R/A SINGLE ROW TIN Conn Power HDR 3 POS 3mm Solder RA Thru-Hole 3 Terminal 1 Port Product Highlights:ConnectorConnector Type = Header - PinThrough Hole Contact Termination Type3 PositionsNumber of Rows = 1Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector HEADER, RIGHT ANGLE, 1ROW, 3WAY 3WS/ROWPINHEADERR/A Pin header Pitch3 mm Poles 3 Contact DesignMale MATE-N-LOK, 2-1445055-3, TE Connectivity TE Connectivity Micro MATE-N-LOK 系列 3mm节距 3路 直角 PCB 针座, 焊接端接, 5A , 通孔 MICRO MNL HDR ASSY S/ROW LF

$4.0071
Details
2-1445051-3

2-1445051-3

te connectivity / amp

Conn Power HDR 3 POS 3mm Solder ST Thru-Hole 3 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 3POS VERT T/H TIN Pin & Socket Connectors MICRO MNL HDR ASSY S/ROW LF 3mm Centerline, 250V, 5 A max. Product Highlights:ConnectorConnector Type = Header - PinThrough Hole Contact Termination Type3 PositionsNumber of Rows = 1Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector MICRO MNL HDR ASSY S/ROW LF

$4.9640
Details

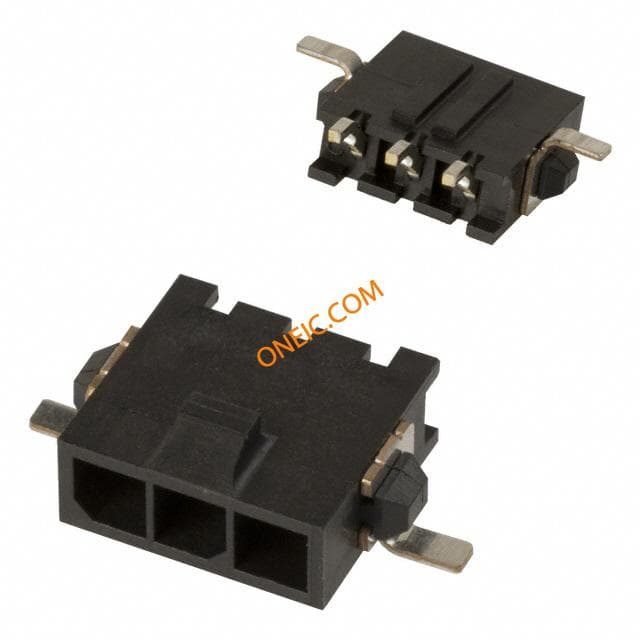

2-1445057-3
