点击放大查看
1375820-8
| Manufacturer | |
| Description | Conn Housing RCP 8 POS 2.54mm Crimp ST MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT HSNG 8POS CST-100 II Headers & Wire Housings HSG REC 1X08C STD 26-22AWG Conn Housing RCP 8 POS 2.54mm Crimp ST Product Highlights:CST-100 II HousingsNumber of Positions = 8Mating Type = ReceptacleWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP CONNECTOR, RECEPT. 8 WAY CST-100IIHOUSING8POS Socket housing, straight 8P, 1375820-8, TE Connectivity CST-100 II HOUSING 8 POS |
| Category |
Business
| Product Category | Headers & Wire Housings | Standard Package | Bulk |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85366910 |
| Leadfree Defin | Not relevant for lead free process | Approval Agency | CSA,UL |
| RoHSELV Compliance | RoHS compliant, ELV compliant | Material Flammability Rating | UL 94V-0 |
Electrical
| Range deg/s | :TE - CST-100 II Series | Current Rating (Max) | 4/Contact A |
| Voltage - Supply (Min) | 250VAC | ||
Mechanical
| Color | White | Depth | 12.95 mm |
| Pitch | 2.54 mm | Height | 6.6 mm |
| Weight | 0.00227 | Packaging | Bulk |
| Shrouding | No | Cable Exit | 180° |
| Wire Gauge | 22-28 AWG | Termination | :Crimp |
| Contact Type | Female Socket | Lead Spacing | :2.54mm |
| 2nd Connector | With | Housing Color | White |
| Mounting Type | Straight | Angle of Throw | Straight |
| Connector Type | Crimp | Contact Finish | 2.54 [0.100] |
| Fastening Type | Locking Ramp | Mounting Style | Wire |
| Number of Rows | 1 | Connector Usage | Receptacle |
| Contact Material | :Phosphor Bronze | Housing Material | Polymer |
| Length - Overall | 20.83 mm | Mounting Feature | Without |
| Panel Mount Type | Without | Primary Material | InterconnectSystem |
| Pin Hole Diameter | 0.1" | Termination Style | Crimp |
| 1st Contact Gender | Socket (Female) | Mating Orientation | With |
| Number of Contacts | 8 | Contact Termination | Crimp |
| Number of Positions | 8 | ||
Product Info
| Note | Not interchangeable with CST-100 contacts and housings.; Mates with all MTA-100 | Type | Housing |
| Gender | RCP | Series | CST-100 |
| Manufacturer | AMP | Product Type | CST-100 II Housings |
| Application Specifics | Wire-to-Board | ||
Environmental
| Operating Temperature | -55C to 105C | ||
Documents & Media
Similar Parts
640456-8
te connectivity / amp
Conn Wire to Board HDR 8 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 8POS .100 TIN TE Connectivity MTA-100 Series 2.54mm Pitch 8 Way 1 Row Straight PCB Header, Solder Termination, 5A Headers & Wire Housings FRICTION LCK HDR 8P Straight Post tin Conn Wire to Board HDR 8 POS 2.54mm Solder ST Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 8Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP HEADER, VERTICAL, 0.1", 8WAY Header,FrictionLock;MTA-100;8;250VAC;Polyester;Tin;CopperAlloy;Tin Socket; wire-board; male; PIN:8; 2.54mm; THT; MTA-100; tinned Pin header 8P, 640456-8, TE Connectivity TE Connectivity MTA-100 系列 2.54mm节距 8路 (1排) 直 PCB 针座, 焊接端接, 5A , 通孔 08P MTA100 HDR ASSY F/L SQ STR
640453-8
te connectivity / amp
Conn Unshrouded Header HDR 8 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 8POS .100 TIN TE Connectivity MTA-100 Series 2.54mm Pitch 8 Way 1 Row Right Angle PCB Header, Solder Termination, 5A Headers & Wire Housings FLAT HEADER 8P Right Angle Post tin Conn Unshrouded Header HDR 8 POS 2.54mm Solder RA Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 8Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR HEADER, 8WAY, 0.1IN Header;MTA-100;8;250VAC;Polyester;Tin;CopperAlloy;0.100in.;Tin;AMP TE Connectivity MTA-100 系列 2.54mm节距 8路 (1排) 直角 PCB 针座, 焊接端接, 5A , 通孔 08P MTA100 HDR ASSY SQ R/A
644897-8
te connectivity / amp
Conn Shrouded Header HDR 8 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 8POS VERT .100 GOLD Headers & Wire Housings 08P CST100 SHRD HDR ASSY W/PEG

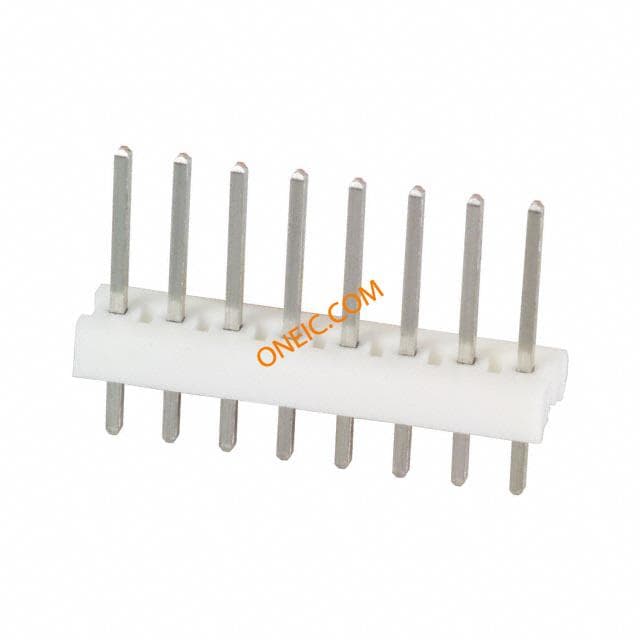

640452-8
