1375820-5
| Manufacturer | |
| Description | Conn Housing RCP 5 POS 2.54mm Crimp ST MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT HSNG 5POS CST-100 II 5w housing CST-100 II Headers & Wire Housings HSG REC 1X05C STD 26-22AWG Conn Housing RCP 5 POS 2.54mm Crimp ST Product Highlights:CST-100 II HousingsNumber of Positions = 5Mating Type = ReceptacleWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP CONNECTOR, RECEPT. 5 WAY CST-100IIHOUSING5POS Socket housing, straight 5P, 1375820-5, TE Connectivity TE Connectivity CST-100 II 系列 2.54mm 节距 5 路 直 母 PCB 壳体 CST-100 II HOUSING 5 POS |
| Category |
Business
| Product Category | Headers & Wire Housings | Standard Package | Bulk |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85366910 |
| Leadfree Defin | Not relevant for lead free process | Approval Agency | CSA,UL |
| RoHSELV Compliance | RoHS compliant, ELV compliant | Material Flammability Rating | UL 94V-0 |
Electrical
| Range deg/s | :TE - CST-100 II Series | ||
Mechanical
| Color | White | Depth | 12.95mm |
| Pitch | 2.54 mm | Width | 6.6mm |
| Length | 13.21mm | Weight | 0.00227 |
| Packaging | Bulk | Shrouding | No |
| Cable Exit | 180° | Wire Gauge | 22-28 AWG |
| Termination | :Crimp | Contact Type | Female Socket |
| Lead Spacing | :2.54mm | 2nd Connector | With |
| Housing Color | White | Mounting Type | Straight |
| Angle of Throw | Straight | Connector Type | Crimp |
| Contact Finish | 2.54 [0.100] | Fastening Type | Locking Ramp |
| Mounting Style | Wire | Number of Rows | 1 |
| Connector Usage | Receptacle | Contact Material | :Phosphor Bronze |
| Housing Material | Polymer | Length - Overall | 0.52" |
| Mounting Feature | Without | Panel Mount Type | Without |
| Primary Material | InterconnectSystem | Pin Hole Diameter | 0.1" |
| Termination Style | Crimp | 1st Contact Gender | Socket (Female) |
| Mating Orientation | With | Number of Contacts | 5 |
| Contact Termination | Crimp | Number of Positions | 5 |
Product Info
| Note | Not interchangeable with CST-100 contacts and housings.; Mates with all MTA-100 | Type | Housing |
| Gender | RCP | Series | CST-100 |
| CAD Drawing | 3D CAD Model | Manufacturer | AMP |
| Product Type | CST-100 II Housings | Application Specifics | Wire-to-Board |
| For Use With/Related Products | Centerline Economy Power Connector | ||
Environmental
| Operating Temperature | -55to+105°C | ||
Documents & Media
Similar Parts
3-641212-5
te connectivity / amp
Conn Unshrouded Header HDR 5 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 5POS R/A .100 GOLD Headers & Wire Housings 05P MTA100 HDR ASSY PL RA LF 05P MTA100 HDR ASSY PL RA LF 05P MTA100 HDR ASSY PL RA LF Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
3-641215-5
te connectivity / amp
Conn Wire to Board HDR 5 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 5POS .100 30AU TE Connectivity MTA-100 Series 2.54mm Pitch 5 Way 1 Row Straight PCB Header, Solder Termination, 5A Headers & Wire Housings FRICTION LCK HDR 5P Straight Post gold Conn Wire to Board HDR 5 POS 2.54mm Solder ST Thru-Hole Product Highlights:5 PositionsWith ContactsHousing Gender = Header - PinContact Gender = PinMTA-100 Product LineSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR HEADER 5POS, 2.54MM HEADER,MTA-100,5POSITION,2.54MM,FRICTIONLOCK TE Connectivity MTA-100 系列 2.54mm节距 5路 (1排) 直 PCB 针座, 焊接端接, 5A , 通孔 05P MTA100 HDR ASSY FL 30AU LF
641215-5
te connectivity / amp
Conn Wire to Board HDR 5 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT .100 5POS 30AU Headers & Wire Housings FRICTION LCK HDR 5P Straight Post gold Conn Wire to Board HDR 5 POS 2.54mm Solder ST Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 5Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 05P MTA100 HDR ASSY FL/ST 30AU

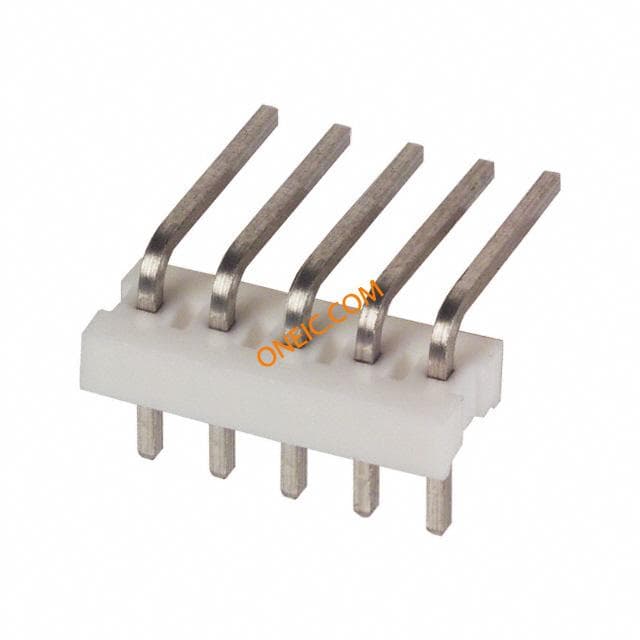

640453-5
te connectivity / amp
Conn Unshrouded Header HDR 5 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 5POS .100 TIN Headers & Wire Housings FLAT HEADER 5P Right Angle Post tin Conn Unshrouded Header HDR 5 POS 2.54mm Solder RA Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 5Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP HEADER, RIGHT ANGLE, 0.1", 5WAY Header;MTA-100;5;250VAC;Polyester;Tin;CopperAlloy;0.100in.;Tin;AMP 05P MTA100 HDR ASSY SQ R/A
644875-5
te connectivity / amp
Conn Wire to Board HDR 5 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 5POS R/A .100 TIN Headers & Wire Housings 05P MTA100 HDR ASSY F/L SP BND Conn Wire to Board HDR 5 POS 2.54mm Solder RA Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 5Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 05P MTA100 HDR ASSY F/L,SP BND
640454-5
te connectivity / amp
Conn Wire to Board HDR 5 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 5POS .100 TIN TE Connectivity MTA-100 Series 2.54mm Pitch 5 Way 1 Row Straight PCB Header, Solder Termination, 5A Headers & Wire Housings POLARIZED HEADER 5P Straight Post tin Conn Wire to Board HDR 5 POS 2.54mm Solder ST Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 5Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP HEADER, VERTICAL, 0.1", 5WAY HEADERASSEMBLY,MTA-100,POLARIZED,5POSITION,STRAIGHT Connector: wire-board; Series: MTA-100; male; socket; tinned; PIN:5 TE Connectivity MTA-100 系列 2.54mm节距 5路 (1排) 直 PCB 针座, 焊接端接, 5A , 通孔 05P MTA100 HDR ASSY SQ STR POL
641216-5
te connectivity / amp
Conn Wire to Board HDR 5 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RT/A .100 5POS 30AU Headers & Wire Housings FRICTION LCK HDR 5P R.A. Post gold Conn Wire to Board HDR 5 POS 2.54mm Solder RA Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 5Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 05P MTA100 HDR ASSY FL/RA 30AU
644893-5
te connectivity / amp
Conn Shrouded Header HDR 5 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 5POS VERT .100 TIN Headers & Wire Housings 05P CST100 SHRD HDR ASSY W/PEG MTA, CST-100 II, MT-6 and SL Connectors and Headers Product Highlights:Connector5 PositionsConnector Type = Header - PinCST-100 Product LineWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
641213-5
te connectivity / amp
Conn Wire to Board HDR 5 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT .100 5POS 30AU Headers & Wire Housings POLARIZED HEADER 5P Straight Post gold Conn Wire to Board HDR 5 POS 2.54mm Solder ST Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 5Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 05P MTA100 HDR ASSY PO/ST 30AU
3-641214-5
te connectivity / amp
Conn Wire to Board HDR 5 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RT/A .100 5POS 30AU Headers & Wire Housings HDR R/A .100 5P 30AU Conn Wire to Board HDR 5 POS 2.54mm Solder RA Thru-Hole Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 05P MTA100 HDR ASSY PO/RA LF
3-644694-5
te connectivity / amp
Conn Unshrouded Header HDR 5 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 5POS .100 TIN Headers & Wire Housings HDR 5 POS R/A TIN 05P MTA100 R/A HDR RETENTIVE
647106-5
te connectivity / amp
Conn Wire to Board HDR 5 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 5POS VERT .100 TIN MTA, CST-100 II, MT-6 and SL Connectors and Headers Product Highlights:MTA-100 ConnectorsNumber of Positions = 5Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 05P MTA-100 HDR ASSY,SM,SN
3-641213-5
te connectivity / amp
Conn Wire to Board HDR 5 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 5POS .100 30AU Headers & Wire Housings POLARIZED HEADER 5P Straight Post gold Conn Wire to Board HDR 5 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector5 PositionsConnector Type = Header - PinMTA-100 Product LineWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 05P MTA100 HDR ASSY PO/ST LF
3-641216-5
te connectivity / amp
Conn Wire to Board HDR 5 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RT/A 5POS .100 30AU Headers & Wire Housings FRICTION LCK HDR 5P R.A. Post gold Conn Wire to Board HDR 5 POS 2.54mm Solder RA Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 5Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 05P MTA100 HDR ASSY FL/RA LF
641211-5
te connectivity / amp
Conn Unshrouded Header HDR 5 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 5POS VERT .100 GOLD Headers & Wire Housings 05P MTA100 HDR ASSY PL STR 30A Conn Unshrouded Header HDR 5 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector5 PositionsConnector Type = Header - PinMTA-100 Product LineWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 05P MTA100 HDR ASY PL STR 30A
3-647609-5
te connectivity / amp
Conn Wire to Board HDR 5 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 5POS VERT .100 TIN Headers & Wire Housings 05P MTA100 HDR ASSY F/L LF 05P MTA100 HDR ASSY F/L LF 05P MTA100 HDR ASSY F/L LF Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
640455-5
te connectivity / amp
Conn Wire to Board HDR 5 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 5POS .100 TIN Headers & Wire Housings POLARIZED HEADER 5P Right Angle Post tin Conn Wire to Board HDR 5 POS 2.54mm Solder RA Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 5Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP MTA-100HEADER-TIN,05PMTA100HDRASSYSQR/APOL TE Connectivity MTA-100 系列 2.54mm节距 5路 (1排) 直角 PCB 针座, 焊接端接, 5A , 通孔 05P MTA100 HDR ASSY SQ R/A POL
3-641211-5
te connectivity / amp
Conn Unshrouded Header HDR 5 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 5POS VERT .100 GOLD Headers & Wire Housings 05P MTA100 HDR ASY PL STR LF Conn Unshrouded Header HDR 5 POS 2.54mm Solder ST Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 5Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 05P MTA100 HDR ASY PL STR LF

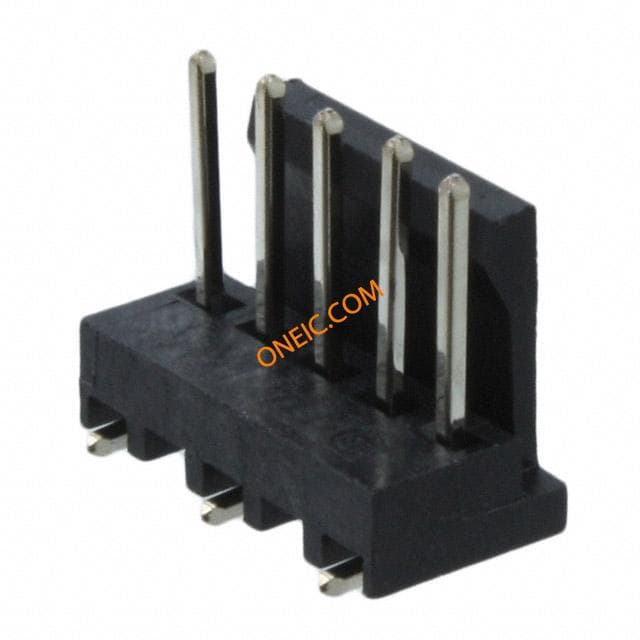

3-647166-5
