1375583-5
| Manufacturer | |
| Description | Conn Shrouded Header HDR 6 POS 2.54mm Solder ST SMD T/R Headers & Wire Housings 06 MTE VERTICAL SMT .100 AMPMODU Headers, Housings & Contacts CONN HEADER 6POS IDC SMD 30GOLD SEE374-15035-1375583-5 06 MTE VERTICAL SMT HDR 30 AU |
| Category |
Business
| Tradename | AMPMODU | Other Names | A110964CT |
| Standard Pack | 100 | Product Category | Headers & Wire Housings |
| Standard Package | Tape & Reel | Factory Pack Quantity | 100 |
Compliance
| RoHS | No | Standards | ULListed,CSACertified |
| Approval Agency | CSA,UL | Material Flammability Rating | UL94V-0 |
Electrical
| Connector Impedance | 压接 | Current Rating (Max) | 3A |
| Insulation Resistance | 5000Megohms | Voltage - Switching DC | 600V |
Mechanical
| Color | Black | Pitch | 2.54 mm |
| Packaging | Reel | Body Color | 黑色 |
| Wire Gauge | 30-22 | Termination | Solder |
| Contact Type | Male Pin | Length - Pin | 0.024" |
| Mounting Type | Surface Mount | Angle of Throw | Straight |
| Connector Type | Header, Shrouded | Contact Finish | Gold Over Nickel |
| Mounting Style | 带有 | Number of Rows | 1 |
| Contact Material | Brass | Housing Material | Thermoplastic |
| Length - Overall | 0.7" | Panel Mount Type | 垂直 |
| Primary Material | InterconnectSystem | Pin Hole Diameter | 0.1" |
| Termination Style | 插针 | Number of Contacts | 6 |
| Insulation Diameter | 0.054" | Number of Positions | 6 |
| Contact Mating Finish | Gold(30)overNickel(50) | Mounting Hole Diameter | 0.055×0.089" |
| Contact Length - Mating | 0.230" (5.84mm) | Contact Finish Thickness | 30µin (0.76µm) |
Product Info
| Type | Shrouded Header | Gender | HDR |
| Series | AMPMODU MTE | Features | Board Lock |
| Manufacturer | AMPMODU/MTESeries | Pattern Type | 否 |
| Product Type | Headers - Shrouded | Matrix (Columns x Rows) | 0.100in. |
| Number of Positions Loaded | All | ||
Environmental
| Mechanical Life | Obsolete | Operating Temperature | -65to+105°C |
Similar Parts
88859-1
te connectivity / amp
Conn Housing RCP 6 POS 2.54mm Crimp ST Cable Mount Flexible Film Connectors 006 HOUSING FFC RCPT SR 100CL FFC & FPC Connectors HOUSING RECPT FCC 6P Flexible Film Connectors Product Highlights:Housing2.54 mm CenterlineConnector Type = StandardNumber of Positions = 6Number of Rows = SingleSearch Keywords:Circuitry-to-Board, cable to board, board to board, FFC, flat flexible cable, flat flex wire, Easy Mating Connector FFC/FPC CONNECTOR, PLUG, 6POS, 1ROW
103960-5
te connectivity / amp
Conn IDC Connector RCP 6 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RCPT 6POS .100 26-30 15GOLD Headers & Wire Housings 4X6 MTE RCPT SR LATC 756 Conn IDC Connector RCP 6 POS 2.54mm IDT ST Cable Mount Strip Product Highlights:Receptacle AssemblyWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 6Number of Rows = SingleTerminate To WireSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 4X6 MTE RCPT SR LATCH .100CL
103957-5
te connectivity / amp
Conn IDC Connector RCP 6 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RECPT 6POS .100 POLAR 15AU Headers & Wire Housings RECEPTACLE ASSY 6P Conn IDC Connector RCP 6 POS 2.54mm IDT ST Cable Mount Strip Product Highlights:Receptacle AssemblyWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 6Number of Rows = SingleTerminate To WireSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE MTERECPASSY,4X6MTERCPTSRLATCH.100CL 4X6 MTE RCPT SR LATCH .100CL

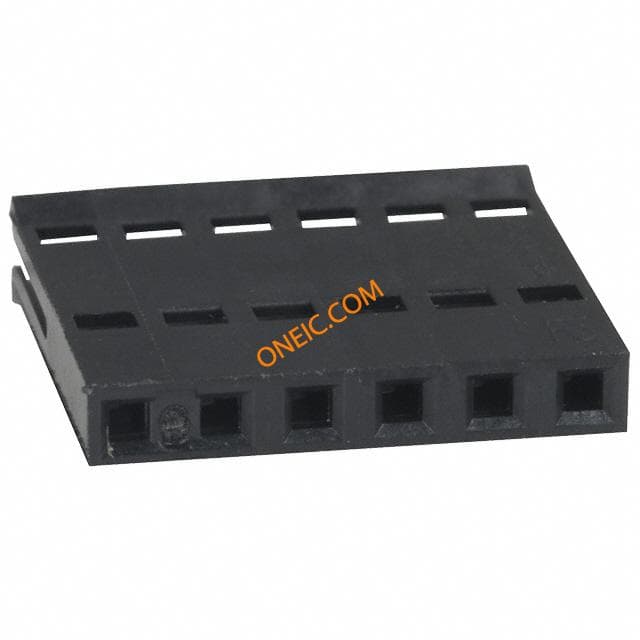

487378-5
