1116719-3
| Manufacturer | |
| Description | Connector Accessories Connector Kit Plug 50 POS Bulk 2.16 [.085] IDC Connectors CONN CHAMP PLUG 50POS .085 SHLD Headers & Wire Housings PLUG KIT 50 POSN B SLOT SCR LK |
| Category |
Business
| Product Category | Connectors | Standard Package | Bulk |
| Factory Pack Quantity | 500 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Leadfree Defin | Not relevant for lead free process |
| RoHSELV Compliance | RoHS compliant, ELV compliant | ||
Mechanical
| Color | Black | Cable Exit | 90° |
| Cable Type | 7 Strand, Solid | Copper Type | B |
| Shield Type | Yes | Termination | IDC |
| 2nd Connector | With | Mounting Type | Free Hanging (In-Line), Right Angle |
| Connector Type | Plug | Contact Finish | Gold (30) over Nickel (50), Gold Flash over Palladium Nickel over Nickel |
| Flange Feature | Insert, Threaded (4-40) | Number of Rows | 2 |
| Connector Style | Center Strip Contacts | Locking Feature | Screwlocks |
| Profile (W x H) | Standard | Housing Material | Polyphenylene Oxide |
| Package Quantity | Bulk Kit | Panel Mount Type | Without |
| Diameter - Inside | 12.70 [0.500] | Number of Positions | 50 |
| Contact Finish Thickness | 30µin (0.76µm) | Wire Gauge or Range - AWG | 0.51-0.40 [24-26] |
| Wire Gauge or Range - mm2 | 0.20² [24] | Outside Cable Diameter (Min) | 8.64 [0.340] |
Product Info
| Type | Connector Kit | Gender | Plug |
| Features | Assembly Kit, Shielded | Product Type | Connector Kit |
| RF Family/Standard | 1116719-3 | ||
Environmental
| Protection Range | With | ||
Documents & Media
Similar Parts
554436-2
te connectivity / amp
Conn IEEE 488 RCP 50 POS 2.16mm IDT RA Cable Mount 50 Terminal 1 Port 2.16 [.085] IDC Connectors CONN CHAMP 50 POS RECEPT SHIELD Headers & Wire Housings RECPT 50P SCREW LOCK preassembled Conn IEEE 488 RCP 50 POS 2.16mm IDT RA Cable Mount 50 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 50Product Category = ConnectorsReceptacleShieldedSearch Keywords:self-extinguishing housing, integral latching system, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, discrete wire, AMPHENOL, Centronics
1116551-1
te connectivity / amp
Conn Wire to Board F 50 POS ST Thru-Hole 2.16 [.085] Printed Circuit Board Connectors CONN CHAMP RCPT 50POS .085 VERT Conn IEEE 488 RCP 50 POS 2.16mm Solder ST Thru-Hole 50 Terminal 1 Port Conn IEEE 488 RCP 50 POS 2.16mm Solder ST Thru-Hole 50 Terminal 1 Port Product Highlights:ReceptacleNumber of Positions = 50PCB Mount Style = VerticalStandard OrientationStandard ProfileSearch Keywords:intermateable, high density, wave solder, edge connector, vertical mount connector, insulation displacement, CHAMP-LOK, shielded, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, pcb connectors, AMPHENOL, Centronics
557932-2
te connectivity / amp
Conn IEEE 488 RCP 50 POS 2.16mm Solder RA Thru-Hole 50Terminal 1Port 2.16 [.085] Printed Circuit Board Connectors RCPT ASSY,SHLD, 50 POSN, RTANG Headers & Wire Housings RA 50P STANDARD 4-40 screw lk board lk Conn IEEE 488 RCP 50 POS 2.16mm Solder RA Thru-Hole 50 Terminal 1 Port Conn IEEE 488 RCP 50 POS 2.16mm Solder RA Thru-Hole 50 Terminal 1 Port Product Highlights:ReceptacleNumber of Positions = 50PCB Mount Style = Right AngleStandard OrientationStandard ProfileSearch Keywords:intermateable, high density, wave solder, edge connector, vertical mount connector, insulation displacement, CHAMP-LOK, shielded, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, pcb connectors, AMPHENOL, Centronics
557932-1
te connectivity / amp
Conn IEEE 488 RCP 50 POS 2.16mm Solder RA Thru-Hole 50Terminal 1Port 2.16 [.085] Printed Circuit Board Connectors CONN CHAMP RCPT 50POS .085 R/A Headers & Wire Housings RCPT ASSY 50POS SHLD 360
557984-1
te connectivity / amp
Conn IEEE 488 RCP 50 POS 2.16mm Solder ST Thru-Hole 50 Terminal 1 Port 2.16 [.085] Printed Circuit Board Connectors RCPT ASSY,50PO,SHLD,A/PIN,CHAM Headers & Wire Housings RECPT 50P EDGE MNT shielded Conn IEEE 488 RCP 50 POS 2.16mm Solder ST Thru-Hole 50 Terminal 1 Port Product Highlights:ReceptacleNumber of Positions = 50PCB Mount Style = VerticalStandard OrientationStandard ProfileSearch Keywords:intermateable, high density, wave solder, edge connector, vertical mount connector, insulation displacement, CHAMP-LOK, shielded, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, pcb connectors, AMPHENOL, Centronics
5554217-4
te connectivity / amp
Conn IEEE 488 RCP 50 POS 2.16mm Solder ST Panel Mount 50 Terminal 1 Port 2.16 [.085] Printed Circuit Board Connectors RCPT ASSY,50 POS,VERT MTG,SHLD I/O Connectors VERTICAL MOUNT 50P screw lock 4-40 Conn IEEE 488 RCP 50 POS 2.16mm Solder ST Panel Mount 50 Terminal 1 Port Product Highlights:ReceptacleNumber of Positions = 50PCB Mount Style = VerticalStandard OrientationStandard ProfileSearch Keywords:intermateable, high density, wave solder, edge connector, vertical mount connector, insulation displacement, CHAMP-LOK, shielded, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, pcb connectors, AMPHENOL, Centronics TE Connectivity 5554217 系列 50 路 2.16mm节距 直 印刷电路板安装 母 SCSI 连接器, 焊接, 无闩锁
553813-4
te connectivity / amp
Conn IEEE 488 RCP 50 POS 2.16mm Solder RA Thru-Hole 50 Terminal 1 Port 2.16 [.085] Printed Circuit Board Connectors ASSY,EMI RCPT,50 POSN,SCR LK Headers & Wire Housings RA RECP 50P REVERSE screw lock 4-40 Conn IEEE 488 RCP 50 POS 2.16mm Solder RA Thru-Hole 50 Terminal 1 Port Search Keywords:intermateable, high density, wave solder, edge connector, vertical mount connector, insulation displacement, CHAMP-LOK, shielded, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, pcb connectors, AMPHENOL, Centronics
5557932-1
te connectivity / amp
Conn IEEE 488 RCP 50 POS 2.16mm Solder RA Thru-Hole 50 Terminal 1 Port 2.16 [.085] Printed Circuit Board Connectors CONN CHAMP RCPT 50POS .085 R/A I/O Connectors 50P RCPT R//A REV Conn IEEE 488 RCP 50 POS 2.16mm Solder RA Thru-Hole 50 Terminal 1 Port Product Highlights:ReceptacleNumber of Positions = 50PCB Mount Style = Right AngleReverse OrientationStandard ProfileSearch Keywords:intermateable, high density, wave solder, edge connector, vertical mount connector, insulation displacement, CHAMP-LOK, shielded, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, pcb connectors, AMPHENOL, Centronics RCPT ASSY,50POS,SHLD,RTANG
5557984-2
te connectivity / amp
Conn Wire to Board F 50 POS ST Thru-Hole 2.16 [.085] Printed Circuit Board Connectors CONN CHAMP RCPT 50POS .085 VERT Headers & Wire Housings REC ASY 50POS SHLDED RCPT ASSY, 50POS, SHLDED, ACTI
554217-4
te connectivity / amp
Conn IEEE 488 RCP 50 POS 2.16mm Solder ST Thru-Hole 50Terminal 1Port 2.16 [.085] Printed Circuit Board Connectors RCPT ASSY,50 POS,VERT MTG,SHLD Headers & Wire Housings VERTICAL MOUNT 50P screw lock 4-40 Conn IEEE 488 RCP 50 POS 2.16mm Solder ST Thru-Hole 50 Terminal 1 Port Conn IEEE 488 RCP 50 POS 2.16mm Solder ST Thru-Hole 50 Terminal 1 Port Product Highlights:ReceptacleNumber of Positions = 50PCB Mount Style = VerticalStandard OrientationStandard ProfileSearch Keywords:intermateable, high density, wave solder, edge connector, vertical mount connector, insulation displacement, CHAMP-LOK, shielded, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, pcb connectors, AMPHENOL, Centronics
5553813-4
te connectivity / amp
Conn IEEE 488 RCP 50 POS 2.16mm Solder RA Thru-Hole 50 Terminal 1 Port 2.16 [.085] Printed Circuit Board Connectors ASSY,EMI RCPT,50 POSN,SCR LK I/O Connectors RA RECP 50P REVERSE screw lock 4-40 Conn IEEE 488 RCP 50 POS 2.16mm Solder RA Thru-Hole 50 Terminal 1 Port Product Highlights:ReceptacleNumber of Positions = 50PCB Mount Style = Right AngleReverse OrientationStandard ProfileSearch Keywords:intermateable, high density, wave solder, edge connector, vertical mount connector, insulation displacement, CHAMP-LOK, shielded, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, pcb connectors, AMPHENOL, Centronics TE Connectivity 5553813 系列 50 路 2.16mm节距 直 印刷电路板安装 母 SCSI 连接器, 焊接, 无闩锁
554573-1
te connectivity / amp
RCPT KIT, SHLD,50 POSN, B SLOT CONN CHAMP RCPT 50POS .085 IDC Headers & Wire Housings RCPT KIT SHLD 50 POSN B SLOT
5555387-2
te connectivity / amp
RCPT ASSY,SHLD,50POS,R/ANGLE D-Sub Standard Connectors RCPT ASSY SHLD 50P R/ANGLE CONN RCPT 50POS R/A SHIELD
5557932-2
te connectivity / amp
Conn IEEE 488 RCP 50 POS 2.16mm Solder RA Thru-Hole 50 Terminal 1 Port 2.16 [.085] Printed Circuit Board Connectors RCPT ASSY,SHLD, 50 POSN, RTANG I/O Connectors RA 50P STANDARD 4-40 screw lk board lk Conn IEEE 488 RCP 50 POS 2.16mm Solder RA Thru-Hole 50 Terminal 1 Port Product Highlights:ReceptacleNumber of Positions = 50PCB Mount Style = Right AngleStandard OrientationStandard ProfileSearch Keywords:intermateable, high density, wave solder, edge connector, vertical mount connector, insulation displacement, CHAMP-LOK, shielded, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, pcb connectors, AMPHENOL, Centronics
5554217-3
te connectivity / amp
Conn IEEE 488 RCP 50 POS 2.16mm Solder ST Thru-Hole 50 Terminal 1 Port 2.16 [.085] Printed Circuit Board Connectors CONN RCPT 50POS VERT SHIELD
553813-3
te connectivity / amp
Conn IEEE 488 RCP 50 POS 2.16mm Solder RA Thru-Hole 50 Terminal 1 Port 2.16 [.085] Printed Circuit Board Connectors CONN CHAMP 50 POS RECEPT RT/ANG Headers & Wire Housings RA RECP 50P STANDARD screw lock 4-40 Conn IEEE 488 RCP 50 POS 2.16mm Solder RA Thru-Hole 50 Terminal 1 Port Search Keywords:intermateable, high density, wave solder, edge connector, vertical mount connector, insulation displacement, CHAMP-LOK, shielded, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, pcb connectors, AMPHENOL, Centronics
5553813-3
te connectivity / amp
Conn IEEE 488 RCP 50 POS 2.16mm Solder RA Thru-Hole 50 Terminal 1 Port 2.16 [.085] Printed Circuit Board Connectors CONN CHAMP 50 POS RECEPT RT/ANG I/O Connectors RA RECP 50P STANDARD screw lock 4-40 Conn IEEE 488 RCP 50 POS 2.16mm Solder RA Thru-Hole 50 Terminal 1 Port Product Highlights:ReceptacleNumber of Positions = 50PCB Mount Style = Right AngleStandard OrientationStandard ProfileSearch Keywords:intermateable, high density, wave solder, edge connector, vertical mount connector, insulation displacement, CHAMP-LOK, shielded, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, pcb connectors, AMPHENOL, Centronics CONNECTOR,RECEPTACLE,50POSITION,RIGHTANGLE,PCB,SCREWLOCK ASSY,EMI RCPT,50 POSN,SCR LK
2057095-1
te connectivity / amp
RECEPT. ASS Y, 50 POSN, SHLD, CONN CHAMP RCPT 50POS .085 VERT

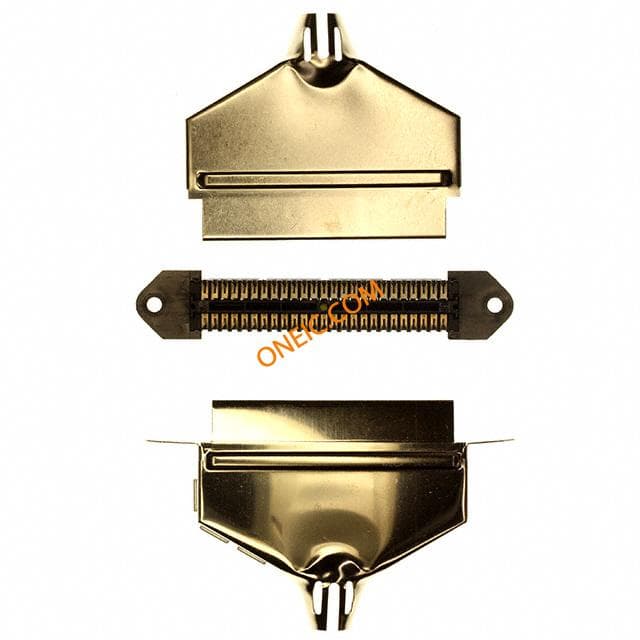

A14358-000
