1103144-1
| Manufacturer | |
| Description | Conn Housing M 20 POS Crimp ST Cable Mount Loose Piece Heavy Duty Connectors CONN MODULE PIN 20POS CRIMP Heavy Duty Power Connectors Male Insert Assy HVS-HE.20.STI.C HDCONNECTOR,HVSINSERTHE.20 HVS-HE.20.Sti.C |
| Category |
Business
| Product Category | Heavy Duty Power Connectors | Standard Package | Bulk |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Leadfree Defin | Not relevant for lead free process |
| RoHSELV Compliance | RoHS compliant / ELV compliant | ||
Electrical
| Voltage Rating | 500V | Number of Poles | 20 |
| Voltage - Supply | 500 | Current Rating (Max) | 16A |
Mechanical
| Color | Gray | Finish | Light Gray |
| Material | PBT-GF | Packaging | Bulk |
| Contact Type | HE/HA | Mounting Type | Straight |
| Connector Type | Module without Contacts | Material - Body | Zinc |
| Housing Material | Polycarbonate (PC), Glass Filled | Package Quantity | Loose Piece |
| Primary Material | IndustrialRectangular | Termination Style | Crimp |
| Number of Contacts | 20 | Number of Positions | 20 |
| Shell Material, Finish | 否 | Contact Layout, Typical | Crimp Terminal |
Product Info
| Note | Contacts sold separately. | Type | Housing |
| Gender | M | Series | HVS-HE |
| Manufacturer | HTS | Product Type | Insert |
| Other Specifications | Pin | ||
Similar Parts
2-1105100-2
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece HTS Connectors and Accessories CONN MALE CONTACT HE/HA SERIES Heavy Duty Power Connectors MALE CONTACT HE/HA-C-STI.AU.0,75 2-1105100-2 Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:HE/HA SeriesContactContact Type = PinMaleWire Range = 0.75-1.00² [18.5-17] mm [AWG]Search Keywords:cabled power, DIN VDE 0110, DIN VDE 0627, DIN IEC707/VDE 0304, self extinguishing, non-flammable, European Metal Shell connector, rectangular industrial, input/output, box to box, Heavy Duty Connectors, Motorman, Motorman Hybrid, ELFA®, frequency converter, SurTec 650 HE/HA-C-STI.AU.0,75
1103250-1
te connectivity / amp
Connector Accessories 6 POS Rectangular Fixing Frame Zinc Alloy Carton Heavy Duty Connectors CONN FRAME SIZE 8 MDL Heavy Duty Power Connectors ASSY MODULE FRM 1-4 HVS-GR.O-8/B.1-6 Connector Accessories 6 POS Rectangular Fixing Frame Zinc Alloy Carton Product Highlights:AccessoryAccessory Type = Fixing FrameSize = 1-66 Signal PositionsFrame Style = TopSearch Keywords:cabled power, DIN VDE 0110, DIN VDE 0627, rectangular industrial, input/output, box to box, power, wire to wire, Heavy Duty HDCONNECTOR,HVSFRAMESIZE8 HVS-GR.O-8/B.1-6
1103250-8
te connectivity / amp
Connector Accessories Frame 2 POS Zinc Alloy Heavy Duty Connectors CONN FRAME SIZE 3 MDL Heavy Duty Power Connectors ASSY MODULE FRM 1-4 HVS-GR.U-3/B.1-2 Connector Accessories Frame 2 POS Zinc Alloy Search Keywords:cabled power, DIN VDE 0110, DIN VDE 0627, rectangular industrial, input/output, box to box, power, wire to wire, Heavy Duty HDCONNECTOR,HVSFRAMESIZE3 HVS-GR.U-3/B.1-2

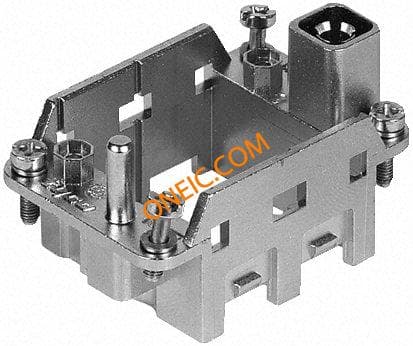

1103250-5
