106081-1
| Manufacturer | |
| Description | Conn Hard Metric PL 77 POS 2mm Press Fit ST Thru-Hole 2mm Hard Metric PCB Mount Connectors (Z-PACK 2mm HM) CONN HEADER VERT 77POS SHORT 2MM Conn Hard Metric PL 77 POS 2mm Press Fit ST Thru-Hole Product Highlights:ConnectorConnector Type = Type CPlugInterface Type = 2mm HMContact Type = ACTION PIN Post, SignalSearch Keywords:IEC 1076-4-101, IEC 917, high speed, board to board, open pin field, hybrid power, IEC 1076-4-101, IEC950, CPCI, DIN 43355, TR-NWT-001217, mid-plane, DIN 41626, mezzanine, high density, co-planar, horizontal, CONNECTOR,PLUG,2MMHARDMETRIC,TYPEC,ACTIONPINPOST,SIGNAL 77 Position (5+2) Rows 2 mm Pitch Plug Vertical Hard Metric PCB Mount Connector 2MM HM, HEADER, TYPE C |
| Category |
Business
| Standard Package | Rail / Tube | ||
Compliance
| RoHS | Contains lead / RoHS non-compliant | Leadfree Defin | Not relevant for lead free process |
| RoHSELV Compliance | RoHS/Not ELV Compliant | Material Flammability Rating | UL 94V-0 |
Electrical
| Crosstalk | Standard | Interface | 2mm HM |
| Voltage Rating | 500V | Data Rate (Max) | ≤1 |
| Contact Resistance | 20 mohm | Current Rating (Max) | 1.5A |
| Voltage - Supply (Min) | 500VAC | ||
Mechanical
| Depth | 15.4 mm | Pitch | 2 mm |
| Length | 25 | Packaging | Tube |
| Shielding | 否 | Body Color | 灰色 |
| Shield Type | Ground Return Shielding | Termination | Press Fit |
| Contact Type | Short Tail | Polarization | Polarizing Peg |
| Housing Color | Gray | Mounting Type | Through Hole |
| Connector Type | Type C | Contact Finish | Gold Over Nickel |
| Contact Timing | 否 | Mounting Style | Through Hole |
| Number of Rows | 7 | Terminal Style | ACTION PIN, 信号 |
| Connector Style | C 11 | Connector Usage | Backplane |
| Insert Material | 磷青铜 | Contact Material | Phosphor Bronze |
| Front Connection | Level 1 | Housing Material | Polyester GF |
| Length - Overall | 25.00 [0.984] | Package Quantity | 22 |
| Panel Mount Type | 垂直 | Primary Material | HardMetric |
| Termination Style | 插针 | Mating Orientation | With |
| Number of Contacts | 77 | Termination Finish | Tin-Lead over Nickel |
| Number of Positions | 77 | Length - Post (Mating) | 3.71 [0.146] |
| Contact Finish - Mating | 第 1 级 | Contact Finish Thickness | 30µin (0.76µm) |
Product Info
| Mfr | 3.7 | Note | This module type is used only at one end of stacked connector modules |
| Type | Hard Metric | Gender | Plug |
| Features | Board Guide | Card Type | 无 |
| Manufacturer | AMP | Product Type | Connector |
| Controller Series | 否 | Module/Board Type | No |
| Number of Columns | 11 | Number of Positions Loaded | All |
Environmental
| Operating Temperature | -55°C ~ 125°C | ||
Documents & Media
Similar Parts
352115-1
te connectivity / amp
Conn Hard Metric RCP 55 POS 2mm Solder RA Thru-Hole 2mm Hard Metric PCB Mount Connectors (Z-PACK 2mm HM) CONN 2MM HM RCPT 55POS R/A GOLD Hard Metric Connectors Z-PACK/C F-HDR 55P Conn Hard Metric RCP 55 POS 2mm Solder RA Thru-Hole Product Highlights:ConnectorConnector Type = Type CReceptacleInterface Type = 2mm HMContact Type = ACTION PIN Post, SignalSearch Keywords:IEC 1076-4-101, IEC 917, high speed, board to board, open pin field, hybrid power, IEC 1076-4-101, IEC950, CPCI, DIN 43355, TR-NWT-001217, mid-plane, DIN 41626, mezzanine, high density, co-planar, horizontal, CONNECTOR,RECEPTACLE,Z-PACK2MMHARDMETRIC,55POSITION,TYPEC 55 Position 2 mm Receptacle Right Angle Hard Metric PCB Mount Connector TE Connectivity Z-PACK HM 系列 2mm 节距 55 路 直角 5 排 母 背板连接器, 焊接端子, 1.5A 352115 Z-PACK/C F-HDR 55P
352346-1
te connectivity / amp
Conn Hard Metric F 55 POS 2mm Press Fit RA Thru-Hole 2mm Hard Metric PCB Mount Connectors (Z-PACK 2mm HM) CONN RECEPT RT ANG 55POS 2MM PCB Hard Metric Connectors RCPT R/A 55 POS 2MM C+GRS+RCTS Conn Hard Metric F 55 POS 2mm Press Fit RA Thru-Hole Product Highlights:ConnectorConnector Type = Type CReceptacleInterface Type = 2mm HMContact Type = ACTION PIN Post, SignalSearch Keywords:IEC 1076-4-101, IEC 917, high speed, board to board, open pin field, hybrid power, IEC 1076-4-101, IEC950, CPCI, DIN 43355, TR-NWT-001217, mid-plane, DIN 41626, mezzanine, high density, co-planar, horizontal,

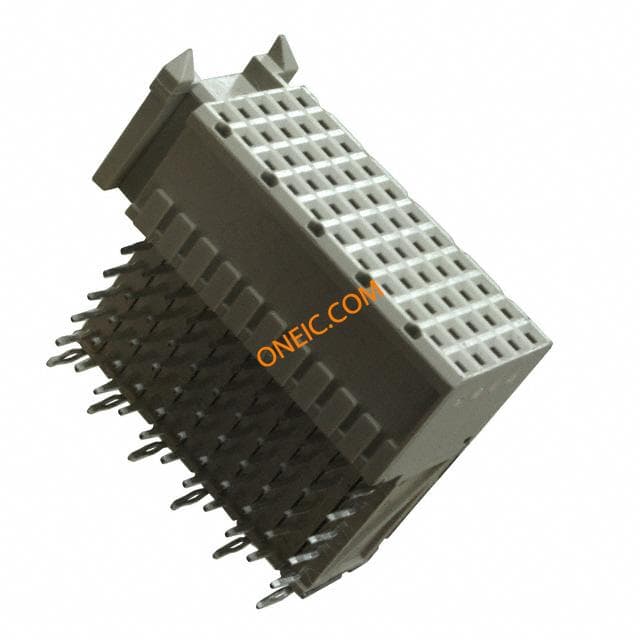

5352115-1
