104878-7
| Manufacturer | |
| Description | Conn Unshrouded Header HDR 5 POS 2.54mm Solder ST Thru-Hole Headers & Wire Housings 03/05 MODII HDR SRST B/A .100 CONN HEADER B/A 5POS VERT GOLD 03/05 MODII HDR SRST B/A .100 |
| Category |
Business
| Tradename | AMPMODU | Product Category | Headers & Wire Housings |
| Standard Package | Bulk | ||
Compliance
| RoHS | Contains lead / RoHS non-compliant | ||
Electrical
| Connector - Voltage Input | 2.54 – 5.08 µm [ 100 – 200 µin ] | ||
Mechanical
| Color | Black | Pitch | 2.54 mm |
| Base Type | 不带 | Lock Type | 不带 |
| Packaging | Bulk | Body Color | 黑色 |
| Lead Style | 正方形 | Stabilizer | 不带 |
| Termination | Solder | Contact Type | Male Pin |
| 1st Connector | 否 | Mounting Type | Through Hole |
| Connector Type | Header, Unshrouded, Breakaway | Contact Finish | Gold Over Nickel |
| Mounting Style | 不带 | Number of Rows | 1 |
| Insert Material | 铜合金 | Contact Material | 哑光锡铅 |
| Housing Material | 热塑性 | Material - Frame | 镍 |
| Package Quantity | 480 | Panel Mount Type | 通孔 - 焊接 |
| Termination Style | 插针 | 1st Connector Type | 分离 |
| Diameter - Outside | .64 mm [ .025 in ] | Number of Contacts | 5 |
| Termination Finish | 不带 | Number of Positions | 5 |
| Compatible Shell Size | 配合母端 | Mounting Hole Diameter | 不带 |
| Contact Length - Mating | 0.230" (5.84mm) | Termination Post Length | 3.05 mm [ .12 in ] |
| Contact Finish Thickness | 15µin (0.38µm) | Static Discharge Shielding | 不带 |
| Number of Positions/Bay/Row | 3, 4 | 1st Connector Mounting Feature | 是 |
| Contact Finish - Post (Mating) | 哑光 | ||
Product Info
| Type | Unshrouded Header | Gender | HDR |
| Series | AMPMODU MOD II | Key Type | 否 |
| Sealable | 否 | Product Type | Headers |
| Number of Positions Loaded | 8 | ||
Environmental
| Seal Rating | 不带 | Temperature - Test | 否 |
| Operating Temperature - Junction | 否 | ||
Documents & Media
Similar Parts
146138-3
te connectivity / amp
Conn Socket Strip RCP 5 POS 2.54mm Solder ST Thru-Hole Gang of Tubes .100 inch AMPMODU Receptacles CONN RCPT MOD IV 5POS SL GOLD Headers & Wire Housings 05 MODIV VRT SR CE 100/115 .100 inch AMPMODU Receptacles Product Highlights:ConnectorMod IV5 PositionsNumber of Rows = SingleLow ProfileSearch Keywords:AMPMODU, board to board, NIC, Network Interface Cards, PC Cards, MIL-C-55032, MIL-C-24519, pcb connectors, wire to board, signal,

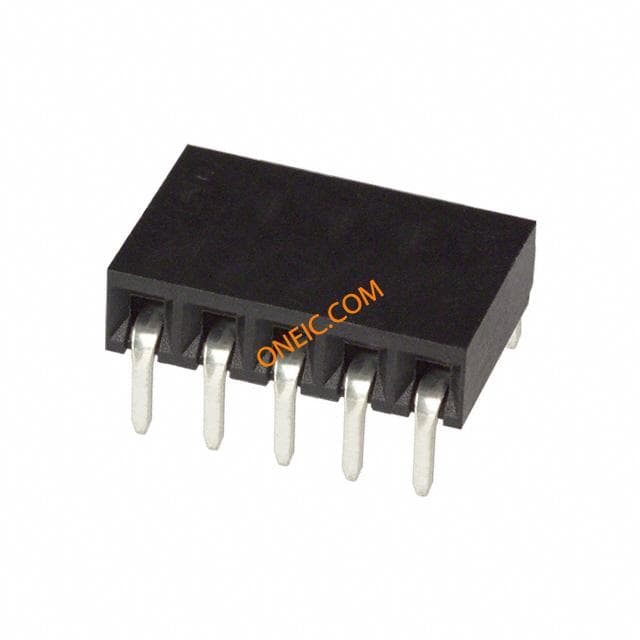

535676-4
