104549-1
| Manufacturer | |
| Description | Conn Shrouded Header HDR 10 POS 1.27mm Solder ST SMD Tube .050 X .100 AMPMODU System 50 CONN HEADER .050 10POS VERT SMD Headers & Wire Housings HDR 10P VERT SMD Conn Shrouded Header HDR 10 POS 1.27mm Solder ST SMD Tube Product Highlights:Housing Gender = Header - Pin10 PositionsNumber of Rows = DualShroudedVertical Mount AngleSearch Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU 10 SYS50 SURFMNT HDR DRST SHRD |
| Category |
Business
| Tradename | AMPMODU | Product Category | Headers & Wire Housings |
| Standard Package | Rail / Tube | Factory Pack Quantity | 41 |
Compliance
| RoHS | Contains lead / RoHS non-compliant | Leadfree Defin | Reflow solder capable to 245°C, Reflow solder capable to 260°C |
| Standard Number | CSA LR7189, UL E28476 | RoHSELV Compliance | ELV compliant, 5 of 6 Compliant |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Voltage Rating | 30 VAC | Voltage - Supply | 30 |
| Voltage - Rated AC | 30 | Connector Impedance | 镍打底镀锡铅 |
| Voltage - Breakdown | 500 | Current Rating (Max) | 1 |
| Insulation Resistance | 5,000 | Voltage - Protection Rating (VPR) | 500 VAC |
Mechanical
| Color | Black | Pitch | 1.27 mm |
| Plating | Tin-Lead over Nickel | Base Type | 带有 |
| Lock Type | 带有 | Packaging | Tube |
| Shrouding | Yes | Body Color | 黑色 |
| Stabilizer | 不带 | Row Spacing | 0.100" (2.54mm) |
| Termination | Solder | Housing Color | Black |
| Mounting Type | Vertical | Connector Type | Shrouded |
| Contact Finish | Gold Over Nickel | Mounting Style | Surface Mount |
| Number of Rows | 2 | Shell Material | 2- 面 |
| Board Thickness | 1.57 | Height (Inches) | 0.435" (11.05mm) |
| Insert Material | 磷青铜 | Contact Material | Phosphor Bronze |
| Housing Material | Thermoplastic Glass Reinforced | Length - Overall | .05 |
| Material - Blade | Copper Alloy | Mounting Feature | 压具柱体 |
| Package Quantity | Tube | Panel Mount Type | 通孔 |
| Termination Style | 插针 | 1st Connector Type | 带罩 |
| Diameter - Outside | .381 mm [ .015 in ] | Number of Contacts | 10 |
| Termination Finish | 带有 | Number of Positions | 10 |
| Mounting Hole Diameter | 带有 | Contact Length - Mating | 0.125" (3.18mm) |
| Termination Post Length | 2.54 [0.100] | Contact Finish Thickness | 30µin (0.76µm) |
| Screw Material - Plating | 铜合金 | Static Discharge Shielding | 不带 |
| 1st Connector Mounting Feature | 否 | Contact Finish - Post (Mating) | 哑光 |
Product Info
| Type | Shrouded Header | Gender | HDR |
| Series | AMPMODU System 50 | Features | Board Lock |
| Key Type | 否 | Manufacturer | AMP |
| Product Type | Header Assembly | Number of Positions Loaded | All |
Environmental
| Seal Rating | 不带 | Temperature Range | -65 â +105 |
| Ingress Protection | 带罩 | Operating Temperature | -65 – 105 |
Documents & Media
Similar Parts
1-487938-0
te connectivity / amp
Conn Housing RCP 10 POS 1.27mm Crimp ST Cable Mount .050 X .100 AMPMODU System 50 CONN RECEPT 10POS .050 DUAL ROW

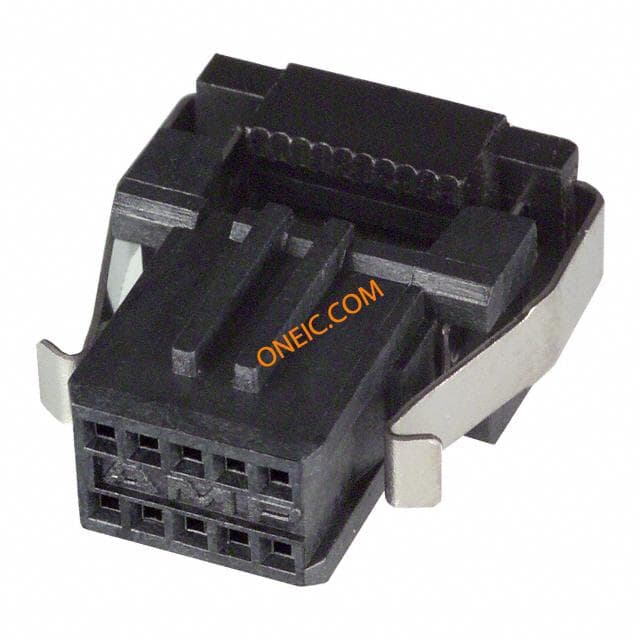

2-111196-5
