104483-3
| Manufacturer | |
| Description | Conn Housing RCP 20 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 20POS .100 POL DUAL Headers & Wire Housings CONN HOUSING 20 POS POLARIZED Conn Housing RCP 20 POS 2.54mm Crimp ST Cable Mount Product Highlights:HousingNot PreloadedNumber of Positions = 20Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR RECEPTACLE 20POS, 2.54MM TE Connectivity AMPMODU Short Point 系列 2 行 2.54mm 节距 20 路 直 母 电缆安装 PCB 连接器外壳 20 SHORT PT RCPT HSG DR .100CL |
| Category |
Business
| Tradename | AMPMODU | Product Category | Headers & Wire Housings |
| Standard Package | Bulk | Factory Pack Quantity | 1 |
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85366910 |
Electrical
| Range deg/s | :TE - AMPMODU Series | Voltage Rating | 300 VAC |
| Current Rating (Max) | 3 A | ||
Mechanical
| Color | Black | Pitch | 2.54 mm |
| Weight | 0 | Packaging | Bulk |
| Wire Gauge | 22-30 AWG | Row Spacing | 0.100" (2.54mm) |
| Contact Type | Female Socket | Mounting Type | Straight |
| Connector Type | Receptacle | Contact Finish | :- |
| Mounting Style | Wire | Number of Rows | 2 |
| Contact Material | :- | Housing Material | Thermoplastic |
| Termination Style | Crimp | 1st Contact Gender | Socket (Female) |
| Number of Contacts | 20 | Contact Termination | Crimp |
| Number of Positions | 20 | ||
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | RCP | Series | AMPMODU MOD IV |
| Features | Polarizing Key | Product Type | Receptacles / Sockets - Housings |
Environmental
| Operating Temperature | - 65 C to + 105 C | ||
Documents & Media
Similar Parts
103310-5
te connectivity / amp
Conn Shrouded Header HDR 20 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO R/A 20POS GOLD Headers & Wire Housings 020 LOPRO HDR RA 15D Conn Shrouded Header HDR 20 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Pin HeadersLow ProfileNumber of Positions = 202.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, 020 LOPRO HDR RA 15DP
5104338-4
te connectivity / amp
Conn Shrouded Header HDR 20 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO STR 20POS GOLD Headers & Wire Housings 100X100 HDR 2X010P VERT LOW PROFILE Conn Shrouded Header HDR 20 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Pin HeadersLow ProfileNumber of Positions = 202.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 20POS, 2.54MM LOPROHTKNKDDRVHD,A/LLOWPROHDR20PVERTHT TE Connectivity AMP-LATCH 系列 2.54mm节距 20路 (2排) 直 PCB 针座, 焊接端接, 1A , 通孔 A/L LOW PRO HDR 20P VERT HT

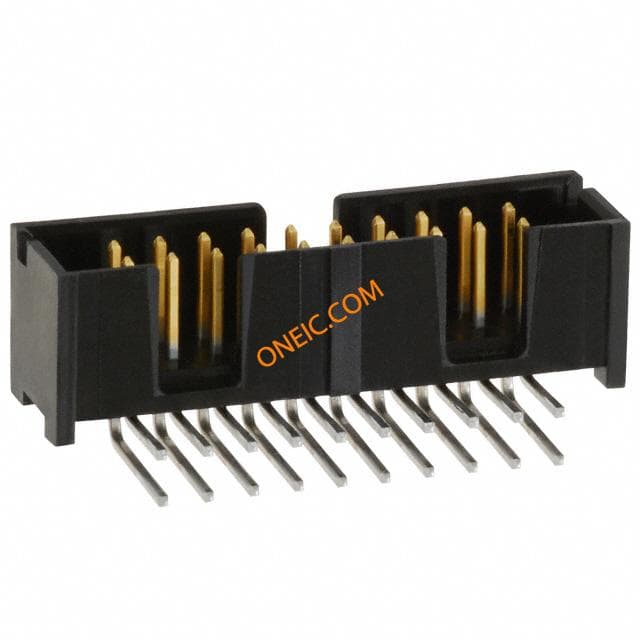

5103310-5
