104450-7
| Manufacturer | |
| Description | Conn Shrouded Header HDR 8 POS 2.54mm Solder ST Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER 8POS VERT LATCH TIN Headers & Wire Housings 08 MTE HDR SRST LATCH W/HLDWN 08 MTE HDR SRST LATCH W/HLDWN |
| Category |
Business
| Tradename | AMPMODU | Product Category | Headers & Wire Housings |
| Standard Package | Rail / Tube | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Standard Number | CSA LR7189, UL E28476 |
| Material Flammability Rating | UL 94 V-0 | ||
Electrical
| Switch Function | Latched | Contact Resistance | 15 mΩ |
| Connector Impedance | 刺破式压接 (IDC), 压接 | Current Rating (Max) | 3 A |
| Insulation Resistance | 5000 MOhms | Voltage - Protection Rating (VPR) | 600 V |
Mechanical
| Color | Black | Pitch | 2.54 mm |
| Height | 13.59 mm [ .535 in ] | Length | 22.86 mm [ .9 in ] |
| Packaging | Tube | Body Color | 黑色 |
| Lead Style | 正方形 | Row Spacing | 2.54 mm |
| Termination | Solder | Contact Type | Male Pin |
| Mounting Type | Through Hole | Connector Type | Header, Shrouded |
| Contact Finish | Tin-Lead Over Nickel | Contact Timing | Without |
| Mounting Style | 带有 | Number of Rows | 1 |
| Insert Material | 黄铜 | Contact Material | Brass |
| Housing Material | Thermoplastic | Mounting Feature | 压具 |
| Package Quantity | 24 | Panel Mount Type | 垂直 |
| Termination Style | SMD | 1st Connector Type | 带罩 |
| 1st Contact Gender | Pin (Male) | Number of Contacts | 8 |
| Termination Finish | 带有 | Contact Tail Length | 2.54 – 5.08 µm [ 100 – 200 µin ] |
| Number of Positions | 8 | Compatible Shell Size | 母端护套组件 |
| Contact Length - Post | 3.3 mm [ .13 in ] | Mounting Hole Diameter | 带有 |
| Contact Finish - Mating | 锡铅 | Contact Length - Mating | 0.230" (5.84mm) |
| Termination Post Length | 5.84 mm [ .23 in ] | Contact Finish Thickness | 100µin (2.54µm) |
| Static Discharge Shielding | 不带 | ||
Product Info
| Note | 使用 91417-1 号键控工具来拆卸用于键控的柱体。 | Type | Shrouded Header |
| Gender | HDR | Series | AMPMODU MTE |
| Features | Board Guide | Pattern Type | 是 |
| Product Type | Headers | Number of Positions Loaded | All |
Environmental
| Operating Temperature | - 65 C to + 105 C | Thermal Resistance of Package | .69 mm [ .027 – .08 in ] |
Documents & Media
Similar Parts

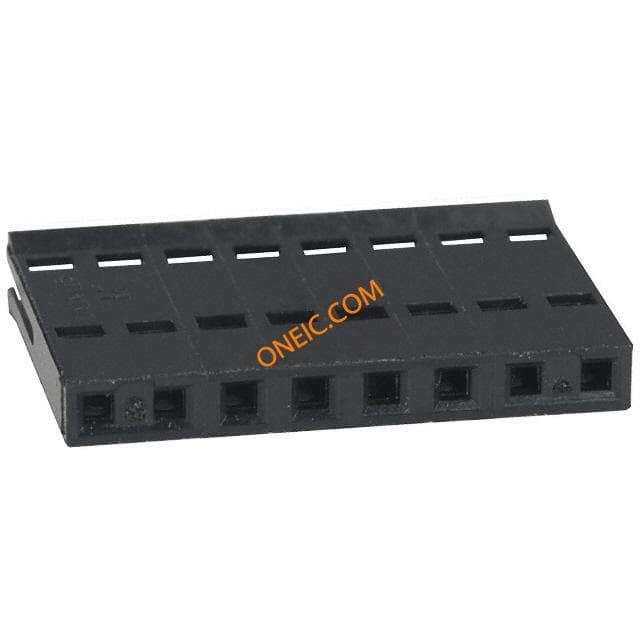

487378-7
te connectivity / amp
Conn Housing RCP 8 POS 2.54mm Crimp ST Cable Mount Flexible Film Connectors CONN RECEPT 8POS .100 SLIMLINE FFC & FPC Connectors 100X100 FFC HSG REC 1X08P Conn Housing RCP 8 POS 2.54mm Crimp ST Cable Mount Product Highlights:Housing2.54 mm CenterlineConnector Type = Slimline8 PositionsNumber of Rows = SingleSearch Keywords:Circuitry-to-Board, cable to board, board to board, FFC, flat flexible cable, flat flex wire, Easy Mating Connector CONNECTOR,RECEPTACLEHOUSING,FLEXIBLEFILM,8POS,2.54MM,SLIMLINE,SINGLER 008 HOUSING FFC RCPT 100CL SR
103648-7
te connectivity / amp
Conn Housing RCP 8 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN RECEPT 8POS .100 UNLOADED Housing 8 way receptacle IDC AmpModu Headers & Wire Housings RECEPT 8 POS RECEPT 8 POS UNLOAD Conn Housing RCP 8 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 8Housing Type = ReceptacleNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE Housing8wayreceptacleIDCAmpModu TE Connectivity AMPMODU MTE 系列 8路 2.54mm节距 母 IDC 连接器 08 MTE RCPT HSG SR RIB .100CL
103958-7
te connectivity / amp
Conn IDC Connector RCP 8 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RECPT 8POS .100 POLAR 30AU Headers & Wire Housings RECEPTACLE ASSY 8P Conn IDC Connector RCP 8 POS 2.54mm IDT ST Cable Mount Strip Product Highlights:HousingPreloadedNumber of Positions = 8Housing Type = ReceptacleContact Type = ReceptacleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE AMPMODU 8 Position Single Row 2.54 mm Pitch Latching Socket Housing 2X8 MTE RCPT SR LATCH .100CL
487526-7
te connectivity / amp
Conn Housing RCP 8 POS 2.54mm Crimp ST Cable Mount Flexible Film Connectors CONN RCPT 8POS.100 SLIM W/LATCH FFC & FPC Connectors FFC RCPT HSG 8P Conn Housing RCP 8 POS 2.54mm Crimp ST Cable Mount Product Highlights:Housing2.54 mm CenterlineConnector Type = SlimlineNumber of Positions = 8Number of Rows = SingleSearch Keywords:Circuitry-to-Board, cable to board, board to board, FFC, flat flexible cable, flat flex wire, Easy Mating Connector FFC/FPC CONNECTOR, PLUG, 8POS, 1ROW CONNECTOR,RECEPTACLEHOUSING,FLEXIBLEFILM,8POS,2.54MM,SLIMLINE,SINGLER 008 HOUSING FFC RCPT 100CL SR
103959-7
te connectivity / amp
Conn IDC Connector RCP 8 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RECEPT 8POS .100 26-30 TIN Headers & Wire Housings 2X8 MTE RCPT SR LATCH .100CL Conn IDC Connector RCP 8 POS 2.54mm IDT ST Cable Mount Strip Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 2X8 MTE RCPT SR LATCH .100CL
104257-7
te connectivity / amp
Conn Housing RCP 8 POS 2.54mm Crimp ST .100 AMPMODU Headers, Housings & Contacts CONN RECPT 8POS .1" POL UNLOAD 8 way MTE Receptacle Housing Headers & Wire Housings RECEPTACLE ASSY 8P Conn Housing RCP 8 POS 2.54mm Crimp ST Product Highlights:Receptacle HousingWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 8Housing Type = ReceptacleNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE HOUSING, RECEPTACLE, 8WAY ReceptacleAssembly;Thermoplastic;Receptacle;Single;0.100in.;MTE(IDC) TE Connectivity AMPMODU MTE 系列 1 行 2.54mm 节距 8 路 直 母 PCB 壳体 08 MTE RCPT HSG SR LATCH .100
5-103958-7
te connectivity / amp
Conn IDC Connector RCP 8 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RECPT 8POS .100 POLAR 30AU Headers & Wire Housings RECEPTACLE ASSY 8P Conn IDC Connector RCP 8 POS 2.54mm IDT ST Cable Mount Strip Product Highlights:HousingPreloadedNumber of Positions = 8Housing Type = ReceptacleContact Type = ReceptacleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 2X8 MTE RCPT SR LATCH .100CL
5-103961-7
te connectivity / amp
Conn IDC Connector RCP 8 POS 2.54mm IDT ST Cable Mount Strip Headers & Wire Housings 2X8 MTE RCPT SR LATCH .100CL .100 AMPMODU Headers, Housings & Contacts CONN RCPT 8POS .100 26-30 30GOLD Conn IDC Connector RCP 8 POS 2.54mm IDT ST Cable Mount Strip Product Highlights:HousingPreloadedNumber of Positions = 8Housing Type = ReceptacleContact Type = ReceptacleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 2X8 MTE RCPT SR LATCH .100CL
103968-7
te connectivity / amp
Conn IDC Connector RCP 8 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts 2X8 MTE RCPT SR RIBBED .100CL Headers & Wire Housings 2X8 MTE RCPT SR RIBBED .100CL Conn IDC Connector RCP 8 POS 2.54mm IDT ST Cable Mount Strip Product Highlights:Receptacle AssemblyWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 8Number of Rows = SingleTerminate To WireSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE
103960-7
te connectivity / amp
Conn IDC Connector RCP 8 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RCPT 8POS .100 26-30 15GOLD Headers & Wire Housings 2X8 MTE RCPT SR LATCH .100CL Conn IDC Connector RCP 8 POS 2.54mm IDT ST Cable Mount Strip Product Highlights:Receptacle AssemblyWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 8Number of Rows = SingleTerminate To WireSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 2X8 MTE RCPT SR LATCH .100CL
103956-7
te connectivity / amp
Conn IDC Connector RCP 8 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RECPT 8POS .100 POLAR TIN Headers & Wire Housings RECEPTACLE ASSY 8P Conn IDC Connector RCP 8 POS 2.54mm IDT ST Cable Mount Strip Product Highlights:Receptacle AssemblyWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 8Number of Rows = SingleTerminate To WireSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 2X8 MTE RCPT SR LATCH .100CL
103969-7
te connectivity / amp
Conn IDC Connector RCP 8 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RECPT 8POS .100 22-26 15AU
5-103956-7
te connectivity / amp
Conn IDC Connector RCP 8 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RECPT 8POS .100 POLAR TIN Headers & Wire Housings RECEPTACLE ASSY 8P Conn IDC Connector RCP 8 POS 2.54mm IDT ST Cable Mount Strip Product Highlights:HousingHousing Type = Housing - ReceptacleHousing Accepts Contact Type = Receptacle2.54 mm CenterlineRow-to-Row Spacing = 2.54 mmSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR RECEPTACLE, 8POS, 2.54MM TE Connectivity AMPMODU MTE 系列 8路 2.54mm节距 母 IDC 连接器 , 电缆安装 2X8 MTE RCPT SR LATCH .100CL
103957-7
te connectivity / amp
Conn IDC Connector RCP 8 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RECPT 8POS .100 POLAR 15AU Headers & Wire Housings RECEPTACLE ASSY 8P 546 Conn IDC Connector RCP 8 POS 2.54mm IDT ST Cable Mount Strip Product Highlights:Receptacle AssemblyWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 8Number of Rows = SingleTerminate To WireSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE MTERECPASSY,2X8MTERCPTSRLATCH.100CL 2X8 MTE RCPT SR LATCH .100CL
5-103957-7
te connectivity / amp
Conn IDC Connector RCP 8 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RECPT 8POS .100 POLAR 15AU Headers & Wire Housings RECEPTACLE ASSY 8P Conn IDC Connector RCP 8 POS 2.54mm IDT ST Cable Mount Strip Product Highlights:HousingPreloadedNumber of Positions = 8Housing Type = ReceptacleContact Type = ReceptacleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR RECEPTACLE, 8POS, 2.54MM MTERECPASSY,2X8MTERCPTSRLATCH.100CL 2X8 MTE RCPT SR LATCH .100CL
5-103971-7
te connectivity / amp
Conn IDC Connector RCP 8 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RCPT 8POS .100 30-26AWG TIN Headers & Wire Housings 2X8 MTE RCPT SR RIBBED .100CL .100 AMPMODU Headers, Housings & Contacts Product Highlights:HousingPreloadedNumber of Positions = 8Housing Type = ReceptacleContact Type = ReceptacleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 2X8 MTE RCPT SR RIBBED .100CL
103971-7
TE Connectivity / AMP
Headers & Wire Housings OBSOLETE .100 AMPMODU Headers, Housings & Contacts CONN RCPT HOUSING 8POS .100 SNGL Conn IDC Connector RCP 8 POS 2.54mm IDT ST Cable Mount Strip Conn IDC Connector RCP 8 POS 2.54mm IDT ST Cable Mount Strip Product Highlights:HousingPreloadedNumber of Positions = 8Housing Type = ReceptacleContact Type = Receptacle
103961-7
te connectivity / amp
Conn IDC Connector RCP 8 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RCPT 8POS .100 26-30 30GOLD Headers & Wire Housings 2X8 MTE RCPT SR LATCH .100CL .100 IDC AMPMODU Housings & Contacts .100 IDC AMPMODU Housings & Contacts Product Highlights:Receptacle AssemblyWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 8Number of Rows = SingleTerminate To WireSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 2X8 MTE RCPT SR LATCH .100CL

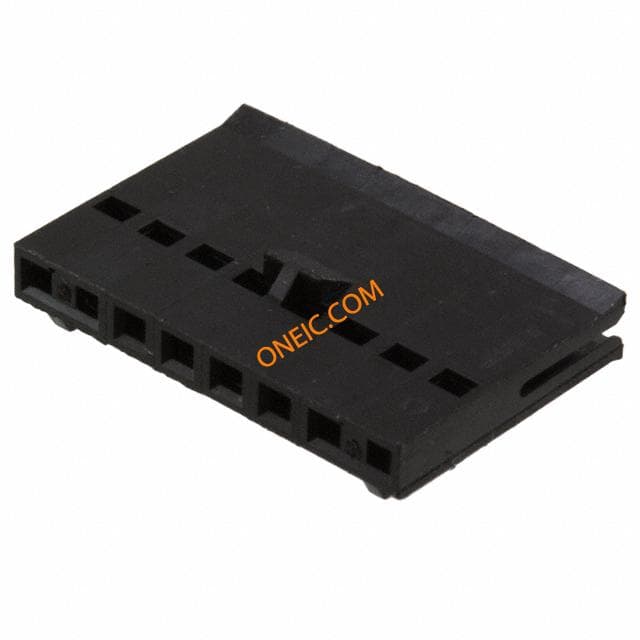

487769-6
