104257-8
| Manufacturer | |
| Description | Conn Housing RCP 9 POS 2.54mm Crimp ST .100 AMPMODU Headers, Housings & Contacts CONN RECPT 9POS .1" POL UNLOAD Housing FH 9way latch Rec 2.54mm AmpModu Headers & Wire Housings RECEPTACLE ASSY 9P Conn Housing RCP 9 POS 2.54mm Crimp ST Product Highlights:Receptacle HousingWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 9Housing Type = ReceptacleNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE CONNECTOR HOUSING, RECEPTACLE, 9POS, 2.54MM ReceptacleAssembly;Thermoplastic;Receptacle;Single;0.100in.;MTE(IDC) TE Connectivity AMPMODU MTE 系列 1 行 2.54mm 节距 9 路 直 母 PCB 壳体 09 MTE RCPT HSG SR LATCH .100 |
| Category |
Business
| Tradename | AMPMODU | Product Category | Headers & Wire Housings |
| Standard Package | Bulk | Factory Pack Quantity | 500 |
Compliance
| RoHS | Lead free / RoHS Compliant | Standards | RoHSCompliant,ELVCompliant |
| Tariff No | 85369010 | Leadfree Defin | Not relevant for lead free process |
| Approval Agency | CSA,UL | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Current Rating (Max) | 3/Contact A | ||
Mechanical
| Color | Black | Depth | 15.24mm |
| Pitch | 2.54 mm | Length | 22.8mm |
| Weight | 0 | Packaging | Bulk |
| Wire Gauge | 22-30 AWG | Row Spacing | 2.54 mm |
| Shell Style | Receptacle | Termination | IDC |
| Contact Type | Female Socket | Polarization | Latched |
| 2nd Connector | With | Housing Color | Black |
| Mounting Type | Straight | Angle of Throw | Straight |
| Connector Type | Crimp, Insulation Displacement Crimp (IDC) | Fastening Type | Latch Lock |
| Mounting Style | Wire | Number of Rows | 1 |
| Package / Case | Receptacle | Housing Material | Thermoplastic |
| Length - Overall | 22.8 mm | Primary Material | InterconnectSystem |
| Pin Hole Diameter | 0.1" | Termination Style | Crimp |
| 1st Contact Gender | Socket (Female) | Mating Orientation | With |
| Number of Contacts | 9 | Contact Termination | Crimp |
| Number of Positions | 9 | Center Contact Material | 2.54 [.100] |
Product Info
| Note | Refer to AMPMODU contacts for crimp snap-in replacement receptacle or pin conta | Type | Housing |
| Gender | RCP | Series | MTE |
| Preloaded | No | Coded, Keyed | No |
| Manufacturer | AMPMODU/MTESeries | Product Type | Housing |
| Matrix (Columns x Rows) | 0.100in. | For Use With/Related Products | Centerline Single-Row Connector |
Environmental
| Operating Temperature | -65C to 105C | ||
Documents & Media
Similar Parts
103634-8
te connectivity / amp
Conn Shrouded Header HDR 9 POS 2.54mm Solder RA Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER RTANG 9POS PCB TIN Headers & Wire Housings HEADER R/A 9POS PCB TIN Conn Shrouded Header HDR 9 POS 2.54mm Solder RA Thru-Hole Tube Product Highlights:HeaderWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 9Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 09 MTE HDR SRRA LATCH .100CL

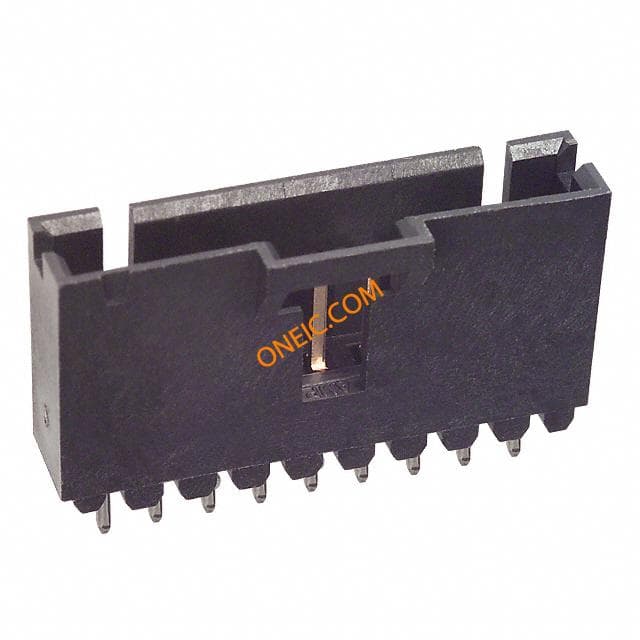

5-104362-8
te connectivity / amp
Conn Shrouded Header HDR 9 POS 2.54mm Solder ST Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER VERT .100 9POS 15AU Headers & Wire Housings LTCHNG HDR W/SWAGE 9 Conn Shrouded Header HDR 9 POS 2.54mm Solder ST Thru-Hole Tube Product Highlights:HeaderNumber of Positions = 9Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Terminate To Printed Circuit BoardSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR HEADER 9POS, 2.54MM 09 MTE HDR SRST LATCH W/HLDWN
103670-8
te connectivity / amp
Conn Shrouded Header HDR 9 POS 2.54mm Solder ST Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER VERT .100 9POS 15AU Headers & Wire Housings LTCHNG HDR W/SWAGE 9 1512 Conn Shrouded Header HDR 9 POS 2.54mm Solder ST Thru-Hole Tube Product Highlights:HeaderWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 9Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 09 MTE HDR SRST LATCH W/HLDWN
104362-8
te connectivity / amp
Conn Shrouded Header HDR 9 POS 2.54mm Solder ST Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER VERT .100 9POS 15AU 09 MTE HDR SRST LATCH W/HLDWN

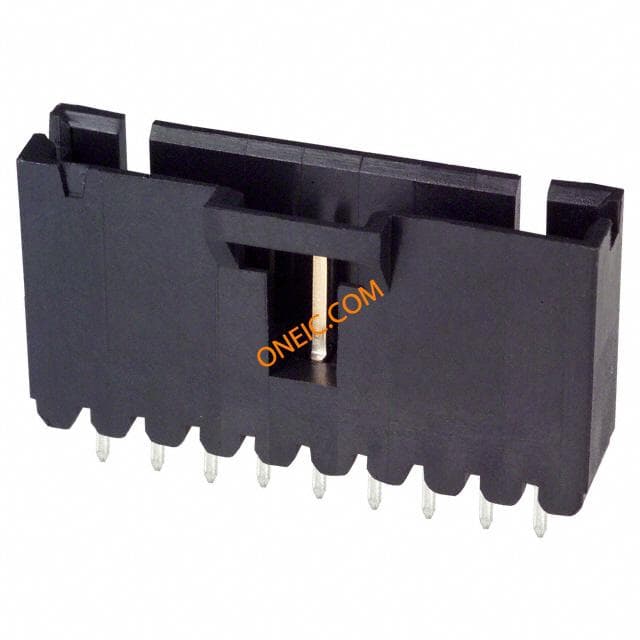

5-104363-8
te connectivity / amp
Conn Shrouded Header HDR 9 POS 2.54mm Solder ST Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER VERT .100 9POS 15AU TE Connectivity MTE Series 2.54mm Pitch 9 Way 1 Row Straight PCB Header, Solder Termination, 3A Headers & Wire Housings 09 MTE HDR SRST LATCH .100CL Conn Shrouded Header HDR 9 POS 2.54mm Solder ST Thru-Hole Tube Product Highlights:HeaderNumber of Positions = 9Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Terminate To Printed Circuit BoardSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE TE Connectivity AMPMODU MTE 系列 2.54mm节距 9路 (1排) 直 PCB 针座, 焊接端接, 3A , 通孔 09 MTE HDR SRST LATCH .100CL
103653-8
te connectivity / amp
Conn Housing PL 9 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN PLUG 9POS .1" POL UNLOAD Headers & Wire Housings PIN ASSEMBLY 9P Conn Housing PL 9 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 9Housing Type = PinNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE TE Connectivity AMPMODU MTE 系列 2.54mm 节距 9 路 直 公 电缆安装 PCB 连接器外壳 09 MTE SHRD PIN HSG SR LATCH

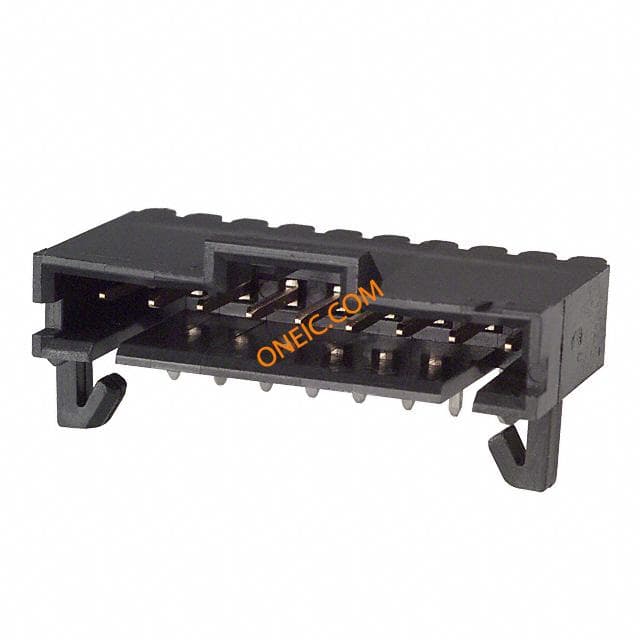

5-103673-8
te connectivity / amp
Conn Shrouded Header HDR 9 POS 2.54mm Solder RA Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER RT/A .100 9POS 15AU Header 9 way pin 2.54mm IDC AmpModu Headers & Wire Housings HDR PIN 1X09C R/A THRU HOLE Conn Shrouded Header HDR 9 POS 2.54mm Solder RA Thru-Hole Tube Product Highlights:ConnectorPreloadedHousing Gender = Header - PinContact Gender = Pin2.54 mm CenterlineSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR HEADER 9POS, 2.54MM TE Connectivity AMPMODU MTE 系列 2.54mm节距 9路 (1排) 直角 PCB 针座, 焊接端接, 3A , 通孔 9 MTE HDR SRRA LATCH W/HLDWN
103951-8
te connectivity / amp
Conn IDC Connector PIN 9 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN PLUG 9POS .100 22-26 15AU

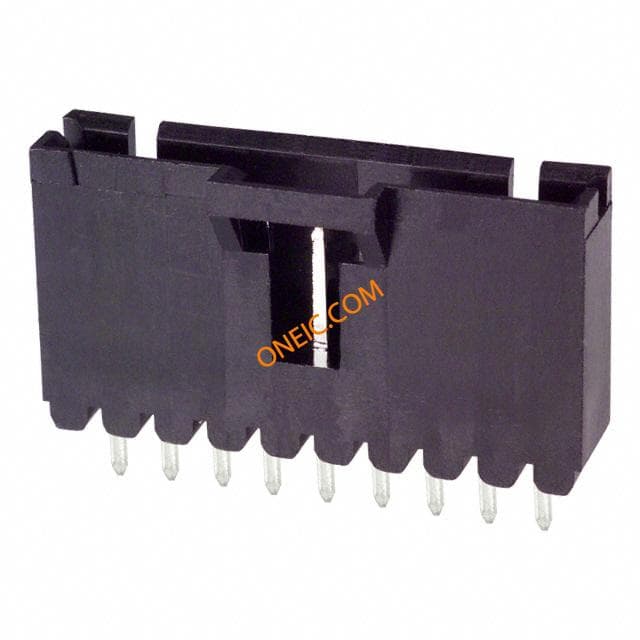

5-103639-8
