点击放大查看
103735-7
| Manufacturer | |
| Description | Conn Shrouded Header HDR 8 POS 2.54mm Solder ST Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER VERT .100 8POS 30AU Headers & Wire Housings LTCH HDR W/O SWAGE 8 Conn Shrouded Header HDR 8 POS 2.54mm Solder ST Thru-Hole Tube Product Highlights:HeaderWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 8Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 08 MTE HDR SRST LATCH .100CL |
| Category |
Business
| Tradename | AMPMODU | Product Category | Headers & Wire Housings |
| Standard Package | Rail / Tube | Factory Pack Quantity | 24 |
Compliance
| RoHS | Contains lead / RoHS non-compliant | Standard Number | CSA LR7189, UL E28476 |
| Material Flammability Rating | UL 94 V-0 | ||
Electrical
| Switch Function | Latched | Contact Resistance | 15 mΩ |
| Connector Impedance | 刺破式压接 (IDC), 压接 | Current Rating (Max) | 3 A |
| Insulation Resistance | 5000 MOhms | Voltage - Protection Rating (VPR) | 600 V |
Mechanical
| Color | Black | Pitch | 2.54 mm |
| Height | 13.59 mm [ .535 in ] | Length | 22.86 mm [ .9 in ] |
| Packaging | Tube | Body Color | 黑色 |
| Lead Style | 正方形 | Row Spacing | 2.54 mm |
| Termination | Solder | Contact Type | Male Pin |
| Mounting Type | Through Hole | Connector Type | Header, Shrouded |
| Contact Finish | Gold Over Nickel | Contact Timing | Without |
| Mounting Style | 不带 | Number of Rows | 1 |
| Insert Material | 黄铜 | Contact Material | Brass |
| Housing Material | Thermoplastic | Package Quantity | 24 |
| Panel Mount Type | 垂直 | Termination Style | Through Hole |
| 1st Connector Type | 带罩 | 1st Contact Gender | Pin (Male) |
| Number of Contacts | 8 | Termination Finish | 带有 |
| Contact Tail Length | 2.54 µm [ 100 µin ] | Number of Positions | 8 |
| Compatible Shell Size | 母端护套组件 | Contact Length - Post | 3.3 mm [ .13 in ] |
| Mounting Hole Diameter | 带有 | Contact Finish - Mating | 锡铅 |
| Contact Length - Mating | 0.230" (5.84mm) | Termination Post Length | 5.84 mm [ .23 in ] |
| Contact Finish Thickness | 30µin (0.76µm) | Static Discharge Shielding | 不带 |
Product Info
| Note | 使用 91417-1 号键控工具来拆卸用于键控的柱体。 | Type | Shrouded Header |
| Gender | HDR | Series | AMPMODU MTE |
| Pattern Type | 否 | Product Type | Headers |
| Number of Positions Loaded | All | ||
Environmental
| Operating Temperature | - 65 C to + 105 C | ||
Documents & Media
Similar Parts
487378-7
te connectivity / amp
Conn Housing RCP 8 POS 2.54mm Crimp ST Cable Mount Flexible Film Connectors CONN RECEPT 8POS .100 SLIMLINE FFC & FPC Connectors 100X100 FFC HSG REC 1X08P Conn Housing RCP 8 POS 2.54mm Crimp ST Cable Mount Product Highlights:Housing2.54 mm CenterlineConnector Type = Slimline8 PositionsNumber of Rows = SingleSearch Keywords:Circuitry-to-Board, cable to board, board to board, FFC, flat flexible cable, flat flex wire, Easy Mating Connector CONNECTOR,RECEPTACLEHOUSING,FLEXIBLEFILM,8POS,2.54MM,SLIMLINE,SINGLER 008 HOUSING FFC RCPT 100CL SR
103648-7
te connectivity / amp
Conn Housing RCP 8 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN RECEPT 8POS .100 UNLOADED Housing 8 way receptacle IDC AmpModu Headers & Wire Housings RECEPT 8 POS RECEPT 8 POS UNLOAD Conn Housing RCP 8 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 8Housing Type = ReceptacleNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE Housing8wayreceptacleIDCAmpModu TE Connectivity AMPMODU MTE 系列 8路 2.54mm节距 母 IDC 连接器 08 MTE RCPT HSG SR RIB .100CL
103958-7
te connectivity / amp
Conn IDC Connector RCP 8 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RECPT 8POS .100 POLAR 30AU Headers & Wire Housings RECEPTACLE ASSY 8P Conn IDC Connector RCP 8 POS 2.54mm IDT ST Cable Mount Strip Product Highlights:HousingPreloadedNumber of Positions = 8Housing Type = ReceptacleContact Type = ReceptacleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE AMPMODU 8 Position Single Row 2.54 mm Pitch Latching Socket Housing 2X8 MTE RCPT SR LATCH .100CL

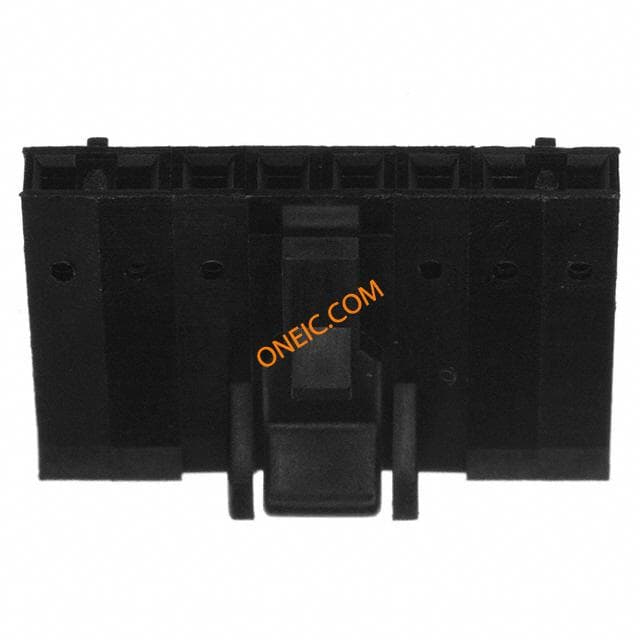

487526-7
