103688-6
| Manufacturer | |
| Description | Conn Housing RCP 7 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN RECEPTACLE 7POS .1" UNLOAD Headers & Wire Housings 07 RCPT HSG SR PLAIN .100 Conn Housing RCP 7 POS 2.54mm Crimp ST Cable Mount Product Highlights:HousingNot PreloadedNumber of Positions = 7Housing Type = ReceptacleNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 07 MTE RCPT HSG SR PLAIN .100 |
| Category |
Business
| Tradename | AMPMODU | Product Category | Headers & Wire Housings |
| Standard Package | Bulk | Factory Pack Quantity | 1 |
Compliance
| RoHS | Lead free / RoHS Compliant | Leadfree Defin | Not relevant for lead free process |
| RoHSELV Compliance | RoHS compliant, ELV compliant | Material Flammability Rating | UL 94V-0 |
Electrical
| Voltage - Supply | 600 VAC | Resistance - Input | 5000 |
| Connector Impedance | 刺破式压接 (IDC), 压接 | Current Rating (Max) | 3/Contact A |
| Voltage - Protection Rating (VPR) | 600 V | ||
Mechanical
| Color | Black | Depth | 15.24 mm |
| Pitch | 2.54 mm | Height | 2.48 mm |
| Length | 1.77 mm [ .698 in ] | Lock Type | 不带 |
| Packaging | Bulk | Body Color | 黑色 |
| Wire Gauge | 22-30 AWG | Row Spacing | 2.54 mm |
| Contact Type | Female Socket | 2nd Connector | Without |
| Housing Color | Black | Mounting Type | Straight |
| Connector Type | Crimp, Insulation Displacement Crimp (IDC) | Mounting Style | 不带 |
| Number of Rows | 1 | Package / Case | Receptacle |
| Insert Material | 磷青铜 | Housing Material | Thermoplastic |
| Length - Overall | 17.72 mm | Package Quantity | 1 |
| Panel Mount Type | 不带 | Termination Style | Crimp |
| 1st Contact Gender | Socket (Female) | Mating Orientation | Without |
| Number of Contacts | 7 | Contact Termination | Crimp |
| Number of Positions | 7 | Compatible Shell Size | 压接扣入式接触件 |
| Mounting Hole Diameter | 不带 | Center Contact Material | 2.54 [.100] |
| Contact Layout, Typical | 同轴 | Static Discharge Shielding | 不带 |
Product Info
| Note | Refer to AMPMODU contacts for crimp snap-in replacement receptacle or pin conta | Type | Housing |
| Gender | RCP | Series | MTE |
| Preloaded | No | Coded, Keyed | No |
| Product Type | Housing | ||
Environmental
| Temperature - Test | 标准部件 - 非辉光导线 | Operating Temperature | -65C to 105C |
Documents & Media
Similar Parts
103361-5
te connectivity / amp
Conn Shrouded Header HDR 7 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER R/A .100 7POS 30AU Headers & Wire Housings SHROUDED RA SINGLE 7 with standoffs Conn Shrouded Header HDR 7 POS 2.54mm Solder RA Thru-Hole Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = SingleNumber of Positions = 7Mating Post Length = 6.10 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 07 MODII HDR SRRA SHRD .100CL
103080-5
te connectivity / amp
Conn Shrouded Header HDR 7 POS 2.54mm Solder ST Thru-Hole Gang of Tubes Headers & Wire Housings SHROUDED VERT SNGL 7 with standoffs .100 inch AMPMODU Headers CONN HEADER VERT 7POS PCB TIN 07 MODII HDR SRST SHRD .100CL 07 MODII HDR SRST SHRD .100CL Search Keywords:board to board, AMPMODU, pcb connectors, AMPMODU 7 Position Through-Hole Single Row Straight .100 Inch Shrouded Header

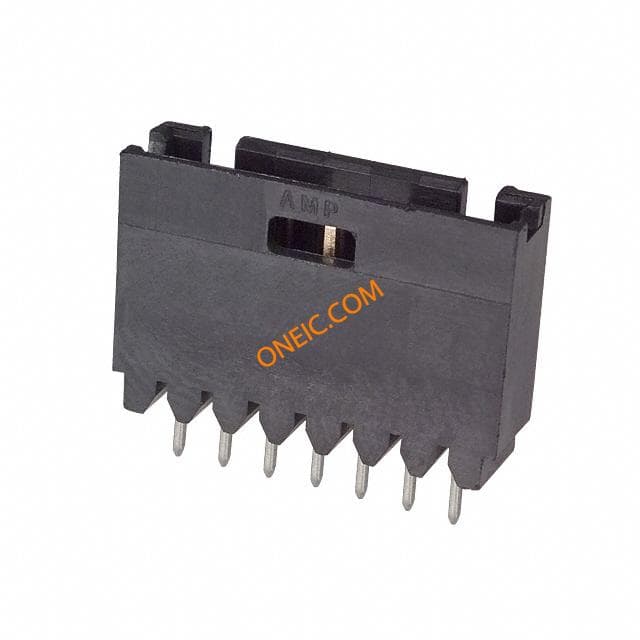

5-102202-4
te connectivity / amp
Conn Shrouded Header HDR 7 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER VERT .100 7POS 15AU Headers & Wire Housings HDR 1X07P VRT T/H Conn Shrouded Header HDR 7 POS 2.54mm Solder ST Thru-Hole Product Highlights:ConnectorHousing Gender = Header - PinContact Gender = PinHeader Type = Shrouded7 PositionsSearch Keywords:board to board, AMPMODU, pcb connectors, WIRE-BOARD CONNECTOR HEADER 7POS, 2.54MM Connector: wire-board; AMPMODU MOD II; socket; male; PIN:7; 2.54mm 07 MODII HDR SRST SHRD LF
102203-4
te connectivity / amp
Conn Shrouded Header HDR 7 POS 2.54mm Solder RA Thru-Hole Gang of Tubes .100 inch AMPMODU Headers CONN HEADER R/A .100 7POS 15AU Conn Shrouded Header HDR 7 POS 2.54mm Solder RA Thru-Hole Gang of Tubes Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = SingleNumber of Positions = 7Mating Post Length = 6.10 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 07 MODII HDR SRRA SHRD .100CL
104345-5
te connectivity / amp
Conn Unshrouded Header HDR 7 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HDR BRKWAY 7POS VERT 15AU
104344-5
te connectivity / amp
Conn Unshrouded Header HDR 7 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HDR BRKWAY 7POS VERT 30AU Headers & Wire Housings 07 MODII HDR SRST B/A W/HD 07 MODII HDR SRST B/A W/HD 07 MODII HDR SRST B/A W/HD Search Keywords:board to board, AMPMODU, pcb connectors,

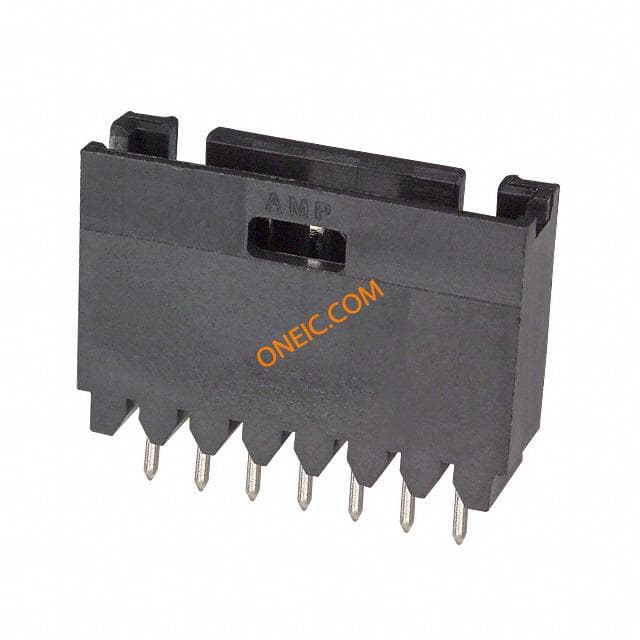

5-103080-5
te connectivity / amp
Conn Shrouded Header HDR 7 POS 2.54mm Solder ST Thru-Hole Gang of Tubes .100 inch AMPMODU Headers CONN HEADER VERT 7POS PCB TIN Headers & Wire Housings 7P HDR SRST SHROUDED .100 Conn Shrouded Header HDR 7 POS 2.54mm Solder ST Thru-Hole Gang of Tubes Search Keywords:board to board, AMPMODU, pcb connectors, AMPMODU 7 Position Through-Hole Single Row Straight 2.54 mm Shrouded Header 07 MODII HDR SRST SHRD .100CL

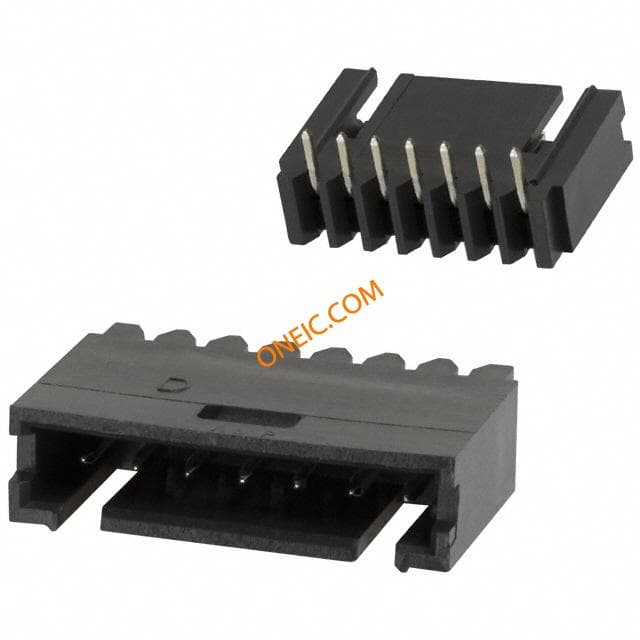

5-102523-5
