103688-2

Manufacturer	TE Connectivity Ltd.
Description	Conn Housing RCP 3 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN RECEPTACLE 3POS .1" UNLOAD ReceptacleAssembly,Thermoplastic Headers & Wire Housings 03 MTE RCPT HSG SR P Conn Housing RCP 3 POS 2.54mm Crimp ST Cable Mount Product Highlights:HousingNot PreloadedNumber of Positions = 3Housing Type = ReceptacleNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE ReceptacleAssembly;Thermoplastic;Receptacle;Single;0.100in.;MTE(IDC) TE Connectivity AMPMODU MTE 系列 1 行 2.54mm 节距 3 路直母电缆安装 PCB 连接器外壳 03 MTE RCPT HSG SR PLAIN .100
Category	OptoelectronicsLED LightingLED Lighting Modules

对参数有疑问？问 AI 助手

Business

Tradename	AMPMODU	Product Category	Headers & Wire Housings
Standard Package	Bulk	Factory Pack Quantity	1

Compliance

RoHS	Lead free / RoHS Compliant	Standards	RoHSCompliant,ELVCompliant
Leadfree Defin	Not relevant for lead free process	Approval Agency	CSA,UL
RoHSELV Compliance	RoHS compliant, ELV compliant	Material Flammability Rating	UL 94V-0

Electrical

Switch Function	Unlatched	Voltage - Supply	600 VAC
Resistance - Input	5000	Connector Impedance	刺破式压接 (IDC), 压接
Current Rating (Max)	3/Contact A	Voltage - Protection Rating (VPR)	600 VAC

Mechanical

Color	Black	Depth	15.24 mm
Pitch	2.54 mm	Width	0.98mm
Height	2.49 mm	Length	0.298in
Lock Type	不带	Packaging	Bulk
Body Color	黑色	Wire Gauge	22-30 AWG
Orientation	直	Row Spacing	2.54 mm
Shell Style	Receptacle	Termination	IDC
Contact Type	Female Socket	2nd Connector	Without
Housing Color	Black	Mounting Type	Straight
Angle of Throw	Straight	Connector Type	Crimp, Insulation Displacement Crimp (IDC)
Mounting Style	Free Hanging	Number of Rows	1
Package / Case	Receptacle	Insert Material	磷青铜
Contact Material	Copper Alloy	Housing Material	Thermoplastic
Length - Overall	7.56 mm	Package Quantity	1
Panel Mount Type	不带	Primary Material	InterconnectSystem
Pin Hole Diameter	0.1"	Termination Style	Crimp
1st Contact Gender	Socket (Female)	Mating Orientation	Without
Number of Contacts	3	Contact Termination	Crimp
Number of Positions	3	Compatible Shell Size	压接扣入式接触件
Mounting Hole Diameter	不带	Center Contact Material	2.54 [.100]
Contact Layout, Typical	同轴	Static Discharge Shielding	不带

Product Info

Note	Refer to AMPMODU contacts for crimp snap-in replacement receptacle or pin conta	Type	Housing
Gender	RCP	Series	MTE
Preloaded	No	CAD Drawing	3D CAD 模型
Coded, Keyed	No	Manufacturer	AMPMODU/MTESeries
Product Type	Housing	Matrix (Columns x Rows)	0.100in.
For Use With/Related Products	AMPMODU 外壳

Environmental

Temperature - Test

标准部件 - 非辉光导线

Operating Temperature

+105°C

Documents & Media

Online Document

103688-2?RQPN=103688-2

Similar Parts

104345-1

te connectivity / amp

Conn Unshrouded Header HDR 3 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HDR BRKWAY 3POS VERT 15AU Headers & Wire Housings MOD II HEADER 3P 03 MODII HDR SRST B/A W/HLDWN

$0.5304

Details

103080-1

te connectivity / amp

$6.8544

Details

104348-1

te connectivity / amp

Conn Unshrouded Header HDR 3 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER 3POS R/A GOLD

Details

8-102202-4

te connectivity / amp

Conn Shrouded Header HDR 3 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER VERT .100 3POS 15AU TE Connectivity AMPMODU Series 2.54mm Pitch 3 Way 1 Row Straight PCB Header, Solder Termination, 3A Headers & Wire Housings HDR 1X03P VRT T/H Conn Shrouded Header HDR 3 POS 2.54mm Solder ST Thru-Hole Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = SingleNumber of Positions = 3Mating Post Length = 6.10 mmSearch Keywords:board to board, AMPMODU, pcb connectors, HEADER, VERTICAL, 1ROW, 3WAY AMPMODUHeader,3Pos.,SingleRow,Shrouded,2.54mm(.100inch)CL,Vertical TE Connectivity AMPMODU Mod II 系列 2.54mm节距 3路 (1排) 直 PCB 针座, 焊接端接, 3A , 通孔 03 MODII HDR SRST SHRD LF

$4.4880

Details

146282-3

te connectivity / amp

Conn Unshrouded Header HDR 3 POS 2.54mm Solder ST Thru-Hole Headers & Wire Housings 3P BRKAWAY VERT HDR 1000 .100 inch AMPMODU Headers CONN HEADER B/A 3POS SL PCB TIN 03 MODII HDR SRST B/A .100CL 03 MODII HDR SRST B/A .100CL Search Keywords:board to board, AMPMODU, pcb connectors,

$0.5440

Details

5-103080-1

te connectivity / amp

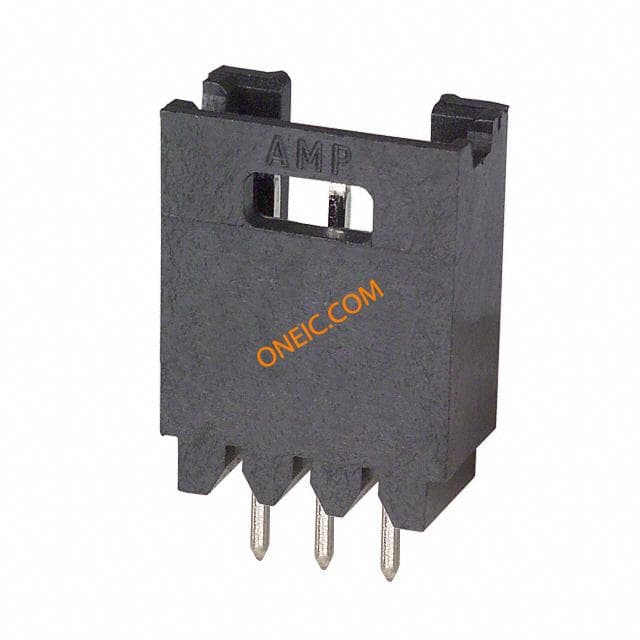

Conn Shrouded Header HDR 3 POS 2.54mm Solder ST Thru-Hole Gang of Tubes .100 inch AMPMODU Headers CONN HEADER VERT 3POS PCB TIN Headers & Wire Housings SHROUDED VERT SNGL 3 with standoffs Conn Shrouded Header HDR 3 POS 2.54mm Solder ST Thru-Hole Gang of Tubes Product Highlights:ConnectorHousing Gender = Header - PinContact Gender = PinHeader Type = Shrouded3 PositionsSearch Keywords:board to board, AMPMODU, pcb connectors, 03 MODII HDR SRST SHRD .100CL
