103673-3
| Manufacturer | |
| Description | Conn Shrouded Header HDR 4 POS 2.54mm Solder RA Thru-Hole Tube Headers & Wire Housings LATCHING HDR SHRD 4P with hold down .100 AMPMODU Headers, Housings & Contacts CONN HEADER RT/A .100 4POS 15AU Conn Shrouded Header HDR 4 POS 2.54mm Solder RA Thru-Hole Tube Product Highlights:HeaderWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 4Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE AMPMODUMTER/AA/WHD,04MTEHDRSRRALATCHW/HLDWN 04 MTE HDR SRRA LATCH W/HLDWN |
| Category |
Business
| Tradename | AMPMODU | Product Category | Headers & Wire Housings |
| Standard Package | Rail / Tube | Factory Pack Quantity | 42 |
Compliance
| RoHS | RoHS Compliant By Exemption | Standard Number | CSA LR7189, UL E28476 |
| Material Flammability Rating | UL 94 V-0 | ||
Electrical
| Switch Function | Latched | Contact Resistance | 15 mohm |
| Connector Impedance | 刺破式压接 (IDC), 压接 | Current Rating (Max) | 3 A |
| Insulation Resistance | 5000 MOhms | Voltage - Protection Rating (VPR) | 600 V |
Mechanical
| Color | Black | Depth | 13.59 mm |
| Pitch | 2.54 mm | Height | 6.99 mm |
| Length | 12.7 mm [ .5 in ] | Packaging | Tray |
| Body Color | 黑色 | Lead Style | 正方形 |
| Row Spacing | 2.54 mm | Termination | Solder |
| Contact Type | Male Pin | Housing Color | Black |
| Mounting Type | Right | Connector Type | Header, Shrouded |
| Contact Finish | Gold Over Nickel | Contact Timing | Without |
| Mounting Style | Through Hole | Number of Rows | 1 |
| Insert Material | 黄铜 | Contact Material | Brass |
| Housing Material | Thermoplastic | Length - Overall | 12.7 mm |
| Mounting Feature | 压具 | Package Quantity | 42 |
| Panel Mount Type | 直角 | Primary Material | InterconnectSystem |
| Termination Style | IDC | 1st Connector Type | 带罩 |
| 1st Contact Gender | Pin (Male) | Number of Contacts | 4 |
| Termination Finish | 带有 | Contact Tail Length | 2.54 µm [ 100 µin ] |
| Number of Positions | 4 | Compatible Shell Size | 母端护套组件 |
| Contact Length - Post | 3.3 mm [ .13 in ] | Mounting Hole Diameter | 带有 |
| Contact Finish - Mating | 锡铅 | Contact Length - Mating | 0.230" (5.84mm) |
| Termination Post Length | 5.84 mm [ .23 in ] | Contact Finish Thickness | 15µin (0.38µm) |
| Static Discharge Shielding | 不带 | ||
Product Info
| Note | 使用 91417-1 号键控工具来拆卸用于键控的柱体。 | Type | Shrouded Header |
| Gender | HDR | Series | AMPMODU MTE |
| DELETED | Not Compliant | Features | Board Lock |
| Manufacturer | AMPMODU/MTESeries | Pattern Type | 否 |
| Product Type | Headers - Shrouded | Number of Positions Loaded | All |
Environmental
| Operating Temperature | - 65 C to + 105 C | Thermal Resistance of Package | 1.57 mm [ .062 in ] |
Documents & Media
Similar Parts
104257-3
te connectivity / amp
Conn Housing RCP 4 POS 2.54mm Crimp ST .100 AMPMODU Headers, Housings & Contacts CONN RECPT 4POS .1" POL UNLOAD 4 way MTE Receptacle Housing Headers & Wire Housings RECEPTACLE ASSY 4P Conn Housing RCP 4 POS 2.54mm Crimp ST Product Highlights:Receptacle HousingWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 4Housing Type = ReceptacleNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE HOUSING, RECEPTACLE, 4WAY ReceptacleAssembly;Thermoplastic;Receptacle;Single;0.100in.;MTE(IDC) Connector: wire-board; AMPMODU MTE; plug; female; w/o terminals TE Connectivity AMPMODU MTE 系列 1 行 2.54mm 节距 4 路 直 母 PCB 壳体 04 MTE RCPT HSG SR LATCH .100
1-88859-0
te connectivity / amp
Conn Housing RCP 4 POS 2.54mm Crimp ST Cable Mount Flexible Film Connectors 004 HOUSING FFC RCPT SR 100CL TE Connectivity 2.54mm Pitch 4 Way 1 Row Straight PCB Header, Crimp Termination, 2A FFC & FPC Connectors 004 HOUSING FFC RCPT Conn Housing RCP 4 POS 2.54mm Crimp ST Cable Mount Product Highlights:Housing2.54 mm CenterlineConnector Type = StandardNumber of Positions = 4Number of Rows = SingleSearch Keywords:Circuitry-to-Board, cable to board, board to board, FFC, flat flexible cable, flat flex wire, Easy Mating Connector FFC/FPC CONNECTOR, PLUG, 4POS, 1ROW Connector4wayreceptacleFFC TE Connectivity 2.54mm节距 4路 (1排) 直 外壳, 压接端接, 2A
103957-3
te connectivity / amp
Conn IDC Connector RCP 4 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RECPT 4POS .100 POLAR 15AU Headers & Wire Housings RECEPTACLE ASSY 4P Conn IDC Connector RCP 4 POS 2.54mm IDT ST Cable Mount Strip Product Highlights:Receptacle AssemblyWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 4Number of Rows = SingleTerminate To WireSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE MTERECPASSY,5X4MTERCPTSRLATCH.100CL 5X4 MTE RCPT SR LATCH .100CL

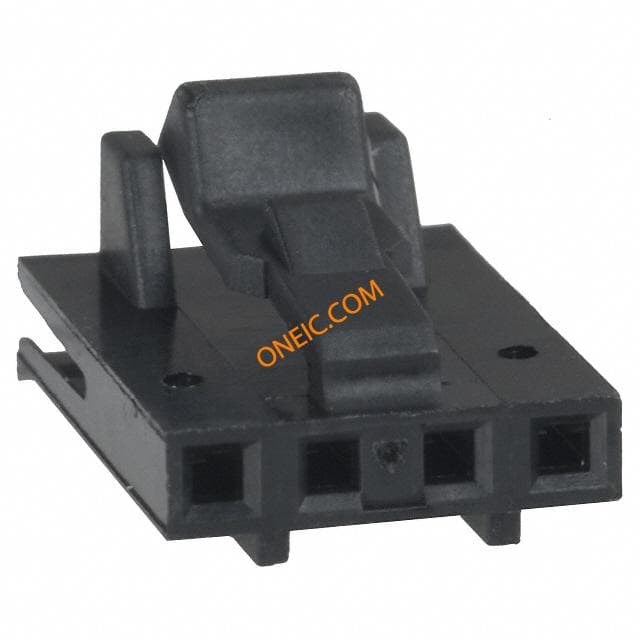

487526-3
