103648-6
| Manufacturer | |
| Description | Conn Housing RCP 7 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN RECEPT 7POS .100 UNLOADED Headers & Wire Housings RCPT 7P .100 UNLOAD Conn Housing RCP 7 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)7 PositionHousing Type = ReceptacleNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 07 MTE RCPT HSG SR RIB .100CL |
| Category |
Business
| Tradename | AMPMODU | Product Category | Headers & Wire Housings |
| Standard Package | Bulk | Factory Pack Quantity | 1 |
Compliance
| RoHS | Not applicable / RoHS Compliant | Leadfree Defin | Not relevant for lead free process |
| RoHSELV Compliance | RoHS compliant, ELV compliant | Material Flammability Rating | UL 94V-0 |
Electrical
| Voltage - Supply | 250 VAC | Connector Impedance | 刺破式压接 (IDC), 压接 |
| Current Rating (Max) | 3 A | Voltage - Protection Rating (VPR) | 600 VACrms |
Mechanical
| Color | Black | Depth | 15.24 mm |
| Pitch | 2.54 mm | Height | 3.5 mm |
| Length | 17.72 mm [ .7 in ] | Lock Type | 不带 |
| Packaging | Bulk | Body Color | 黑色 |
| Wire Gauge | 22-30 AWG | Row Spacing | 2.54 mm |
| Contact Type | Female Socket | Polarization | Ribbed |
| 2nd Connector | Without | Housing Color | Black |
| Mounting Type | Straight | Connector Type | Crimp, Insulation Displacement Crimp (IDC) |
| Mounting Style | Wire | Number of Rows | 1 |
| Package / Case | Receptacle | Insert Material | 磷青铜 |
| Contact Material | Phosphor Bronze | Housing Material | Thermoplastic |
| Length - Overall | 17.72 mm | Package Quantity | 1 |
| Termination Style | Crimp | 1st Contact Gender | Socket (Female) |
| Mating Orientation | With | Number of Contacts | 7 |
| Contact Termination | Crimp | Number of Positions | 7 |
| Compatible Shell Size | 公端 | Mounting Hole Diameter | 带有 |
| Center Contact Material | 2.54 [.100] | Contact Layout, Typical | 同轴 |
Product Info
| Note | Refer to AMPMODU contacts for crimp snap-in replacement receptacle or pin conta | Type | Housing |
| Gender | RCP | Series | MTE |
| Preloaded | No | Coded, Keyed | No |
| Product Type | Housing | ||
Environmental
| Temperature - Test | 标准部件 - 非辉光导线 | Operating Temperature | -65C to 105C |
Documents & Media
Similar Parts
103908-6
te connectivity / amp
Conn Shrouded Header HDR 7 POS 2.54mm Solder ST Thru-Hole Tube Headers & Wire Housings LTCHNG HDR W/SWAGE 7 .100 AMPMODU Headers, Housings & Contacts CONN HEADER VERT .100 7POS 30AU 07 MTE HDR SRST LATCH W/HLDWN
5-103946-6
te connectivity / amp
Conn IDC Connector PIN 7 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN PLUG 7POS .100 POLAR 30AU .100 AMPMODU Headers, Housings & Contacts Product Highlights:ConnectorHousingConnector Style = PlugContact Type = Pin2.54 mm CenterlineSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 3X7 MTE SHRD PIN SR POL .100CL
103638-6
te connectivity / amp
Conn Shrouded Header HDR 7 POS 2.54mm Solder ST Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER VERT .100 7POS 15AU Headers & Wire Housings LTCH HDR W/O SWAGE 7 Conn Shrouded Header HDR 7 POS 2.54mm Solder ST Thru-Hole Tube Product Highlights:HeaderWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)7 PositionNumber of Rows = SinglePost Size = 0.64 [.025] mm [in]Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 07 MTE HDR SRST LATCH .100CL
5-104363-6
te connectivity / amp
Conn Shrouded Header HDR 7 POS 2.54mm Solder ST Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER VERT .100 7POS 15AU Header 7 way pin 2.54mm IDC AmpModu Headers & Wire Housings 07 MTE HDR SRST LATCH .100CL Conn Shrouded Header HDR 7 POS 2.54mm Solder ST Thru-Hole Tube Product Highlights:ConnectorConnector Type = Header - Pin2.54 mm CenterlineRow-to-Row Spacing = 2.54 mm7 PositionsSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR HEADER 7POS, 2.54MM Header7waypin2.54mmIDCAmpModu TE Connectivity AMPMODU MTE 系列 2.54mm节距 7路 (1排) 直 PCB 针座, 焊接端接, 3A , 通孔 07 MTE HDR SRST LATCH .100CL
103945-6
te connectivity / amp
Conn IDC Connector PIN 7 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN PLUG 7POS .100 POLAR 15AU Headers & Wire Housings PIN ASSEMBLY 7P 3X7 MTE SHRD PIN SR LATCH .100 3X7 MTE SHRD PIN SR LATCH .100 Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE
1375549-6
te connectivity / amp
Conn Shrouded Header HDR 7 POS 2.54mm Solder ST SMD T/R .100 AMPMODU Headers, Housings & Contacts CONN HEADER 7POS IDC STR SMD TIN Headers & Wire Housings 07 MTE VERT SMT HDR FULL SN-PB 07 MTE VERT SMT HDR FULL SN-PB 07 MTE VERT SMT HDR FULL SN-PB Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE
104503-6
te connectivity / amp
Conn Housing PL 7 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN PIN HSG 7POS .100 UNLOADED Headers & Wire Housings RCPT 7P .100 UNLOAD .100 IDC AMPMODU Housings & Contacts .100 IDC AMPMODU Housings & Contacts Product Highlights:Receptacle HousingWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)7 PositionHousing Type = PinNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE TE Connectivity AMPMODU MTE 系列 2.54mm 节距 7 路 直 公 电缆安装 PCB 连接器外壳 07 MTE PIN HSG SR RIB .100CL
1375582-6
te connectivity / amp
Conn Shrouded Header HDR 7 POS 2.54mm Solder ST SMD T/R .100 AMPMODU Headers, Housings & Contacts CONN HEADR 7POS IDC STR SMD GOLD Headers & Wire Housings 07 MTE VERTICAL SMT HDR 15 AU .100 AMPMODU Headers, Housings & Contacts Product Highlights:ConnectorWith ContactsHousing Gender = Header - PinContact Gender = Pin2.54 mm CenterlineSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 07 MTE VERTICAL SMT HDR 15 AU
104809-6
te connectivity / amp
Conn Shrouded Header HDR 7 POS 2.54mm Solder ST Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER 7POS VERT LATCH 15AU Headers & Wire Housings 07MTE HDR SRST LATCH W/HLDWN .100 AMPMODU Headers, Housings & Contacts Product Highlights:HeaderNumber of Positions = 7Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Terminate To Printed Circuit BoardSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 07 MTE HDR SRST LATCH W/HLDWN
104361-6
te connectivity / amp
Conn Shrouded Header HDR 7 POS 2.54mm Solder RA Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER RTANG .100 7POS 15AU Headers & Wire Housings HDR HI TEMP 7 POS with swage 07 MTE HDR SRRA LATCH W/HLDWN 07 MTE HDR SRRA LATCH W/HLDWN Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE
5-103634-6
te connectivity / amp
Conn Shrouded Header HDR 7 POS 2.54mm Solder RA Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER RTANG 7POS PCB TIN Headers & Wire Housings LATCHING HDR SHRD 7P w/o hold down Conn Shrouded Header HDR 7 POS 2.54mm Solder RA Thru-Hole Tube Product Highlights:HeaderNumber of Positions = 7Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Terminate To Printed Circuit BoardSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 07 MTE HDR SRRA LATCH.100CL LF

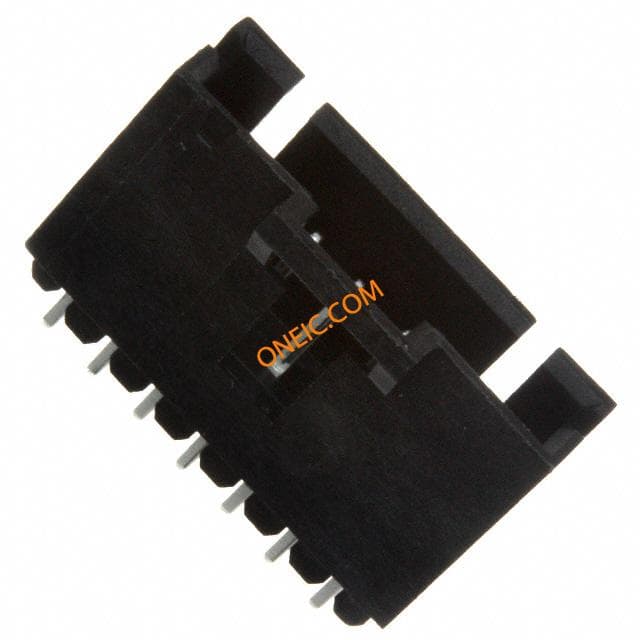

5-103639-6
