103634-3
| Manufacturer | |
| Description | Conn Shrouded Header HDR 4 POS 2.54mm Solder RA Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER RTANG 4POS PCB TIN Headers & Wire Housings LATCHING HDR SHRD 4P w/o hold down Conn Shrouded Header HDR 4 POS 2.54mm Solder RA Thru-Hole Tube Product Highlights:HeaderNumber of Positions = 4Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Terminate To Printed Circuit BoardSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 04 MTE HDR SRRA LATCH .100CL |
| Category |
Business
| Tradename | AMPMODU | Product Category | Headers & Wire Housings |
| Standard Package | Rail / Tube | Factory Pack Quantity | 4 |
Compliance
| RoHS | Contains lead / RoHS non-compliant | Standard Number | CSA LR7189, UL E28476 |
| Material Flammability Rating | UL 94 V-0 | ||
Electrical
| Switch Function | Latched | Contact Resistance | 15 mΩ |
| Connector Impedance | 刺破式压接 (IDC), 压接 | Current Rating (Max) | 3 A |
| Insulation Resistance | 5000 MOhms | Voltage - Protection Rating (VPR) | 600 V |
Mechanical
| Color | Black | Pitch | 2.54 mm |
| Height | 13.59 mm [ .535 in ] | Length | 12.7 mm [ .5 in ] |
| Packaging | Tube | Body Color | 黑色 |
| Lead Style | 正方形 | Row Spacing | 2.54 mm |
| Termination | Solder | Contact Type | Male Pin |
| Mounting Type | Through Hole, Right Angle | Connector Type | Header, Shrouded |
| Contact Finish | Bright Tin-Lead Over Nickel | Contact Timing | Without |
| Mounting Style | 不带 | Number of Rows | 1 |
| Insert Material | 黄铜 | Contact Material | Brass |
| Housing Material | Thermoplastic | Package Quantity | 42 |
| Panel Mount Type | 直角 | Termination Style | Through Hole |
| 1st Connector Type | 带罩 | 1st Contact Gender | Pin (Male) |
| Number of Contacts | 4 | Termination Finish | 带有 |
| Contact Tail Length | 2.54 µm [ 100 µin ] | Number of Positions | 4 |
| Compatible Shell Size | 母端护套组件 | Contact Length - Post | 3.3 mm [ .13 in ] |
| Mounting Hole Diameter | 带有 | Contact Finish - Mating | 锡铅 |
| Contact Length - Mating | 0.230" (5.84mm) | Termination Post Length | 5.84 mm [ .23 in ] |
| Contact Finish Thickness | 100µin (2.54µm) | Static Discharge Shielding | 不带 |
Product Info
| Note | 使用 91417-1 号键控工具来拆卸用于键控的柱体。 | Type | Shrouded Header |
| Gender | HDR | Series | AMPMODU MTE |
| Pattern Type | 否 | Product Type | Headers |
| Number of Positions Loaded | All | ||
Environmental
| Operating Temperature | - 65 C to + 105 C | ||
Documents & Media
Similar Parts
104257-3
te connectivity / amp
Conn Housing RCP 4 POS 2.54mm Crimp ST .100 AMPMODU Headers, Housings & Contacts CONN RECPT 4POS .1" POL UNLOAD 4 way MTE Receptacle Housing Headers & Wire Housings RECEPTACLE ASSY 4P Conn Housing RCP 4 POS 2.54mm Crimp ST Product Highlights:Receptacle HousingWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 4Housing Type = ReceptacleNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE HOUSING, RECEPTACLE, 4WAY ReceptacleAssembly;Thermoplastic;Receptacle;Single;0.100in.;MTE(IDC) Connector: wire-board; AMPMODU MTE; plug; female; w/o terminals TE Connectivity AMPMODU MTE 系列 1 行 2.54mm 节距 4 路 直 母 PCB 壳体 04 MTE RCPT HSG SR LATCH .100
1-88859-0
te connectivity / amp
Conn Housing RCP 4 POS 2.54mm Crimp ST Cable Mount Flexible Film Connectors 004 HOUSING FFC RCPT SR 100CL TE Connectivity 2.54mm Pitch 4 Way 1 Row Straight PCB Header, Crimp Termination, 2A FFC & FPC Connectors 004 HOUSING FFC RCPT Conn Housing RCP 4 POS 2.54mm Crimp ST Cable Mount Product Highlights:Housing2.54 mm CenterlineConnector Type = StandardNumber of Positions = 4Number of Rows = SingleSearch Keywords:Circuitry-to-Board, cable to board, board to board, FFC, flat flexible cable, flat flex wire, Easy Mating Connector FFC/FPC CONNECTOR, PLUG, 4POS, 1ROW Connector4wayreceptacleFFC TE Connectivity 2.54mm节距 4路 (1排) 直 外壳, 压接端接, 2A
103957-3
te connectivity / amp
Conn IDC Connector RCP 4 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RECPT 4POS .100 POLAR 15AU Headers & Wire Housings RECEPTACLE ASSY 4P Conn IDC Connector RCP 4 POS 2.54mm IDT ST Cable Mount Strip Product Highlights:Receptacle AssemblyWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 4Number of Rows = SingleTerminate To WireSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE MTERECPASSY,5X4MTERCPTSRLATCH.100CL 5X4 MTE RCPT SR LATCH .100CL

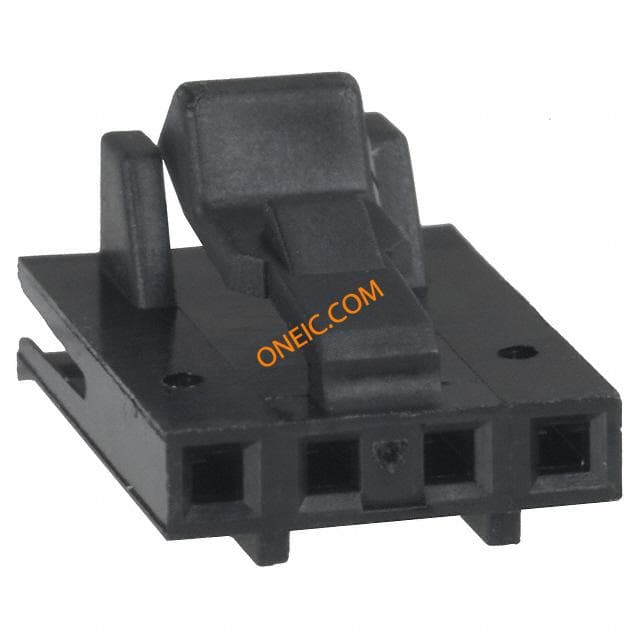

487526-3
te connectivity / amp
Conn Housing RCP 4 POS 2.54mm Crimp ST Cable Mount Flexible Film Connectors CONN RCPT 4POS.100 SLIM W/LATCH FFC & FPC Connectors 004 HOUSING FFC RCPT Conn Housing RCP 4 POS 2.54mm Crimp ST Cable Mount Product Highlights:Housing2.54 mm CenterlineConnector Type = SlimlineNumber of Positions = 4Number of Rows = SingleSearch Keywords:Circuitry-to-Board, cable to board, board to board, FFC, flat flexible cable, flat flex wire, Easy Mating Connector FFC/FPC CONNECTOR, PLUG, 4POS, 1ROW CONNECTOR,RECEPTACLEHOUSING,FLEXIBLEFILM,4POS,2.54MM,SLIMLINE,SINGLER 004 HOUSING FFC RCPT 100CL SR
103961-3
te connectivity / amp
Conn IDC Connector RCP 4 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RCPT 4POS .100 26-30 30GOLD Headers & Wire Housings 5X4 MTE RCPT SR LATH 220 Conn IDC Connector RCP 4 POS 2.54mm IDT ST Cable Mount Strip Product Highlights:Receptacle AssemblyWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 4Number of Rows = SingleTerminate To WireSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 5X4 MTE RCPT SR LATHC .100CL

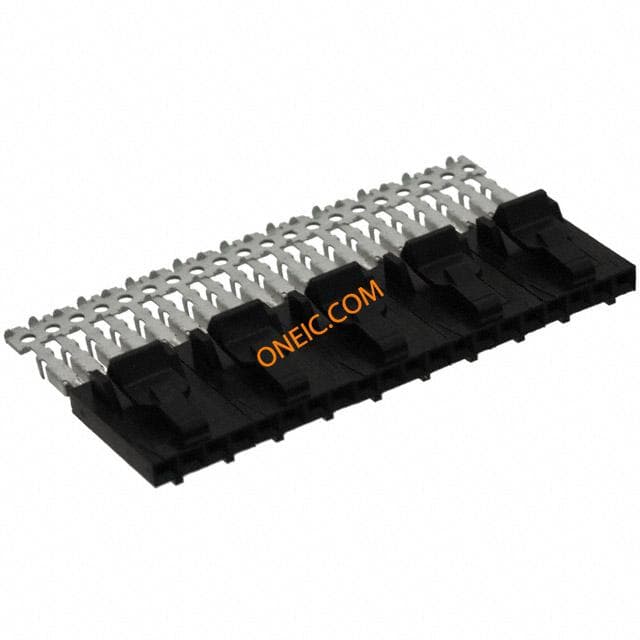

5-103958-3
te connectivity / amp
Conn IDC Connector RCP 4 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RECPT 4POS .100 POLAR 30AU Headers & Wire Housings RECEPTACLE ASSY 4P Conn IDC Connector RCP 4 POS 2.54mm IDT ST Cable Mount Strip Product Highlights:Receptacle AssemblyWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 4Number of Rows = SingleTerminate To WireSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR RECEPTACLE, 4POS, 2.54MM MTERECPASSY,5X4MTERCPTSRLATCH.100CL 5X4 MTE RCPT SR LATCH .100CL

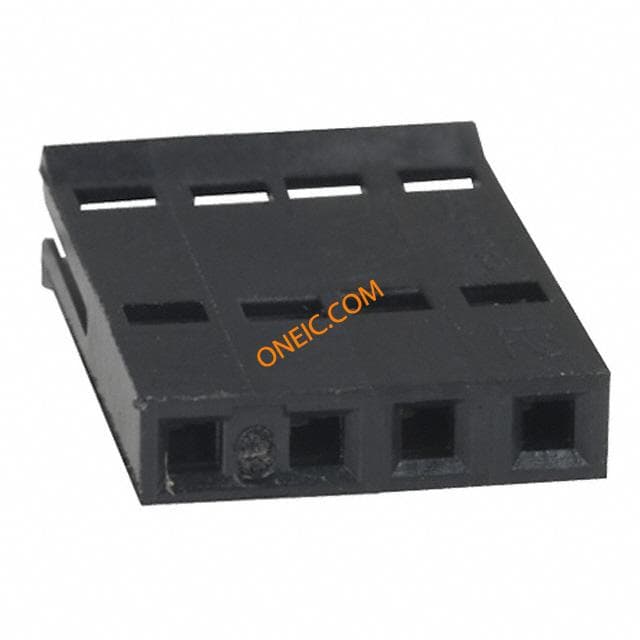

487378-3
