点击放大查看
102898-1
| Manufacturer | |
| Description | Conn Unshrouded Header HDR 8 POS 2.54mm Press Fit ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER .100 8POS VERT T/H Headers & Wire Housings 8P HDR .100 VERT T/H Conn Unshrouded Header HDR 8 POS 2.54mm Press Fit ST Thru-Hole Product Highlights:HeaderHeader Type = StandardNumber of Rows = SingleNumber of Positions = 8Mating Post Length = 8.13 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 08 MODII HDR SRST UNSHRD A/PIN |
| Category |
Business
| Tradename | AMPMODU | Product Category | Headers & Wire Housings |
| Standard Package | Trays | ||
Compliance
| RoHS | Contains lead / RoHS non-compliant | Standard Number | CSA LR16455, UL E28476 |
| Material Flammability Rating | UL 94 V-0 | ||
Electrical
| Current Rating (Max) | 3 A | Insulation Resistance | 5000 MOhms |
| Voltage - Protection Rating (VPR) | 750 Vrms | ||
Mechanical
| Color | Black | Pitch | 2.54 mm |
| Base Type | 不带 | Lock Type | 不带 |
| Packaging | Bulk | Body Color | 黑色 |
| Lead Style | 正方形 | Stabilizer | 不带 |
| Row Spacing | 2.54 mm | Termination | Press Fit |
| Contact Type | Male Pin | 1st Connector | 否 |
| Mounting Type | Through Hole | Connector Type | Header, Unshrouded |
| Contact Finish | Gold Over Nickel | Mounting Style | 带有 |
| Number of Rows | 1 | Insert Material | 铜-镍-锡 |
| Contact Material | Copper, Nickel, Tin | Housing Material | Thermoplastic |
| Mounting Feature | 作用/符合标准的尾 | Package Quantity | 100 |
| Panel Mount Type | 通孔 | Termination Style | Through Hole |
| 1st Connector Type | 不带罩 | 1st Contact Gender | Pin (Male) |
| Diameter - Outside | .64 mm [ .025 in ] | Number of Contacts | 8 |
| Termination Finish | 不带 | Number of Positions | 8 |
| Length - Post (Mating) | 8.13 mm | Mounting Hole Diameter | 不带 |
| Contact Length - Mating | 0.320" (8.13mm) | Termination Post Length | 6.35 mm |
| Contact Finish Thickness | 30µin (0.76µm) | Static Discharge Shielding | 不带 |
| 1st Connector Mounting Feature | 否 | ||
Product Info
| Type | Unshrouded Header | Gender | HDR |
| Series | AMPMODU MOD II | Key Type | 否 |
| Product Type | Headers | Number of Positions Loaded | All |
Environmental
| Seal Rating | 不带 | Operating Temperature | - 55 C to + 125 C |
| Thermal Resistance of Package | 2.36 – 3.18 mm [ .093 – .125 in ] | Operating Temperature - Junction | 否 |
Similar Parts
1-87175-7
te connectivity / amp
Conn Housing RCP 8 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 8POS .100 LOCKING Headers & Wire Housings CONN HOUSING 8 POS SINGLE ROW Conn Housing RCP 8 POS 2.54mm Crimp ST Cable Mount Product Highlights:HousingNot PreloadedNumber of Positions = 8Housing Type = ReceptacleNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 08 LOCKING CLIP HSG SR MRKD

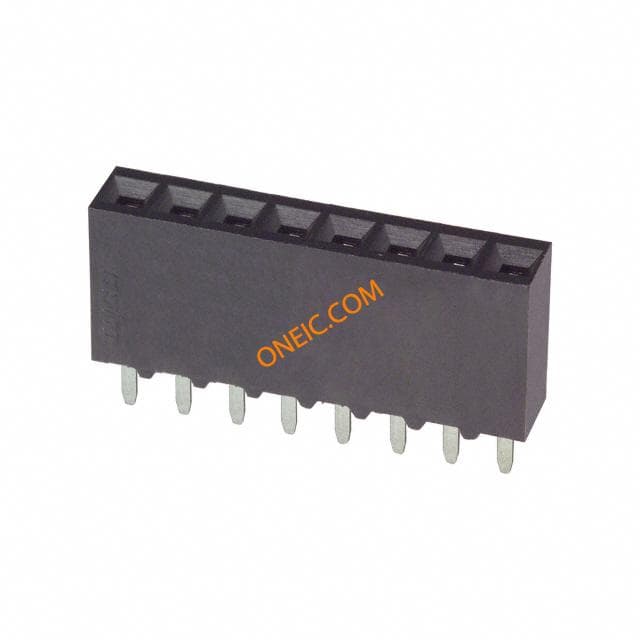

5-534237-6
