102398-3
| Manufacturer | |
| Description | Conn IDC Connector RCP 10 POS 2.54mm IDT ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN RECEPT 10POS .100 IDC GOLD Conn IDC Connector RCP 10 POS 2.54mm IDT ST Cable Mount Product Highlights:Receptacle AssemblyWire Termination Type = Insulation Displacement Crimp (IDC)Number of Positions = 10Number of Rows = DualTerminate To WireSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE ReceptacleAssembly;MT(IDC);26to22AWG;InsulationDisplacementCrimp;10 10 AMPMODU MT ASSY DR .100CL |
| Category |
Business
| Standard Package | Trays | ||
Compliance
| RoHS | Contains lead / RoHS non-compliant | Standards | ULListed,CSACertified |
| Approval Agency | CSA,UL | Standard Number | CSA LR7189, UL E28476 |
| Material Flammability Rating | UL94V-0 | ||
Electrical
| Contact Resistance | 15 mΩ | Resistance - Input | 5000 |
| Connector Impedance | 刺破式压接 (IDC) | Current Rating (Max) | 3 |
| Insulation Resistance | 5000Megohms | Voltage - Protection Rating (VPR) | 600 V |
Mechanical
| Color | Black | Pitch | 2.54 mm |
| Height | 6.1 mm [ .24 in ] | Length | 12.7 mm [ .5 in ] |
| Lock Type | 不带 | Packaging | Tray |
| Wire Type | Discrete or Ribbon Cable | Body Color | 黑色 |
| Wire Gauge | 22-26 AWG | Row Spacing | 0.100" (2.54mm) |
| Termination | IDT | Contact Type | Female Socket |
| Mounting Type | Free Hanging (In-Line) | Angle of Throw | Straight |
| Connector Type | Receptacle | Contact Finish | Gold Over Nickel |
| Number of Rows | 2 | Pressure (PSI) | 标准 |
| Insert Material | 铜合金 | Contact Material | CopperAlloy |
| Housing Material | Thermoplastic | Length - Overall | 0.5" |
| Package Quantity | 250 | Primary Material | InterconnectSystem |
| Wire Termination | InsulationDisplacementCrimp | Cable Termination | IDC |
| Pin Hole Diameter | 0.1" | Termination Style | 插座 |
| Number of Contacts | 10 | Contact Termination | Tin-LeadOverNickel |
| Dielectric Diameter | 1.27 mm | Insulation Diameter | 0.050in.(Max.) |
| Number of Positions | 10 | Compatible Shell Size | 公端 |
| Contact Mating Finish | Gold(30)overNickel(50) | Mounting Hole Diameter | 不带 |
| Contact Finish Thickness | 30µin (0.76µm) | ||
Product Info
| Type | IDC Connector | Gender | RCP |
| Features | Closed End | Manufacturer | AMPMODU/MTSeries |
| Product Type | 连接器 | Other Specifications | 是 |
| Matrix (Columns x Rows) | 0.1x0.1in. | ||
Environmental
| Temperature - Test | 标准部件 - 非辉光导线 | Operating Temperature | -65to+105°C |
Similar Parts
103168-3
te connectivity / amp
Conn Shrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER VERT .100 10POS 30AU TE Connectivity AMPMODU Series 2.54mm Pitch 10 Way 2 Row Straight PCB Header, Solder Termination, 3A Headers & Wire Housings SHROUDED VER DUAL 10 detent windows Conn Shrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = DualNumber of Positions = 10Mating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, MODUTHRUDRHDRSHRD,10MODIIHDRDRSTSHRD.100CL TE Connectivity AMPMODU Mod II 系列 2.54mm节距 10路 (2排) 直 PCB 针座, 焊接端接, 3A , 通孔 10 MODII HDR DRST SHRD .100CL
104352-5
te connectivity / amp
Conn Unshrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HDR BRKWAY 10POS DUAL TIN Headers & Wire Housings 10 MODII HDR DRST B/ 6400 10 MODII HDR DRST B/A W/HD 10 MODII HDR DRST B/A W/HD Search Keywords:board to board, AMPMODU, pcb connectors,
5-102617-3
te connectivity / amp
Conn Shrouded Header HDR 10 POS 2.54mm Solder RA Thru-Hole CONN HEADER R/A .100 10POS 15AU Headers & Wire Housings HDR 2X05P R/A T/H Conn Shrouded Header HDR 10 POS 2.54mm Solder RA Thru-Hole Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = DualNumber of Positions = 10Mating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, HEADER, RIGHT ANGLE, 2ROW, 10WAY 10 MODII HDR DRRA SHRD LF
104351-5
te connectivity / amp
Conn Unshrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole Tube .100 inch AMPMODU Headers CONN HDR BRKWAY 10POS DUAL 15AU Headers & Wire Housings MOD II HEADER 10P 640 10 MODII HDR DRST B/A W/HD
5-146130-4
te connectivity / amp
Conn Unshrouded Header HDR 10 POS 2.54mm Solder ST SMD .100 inch AMPMODU Headers CONN HDR BRKWAY 10P STR DUAL SMT TE Connectivity AMPMODU Series 2.54mm Pitch 10 Way 2 Row Straight PCB Header, Solder Termination, 3A Headers & Wire Housings VT 2X05P .1 230/SMT 30AU Conn Unshrouded Header HDR 10 POS 2.54mm Solder ST SMD Product Highlights:HeaderHeader Type = BreakawayNumber of Rows = DualNumber of Positions = 10Mating Post Length = 5.84 mmSearch Keywords:board to board, AMPMODU, pcb connectors, BOARD-BOARD CONN, HEADER, 10WAY, 2ROW Headervertsmt10w2row2.54mmAmpModu TE Connectivity AMPMODU Mod II 系列 2.54mm节距 10路 (2排) 直 引脚管座, 焊接端接, 3A , 表面安装 10 MODII HDR DRST SFMNT B/A LF
5-146256-5
te connectivity / amp
Conn Unshrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER B/A 10POS DUAL GOLD TE Connectivity AMPMODU Series 2.54mm Pitch 10 Way 2 Row Straight PCB Header, Solder Termination, 3A Headers & Wire Housings VT 2X05P .1 230/110 15AU Conn Unshrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole Product Highlights:HeaderHeader Type = BreakawayNumber of Rows = DualNumber of Positions = 10Mating Post Length = 5.84 mmSearch Keywords:board to board, AMPMODU, pcb connectors, BOARD-BOARD CONN, HEADER, 10WAY, 2ROW Header;Breakaway;0.100x0.100in.;PCBoard;Dual;10;0.025in.;0.12in. TE Connectivity AMPMODU Mod II 系列 2.54mm节距 10路 (2排) 直 引脚管座, 焊接端接, 3A , 通孔 10 MODII HDR DRST B/A .100CL L
5-102699-4
te connectivity / amp

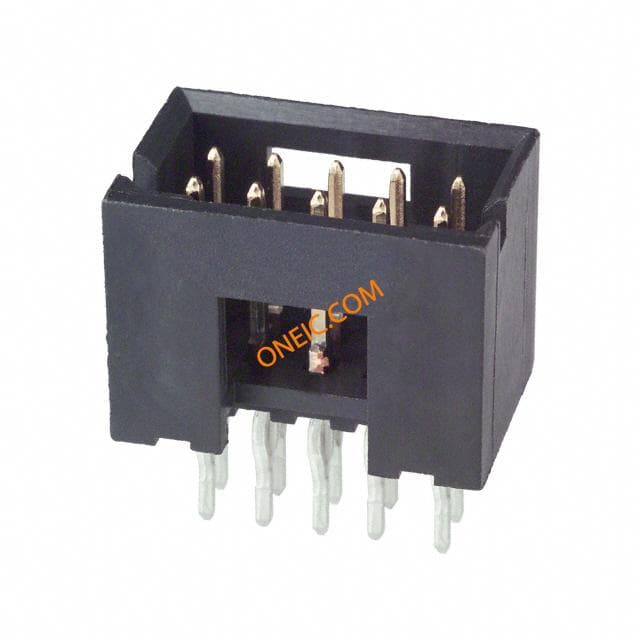

Conn Shrouded Header HDR 10 POS 2.54mm Press Fit ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER VERT .100 10POS 30AU Headers & Wire Housings 10 HDR DRST SHRD ACT PIN Conn Shrouded Header HDR 10 POS 2.54mm Press Fit ST Thru-Hole Product Highlights:ConnectorWith ContactsHousing Gender = Header - PinContact Gender = PinHeader Type = ShroudedSearch Keywords:board to board, AMPMODU, pcb connectors, 10 MODII HDR DRST SHRD A/PIN
5-87579-2
te connectivity / amp

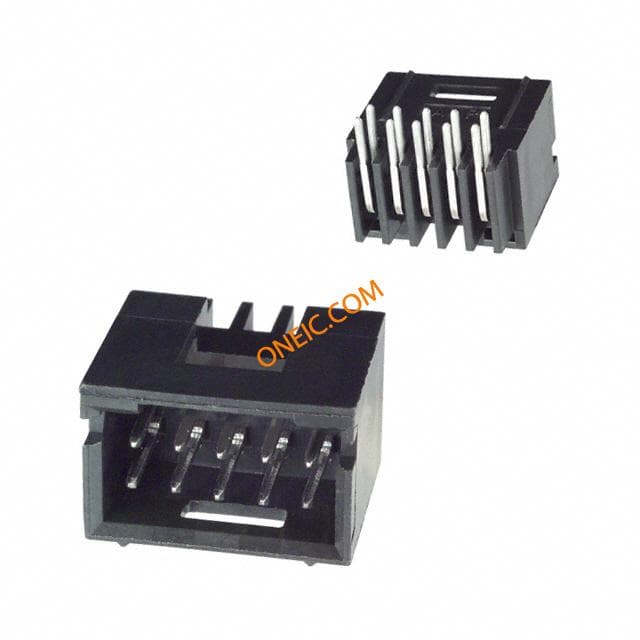

Conn Shrouded Header HDR 10 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER R/A .100 10POS TIN Headers & Wire Housings 10 MODII HDR DRRA SHRD Conn Shrouded Header HDR 10 POS 2.54mm Solder RA Thru-Hole Search Keywords:board to board, AMPMODU, pcb connectors, 10 MODII HDR DRRA SHRD LF
5-103166-3
te connectivity / amp
Conn Shrouded Header HDR 10 POS 2.54mm Solder RA Thru-Hole Tube .100 inch AMPMODU Headers CONN HEADER R/A .100 10POS 30AU TE Connectivity AMPMODU Series 2.54mm Pitch 10 Way 2 Row Right Angle PCB Header, Solder Termination, 3A Headers & Wire Housings SHROUDED RA DUAL 10 detent windows Conn Shrouded Header HDR 10 POS 2.54mm Solder RA Thru-Hole Tube Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = DualNumber of Positions = 10Mating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, HEADER, RIGHT ANGLE, 2ROW, 10WAY 2.54mm,Header,shrd,DR,10W,90°,Sn TE Connectivity AMPMODU Mod II 系列 2.54mm节距 10路 (2排) 直角 PCB 针座, 焊接端接, 3A , 通孔 10 MODII HDR DRRA SHRD LF
4-103801-0-05
TE Connectivity
CONN HEADR BRKWAY .100 10POS R/A
9-103801-0-05
TE Connectivity
CONN HEADR BRKWAY .100 10POS R/A
4-103326-0-05
TE Connectivity
CONN HEADR BRKWAY .100 10POS R/A
9-103326-0-05
TE Connectivity
CONN HEADR BRKWAY .100 10POS R/A
9-146258-0-05
TE Connectivity
CONN HEADR BRKWAY .100 10POS STR
4-103186-0-05
TE Connectivity
CONN HEADR BRKWAY .100 10POS STR
4-103783-0-05
TE Connectivity
CONN HEADR BRKWAY .100 10POS STR
9-146261-0-05
TE Connectivity
CONN HDR BRKWAY .100 10POS VERT
9-146308-0-05
TE Connectivity
CONN HEADR BRKWAY .100 10POS R/A
4-103795-0-05
TE Connectivity
CONN HEADR BRKWAY .100 10POS R/A

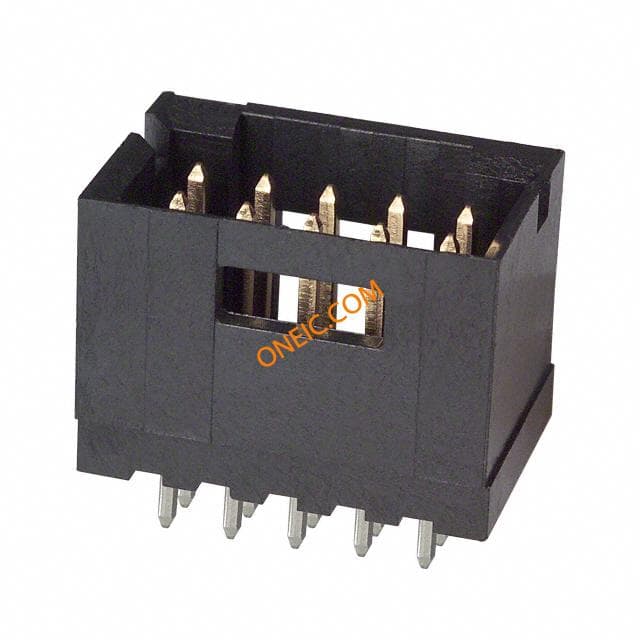

651-1087-01
