1-917659-6
| Manufacturer | |
| Description | Conn Housing RCP 12 POS 5.08mm Crimp ST Cable Mount Bag Dynamic Series Connectors CONN RCPT 5.08 12POS DUAL KEY-XX Headers & Wire Housings 12 POS RECPT 5.08 KEY XX DUAL Conn Housing RCP 12 POS 5.08mm Crimp ST Cable Mount Bag Product Highlights:Terminate To WireHousingReceptacleNumber of Positions = 12KeyedSearch Keywords:wire-to-board, wire-to-wire, process computers, inverters, power, power, Dynamic Series Connectors, Dynamic Series, HMI, Human Machine Interfaces, Multiple Enclosure Connector; DYNAPAC, Dynamic, HOUSING, RECEPTACLE, DUAL ROW, 12WAY DYNAMIC 3200 D/ROW REC HSG 12P |
| Category |
Business
| Product Category | Headers & Wire Housings | Standard Package | Bulk |
| Factory Pack Quantity | 200 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85366990 |
| Leadfree Defin | Not relevant for lead free process | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Voltage Rating | 600 V | Voltage - Rated AC | 600 |
| Voltage - Supply (Min) | 600VAC | ||
Mechanical
| Color | Black | Depth | 22.8 mm |
| Pitch | 5.08 mm | Height | 14.77 mm |
| Weight | 0.0094 | Packaging | Bulk |
| Wire Gauge | 16 AWG | Row Spacing | 0.300" (7.62mm) |
| Contact Type | Female Socket | Housing Color | Black |
| Mounting Type | Straight | Connector Type | Receptacle |
| Number of Rows | 2 | Housing Material | Thermoplastic Polyester |
| Length - Overall | 42.54 mm | Package Quantity | Bag |
| 1st Contact Gender | Socket (Female) | Number of Contacts | 12 |
| Contact Termination | Crimp | Number of Positions | 12 |
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | RCP | Series | D-3200M (Modular Type) |
| Features | Polarizing Key | Key Type | XX |
| Coded, Keyed | Yes | Product Type | Housing |
| Connection Type | Wire | For Use With/Related Products | :Dynamic D-3200 Series Contacts |
Environmental
| Operating Temperature | -55C to 105C | ||
Similar Parts
1-917484-2
te connectivity / amp
Contact SKT Crimp ST Cable Mount Reel Heavy Duty Power Connectors REC CONT 2L 16-14 Dynamic Series Connectors CONN RCPT 14-16AWG CRIMP 15GOLD Contact female crimp 16-14AWG Au 2L D-3 Contact SKT Crimp ST Cable Mount Reel Product Highlights:Terminate To WireContactReceptacleProduct Series = D-3Wire Range = 1.25-2.00² [16-14] mm [AWG]Search Keywords:wire-to-board, wire-to-wire, process computers, inverters, power, power, Dynamic Series Connectors, Dynamic Series, HMI, Human Machine Interfaces, Multiple Enclosure Connector; DYNAPAC, Dynamic, TE Connectivity Dynamic 3000 系列 母 压接接线端子, 压接, 镀金触点 DYNAMIC D-3 REC CONT 2L 16-14

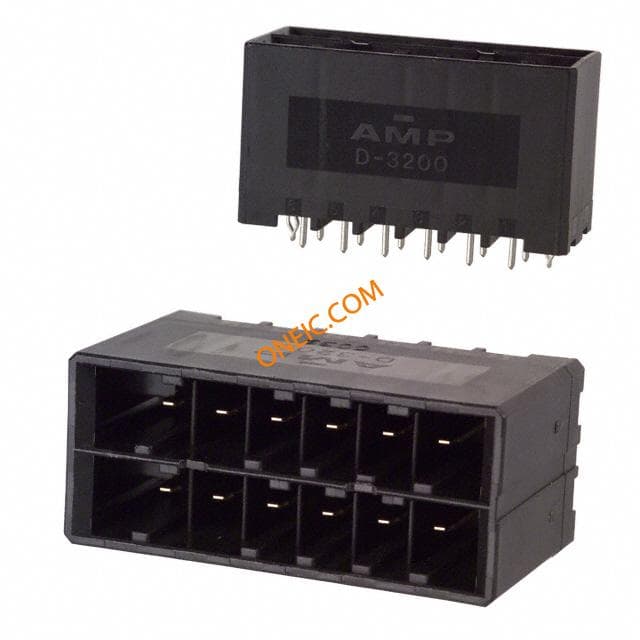

1-917658-3
