1-87348-4
| Manufacturer | |
| Description | Conn Unshrouded Header HDR 14 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER 14POS VERT TIN Headers & Wire Housings 14 MODII HDR SRST UNSHRD .100 Conn Unshrouded Header HDR 14 POS 2.54mm Solder ST Thru-Hole Search Keywords:board to board, AMPMODU, pcb connectors, 14 MODII HDR SRST UNSHRD .100 |
| Category |
Business
| Tradename | AMPMODU | Standard Package | Bulk |
Compliance
| RoHS | Contains lead / RoHS non-compliant | Leadfree Defin | Wave solder capable to 240°C |
| RoHSELV Compliance | Not ELV/RoHS compliant | Material Flammability Rating | UL 94V-0 |
Electrical
| Current Rating (Max) | 3/Contact A | ||
Mechanical
| Color | Black | Depth | 2.34 mm |
| Pitch | 2.54 mm | Height | 11.25 mm |
| Base Type | 带有 | Lock Type | 不带 |
| Packaging | Bulk | Lead Style | 正方形 |
| Stabilizer | 不带 | Row Spacing | 2.54 mm |
| Termination | Solder | Contact Type | Male Pin |
| Pitch - Post | 2.54 [.100] | 1st Connector | No |
| 2nd Connector | Without | Contact Shape | Square |
| Mounting Type | Vertical | Connector Type | Standard |
| Contact Finish | Bright Tin-Lead Over Nickel | Mounting Style | Through Hole |
| Number of Rows | 1 | Insert Material | 磷青铜 |
| Contact Material | Phosphor Bronze | Housing Material | Nylon |
| Length - Overall | 35.15 mm | Mounting Feature | Without |
| Package Quantity | 100 | Panel Mount Type | Without |
| Size / Dimension | 0.64 [.025] | Termination Style | Through Hole |
| 1st Connector Type | 不带罩 | 1st Contact Gender | Pin (Male) |
| Diameter - Outside | .64 mm [ .025 in ] | Number of Contacts | 14 |
| Termination Finish | 不带 | Number of Positions | 14 |
| Length - Post (Mating) | 8.08 mm | Mounting Hole Diameter | 不带 |
| Contact Length - Mating | 8.08 [0.318] | Surface Mount Land Size | No |
| Termination Post Length | 3.18 [0.125] | Contact Finish Thickness | 100µin (2.54µm) |
| Static Discharge Shielding | 不带 | 1st Connector Mounting Feature | 否 |
Product Info
| Type | Unshrouded Header | Gender | HDR |
| Series | AMPMODU MOD II | Key Type | 否 |
| Manufacturer | AMP | Product Type | Header |
| Selectively Loaded | No | Number of Positions Loaded | All |
Environmental
| Seal Rating | 不带 | Temperature | No |
| Operating Temperature | -65C to 105C | Operating Temperature - Junction | 否 |
Documents & Media
Similar Parts

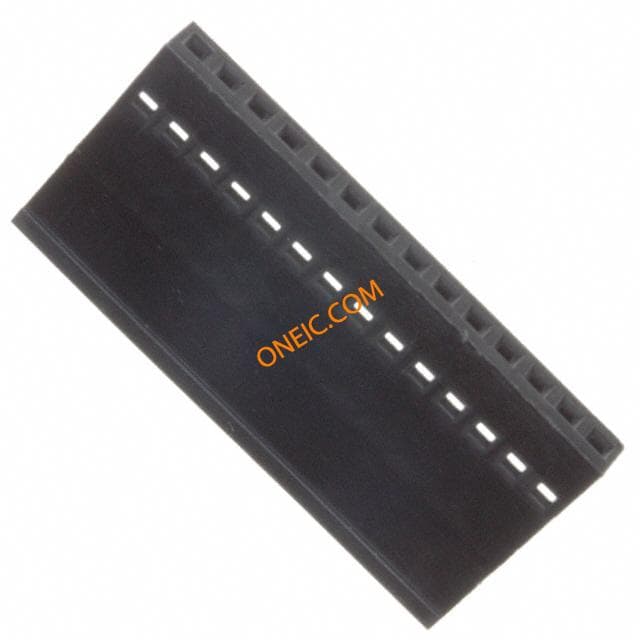

3-87175-0
te connectivity / amp
