1-87220-2
| Manufacturer | |
| Description | Conn Unshrouded Header HDR 12 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER 12POS VERT GOLD Headers & Wire Housings VERT SINGLE HDR 12P Conn Unshrouded Header HDR 12 POS 2.54mm Solder ST Thru-Hole Product Highlights:HeaderHeader Type = StandardNumber of Rows = SingleNumber of Positions = 12Mating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 12 MODII HDR SRST UNSHRD .100 |
| Category |
Business
| Tradename | AMPMODU | Product Category | Headers & Wire Housings |
| Standard Package | Bulk | Factory Pack Quantity | 120 |
Compliance
| RoHS | Lead free / RoHS Compliant | Leadfree Defin | Wave solder capable to 240°C |
| Standard Number | CSA LR7189, UL E28476 | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Current Rating (Max) | 3 A | Voltage - Protection Rating (VPR) | 750 Vrms |
Mechanical
| Color | Black | Pitch | 0.100" (2.54mm) |
| Base Type | 不带 | Lock Type | 不带 |
| Packaging | Bulk | Body Color | 黑色 |
| Lead Style | 正方形 | Stabilizer | 不带 |
| Row Spacing | 2.54 mm | Termination | Solder |
| Contact Type | Male Pin | Pitch - Post | 2.54 [.100] |
| 1st Connector | No | 2nd Connector | Without |
| Contact Shape | Square | Housing Color | Black |
| Mounting Type | Vertical | Connector Type | Standard |
| Contact Finish | Gold Over Nickel | Mounting Style | 不带 |
| Number of Rows | 1 | Insert Material | 磷青铜 |
| Contact Material | Phosphor Bronze | Housing Material | Thermoplastic |
| Mounting Feature | Without | Package Quantity | 120 |
| Panel Mount Type | Without | Size / Dimension | 0.64 [.025] |
| Termination Style | Through Hole | 1st Connector Type | 不带罩 |
| 1st Contact Gender | Pin (Male) | Diameter - Outside | .64 mm [ .025 in ] |
| Number of Contacts | 12 | Termination Finish | 不带 |
| Number of Positions | 12 | Length - Post (Mating) | 8.08 mm |
| Mounting Hole Diameter | 不带 | Contact Length - Mating | 8.08 [0.318] |
| Surface Mount Land Size | No | Termination Post Length | 3.18 [0.125] |
| Contact Finish Thickness | 30µin (0.76µm) | Static Discharge Shielding | 不带 |
| 1st Connector Mounting Feature | 否 | ||
Product Info
| Type | Unshrouded Header | Gender | HDR |
| Series | AMPMODU MOD II | Key Type | 否 |
| Manufacturer | AMP | Product Type | Header |
| Selectively Loaded | No | Number of Positions Loaded | All |
Environmental
| Seal Rating | 不带 | Temperature | No |
| Operating Temperature | -65 – 105 | Thermal Resistance of Package | 1.397 mm [ .055 in ] |
| Operating Temperature - Junction | 否 | ||
Documents & Media
Similar Parts
1-534237-0
te connectivity / amp
Conn Socket Strip SKT 12 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Receptacles CONN RECEPT 12POS .100 VERT AU Headers & Wire Housings RECEPT 12POS .100 R/A AU Conn Socket Strip SKT 12 POS 2.54mm Solder ST Thru-Hole Product Highlights:ReceptacleMod IINumber of Positions = 12Number of Rows = SingleStandard ProfileSearch Keywords:AMPMODU, board to board, NIC, Network Interface Cards, PC Cards, MIL-C-55032, MIL-C-24519, pcb connectors, wire to board, signal, 12 MODII VRT SR CE 100/115

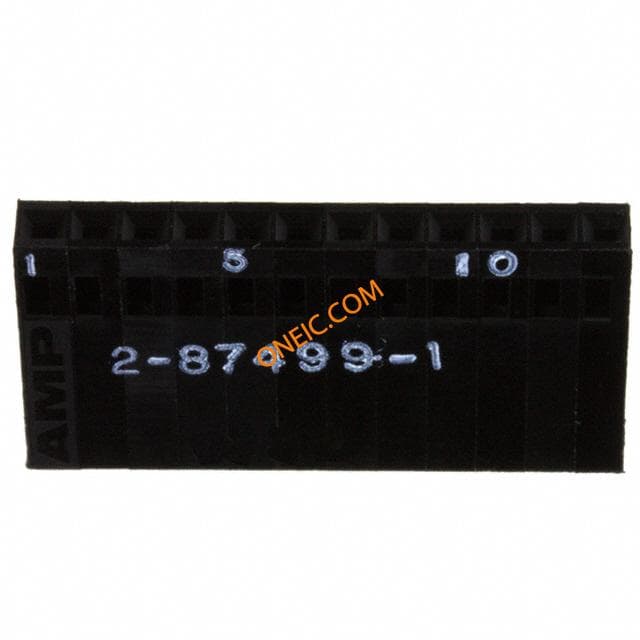

2-87499-1
