1-794617-6
| Manufacturer | |
| Description | Conn Housing RCP 16 POS 3mm ST 3mm Centerline, 250V, 5 A max. CONN RCPT 3MM 16POS DL MATE-N-L 16 way 2 row receptacle Mate-N-Lok Pin & Socket Connectors RECPT DUAL ROW 16P Conn Housing RCP 16 POS 3mm ST Product Highlights:HousingHousing Type = ReceptacleNumber of Positions = 16Number of Rows = Dual3.00 mm CenterlineSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp,
low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector HOUSING, RCPT, DUAL ROW, 16 WAY, NYLON Connector,SoftShell;Nylon;Receptacle;Black;16;Dual;0.118in.;UL94V-0 Crimp housing Pitch3 mm Poles 2 x 16 MATE-N-LOK Micro, 1-794617-6, TE Connectivity TE Connectivity Micro MATE-N-LOK 系列 2 行 3mm 节距 16 路 直 母 连接器外壳 16POS,MICRO MNL,RCPT HSG |
| Category |
Business
| Product Category | Pin & Socket Connectors | Standard Package | Bulk |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
| Leadfree Defin | Not relevant for lead free process | Approval Agency | :CSA, UL |
| RoHSELV Compliance | RoHS compliant, ELV compliant | Material Flammability Rating | UL 94V-0 |
Electrical
| Voltage Rating | 250 V | Contact Resistance | :20mohm |
| Voltage - Breakdown | :1500V | Current Rating (Max) | 5 A |
| Insulation Resistance | :1000Mohm | Voltage - Supply (Min) | 250VAC |
Mechanical
| Color | Black | Depth | 14.04mm |
| Pitch | 3 mm | Width | 11.7mm |
| Height | 11.7 mm | Length | 25mm |
| Weight | 0.002 | Material | :Nylon |
| Packaging | Bulk | Wire Gauge | 20 AWG |
| Row Spacing | 0.118" (3.00mm) | Contact Type | Female Socket |
| Housing Color | Black | Mounting Type | Straight |
| Connector Type | Receptacle | Fastening Type | Latch Lock |
| Mounting Style | Wire | Number of Rows | 2 |
| Package / Case | Receptacle | Contact Material | Phosphor Bronze |
| Housing Material | Nylon | Length - Overall | 3.00 [0.118] |
| Termination Style | Crimp | 1st Contact Gender | Socket (Female) |
| Color - Connectors | :Black | Number of Contacts | 16 |
| Contact Termination | Crimp | Number of Positions | 16 |
| 1st Connector Mounting Type | :Socket | ||
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | RCP | Series | MATE-N-LOK |
| CAD Drawing | 3D CAD Model | Product Type | Housing |
| For Use With/Related Products | Centerline Soft Shell Pin & Socket Connector | ||
Environmental
| Operating Temperature | -40C to 105C | ||
Documents & Media
Similar Parts
1-794635-6
TE Connectivity / AMP
Pin & Socket Connectors 16POS MICRO MNL ASSY VRT,SMT 3mm Centerline, 250V, 5 A max. CONN HEADER 16POS DL 30GOLD SMD 16POS MICRO MNL ASSY,VRT,SMT 16POS MICRO MNL ASSY,VRT,SMT Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector
4-794630-6
te connectivity / amp
Conn Power HDR 16 POS 3mm Solder ST Thru-Hole 16 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 3MM 16POS DUAL TIN TE Connectivity MATE-N-LOK Series 3mm Pitch 16 Way Straight Heavy Duty Power Connector, Solder Termination, 5A Pin & Socket Connectors HDR VERT 16 POS TIN DUAL Conn Power HDR 16 POS 3mm Solder ST Thru-Hole 16 Terminal 1 Port Product Highlights:HeaderConnector Type = Header - PinThrough Hole Contact Termination TypeNumber of Positions = 16Number of Rows = 2Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector HEADER, 2ROW, 16WAY 16WD/ROWPINHDRVERT Pin header Pitch3 mm Poles 16 Contact DesignMale MATE-N-LOK, 4-794630-6, TE Connectivity TE Connectivity Micro MATE-N-LOK 系列 3mm节距 16路 直 PCB 针座, 焊接端接, 5A , 通孔 16P MICRO MNL ASSY,VRT,HDR,LF
4-794618-6
te connectivity / amp

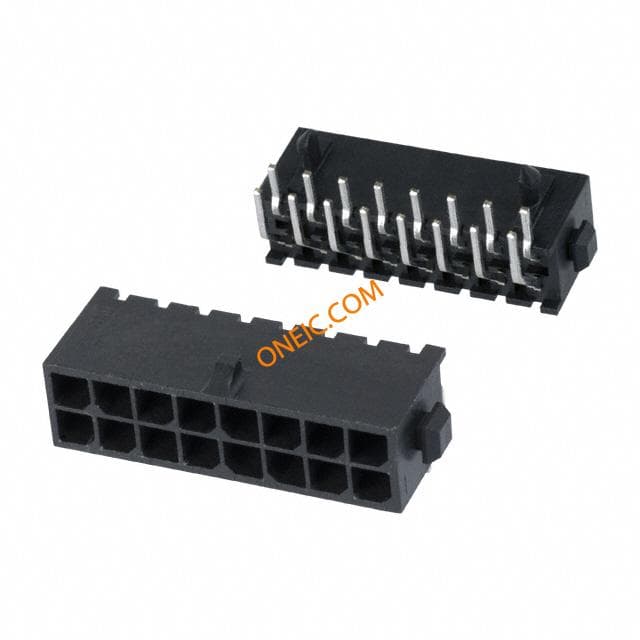

Conn Power HDR 16 POS 3mm Solder RA Thru-Hole 16 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 16POS DUAL R/A TIN TE Connectivity MATE-N-LOK Series 3mm Pitch 16 Way Right Angle Heavy Duty Power Connector, Solder Termination, 5A Pin & Socket Connectors HDR ASSY 16P R/A TIN Conn Power HDR 16 POS 3mm Solder RA Thru-Hole 16 Terminal 1 Port Product Highlights:ConnectorConnector Type = Header - PinThrough Hole Contact Termination Type16 PositionsNumber of Rows = 2Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector HEADER, RIGHT ANGLE, DUAL ROW, 16 WAY 16way2rowr/aheaderMate-N-Lok Pin header Pitch3 mm Poles 16 Contact DesignMale MATE-N-LOK, 4-794618-6, TE Connectivity TE Connectivity Micro MATE-N-LOK 系列 3mm节距 16路 直角 PCB 针座, 焊接端接, 5A , 通孔 16P MICRO MNL ASSY R/A HDR LF
4-794620-6
te connectivity / amp

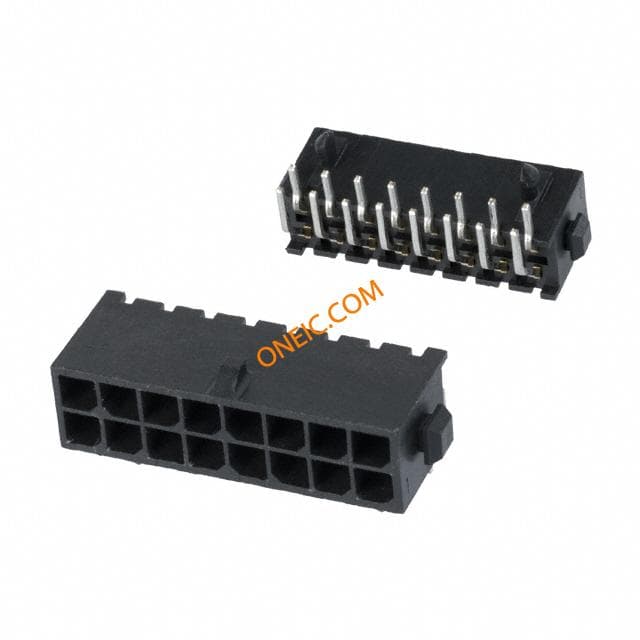

Conn Power HDR 16 POS 3mm Solder RA Thru-Hole 16 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 16POS DUAL R/A GOLD Pin & Socket Connectors HDR ASSY 16P R/A 30 AU 4-794620-6 Conn Power HDR 16 POS 3mm Solder RA Thru-Hole 16 Terminal 1 Port Product Highlights:HeaderConnector Type = Header - PinThrough Hole Contact Termination TypeNumber of Positions = 16Number of Rows = 2Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector 16P MICRO MNL ASSY,R/A,HDR,LF
