点击放大查看
1-794550-4
| Manufacturer | |
| Description | Conn Housing PL 14 POS 4.2mm Crimp ST 4.2mm & 4.4mm Centerline, 600 V, 9 A max. Dual Action CONN PLUG HOUSING 14POS PNL MNT Pin & Socket Connectors 14P PLUG 94V-2 PN MT DUAC 1-794550-4 Conn Housing PL 14 POS 4.2mm Crimp ST Product Highlights:HousingAMP-DUACPlugNumber of Positions = 14UL 94V-2Search Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Lighting Interconnection, Cabled Power, discrete wire, crimp, pcb connectors, Molex Mini-Fit Jr, DUAC, DUAC UPC, DUAC PL, ATX power, power 14P DUAC PLUG HSG 94V-2 PAN MT |
| Category |
Business
| Product Category | Pin & Socket Connectors | Standard Package | Bulk |
| Factory Pack Quantity | 200 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Part Status | E28476 |
| Standard Number | CSA | UL Flammability Rating | UL 94V-2 |
| Approval Agency Marking | 是 | ||
Electrical
| Voltage Rating | 600 VAC | Voltage - Supply | 600 |
| Current Rating (Max) | 9 A | ||
Mechanical
| Color | Natural | Pitch | 4.2 mm |
| Width | 23.9 mm [ .94 in ] | Length | 25.2 mm [ .99 in ] |
| Sealed | Not Sealed | Packaging | Bulk |
| Row Spacing | 0.165" (4.20mm) | Contact Type | Male Pin |
| Mounting Type | Straight | Connector Type | Plug |
| Contact Finish | Without | Fastening Type | Locking Ramp |
| Mounting Style | Panel | Number of Rows | 2 |
| Package / Case | Plug | Height (Inches) | 11.7 |
| Insertion Force | 4 | Housing Material | Nylon |
| Package Quantity | 200 | Termination Style | Solder |
| 1st Contact Gender | Pin (Male) | Number of Contacts | 14 |
| Contact Termination | Crimp | Number of Positions | 14 |
| 1st Connector Mounting Type | Panel | ||
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | PL | Series | Amp Duac |
| Product Type | Plug Housings | ||
Environmental
| Temperature - Test | 标准件 - 非灼热丝 | Operating Temperature | -55 – 105 °C [ -67 – 221 °F ] |
Documents & Media
Similar Parts
794578-1
te connectivity / amp
Contact PIN Crimp ST Cable Mount Reel 4.2mm & 4.4mm Centerline, 600 V, 9 A max. Dual Action CONN PIN 22-26AWG TIN CRIMP TERM Pin & Socket Connectors AMP DUAC PIN AMP DUAC PIN 26-22 AWG TIN
1-794657-4
te connectivity / amp
Conn Housing RCP 14 POS 4.2mm Crimp ST Cable Mount 4.2mm & 4.4mm Centerline, 600 V, 9 A max. Dual Action CONN RCPT HOUSING 14POS POS LOCK Pin & Socket Connectors 14P RCPT HSG 94V-0 4.2mm & 4.4mm Centerline, 600 V, 9 A max. Dual Action Product Highlights:HousingAMP-DUACReceptacle0 Power Positions14 Signal PositionsSearch Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Lighting Interconnection, Cabled Power, discrete wire, crimp, pcb connectors, Molex Mini-Fit Jr, DUAC, DUAC UPC, DUAC PL, ATX power, power 14P RCPT HSG 94V-0
794579-1
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Terminals DUAC PIN 26-22 TIN 4.2mm & 4.4mm Centerline, 600 V, 9 A max. Dual Action CONN PIN 22-26 AWG TIN Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactAMP-DUACPinWire Range = 0.12-0.40² [26-22] mm [AWG]Pre-Tin Contact Mating Area PlatingSearch Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Lighting Interconnection, Cabled Power, discrete wire, crimp, pcb connectors, Molex Mini-Fit Jr, DUAC, DUAC UPC, DUAC PL, ATX power, power Amp- Dual Action 26-22 AWG Male Pin Contact AMP DUAC PIN 26-22 AWG TIN LP

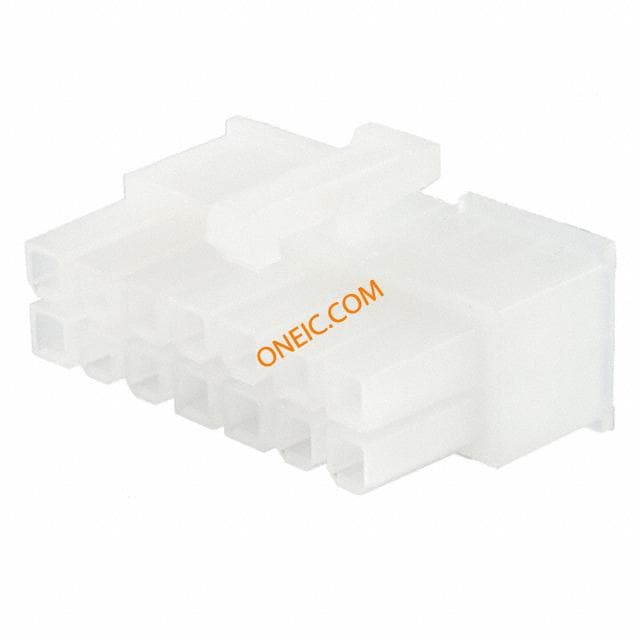

1-106527-4
