1-794141-3
| Manufacturer | |
| Description | Contact SKT Crimp ST Cable Mount Loose Piece 4.2mm & 4.4mm Centerline, 600 V, 9 A max. Dual Action CONN SOCKET 22-18 AWG 30GOLD Contact,crimp,sckt,straight,Au,22-18awg Pin & Socket Connectors SCKT 22-18 AWG 30 AU DUAC Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactAMP-DUACSocket0 Power PositionsWire Range = 0.30-0.90² [22-18] mm [AWG]Search Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Lighting Interconnection, Cabled Power, discrete wire, crimp, pcb connectors, Molex Mini-Fit Jr, DUAC, DUAC UPC, DUAC PL, ATX power, power CRIMP SOCKET, 22-18AWG TE Connectivity AMP-DUAC 系列 母 压接触点, 压接, 镀金镀镍触点 AMP DUAC CONN SCKT CONT LP LF |
| Category |
Business
| Other Names | 17941413 | Product Category | Pin & Socket Connectors |
| Standard Package | Bulk | Factory Pack Quantity | 1000 |
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
| Leadfree Defin | Not relevant for lead free process | RoHSELV Compliance | RoHS compliant, ELV compliant |
Electrical
| Voltage Rating | :600V | Current Rating (Max) | :9A |
| Connector - Voltage Input | AMP-DUAC | ||
Mechanical
| Weight | 0.1 | Packaging | Bulk |
| Wire Gauge | 18-22 AWG | Termination | Crimp |
| Contact Size | :18 | Contact Type | Signal |
| Pin or Socket | Socket | Connector Type | Connector Headers and PCB Receptacles |
| Contact Finish | Gold Over Nickel | Contact Material | Phosphor Bronze |
| Package Quantity | Loose Piece | 1st Contact Gender | :Socket |
| Contact Termination | Crimp | Insulation Diameter | 1.50-2.40 [.059-.094] |
| Number of Positions | 0 | Contact Finish Thickness | 30µin (0.76µm) |
| Wire Gauge or Range - AWG | :22AWG | Wire Gauge or Range - mm2 | 0.30-0.90² [22-18] |
| Diameter - Outside, Non-Expanded | :2.4mm | ||
Product Info
| Gender | SKT | Series | :AMP-DUAC |
| CAD Drawing | 3D CAD Model | Product Type | Contact |
| For Use With/Related Products | AutomotiveConnector | ||
Environmental
| Operating Temperature | +105°C | Usable Temperature Range | -55to+105°C |
| Operating Temperature - Junction | 105°C | ||
Documents & Media
Similar Parts
794657-2
te connectivity / amp
Conn Housing RCP 2 POS Crimp ST Cable Mount 4.2mm & 4.4mm Centerline, 600 V, 9 A max. Dual Action HOUSING RCPT 2POS POS LOCK Pin & Socket Connectors 02P RCPT HSG 94V-0 4.2mm (.165") Centerline, 600 V, 9 A max. Dual Action 4.2mm (.165") Centerline, 600 V, 9 A max. Dual Action Product Highlights:HousingAMP-DUACReceptacleNumber of Positions = 2UL 94V-0Search Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Lighting Interconnection, Cabled Power, discrete wire, crimp, pcb connectors, Molex Mini-Fit Jr, DUAC, DUAC UPC, DUAC PL, ATX power, power 02P RCPT HSG 94V-0
1-794657-0
te connectivity / amp
Conn Housing RCP 10 POS 4.2mm Crimp ST Cable Mount 4.2mm & 4.4mm Centerline, 600 V, 9 A max. Dual Action CONN RCPT HOUSING 10POS 94V-0 Pin & Socket Connectors 10P RCPT HSG 94V-0 AMP-DUAC Conn Housing RCP 10 POS 4.2mm Crimp ST Cable Mount Product Highlights:HousingAMP-DUACReceptacleNumber of Positions = 10UL 94V-0Search Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Lighting Interconnection, Cabled Power, discrete wire, crimp, pcb connectors, Molex Mini-Fit Jr, DUAC, DUAC UPC, DUAC PL, ATX power, power 10P RCPT HSG 94V-0
2-794657-0
te connectivity / amp
Conn Housing RCP 20 POS 4.2mm Crimp ST Cable Mount 4.2mm & 4.4mm Centerline, 600 V, 9 A max. Dual Action CONN RCPT HOUSING 20POS POS LOCK Pin & Socket Connectors 20P RCPT HSG 94V-0 AMP-DUAC Conn Housing RCP 20 POS 4.2mm ST Conn Housing RCP 20 POS 4.2mm Crimp ST Cable Mount Product Highlights:HousingAMP-DUACReceptacle0 Power Positions20 Signal PositionsSearch Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Lighting Interconnection, Cabled Power, discrete wire, crimp, pcb connectors, Molex Mini-Fit Jr, DUAC, DUAC UPC, DUAC PL, ATX power, power PLUG & SOCKET HOUSING, RECEPTACLE, NYLON 20P RCPT HSG 94V-0
1-794657-6
te connectivity / amp
Conn Housing RCP 16 POS 4.2mm Crimp ST Cable Mount 4.2mm & 4.4mm Centerline, 600 V, 9 A max. Dual Action CONN RCPT 16POS .165 NATURAL Pin & Socket Connectors 16P RCPT HSG 94V-0 Conn Housing RCP 16 POS 4.2mm Crimp ST Cable Mount Product Highlights:HousingAMP-DUACReceptacle0 Power Positions16 Signal PositionsSearch Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Lighting Interconnection, Cabled Power, discrete wire, crimp, pcb connectors, Molex Mini-Fit Jr, DUAC, DUAC UPC, DUAC PL, ATX power, power 16P RCPT HSG 94V-0
1-794657-4
te connectivity / amp
Conn Housing RCP 14 POS 4.2mm Crimp ST Cable Mount 4.2mm & 4.4mm Centerline, 600 V, 9 A max. Dual Action CONN RCPT HOUSING 14POS POS LOCK Pin & Socket Connectors 14P RCPT HSG 94V-0 4.2mm & 4.4mm Centerline, 600 V, 9 A max. Dual Action Product Highlights:HousingAMP-DUACReceptacle0 Power Positions14 Signal PositionsSearch Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Lighting Interconnection, Cabled Power, discrete wire, crimp, pcb connectors, Molex Mini-Fit Jr, DUAC, DUAC UPC, DUAC PL, ATX power, power 14P RCPT HSG 94V-0

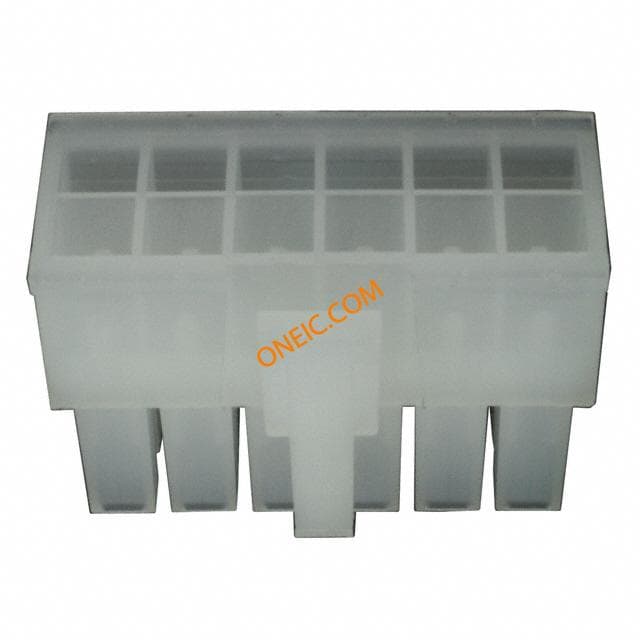

1-106527-2
te connectivity / amp
Conn Housing RCP 12 POS 4.2mm Crimp ST Cable Mount 4.2mm & 4.4mm Centerline, 600 V, 9 A max. Dual Action CONN RECEPT 12POS W/POSTIVE LOCK Pin & Socket Connectors RECPT 12P W/POS LOCK AMP-DUAC Conn Housing RCP 12 POS 4.2mm Crimp ST Cable Mount Product Highlights:HousingAMP-DUACReceptacleNumber of Positions = 12UL 94V-2Search Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Lighting Interconnection, Cabled Power, discrete wire, crimp, pcb connectors, Molex Mini-Fit Jr, DUAC, DUAC UPC, DUAC PL, ATX power, power 12P DUAC REC HSG
2-106527-2
te connectivity / amp
Conn Housing RCP 22 POS 4.2mm Crimp ST Cable Mount 4.2mm & 4.4mm Centerline, 600 V, 9 A max. Dual Action CONN RECEPT 22POS W/POSTIVE LOCK Pin & Socket Connectors 22P DUAC REC HSG 4.2mm & 4.4mm Centerline, 600 V, 9 A max. Dual Action Product Highlights:HousingAMP-DUACReceptacle0 Power Positions22 Signal PositionsSearch Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Lighting Interconnection, Cabled Power, discrete wire, crimp, pcb connectors, Molex Mini-Fit Jr, DUAC, DUAC UPC, DUAC PL, ATX power, power 22P DUAC REC HSG

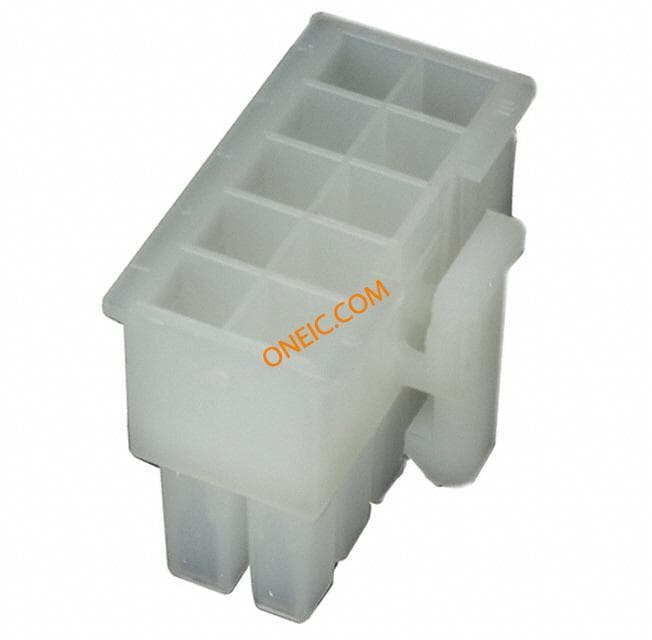

1-106527-0
te connectivity / amp
Conn Housing RCP 10 POS 4.2mm Crimp ST Cable Mount 4.2mm & 4.4mm Centerline, 600 V, 9 A max. Dual Action CONN RECEPT 10POS W/POSTIVE LOCK Pin & Socket Connectors 10P RECPT HSG 94V-2 AMP-DUAC Conn Housing RCP 10 POS 4.2mm Crimp ST Cable Mount Product Highlights:HousingAMP-DUACReceptacle0 Power Positions10 Signal PositionsSearch Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Lighting Interconnection, Cabled Power, discrete wire, crimp, pcb connectors, Molex Mini-Fit Jr, DUAC, DUAC UPC, DUAC PL, ATX power, power PLUG & SOCKET HOUSING, RECEPTACLE, NYLON 10P DUAC REC HSG
1-106527-4
te connectivity / amp
Conn Housing RCP 14 POS 4.2mm Crimp ST Cable Mount 4.2mm & 4.4mm Centerline, 600 V, 9 A max. Dual Action 14P DUAC REC HSG Pin & Socket Connectors RECPT 14P W/POS LOCK AMP-DUAC 4.2mm & 4.4mm Centerline, 600 V, 9 A max. Dual Action Product Highlights:HousingAMP-DUACReceptacle0 Power Positions14 Signal PositionsSearch Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Lighting Interconnection, Cabled Power, discrete wire, crimp, pcb connectors, Molex Mini-Fit Jr, DUAC, DUAC UPC, DUAC PL, ATX power, power
106527-4
te connectivity / amp
Conn Housing RCP 4 POS 4.2mm Crimp ST Cable Mount 4.2mm & 4.4mm Centerline, 600 V, 9 A max. Dual Action CONN RECEPT 4POS W/POSTIVE LOCK Housing 4 way receptacle Duac Headers & Wire Housings 4-POS DUAC RECPT Conn Housing RCP 4 POS 4.2mm ST Conn Housing RCP 4 POS 4.2mm Crimp ST Cable Mount Product Highlights:HousingAMP-DUACReceptacleNumber of Positions = 4UL 94V-2Search Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Lighting Interconnection, Cabled Power, discrete wire, crimp, pcb connectors, Molex Mini-Fit Jr, DUAC, DUAC UPC, DUAC PL, ATX power, power Housing4wayreceptacleDuac AMP-DUAC?4 Position Strain Relief Female Receptacle Housing Connector TE Connectivity AMP-DUAC 系列 2 行 4.2mm 节距 4 路 直 母 电缆安装 压接连接器外壳 04P DUAC REC HSG
1-794657-8
te connectivity / amp
Conn Housing RCP 18 POS 4.2mm Crimp ST Cable Mount 4.2mm & 4.4mm Centerline, 600 V, 9 A max. Dual Action CONN RCPT 18POS .165 NATURAL Pin & Socket Connectors 18P RCPT HSG 94V-0 4.2mm & 4.4mm Centerline, 600 V, 9 A max. Dual Action Product Highlights:HousingAMP-DUACReceptacle0 Power Positions18 Signal PositionsSearch Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Lighting Interconnection, Cabled Power, discrete wire, crimp, pcb connectors, Molex Mini-Fit Jr, DUAC, DUAC UPC, DUAC PL, ATX power, power 18P RCPT HSG 94V-0
106527-2
te connectivity / amp
Conn Housing RCP 2 POS Crimp ST Cable Mount 4.2mm & 4.4mm Centerline, 600 V, 9 A max. Dual Action CONN RECEPT 2POS W/POSTIVE LOCK Headers & Wire Housings 02P DUAC REC HSG Conn Housing RCP 2 POS Crimp ST Cable Mount Product Highlights:HousingAMP-DUACReceptacleNumber of Positions = 2UL 94V-2Search Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Lighting Interconnection, Cabled Power, discrete wire, crimp, pcb connectors, Molex Mini-Fit Jr, DUAC, DUAC UPC, DUAC PL, ATX power, power PLUG AND SOCKET CONNECTOR HOUSING TE Connectivity AMP-DUAC 系列 4.2mm 节距 2 路 直 母 电缆安装 压接连接器外壳 02P DUAC REC HSG
106527-6
te connectivity / amp
Conn Housing RCP 6 POS 4.2mm Crimp ST Cable Mount 4.2mm & 4.4mm Centerline, 600 V, 9 A max. Dual Action CONN RECEPT 6 POS W/POSTIVE LOCK Headers & Wire Housings DUAC Conn Housing RCP 6 POS 4.2mm Crimp ST Cable Mount Product Highlights:HousingAMP-DUACReceptacleNumber of Positions = 6UL 94V-2Search Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Lighting Interconnection, Cabled Power, discrete wire, crimp, pcb connectors, Molex Mini-Fit Jr, DUAC, DUAC UPC, DUAC PL, ATX power, power DUACHousing;6PositionReceptacle 06P DUAC REC HSG
1-106527-6
te connectivity / amp
Conn Housing RCP 16 POS 4.2mm Crimp ST Cable Mount 4.2mm & 4.4mm Centerline, 600 V, 9 A max. Dual Action CONN RECEPT 16POS W/POSTIVE LOCK Pin & Socket Connectors 16P RCPT W/POS LOCK Conn Housing RCP 16 POS 4.2mm Crimp ST Cable Mount Product Highlights:HousingAMP-DUACReceptacle0 Power Positions16 Signal PositionsSearch Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Lighting Interconnection, Cabled Power, discrete wire, crimp, pcb connectors, Molex Mini-Fit Jr, DUAC, DUAC UPC, DUAC PL, ATX power, power AMP-DUAC 16 Position Strain Relief Female Receptacle Housing Connector 16P DUAC REC HSG
2-106527-4
te connectivity / amp
Conn Housing RCP 24 POS 4.2mm Crimp ST Cable Mount 4.2mm & 4.4mm Centerline, 600 V, 9 A max. Dual Action CONN RECEPT 24POS W/POSTIVE LOCK Pin & Socket Connectors 24P DUAC REC HSG Conn Housing RCP 24 POS 4.2mm Crimp ST Cable Mount Product Highlights:HousingAMP-DUACReceptacle0 Power Positions24 Signal PositionsSearch Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Lighting Interconnection, Cabled Power, discrete wire, crimp, pcb connectors, Molex Mini-Fit Jr, DUAC, DUAC UPC, DUAC PL, ATX power, power 24P DUAC REC HSG

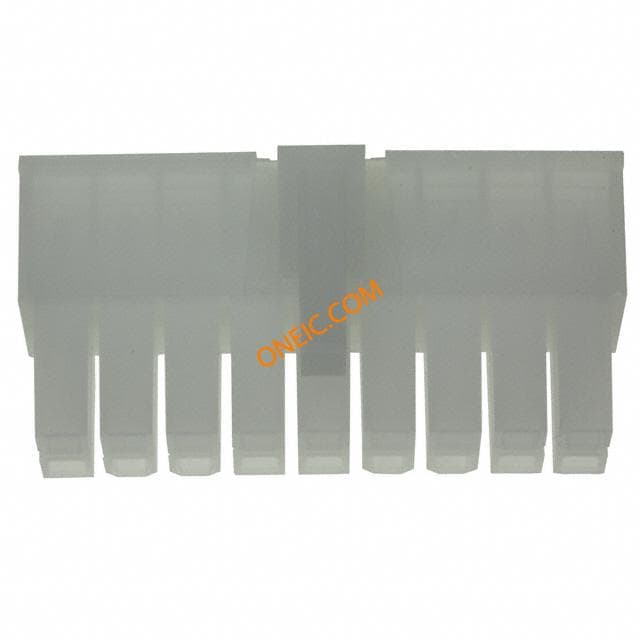

1-106527-8
