1-794073-0
| Manufacturer | |
| Description | Conn Power PIN 8 POS 4.14mm Solder ST Thru-Hole 8 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HEADER 8POS VERT .163 TIN TE Connectivity MATE-N-LOK Series 4.14mm Pitch 8 Way Straight Heavy Duty Power Connector, Solder Termination, 9.5A Headers & Wire Housings HEADER 8 POS TIN DUAL ROW Conn Power PIN 8 POS 4.14mm Solder ST Thru-Hole 8 Terminal 1 Port Product Highlights:HeaderMini-Universal MATE-N-LOK, Mini-Universal MATE-N-LOK 2Number of Circuits = 84.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP PLUG & SOCKET CONN, PLUG, 8POS, 4.14MM HDR,PLUG,8WPINCONTACT Pin header Pitch4.14 mm Poles 2 x 4 straight MATE-N-LOK Mini Universal, 1-794073-0, TE Connectivity TE Connectivity Mini-Universal Mate-N-Lok 系列 4.14mm节距 8路 直 PCB 针座, 焊接端接, 9.5A , 通孔 08P MINI UMNL HDR W/O DH SN LF |
| Category |
Business
| Tradename | MATE-N-LOK | Product Category | Headers & Wire Housings |
| Standard Package | Bulk | Factory Pack Quantity | 200 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85369010 | ||
Electrical
| Voltage Rating | 600 V ac | Switch Function | Latched |
| Current Rating (Max) | 9.5A | Voltage - Input (Min) | 600VAC |
| Voltage - Supply (Min) | 600VAC | ||
Mechanical
| Color | White | Pitch | 4.14 mm |
| Height | 14.25 mm | Weight | 0.002 |
| Packaging | Bulk | Row Spacing | 0.163" (4.14mm) |
| Termination | Solder | Contact Type | Male Pin |
| Mounting Type | Through Hole | Connector Type | Header, Shrouded |
| Contact Finish | Tin Over Nickel | Fastening Type | Locking Ramp |
| Mounting Style | Through Hole | Number of Rows | 2 |
| Contact Material | Brass | Housing Material | Nylon |
| Termination Style | Through Hole | 1st Contact Gender | Pin (Male) |
| Number of Contacts | 8 | Contact Termination | :Through Hole Vertical |
| Number of Positions | 8 | Contact Finish Thickness | 150µin (3.81µm) |
| 1st Connector Mounting Type | :PCB | ||
Product Info
| Type | Power | Gender | PIN |
| Series | MATE-N-LOK | Features | Board Lock |
| Product Type | Headers | Number of Ports | 1 |
| Number of Positions Loaded | All | ||
Documents & Media
Similar Parts

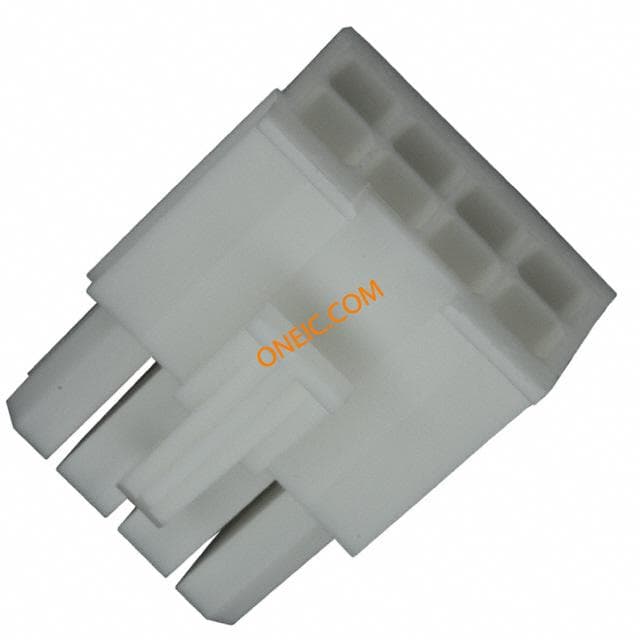

770579-1
